Add sites in BlueXP disaster recovery for Amazon EVS
Suggest changes
PDFs
Before you can protect your VM infrastructure, identify which VMware vCenter clusters are hosting the VMs to be protected and where those vCenters are located. The first step is to create a site to represent the source and destination datacenters. A site is a failure domain or a recovery domain.
You need to create the following:
-
A site to represent each production datacenter where your production vCenter clusters reside
-
A site for your Amazon EVS/Amazon FSx for NetApp ONTAP cloud datacenter
Create on-premises sites
Create a production vCenter site.
-

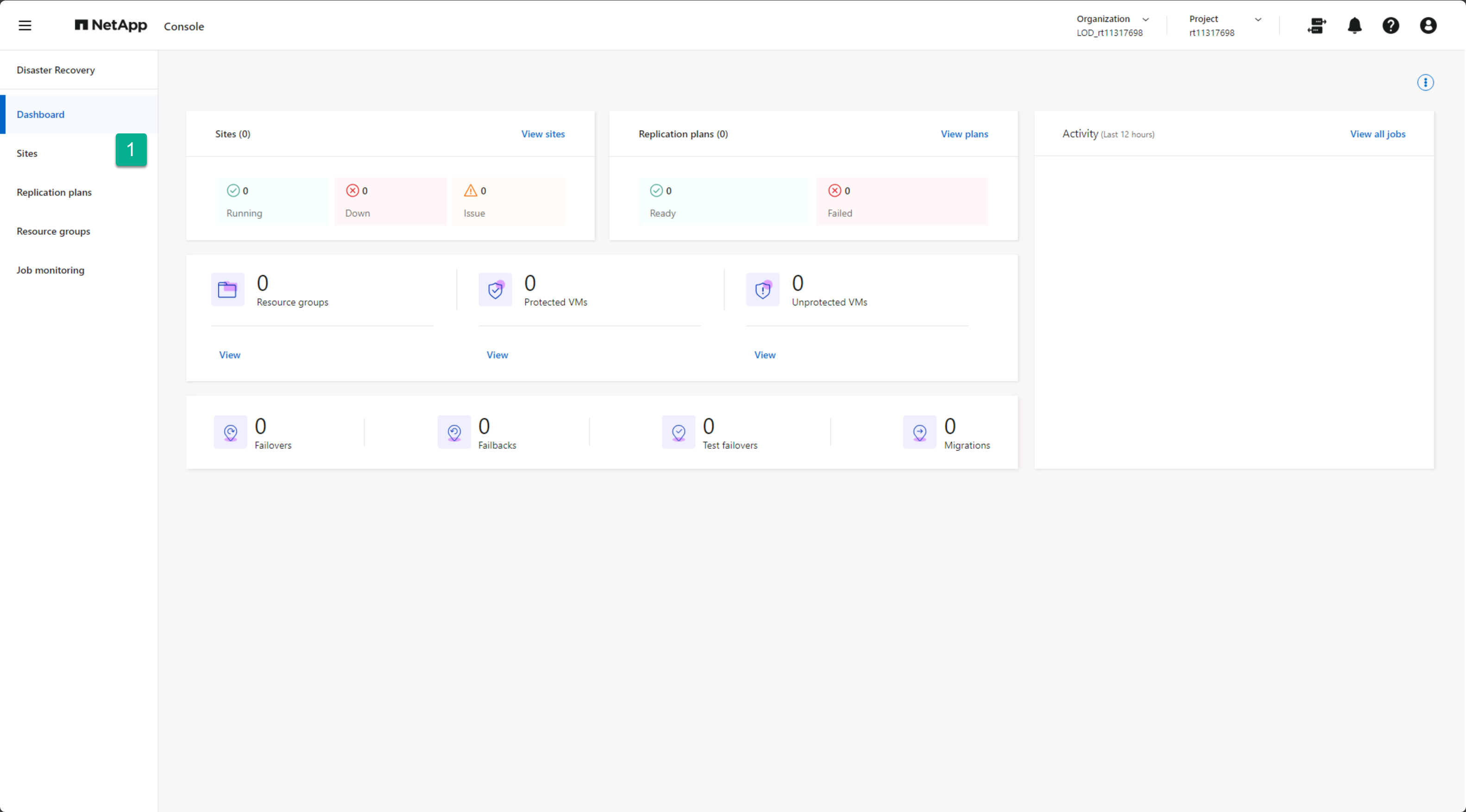

From the BlueXP left navigation, select Protection > Disaster Recovery.
-
From any page in BlueXP disaster recovery, select the Sites tab.
-

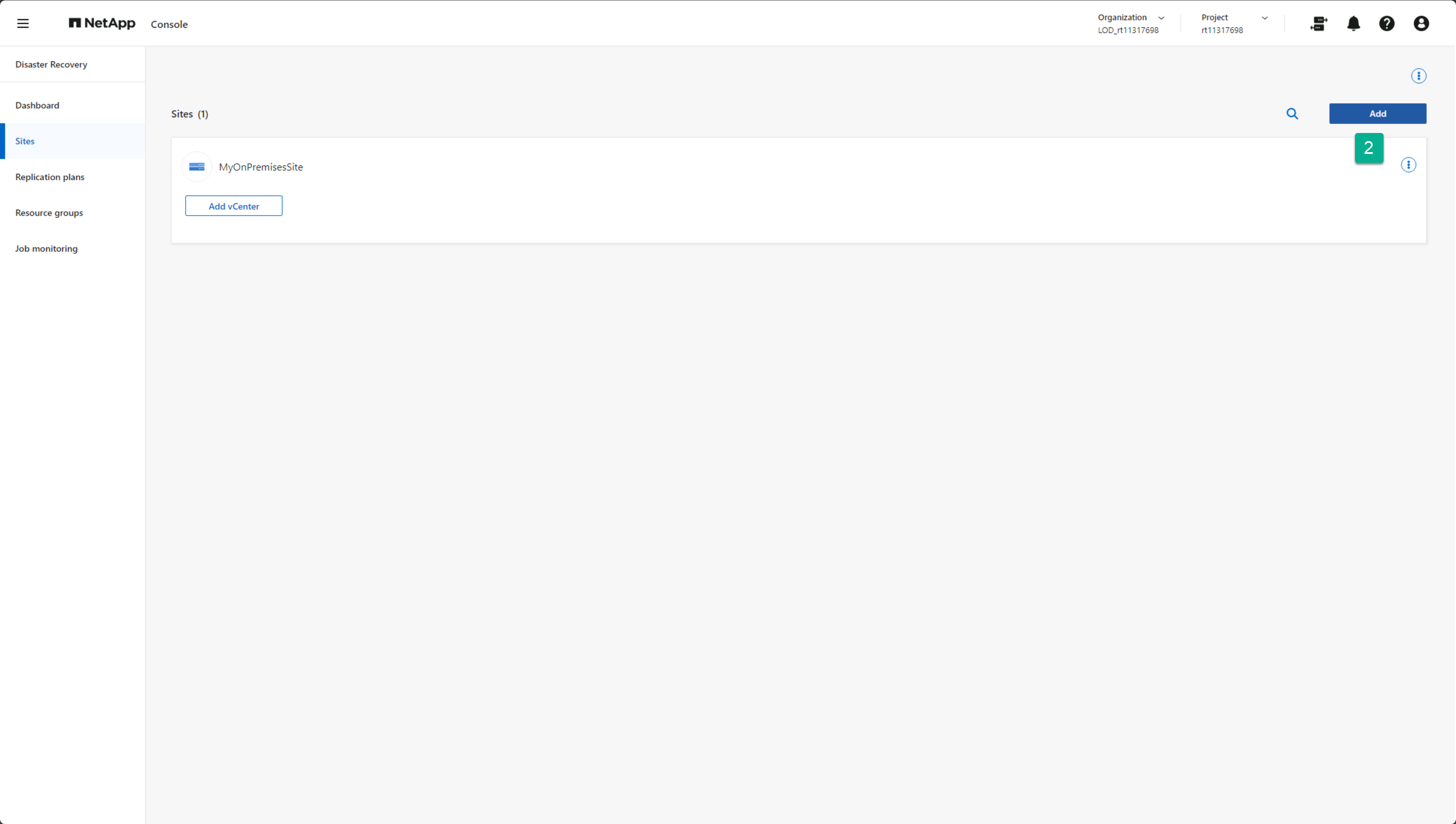

From the Sites tab, select Add.
-

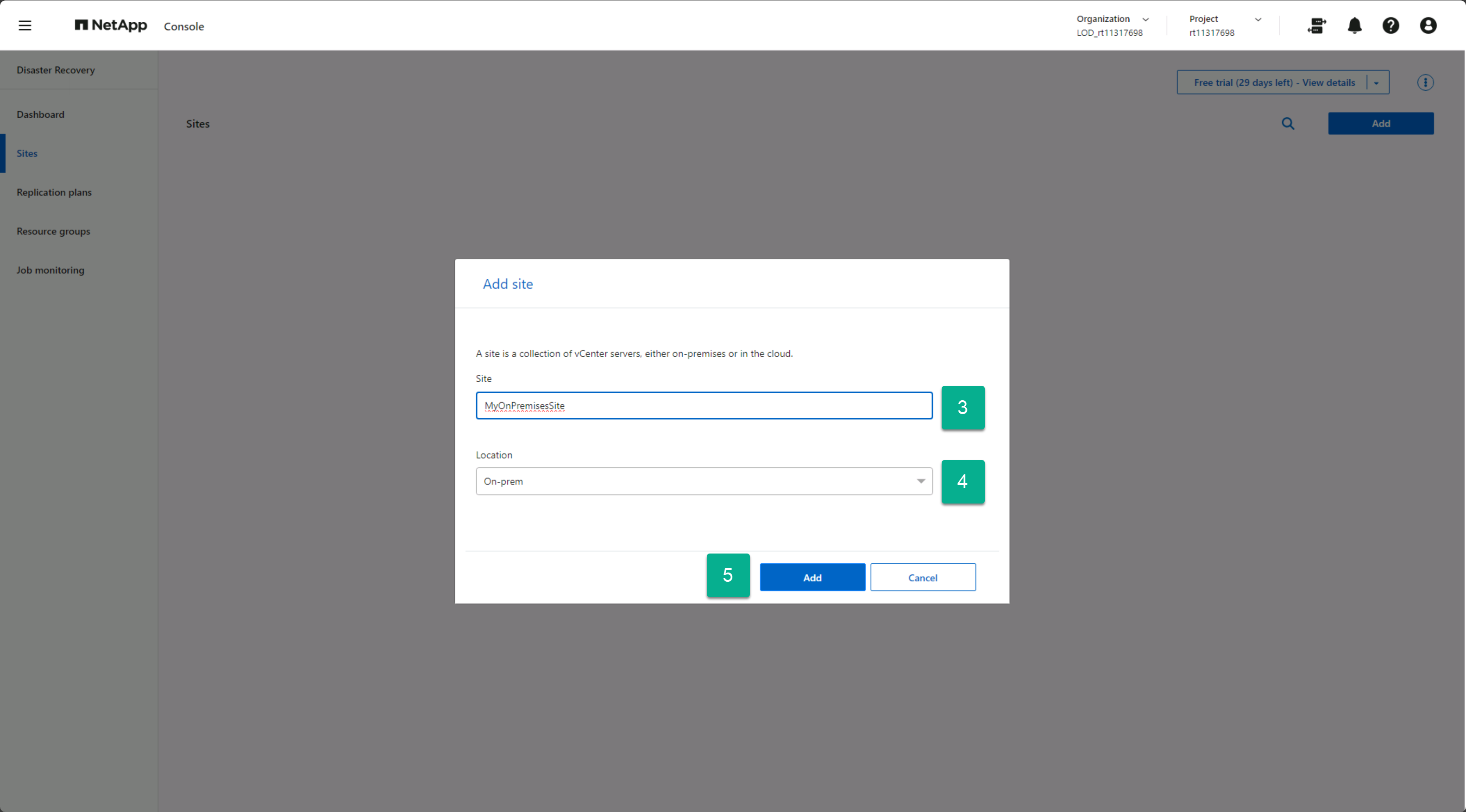

In the Add site dialog box, provide a site name.
-
Select “On-prem” as the Location.
-
Select Add.
If you have other production vCenter sites, you can add them using the same steps.
Create Amazon cloud sites
Create a DR site for Amazon EVS using Amazon FSx for NetApp ONTAP storage.
-
From any page in BlueXP disaster recovery, select the Sites tab.
-
From the Sites tab, select Add.
-

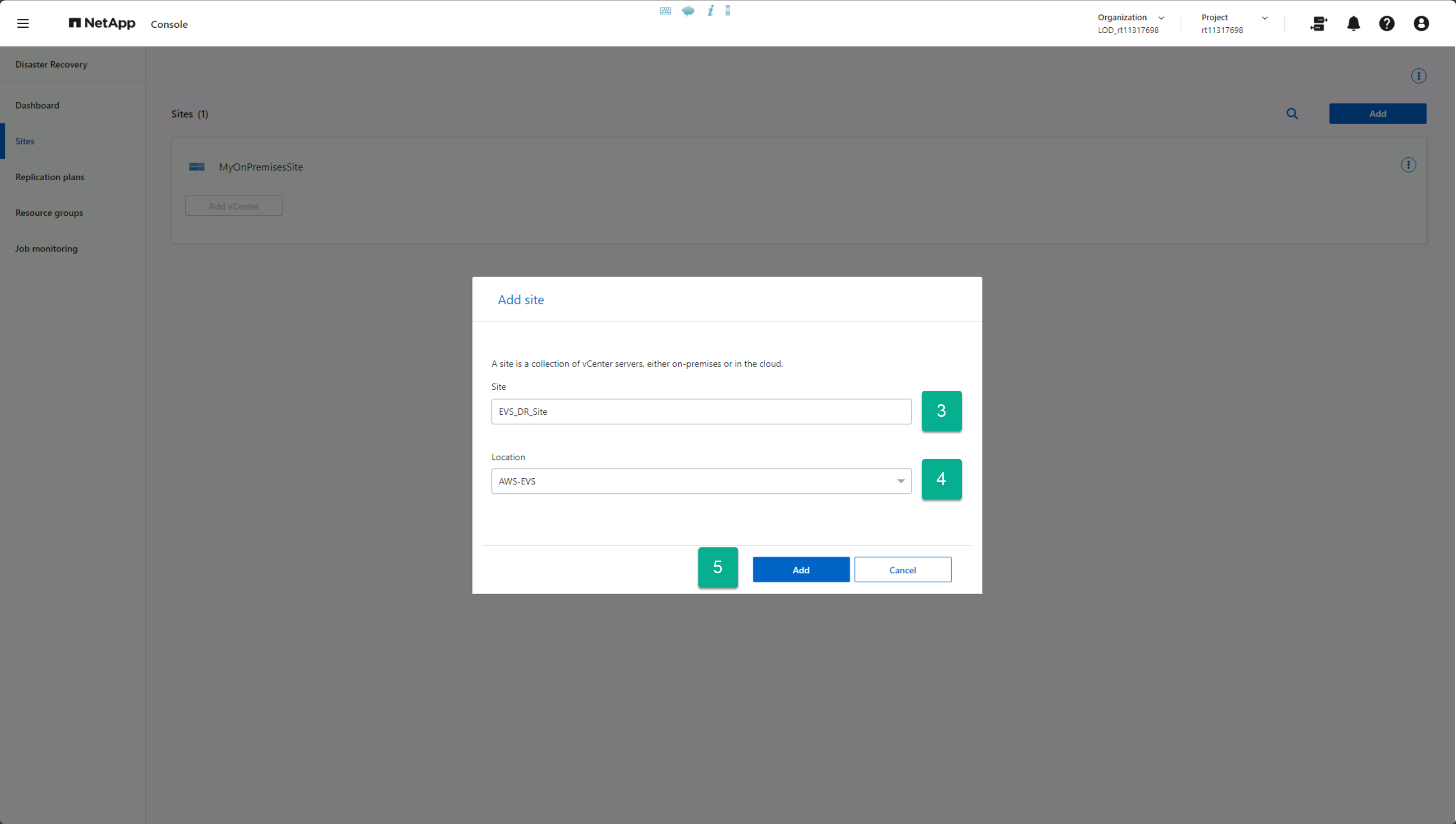

In the Add site dialog box, provide a site name.
-
Select "AWS-EVS" as the Location.
-
Select Add.
You now have a production (source) site and a DR (destination) site created.
