Deploy hybrid AI training with Union.ai and NetApp FlexCache

Contributors sathyaga
PDFs

Learn how to deploy a hybrid AI training environment using Union.ai orchestration with NetApp FlexCache and Trident for Kubernetes storage provisioning.

David Espejo, Union.ai
Sathish Thyagarajan, NetApp

Overview

Union.ai’s hybrid orchestration platform integrates seamlessly with NetApp ONTAP and FlexCache to accelerate AI/ML training workflows. This solution allows data to remain securely on-premises while leveraging cloud-based GPU compute for AI training workloads. NetApp FlexCache ensures only necessary data is cached in the cloud, enabling efficient, secure, and scalable hybrid AI/ML pipelines.

Customer Use Case: Hybrid Cloud AI Training

  • On-premises data: Stored on NetApp ONTAP for compliance and security.

  • Cloud compute: Scalable GPU training on EKS/GKE/AKS.

  • AI/ML orchestration: Union.ai coordinates data processing and training
    across environments.

  • Storage provisioning: NetApp Trident automates PVC/PV provisioning.

Customer Value

  • Run AI workloads on massive datasets using NetApp ONTAP’s scale-out
    capabilities.

  • Move and sync data across on-prem and cloud using NetApp’s hybrid
    cloud features.

  • Quickly cache on-prem data in the cloud using FlexCache.

  • Union.ai simplifies orchestration across environments with versioning,
    lineage tracking, and artifact management.

  • Execute training in the cloud while keeping sensitive data
    on-premises.

Enabling the Plugin – Prerequisites

Requirement

Details

ONTAP Version

ONTAP 9.7+ (FlexCache license not required)

FlexCache License

Required on ONTAP 9.6 and earlier

Kubernetes

On-prem and cloud clusters (EKS/GKE/AKS)

Trident

Installed on both on-prem and cloud clusters

Union.ai

Control plane deployed (Union Cloud or self-hosted)

Networking

Inter-cluster connectivity (if ONTAP clusters are separate)

Permissions

Admin access to ONTAP and Kubernetes clusters.

✅ Use correct ONTAP credentials (e.g., vsadmin)

New to Union.ai?

See the companion guide at the end of this doc

Reference Architecture

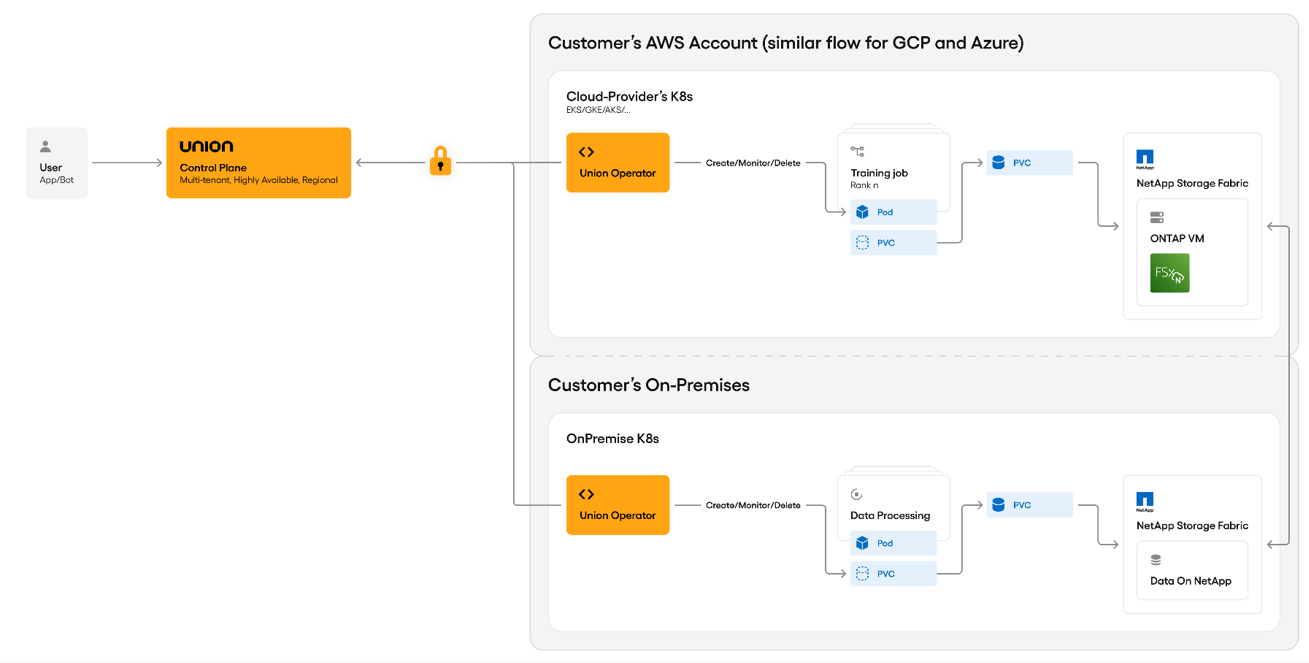

The following figure shows the Union.ai control plane integrated with NetApp storage for hybrid AI training.

Hybrid AI training architecture with Union.ai and NetApp

  • Union.ai Control Plane: Orchestrates workflows, manages data movement,
    and integrates with NetApp APIs.

  • NetApp ONTAP + FlexCache: Provides efficient data caching from on-prem
    to cloud.

  • Hybrid Training Clusters: Training jobs run in cloud K8s clusters
    (e.g., EKS) with data cached from on-prem.

Step 1: Create a FlexCache Volume

Using ONTAP System Manager

  1. Navigate to Storage > Volumes.

  2. Click Add.

  3. Select More Options.

  4. Enable Add as cache for a remote volume.

  5. Choose your source (on-prem) and destination (cloud) volumes.

  6. Define QoS or performance level (optional).

  7. Click Create.

💡If the NetApp DataOps Toolkit is not working due to permission or aggregate issues, create the FlexCache volume directly using ONTAP System Manager or CLI.

Step 2: Configure Trident

Install Trident on both clusters:

🔗
Trident Installation Guide

Create Trident Backend

apiVersion: trident.netapp.io/v1
kind: TridentBackendConfig
metadata:
name: ontap-flexcache
spec:
version: 1
storageDriverName: ontap-nas
managementLIF: <ONTAP-MGMT-IP>
dataLIF: <ONTAP-DATA-IP>
svm: <SVM-NAME>
username: vsadmin
password: <password>

Apply: kubectl apply -f backend-flexcache.yaml

If you receive a 401 Unauthorized error, verify that the ONTAP user has sufficient API permissions and that the correct username (vsadmin) and password are used.

Define StorageClass

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: flexcache-sc
provisioner: csi.trident.netapp.io
parameters:
backendType: "ontap-nas"
Apply:
kubectl apply -f storageclass-flexcache.yaml

Step 3: Deploy Union.ai Workflows

Union uses PVCs to mount FlexCache volumes into training jobs.

Example PodTemplate

apiVersion: v1
kind: PodTemplate
metadata:
name: netapp-podtemplate
namespace: flytesnacks-development
template:
metadata:
labels:
default-storage: netapp
spec:
containers:
- name: primary
volumeMounts:
- name: flexcache-storage
mountPath: /data/flexcache
volumes:
- name: flexcache-storage
persistentVolumeClaim:
claimName: flexcache-pvc

Example Workflow

from union import task, workflow

@task(pod_template="netapp-podtemplate")

def train_model(pvc_path: str):

Load and train on data from the PVC

@workflow

def training_pipeline():

train_model(pvc_path="/data/flexcache")

Union Operator will:

  • Create the PVC

  • Mount the FlexCache volume

  • Schedule the job in the cloud K8s cluster

Step 4: Validate Integration_

Task Validation

PVC Mount

Training pods should mount /data/flexcache successfully

Data Access

Training jobs can read/write from FlexCache

Cache Behavior

Monitor cache hit/miss in ONTAP. Ensure aggregates
support FlexCache

Performance

Validate latency and throughput for training workloads

Use NetApp BlueXP or ONTAP CLI to monitor performance.

Security Considerations

  • Use VPC endpoints for FSx for NetApp ONTAP

  • Enable encryption in transit and at rest

  • Apply RBAC/IAM for ONTAP access

  • Union.ai does not access or store customer data

Monitoring and Optimization

Tool

Purpose

NetApp BlueXP

Monitor FlexCache usage and performance

Union.ai UI

Track pipeline status and metrics

Trident Logs

Debug PVC or backend issues

Optional Enhancements

  • Automate FlexCache creation using BlueXP APIs

  • Use Union SDK to warm up cache before training

  • Add batch inference or model serving pipelines post-training

  • If DataOps Toolkit fails, fall back to manual FlexCache creation via
    System Manager

Troubleshooting

Issue Resolution

PVC stuck in Pending

Check Trident logs and backend config

401 Unauthorized from ONTAP API

Use vsadmin and verify permissions

Job failed: No suitable storage

Ensure ONTAP aggregate supports
FlexCache/FabricPool

Slow training performance

Check cache hit ratio and network latency

Data not syncing

Validate FlexCache relationship health in ONTAP

Next Steps

  1. Validate FlexCache with test data

  2. Deploy Union.ai training pipelines

  3. Monitor and optimize performance

  4. Document customer-specific setup

Conclusion

You now have a validated hybrid AI training environment using Union.ai and NetApp FlexCache. Training jobs can run in the cloud while accessing on-premises data securely and efficiently—without replicating entire datasets or compromising governance.

Union.ai - Companion Guide

Step 1: Choose Deployment Model

Option A: Union Cloud

Option B: Self-hosted

helm repo add unionai https://unionai.github.io/helm-charts/

helm install union unionai/union -n union-system -f values.yaml

Step 2: Install Union Operator

kubectl apply -f
https://raw.githubusercontent.com/unionai/operator/main/deploy/operator.yaml

kubectl get pods -n union-system

Step 3: Install Union CLI

pip install unionai

union login

Step 4: Register Workflow

union project create hybrid-ai

union register training_pipeline.py --project hybrid-ai

Step 5: Run & Monitor

union run training_pipeline --project hybrid-ai

union watch training_pipeline

View logs in the Union UI

Step 6: Register Compute Cluster (Optional)

union cluster register --name cloud-k8s --kubeconfig ~/.kube/config

Step 7: Track Artifacts & Lineage

Union automatically tracks:

  • Input/output parameters

  • Data versions

  • Logs and metrics

  • Execution lineage
