TR-5007: Optimize Oracle VLDB Backup & Recovery with In-Server Incremental Merge on Google Cloud NetApp Volumes
Contributors
Suggest changes
PDFs
Allen Cao, Niyaz Mohamed, NetApp
The solution provides an overview and details for quick recovery of Oracle VLDB deployed to Google Compute Engine VM with NFS mount on Google Cloud NetApp Volumes storage pool to stage a standby database copy that is incrementally merged constantly via RMAN.
Purpose
Recovering a Very Large Database (VLDB) in Oracle using the Oracle Recovery Manager (RMAN) backup tool can be a highly challenging task. The database restoration process from backup media in the event of a failure can be time-consuming, delaying the database recovery and potentially impacting your Service Level Agreement (SLA) significantly. The situation is getting even worse for Oracle VLDB deployed in the cloud as the RMAN backup is generally streamed to object storage due to cost considerations. As a result, it is not viable to restore and recover a VLDB if SLA is essential. Starting from version 10g, Oracle introduced an RMAN feature that allows users to create staged image copies of the Oracle database data files on additional disk storage located on the DB server host. These image copies can be incrementally updated using RMAN on a user-defined interval. In the case of a failure, the Database Administrator (DBA) can swiftly switch the Oracle database from the failed media to the image copy, eliminating the need for a complete database media restore. The result is a greatly improved SLA, albeit at the cost of doubling the required database storage.
If you are keen on SLA for your VLDB and contemplating moving the Oracle database to a public cloud such as Google Cloud Platform (GCP), you could set up a similar database protection structure using resources such as Google Cloud NetApp Volumes (GCNV) for staging your standby database image copy. GCNV is a fully managed, high-performance file storage service offered by Google that makes it easier, safer, and more cost-efficient to migrate and run demanding enterprise applications such as Oracle database in Google Cloud. Its varied service levels allow the flexibility to control the storage cost while achieving close to zero RPO and a manageable RTO. In this documentation, we demonstrate how to provision and export an NFS file system from a GCNV storage pool to be mounted on an Oracle database server for staging a standby database copy for quick recovery in the event of a primary storage failure.
This solution addresses the following use cases:
-
Oracle database data files image copy backup via RMAN to an in-server NFS file system on a Google Cloud NetApp Volumes storage pool.
-
Quick recovery of an Oracle VLDB in the event of a failure on the same or a standby Google Compute Engine VM.
-
Clone an Oracle database copy on a clone host for other use cases from the staging DB image copy in minutes.
Audience
This solution is intended for the following people:
-
A DBA who sets up and manages Oracle VLDB in the Google Cloud Platform.
-
A database solution architect who tests Oracle workloads in the Google Cloud Platform.
-
A storage administrator who manages Oracle databases deployed to GCNV storage pools.
-
An application owner who would like to stand up Oracle databases in Google Cloud Platform.
Solution test and validation environment
The testing and validation of this solution was performed in Google Cloud NetApp Volumes storage pools and Google Compute Engine VMs that might not match the final deployment environment. For more information, see the section Key factors for deployment consideration.
Architecture
Hardware and software components
Hardware |
||
Google Cloud NetApp Volumes storage pools |
Current services offered by Google |
2 TiB storage pool with Premium service, 2 TiB storage pool with standard service |
Google Compute Engine VM for DB server |
N1 (4 vcpus, 15 GiB memory) |
2 VMs, one as primary DB server and the other as a standby or clone DB server |
Software |
||
RedHat Linux |
Red Hat Enterprise Linux 8.10 (Ootpa) - x86/64 |
RHEL Marketplace image, PAYG |
Oracle Grid Infrastructure |
Version 19.18 |
Applied RU patch p34762026_190000_Linux-x86-64.zip |
Oracle Database |
Version 19.18 |
Applied RU patch p34765931_190000_Linux-x86-64.zip |
dNFS OneOff Patch |
p32931941_190000_Linux-x86-64.zip |
Applied to both grid and database |
Oracle OPatch |
Version 12.2.0.1.36 |
Latest patch p6880880_190000_Linux-x86-64.zip |
NFS |
Version 3.0 |
Oracle dNFS enabled |
Ansible |
Version core 2.16.2 |
python version - 3.10.13 |
Key factors for deployment consideration
-
GCNV storage pool service level. GCNV storage pool offers four service levels: Standard, Premium, Extreme, and Flex. By default, an auto QoS applies to a volume created within a storage pool, which restricts the throughput on the volume based on its size as well as the service level. The only exception is that volumes allocated from Flex storage pool share the throughput available to the storage pool.
-
Oracle VLDB in-server backup storage limit for RMAN incremental merge. In our test and validation, a NFS volume for Oracle incremental backup and merge is allocated from a single GCNV storage pool with standard service level, which has an 200 TiB capacity limit. For deployment over that thresholds, multiple GCNV storage pools can be implemented in parallel with multiple NFS mount points to provide higher capacity.
-
Oracle recoverability using RMAN incremental merge. The RMAN in-server incremental backup and merge is generally executed at a user-defined frequency based on your RTO and RPO objectives. If there is a total loss of primary database file storage and/or archived logs, data loss can occur. The Oracle database can be recovered up to the last incremental backup available from the in-server database backup image copy. To minimize data loss, the Oracle flash recovery area needs to be set up on GCNV NFS backup mount point, and archived logs are backed up to the same NFS mount along with database image copy to roll forward the database to the last archived log, in the event of a failure. Thus, near-zero RPO can be achieved.
-
Running Oracle VLDB off NFS image backup on GCNV storage pool. At this point, reassigning database volume service level from standard to premium or extreme is not supported. However, the reassigning of service levels from premium to extreme is supported. To run the database on image copy for an extended period after a failure, it is recommended to allocate volume from the premium storage pool for database image copy backup.
-
Google Compute Engine VMs. In the test and validation, we used N1 type of GCE VM instance as the Oracle database servers. There are other types of GCE VMs that may be more optimized and better suited for database workload. Size the VM appropriately for the number of vCPUs and the amount of RAM based on actual workload requirements.
-
dNFS configuration. dNFS is built into Oracle kernel and is known to dramatically increase Oracle database performance when Oracle is deployed to NFS storage. dNFS is packaged into Oracle binary but is not turned on by default. It should be turned on for any Oracle database deployment on NFS. For the multiple GCNV storage pools deployment for a VLDB, dNFS multi-paths to different GCNV storage pools should be properly configured.
Solution deployment
The solution assumes that an Oracle VLDB is already deployed in the Google Cloud environment within a VPC. The Oracle VLDB can run on either the GCNV storage or any other storage options within the Google Cloud ecosystem. The following section provides step-by-step deployment procedures for setting up an Oracle VLDB image backup and incremental merge via RMAN to a NFS file system mounted from a GCNV storage pool. The Oracle VLDB also has its primary storage hosted on a different GCNV storage pool.
Prerequisites for deployment
Details
Deployment requires the following prerequisites.
-
A GCP account has been set up, and the necessary VPC and network configuration have been created within a project in the Google Cloud account.
-

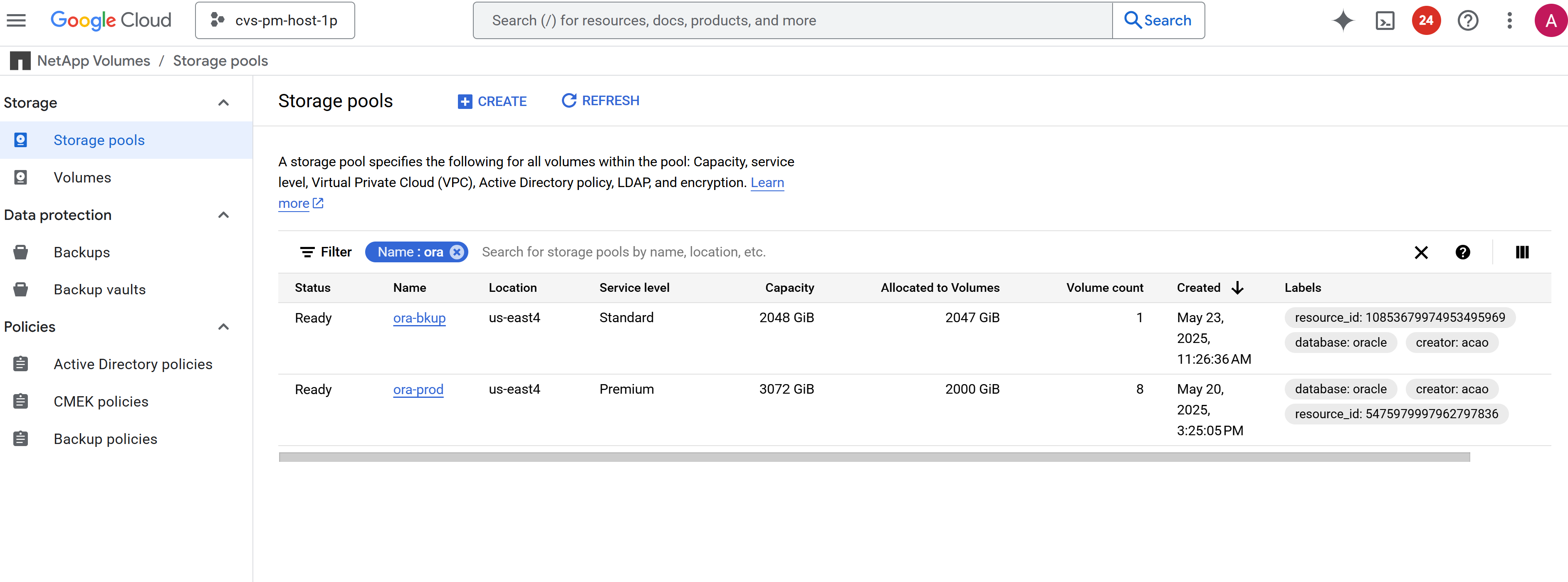

From the Google Cloud portal console, follow documentation Create a storage pool to create a GCNV storage pool with standard service as shown below.
-
From the Google Cloud portal console, follow documentation Create a volume to create a volume for in-server Oracle VLDB image backup. In this solution demo, the Oracle VLDB primary storage is also hosted on GCNV as shown below.
Mount a NFS volume from GCNV to the primary Oracle VLDB server
Details
The GCNV volume provisioned for the Oracle VLDB in-server backup ideally should be situated in the same Google Cloud zone as the primary DB server and the primary storage for better performance.
-
Retrieve the GCNV volume NFS export path from Google Cloud console.
-
Login to the primary Oracle VLDB server. As root, mount the NFS volume exported from GCNV storage. Change to your NFS server IP address and file path as needed.
sudo mkdir /nfsgcnvmount 10.165.128.5:/orap-bkup /nfsgcnv -o rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144 -
Change mount point ownership to oracle:oisntall, or change to your oracle user name and primary group as necessary.
sudo chown oracle:oinstall /nfsgcnv -
Add the NFS mount to /etc/fstab.
sudo vi /etc/fstab
Setup Oracle RMAN incremental merge to image copy on GCNV for in-server VLDB backup
Details
RMAN incremental merge updates the staging database data files image copy continuously at every incremental backup/merge interval. The image copy of database backup will be as up to date as the frequency you execute the incremental backup/merge. So, take into consideration of database performance, your RTO and RPO objectives when deciding the frequency of RMAN incremental backup and merge.
-
Login to primary Oracle VLDB server as oracle user.
-
For this solution validation, the primary database is setup as a standalone server with grid infrastructure Restart configuration as shown below. The primary storage is hosted on GCNV storage pool with premium service. Again, this is not a requirement and the primary storage can be on any other storage option in Google cloud.
[oracle@orap ~]$ df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 7.2G 0 7.2G 0% /dev tmpfs 7.3G 1.1G 6.2G 16% /dev/shm tmpfs 7.3G 8.5M 7.2G 1% /run tmpfs 7.3G 0 7.3G 0% /sys/fs/cgroup /dev/sda2 50G 22G 29G 43% / /dev/sda1 200M 5.9M 194M 3% /boot/efi 10.165.128.5:/orap-u02 250G 203G 48G 81% /u02 10.165.128.5:/orap-u07 250G 203G 48G 82% /u07 10.165.128.5:/orap-u06 250G 203G 48G 81% /u06 10.165.128.5:/orap-u04 250G 203G 48G 81% /u04 10.165.128.5:/orap-u05 250G 203G 48G 82% /u05 10.165.128.5:/orap-bkup 2.0T 918G 1.2T 45% /nfsgcnv 10.165.128.5:/orap-u03 250G 202G 49G 81% /u03 10.165.128.4:/orap-u01 200G 21G 180G 11% /u01 10.165.128.5:/orap-u08 300G 201G 100G 67% /u08 tmpfs 1.5G 0 1.5G 0% /run/user/54321 [oracle@orap ~]$ crsctl stat res -t -------------------------------------------------------------------------------- Name Target State Server State details -------------------------------------------------------------------------------- Local Resources -------------------------------------------------------------------------------- ora.DATA.dg ONLINE ONLINE orap STABLE ora.LISTENER.lsnr ONLINE ONLINE orap STABLE ora.LOGS.dg ONLINE ONLINE orap STABLE ora.asm ONLINE ONLINE orap Started,STABLE ora.ons OFFLINE OFFLINE orap STABLE -------------------------------------------------------------------------------- Cluster Resources -------------------------------------------------------------------------------- ora.cssd 1 ONLINE ONLINE orap STABLE ora.diskmon 1 OFFLINE OFFLINE STABLE ora.evmd 1 ONLINE ONLINE orap STABLE ora.ntap.db 1 ONLINE ONLINE orap Open,HOME=/u01/app/o racle/product/19.0.0 /NTAP,STABLE -------------------------------------------------------------------------------- [oracle@orap ~]$ asmcmd ASMCMD> lsdg State Type Rebal Sector Logical_Sector Block AU Total_MB Free_MB Req_mir_free_MB Usable_file_MB Offline_disks Voting_files Name MOUNTED EXTERN N 512 512 4096 4194304 1228800 1150288 0 1150288 0 N DATA/ MOUNTED EXTERN N 512 512 4096 4194304 204800 204636 0 204636 0 N LOGS/ ASMCMD> lsdsk Path /u02/oradata/asm/orap_data_disk_01 /u02/oradata/asm/orap_data_disk_02 /u02/oradata/asm/orap_data_disk_03 /u02/oradata/asm/orap_data_disk_04 /u03/oradata/asm/orap_data_disk_05 /u03/oradata/asm/orap_data_disk_06 /u03/oradata/asm/orap_data_disk_07 /u03/oradata/asm/orap_data_disk_08 /u04/oradata/asm/orap_data_disk_09 /u04/oradata/asm/orap_data_disk_10 /u04/oradata/asm/orap_data_disk_11 /u04/oradata/asm/orap_data_disk_12 /u05/oradata/asm/orap_data_disk_13 /u05/oradata/asm/orap_data_disk_14 /u05/oradata/asm/orap_data_disk_15 /u05/oradata/asm/orap_data_disk_16 /u06/oradata/asm/orap_data_disk_17 /u06/oradata/asm/orap_data_disk_18 /u06/oradata/asm/orap_data_disk_19 /u06/oradata/asm/orap_data_disk_20 /u07/oradata/asm/orap_data_disk_21 /u07/oradata/asm/orap_data_disk_22 /u07/oradata/asm/orap_data_disk_23 /u07/oradata/asm/orap_data_disk_24 /u08/oralogs/asm/orap_logs_disk_01 /u08/oralogs/asm/orap_logs_disk_02 /u08/oralogs/asm/orap_logs_disk_03 /u08/oralogs/asm/orap_logs_disk_04 -
Create an oracopy directory under mount point /nfsgcnv to store oracle data files image copies and an archlog directory for Oracle flash recovery area.
mkdir /nfsgcnv/oracopymkdir /nfsgcnv/archlog -
Login to Oracle database via sqlplus, enable block change tracking for faster incremental backup and change Oracle flash recovery area to GCNV NFS mount if it is currently on primary storage. This allows the RMAN default control file/spfile autobackup and archived logs to be backed up to GCNV NFS mount for database recovery to last available archive log.
sqlplus / as sysdbaFrom sqlplus prompt, execute following command.
alter database enable block change tracking using file '/nfsgcnv/oracopy/bct_ntap.ctf'alter system set db_recovery_file_dest='/nfsgcnv/archlog/' scope=both;Expected output:
[oracle@orap ~]$ sqlplus / as sysdba SQL*Plus: Release 19.0.0.0.0 - Production on Wed Mar 20 16:44:21 2024 Version 19.18.0.0.0 Copyright (c) 1982, 2022, Oracle. All rights reserved. Connected to: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production Version 19.18.0.0.0 SQL> alter database enable block change tracking using file '/nfsgcnv/oracopy/bct_ntap.ctf'; Database altered. SQL> alter system set db_recovery_file_dest='/nfsgcnv/archlog/' scope=both; System altered. SQL> alter system set db_recovery_file_dest_size = 400G scope=both; System altered. SQL> show parameter recover NAME TYPE VALUE ------------------------------------ ----------- ------------------------------ db_recovery_file_dest string /nfsgcnv/archlog/ db_recovery_file_dest_size big integer 400G db_unrecoverable_scn_tracking boolean TRUE recovery_parallelism integer 0 remote_recovery_file_dest string SQL>
-
Create a RMAN backup and incremental merge script. The script allocates multiple channels for parallel RMAN backup and merge. First execution would generate the initial full baseline image copy. In a complete run, it first purges obsolete backups that are outside of retention window to keep staging area clean. It then switches current log file before merge and backup. The incremental backup follows the merge so that the database image copy is trailing current database state by one backup/merge cycle. The merge and backup order can be reversed for quicker recovery at user's preference. The RMAN script can be integrated into a simple shell script to be executed from crontab on the primary DB server. Ensure control file autobackup is on in RMAN setting.
vi /home/oracle/rman_bkup_merge.cmd Add following lines: RUN { allocate channel c1 device type disk format '/nfsgcnv/oracopy/%U'; allocate channel c2 device type disk format '/nfsgcnv/oracopy/%U'; allocate channel c3 device type disk format '/nfsgcnv/oracopy/%U'; allocate channel c4 device type disk format '/nfsgcnv/oracopy/%U'; delete obsolete; sql 'alter system archive log current'; recover copy of database with tag 'OraCopyBKUPonGCNV_level_0'; backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonGCNV_level_0' database; } -
At the primary Oracle VLDB server, login to RMAN locally as oracle user with or without RMAN catalog. In this demonstration, we are not connecting to a RMAN catalog.
rman target / nocatalog; output: [oracle@orap ~]$ rman target / nocatalog Recovery Manager: Release 19.0.0.0.0 - Production on Wed Mar 20 16:54:24 2024 Version 19.18.0.0.0 Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved. connected to target database: NTAP (DBID=1379265854) using target database control file instead of recovery catalog
-
From RMAN prompt, execute the script. First execution creates a baseline database image copy and subsequent executions merge and update the baseline image copy incrementally. The following is how to execute the script and the typical output. Set the number of channels to match the CPU cores on the host.
RMAN> @/home/oracle/rman_bkup_merge.cmd RMAN> RUN 2> { 3> allocate channel c1 device type disk format '/nfsgcnv/oracopy/%U'; 4> allocate channel c2 device type disk format '/nfsgcnv/oracopy/%U'; 5> allocate channel c3 device type disk format '/nfsgcnv/oracopy/%U'; 6> allocate channel c4 device type disk format '/nfsgcnv/oracopy/%U'; 7> delete obsolete; 8> sql 'alter system archive log current'; 9> recover copy of database with tag 'OraCopyBKUPonGCNV_level_0'; 10> backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonGCNV_level_0' database; 11> } allocated channel: c1 channel c1: SID=23 device type=DISK allocated channel: c2 channel c2: SID=151 device type=DISK allocated channel: c3 channel c3: SID=20 device type=DISK allocated channel: c4 channel c4: SID=150 device type=DISK RMAN retention policy will be applied to the command RMAN retention policy is set to redundancy 1 Deleting the following obsolete backups and copies: Type Key Completion Time Filename/Handle -------------------- ------ ------------------ -------------------- Backup Set 1 22-MAY-25 Backup Piece 1 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201793914.260.1201793917 Backup Set 2 22-MAY-25 Backup Piece 2 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201795422.261.1201795425 Backup Set 3 22-MAY-25 Backup Piece 3 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201797230.262.1201797231 Backup Set 4 22-MAY-25 Backup Piece 4 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201799039.264.1201799041 Backup Set 5 22-MAY-25 Backup Piece 5 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201802655.265.1201802659 Backup Set 6 22-MAY-25 Backup Piece 6 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201803558.266.1201803561 Backup Set 7 22-MAY-25 Backup Piece 7 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201805066.267.1201805069 Backup Set 8 22-MAY-25 Backup Piece 8 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201806272.268.1201806275 Backup Set 9 22-MAY-25 Backup Piece 9 22-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201807778.269.1201807781 Backup Set 10 23-MAY-25 Backup Piece 10 23-MAY-25 +LOGS/NTAP/AUTOBACKUP/2025_05_23/s_1201874668.271.1201874669 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201793914.260.1201793917 RECID=1 STAMP=1201793917 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201799039.264.1201799041 RECID=4 STAMP=1201799040 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201795422.261.1201795425 RECID=2 STAMP=1201795424 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201803558.266.1201803561 RECID=6 STAMP=1201803561 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201797230.262.1201797231 RECID=3 STAMP=1201797231 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201802655.265.1201802659 RECID=5 STAMP=1201802658 deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201805066.267.1201805069 RECID=7 STAMP=1201805069 Deleted 2 objects deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201806272.268.1201806275 RECID=8 STAMP=1201806275 Deleted 3 objects deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201807778.269.1201807781 RECID=9 STAMP=1201807780 Deleted 2 objects deleted backup piece backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_23/s_1201874668.271.1201874669 RECID=10 STAMP=1201874669 Deleted 3 objects sql statement: alter system archive log current Starting recover at 23-MAY-25 no copy of datafile 1 found to recover no copy of datafile 3 found to recover no copy of datafile 4 found to recover no copy of datafile 5 found to recover no copy of datafile 6 found to recover no copy of datafile 7 found to recover no copy of datafile 8 found to recover no copy of datafile 9 found to recover no copy of datafile 10 found to recover no copy of datafile 11 found to recover no copy of datafile 12 found to recover no copy of datafile 13 found to recover no copy of datafile 14 found to recover no copy of datafile 15 found to recover no copy of datafile 16 found to recover no copy of datafile 17 found to recover no copy of datafile 18 found to recover no copy of datafile 19 found to recover no copy of datafile 20 found to recover no copy of datafile 21 found to recover no copy of datafile 22 found to recover no copy of datafile 23 found to recover no copy of datafile 24 found to recover no copy of datafile 25 found to recover no copy of datafile 26 found to recover no copy of datafile 27 found to recover no copy of datafile 28 found to recover no copy of datafile 29 found to recover no copy of datafile 30 found to recover no copy of datafile 31 found to recover no copy of datafile 32 found to recover no copy of datafile 33 found to recover no copy of datafile 34 found to recover no copy of datafile 35 found to recover no copy of datafile 36 found to recover no copy of datafile 37 found to recover no copy of datafile 38 found to recover no copy of datafile 39 found to recover no copy of datafile 40 found to recover no copy of datafile 41 found to recover no copy of datafile 42 found to recover no copy of datafile 43 found to recover no copy of datafile 44 found to recover no copy of datafile 45 found to recover no copy of datafile 46 found to recover no copy of datafile 47 found to recover no copy of datafile 48 found to recover no copy of datafile 49 found to recover no copy of datafile 50 found to recover Finished recover at 23-MAY-25 Starting backup at 23-MAY-25 no parent backup or copy of datafile 1 found no parent backup or copy of datafile 3 found no parent backup or copy of datafile 4 found no parent backup or copy of datafile 7 found no parent backup or copy of datafile 6 found no parent backup or copy of datafile 5 found no parent backup or copy of datafile 8 found no parent backup or copy of datafile 21 found no parent backup or copy of datafile 22 found no parent backup or copy of datafile 25 found no parent backup or copy of datafile 28 found no parent backup or copy of datafile 32 found no parent backup or copy of datafile 33 found no parent backup or copy of datafile 36 found no parent backup or copy of datafile 41 found no parent backup or copy of datafile 44 found no parent backup or copy of datafile 46 found no parent backup or copy of datafile 10 found no parent backup or copy of datafile 9 found no parent backup or copy of datafile 11 found no parent backup or copy of datafile 12 found no parent backup or copy of datafile 23 found no parent backup or copy of datafile 26 found no parent backup or copy of datafile 29 found no parent backup or copy of datafile 30 found no parent backup or copy of datafile 34 found no parent backup or copy of datafile 37 found no parent backup or copy of datafile 39 found no parent backup or copy of datafile 42 found no parent backup or copy of datafile 47 found no parent backup or copy of datafile 48 found no parent backup or copy of datafile 14 found no parent backup or copy of datafile 13 found no parent backup or copy of datafile 15 found no parent backup or copy of datafile 16 found no parent backup or copy of datafile 24 found no parent backup or copy of datafile 27 found no parent backup or copy of datafile 31 found no parent backup or copy of datafile 35 found no parent backup or copy of datafile 38 found no parent backup or copy of datafile 40 found no parent backup or copy of datafile 43 found no parent backup or copy of datafile 45 found no parent backup or copy of datafile 49 found no parent backup or copy of datafile 50 found no parent backup or copy of datafile 18 found no parent backup or copy of datafile 17 found no parent backup or copy of datafile 19 found no parent backup or copy of datafile 20 found channel c1: starting datafile copy input datafile file number=00021 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019 channel c2: starting datafile copy input datafile file number=00022 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419 channel c3: starting datafile copy input datafile file number=00025 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401 channel c4: starting datafile copy input datafile file number=00028 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=4 STAMP=1201886858 channel c4: datafile copy complete, elapsed time: 01:19:26 channel c4: starting datafile copy input datafile file number=00032 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=5 STAMP=1201886918 channel c3: datafile copy complete, elapsed time: 01:20:21 channel c3: starting datafile copy input datafile file number=00033 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=6 STAMP=1201886943 channel c1: datafile copy complete, elapsed time: 01:20:50 channel c1: starting datafile copy input datafile file number=00036 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=7 STAMP=1201887138 channel c2: datafile copy complete, elapsed time: 01:24:05 channel c2: starting datafile copy input datafile file number=00041 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=8 STAMP=1201891753 channel c4: datafile copy complete, elapsed time: 01:21:26 channel c4: starting datafile copy input datafile file number=00044 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=9 STAMP=1201891755 channel c1: datafile copy complete, elapsed time: 01:20:03 channel c1: starting datafile copy input datafile file number=00046 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=10 STAMP=1201891766 channel c3: datafile copy complete, elapsed time: 01:20:44 channel c3: starting datafile copy input datafile file number=00023 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=11 STAMP=1201892161 channel c2: datafile copy complete, elapsed time: 01:23:37 channel c2: starting datafile copy input datafile file number=00026 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=12 STAMP=1201896617 channel c3: datafile copy complete, elapsed time: 01:20:53 channel c3: starting datafile copy input datafile file number=00029 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=13 STAMP=1201896650 channel c1: datafile copy complete, elapsed time: 01:21:35 channel c1: starting datafile copy input datafile file number=00030 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=14 STAMP=1201896694 channel c4: datafile copy complete, elapsed time: 01:22:20 channel c4: starting datafile copy input datafile file number=00034 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=15 STAMP=1201897015 channel c2: datafile copy complete, elapsed time: 01:20:53 channel c2: starting datafile copy input datafile file number=00037 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=16 STAMP=1201901480 channel c1: datafile copy complete, elapsed time: 01:20:37 channel c1: starting datafile copy input datafile file number=00039 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=17 STAMP=1201901527 channel c3: datafile copy complete, elapsed time: 01:21:48 channel c3: starting datafile copy input datafile file number=00042 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=18 STAMP=1201901805 channel c4: datafile copy complete, elapsed time: 01:25:14 channel c4: starting datafile copy input datafile file number=00047 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=19 STAMP=1201901963 channel c2: datafile copy complete, elapsed time: 01:22:23 channel c2: starting datafile copy input datafile file number=00048 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=20 STAMP=1201906343 channel c1: datafile copy complete, elapsed time: 01:20:55 channel c1: starting datafile copy input datafile file number=00024 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=21 STAMP=1201906415 channel c3: datafile copy complete, elapsed time: 01:21:24 channel c3: starting datafile copy input datafile file number=00027 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=22 STAMP=1201906737 channel c4: datafile copy complete, elapsed time: 01:22:15 channel c4: starting datafile copy input datafile file number=00031 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=23 STAMP=1201906865 channel c2: datafile copy complete, elapsed time: 01:21:45 channel c2: starting datafile copy input datafile file number=00035 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=24 STAMP=1201911205 channel c1: datafile copy complete, elapsed time: 01:21:03 channel c1: starting datafile copy input datafile file number=00038 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=25 STAMP=1201911367 channel c3: datafile copy complete, elapsed time: 01:22:33 channel c3: starting datafile copy input datafile file number=00040 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=26 STAMP=1201911632 channel c4: datafile copy complete, elapsed time: 01:21:33 channel c4: starting datafile copy input datafile file number=00043 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=27 STAMP=1201911835 channel c2: datafile copy complete, elapsed time: 01:22:57 channel c2: starting datafile copy input datafile file number=00045 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=28 STAMP=1201916184 channel c1: datafile copy complete, elapsed time: 01:23:06 channel c1: starting datafile copy input datafile file number=00049 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=29 STAMP=1201916197 channel c3: datafile copy complete, elapsed time: 01:20:24 channel c3: starting datafile copy input datafile file number=00050 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=30 STAMP=1201916471 channel c4: datafile copy complete, elapsed time: 01:20:40 channel c4: starting datafile copy input datafile file number=00001 name=+DATA/NTAP/DATAFILE/system.257.1201727295 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=31 STAMP=1201916673 channel c4: datafile copy complete, elapsed time: 00:03:15 channel c4: starting datafile copy input datafile file number=00003 name=+DATA/NTAP/DATAFILE/sysaux.258.1201727339 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=32 STAMP=1201916703 channel c2: datafile copy complete, elapsed time: 01:21:05 channel c2: starting datafile copy input datafile file number=00004 name=+DATA/NTAP/DATAFILE/undotbs1.259.1201727365 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=33 STAMP=1201916821 channel c2: datafile copy complete, elapsed time: 00:01:55 channel c2: starting datafile copy input datafile file number=00010 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=34 STAMP=1201916851 channel c4: datafile copy complete, elapsed time: 00:02:58 channel c4: starting datafile copy input datafile file number=00014 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=35 STAMP=1201916936 channel c2: datafile copy complete, elapsed time: 00:01:52 channel c2: starting datafile copy input datafile file number=00018 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=36 STAMP=1201916940 channel c4: datafile copy complete, elapsed time: 00:01:25 channel c4: starting datafile copy input datafile file number=00006 name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=37 STAMP=1201917017 channel c4: datafile copy complete, elapsed time: 00:01:25 channel c4: starting datafile copy input datafile file number=00009 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=38 STAMP=1201917035 channel c2: datafile copy complete, elapsed time: 00:01:34 channel c2: starting datafile copy input datafile file number=00013 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=39 STAMP=1201917090 channel c4: datafile copy complete, elapsed time: 00:01:03 channel c4: starting datafile copy input datafile file number=00017 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=40 STAMP=1201917097 channel c2: datafile copy complete, elapsed time: 00:01:00 channel c2: starting datafile copy input datafile file number=00005 name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=42 STAMP=1201917174 channel c2: datafile copy complete, elapsed time: 00:01:25 channel c2: starting datafile copy input datafile file number=00011 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=41 STAMP=1201917174 channel c4: datafile copy complete, elapsed time: 00:01:31 channel c4: starting datafile copy input datafile file number=00008 name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=44 STAMP=1201917237 channel c2: datafile copy complete, elapsed time: 00:00:56 channel c2: starting datafile copy input datafile file number=00015 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=43 STAMP=1201917232 channel c4: datafile copy complete, elapsed time: 00:00:55 channel c4: starting datafile copy input datafile file number=00019 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=45 STAMP=1201917288 channel c2: datafile copy complete, elapsed time: 00:00:55 channel c2: starting datafile copy input datafile file number=00007 name=+DATA/NTAP/DATAFILE/users.260.1201727365 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=46 STAMP=1201917295 channel c4: datafile copy complete, elapsed time: 00:00:55 channel c4: starting datafile copy input datafile file number=00012 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=47 STAMP=1201917297 channel c2: datafile copy complete, elapsed time: 00:00:02 channel c2: starting datafile copy input datafile file number=00016 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=48 STAMP=1201917297 channel c4: datafile copy complete, elapsed time: 00:00:01 channel c4: starting datafile copy input datafile file number=00020 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=49 STAMP=1201917298 channel c2: datafile copy complete, elapsed time: 00:00:01 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=50 STAMP=1201917298 channel c4: datafile copy complete, elapsed time: 00:00:01 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=51 STAMP=1201919158 channel c3: datafile copy complete, elapsed time: 00:49:26 output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=52 STAMP=1201919167 channel c1: datafile copy complete, elapsed time: 00:49:36 Finished backup at 24-MAY-25 Starting Control File and SPFILE Autobackup at 24-MAY-25 piece handle=/nfsgcnv/archlog/NTAP/autobackup/2025_05_24/o1_mf_s_1201919173_n32cl775_.bkp comment=NONE Finished Control File and SPFILE Autobackup at 24-MAY-25 released channel: c1 released channel: c2 released channel: c3 released channel: c4 RMAN> **end-of-file** RMAN> -
List database image copy after backup to observe that a database image copy has been created in GCNV NFS mount point.
RMAN> list copy of database tag 'OraCopyBKUPonGCNV_level_0'; List of Datafile Copies ======================= Key File S Completion Time Ckp SCN Ckp Time Sparse ------- ---- - --------------- ---------- --------------- ------ 31 1 A 24-MAY-25 2812886 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 Tag: ORACOPYBKUPONGCNV_LEVEL_0 34 3 A 24-MAY-25 2813001 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 Tag: ORACOPYBKUPONGCNV_LEVEL_0 33 4 A 24-MAY-25 2813043 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa Tag: ORACOPYBKUPONGCNV_LEVEL_0 42 5 A 24-MAY-25 2377077 21-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 37 6 A 24-MAY-25 2377077 21-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 47 7 A 24-MAY-25 2813504 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg Tag: ORACOPYBKUPONGCNV_LEVEL_0 43 8 A 24-MAY-25 2377077 21-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 39 9 A 24-MAY-25 2813238 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 35 10 A 24-MAY-25 2813112 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 44 11 A 24-MAY-25 2813425 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 48 12 A 24-MAY-25 2813508 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 40 13 A 24-MAY-25 2813243 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 36 14 A 24-MAY-25 2813124 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 45 15 A 24-MAY-25 2813463 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 49 16 A 24-MAY-25 2813512 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 41 17 A 24-MAY-25 2813364 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 38 18 A 24-MAY-25 2813185 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 46 19 A 24-MAY-25 2813467 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 50 20 A 24-MAY-25 2813516 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 6 21 A 23-MAY-25 2768847 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 7 22 A 23-MAY-25 2768851 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 12 23 A 23-MAY-25 2777335 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 24 24 A 24-MAY-25 2803186 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 5 25 A 23-MAY-25 2768856 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 15 26 A 23-MAY-25 2777644 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 25 27 A 24-MAY-25 2803231 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 4 28 A 23-MAY-25 2768859 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 17 29 A 23-MAY-25 2781833 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 16 30 A 23-MAY-25 2781842 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 26 31 A 24-MAY-25 2803450 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 8 32 A 23-MAY-25 2773143 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 10 33 A 23-MAY-25 2773183 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 18 34 A 23-MAY-25 2781890 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 27 35 A 24-MAY-25 2803827 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 9 36 A 23-MAY-25 2773193 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 19 37 A 23-MAY-25 2782104 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 28 38 A 24-MAY-25 2808047 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 20 39 A 23-MAY-25 2786009 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 29 40 A 24-MAY-25 2808169 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 11 41 A 23-MAY-25 2773323 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 21 42 A 23-MAY-25 2786042 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 30 43 A 24-MAY-25 2808367 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 14 44 A 23-MAY-25 2777322 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 32 45 A 24-MAY-25 2808624 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 13 46 A 23-MAY-25 2777326 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 22 47 A 23-MAY-25 2786345 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 23 48 A 23-MAY-25 2786456 23-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 52 49 A 24-MAY-25 2812634 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 51 50 A 24-MAY-25 2812638 24-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 RMAN> -
Report schema from Oracle RMAN command prompt to observe that current VLDB data files are on primary storage.
RMAN> report schema; Report of database schema for database with db_unique_name NTAP List of Permanent Datafiles =========================== File Size(MB) Tablespace RB segs Datafile Name ---- -------- -------------------- ------- ------------------------ 1 1070 SYSTEM YES +DATA/NTAP/DATAFILE/system.257.1201727295 3 970 SYSAUX NO +DATA/NTAP/DATAFILE/sysaux.258.1201727339 4 680 UNDOTBS1 YES +DATA/NTAP/DATAFILE/undotbs1.259.1201727365 5 400 PDB$SEED:SYSTEM NO +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307 6 460 PDB$SEED:SYSAUX NO +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307 7 5 USERS NO +DATA/NTAP/DATAFILE/users.260.1201727365 8 235 PDB$SEED:UNDOTBS1 NO +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307 9 410 NTAP_PDB1:SYSTEM YES +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255 10 510 NTAP_PDB1:SYSAUX NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255 11 240 NTAP_PDB1:UNDOTBS1 YES +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255 12 5 NTAP_PDB1:USERS NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277 13 410 NTAP_PDB2:SYSTEM YES +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279 14 510 NTAP_PDB2:SYSAUX NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279 15 235 NTAP_PDB2:UNDOTBS1 YES +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279 16 5 NTAP_PDB2:USERS NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301 17 410 NTAP_PDB3:SYSTEM YES +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301 18 510 NTAP_PDB3:SYSAUX NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301 19 235 NTAP_PDB3:UNDOTBS1 YES +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301 20 5 NTAP_PDB3:USERS NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323 21 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019 22 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419 23 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535 24 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665 25 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401 26 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153 27 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207 28 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271 29 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261 30 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317 31 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343 32 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351 33 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805 34 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829 35 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821 36 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969 37 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025 38 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375 39 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375 40 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381 41 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399 42 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601 43 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629 44 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651 45 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031 46 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095 47 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051 48 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549 49 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563 50 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477 List of Temporary Files ======================= File Size(MB) Tablespace Maxsize(MB) Tempfile Name ---- -------- -------------------- ----------- -------------------- 1 123 TEMP 32767 +DATA/NTAP/TEMPFILE/temp.265.1201727469 2 123 PDB$SEED:TEMP 32767 +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335 3 16384 NTAP_PDB1:TEMP 32767 +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271 4 30720 NTAP_PDB2:TEMP 32767 +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295 5 30720 NTAP_PDB3:TEMP 32767 +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319 RMAN>
-
Validate database image copy from OS NFS mount point.
[oracle@orap ~]$ ls -l /nfsgcnv/oracopy/ total 954924748 -rw-r----- 1 oracle asm 11600384 May 27 16:25 bct_ntap.ctf -rw-r----- 1 oracle asm 32212262912 May 23 17:29 data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm -rw-r----- 1 oracle asm 32212262912 May 23 17:32 data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm -rw-r----- 1 oracle asm 32212262912 May 23 17:28 data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn -rw-r----- 1 oracle asm 32212262912 May 23 17:27 data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn -rw-r----- 1 oracle asm 32212262912 May 23 18:49 data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl -rw-r----- 1 oracle asm 32212262912 May 23 18:49 data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf -rw-r----- 1 oracle asm 32212262912 May 23 18:49 data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 -rw-r----- 1 oracle asm 32212262912 May 23 18:56 data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd -rw-r----- 1 oracle asm 32212262912 May 23 20:11 data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc -rw-r----- 1 oracle asm 32212262912 May 23 20:10 data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc -rw-r----- 1 oracle asm 32212262912 May 23 20:10 data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr -rw-r----- 1 oracle asm 32212262912 May 23 20:16 data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 -rw-r----- 1 oracle asm 32212262912 May 23 21:32 data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h -rw-r----- 1 oracle asm 32212262912 May 23 21:31 data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b -rw-r----- 1 oracle asm 32212262912 May 23 21:36 data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o -rw-r----- 1 oracle asm 32212262912 May 23 21:39 data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu -rw-r----- 1 oracle asm 32212262912 May 23 22:52 data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th -rw-r----- 1 oracle asm 32212262912 May 23 22:53 data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv -rw-r----- 1 oracle asm 32212262912 May 23 22:58 data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i -rw-r----- 1 oracle asm 32212262912 May 23 23:01 data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd -rw-r----- 1 oracle asm 32212262912 May 24 00:13 data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 -rw-r----- 1 oracle asm 32212262912 May 24 00:16 data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk -rw-r----- 1 oracle asm 32212262912 May 24 00:20 data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p -rw-r----- 1 oracle asm 32212262912 May 24 00:23 data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m -rw-r----- 1 oracle asm 32212262912 May 24 01:36 data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 -rw-r----- 1 oracle asm 32212262912 May 24 01:36 data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did -rw-r----- 1 oracle asm 32212262912 May 24 01:41 data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp -rw-r----- 1 oracle asm 32212262912 May 24 01:45 data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 -rw-r----- 1 oracle asm 32212262912 May 24 02:26 data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 -rw-r----- 1 oracle asm 32212262912 May 24 02:25 data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 -rw-r----- 1 oracle asm 534781952 May 24 01:48 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu -rw-r----- 1 oracle asm 534781952 May 24 01:49 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp -rw-r----- 1 oracle asm 534781952 May 24 01:50 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e -rw-r----- 1 oracle asm 985669632 May 24 01:47 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 -rw-r----- 1 oracle asm 482353152 May 24 01:50 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e -rw-r----- 1 oracle asm 1121984512 May 24 01:44 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 -rw-r----- 1 oracle asm 429924352 May 24 01:51 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d -rw-r----- 1 oracle asm 429924352 May 24 01:52 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 -rw-r----- 1 oracle asm 419438592 May 24 01:52 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a -rw-r----- 1 oracle asm 429924352 May 24 01:51 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 -rw-r----- 1 oracle asm 251666432 May 24 01:53 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 -rw-r----- 1 oracle asm 246423552 May 24 01:54 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p -rw-r----- 1 oracle asm 246423552 May 24 01:54 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p -rw-r----- 1 oracle asm 713039872 May 24 01:47 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa -rw-r----- 1 oracle asm 246423552 May 24 01:53 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 -rw-r----- 1 oracle asm 5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh -rw-r----- 1 oracle asm 5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi -rw-r----- 1 oracle asm 5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi -rw-r----- 1 oracle asm 5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg
-
Run the RMAN backup script from a simple UNIX shell script from crontab at desired interval.
[oracle@orap ~]$ cat rman_bkup_merge.sh #/usr/bin/sh log=/home/oracle/logs/ora_bkup_merge_`date +"%Y-%m%d-%H%M%S"`.log echo "Begin Oracle DB incremental backup/merge to copy at `date +"%Y-%m%d-%H%M%S"`" >> $log export ORACLE_HOME=/u01/app/oracle/product/19.0.0/NTAP export ORACLE_SID=NTAP export PATH=$ORACLE_HOME/bin:$PATH rman target / nocatalog <<EOF>> $log @/home/oracle/rman_bkup_merge.cmd EOF echo "End Oracle DB incremental backup/merge to copy at `date +"%Y-%m%d-%H%M%S"`" >> $log
This completes the setup of an Oracle VLDB standby image copy backup and merge on an in-server NFS mount from GCNV storage.
Oracle VLDB quick recovery using backup image copy
Complete recovery with the loss or corruption of Oracle data files
Details
In the event of a failure due to primary storage issue such as data loss or corruption, database can be quickly switched over to image copy on GCNV NFS mount and recovered to current state without database restore. Eliminating media restoration speeds up the database recovery tremendously for a VLDB. This use case assumes that the Oracle VLDB DB server is intact and database control file, archived and current logs are all available for recovery.
-
Login to the primary VLDB server host as oracle user and create a test table before switch over.
[oracle@orap ~]$ sqlplus / as sysdba SQL*Plus: Release 19.0.0.0.0 - Production on Tue May 27 17:31:23 2025 Version 19.18.0.0.0 Copyright (c) 1982, 2022, Oracle. All rights reserved. Connected to: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production Version 19.18.0.0.0 SQL> alter session set container=ntap_pdb1; Session altered. SQL> create table test(id integer, dt timestamp, event varchar(100)); Table created.
-
Insert a row into the test table. The row is inserted after a most recent incremental backup and merge and its data is not in the backup set. The subsequent demonstration would show that the test row is recovered after database is completely recovered.
SQL> insert into test values (1, sysdate, 'validate a full recovery after a switch to DB backup copy on GCNV'); 1 row created. SQL> commit; Commit complete.
-
Simulate a failure by shutting down the database.
SQL> alter session set container=cdb$root; Session altered. SQL> shutdown immediate; Database closed. Database dismounted. ORACLE instance shut down.
-
As the oracle user, connect to Oracle database via RMAN to switch database to copy.
[oracle@orap ~]$ rman target / nocatalog; Recovery Manager: Release 19.0.0.0.0 - Production on Tue May 27 17:40:59 2025 Version 19.18.0.0.0 Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved. connected to target database (not started) RMAN> startup mount; Oracle instance started database mounted Total System Global Area 5620363744 bytes Fixed Size 9175520 bytes Variable Size 1023410176 bytes Database Buffers 4580179968 bytes Redo Buffers 7598080 bytes RMAN> switch database to copy; datafile 1 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2" datafile 3 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5" datafile 4 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa" datafile 5 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a" datafile 6 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e" datafile 7 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg" datafile 8 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82" datafile 9 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35" datafile 10 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu" datafile 11 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80" datafile 12 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh" datafile 13 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d" datafile 14 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp" datafile 15 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p" datafile 16 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi" datafile 17 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56" datafile 18 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e" datafile 19 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p" datafile 20 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi" datafile 21 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm" datafile 22 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm" datafile 23 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr" datafile 24 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8" datafile 25 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn" datafile 26 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7" datafile 27 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk" datafile 28 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn" datafile 29 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h" datafile 30 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b" datafile 31 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p" datafile 32 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl" datafile 33 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf" datafile 34 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o" datafile 35 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m" datafile 36 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9" datafile 37 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu" datafile 38 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7" datafile 39 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th" datafile 40 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did" datafile 41 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd" datafile 42 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv" datafile 43 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp" datafile 44 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc" datafile 45 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17" datafile 46 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc" datafile 47 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i" datafile 48 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd" datafile 49 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95" datafile 50 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95"
-
Recover and open database to bring it up to current from last incremental backup.
RMAN> recover database; Starting recover at 27-MAY-25 allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=139 device type=DISK channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00012: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh destination for restore of datafile 00028: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn destination for restore of datafile 00041: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd destination for restore of datafile 00044: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/213qh3m5_65_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/213qh3m5_65_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00011: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 destination for restore of datafile 00025: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn destination for restore of datafile 00036: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 destination for restore of datafile 00046: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/1u3qh3m5_62_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/1u3qh3m5_62_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00015: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p destination for restore of datafile 00029: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h destination for restore of datafile 00039: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th destination for restore of datafile 00048: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/1v3qh3m5_63_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/1v3qh3m5_63_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00019: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p destination for restore of datafile 00031: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p destination for restore of datafile 00043: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp destination for restore of datafile 00050: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/203qh3m5_64_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/203qh3m5_64_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00010: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu destination for restore of datafile 00021: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm destination for restore of datafile 00032: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/243qh3m7_68_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/243qh3m7_68_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00016: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi destination for restore of datafile 00030: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b destination for restore of datafile 00042: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv destination for restore of datafile 00047: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/223qh3m6_66_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/223qh3m6_66_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00020: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi destination for restore of datafile 00035: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m destination for restore of datafile 00045: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 destination for restore of datafile 00049: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/233qh3m7_67_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/233qh3m7_67_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00009: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 destination for restore of datafile 00022: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm destination for restore of datafile 00033: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/273qh3m7_71_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/273qh3m7_71_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00013: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d destination for restore of datafile 00026: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 destination for restore of datafile 00037: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/283qh3m7_72_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/283qh3m7_72_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00014: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp destination for restore of datafile 00023: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr destination for restore of datafile 00034: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/253qh3m7_69_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/253qh3m7_69_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00018: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e destination for restore of datafile 00024: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 destination for restore of datafile 00038: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/263qh3m7_70_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/263qh3m7_70_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:02 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00001: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2a3qh3m9_74_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2a3qh3m9_74_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00017: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 destination for restore of datafile 00027: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk destination for restore of datafile 00040: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/293qh3m9_73_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/293qh3m9_73_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00007: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2g3qh3ma_80_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2g3qh3ma_80_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00004: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2c3qh3m9_76_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2c3qh3m9_76_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:03 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00003: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2b3qh3m9_75_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2b3qh3m9_75_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:07 starting media recovery media recovery complete, elapsed time: 00:00:04 Finished recover at 27-MAY-25 RMAN> alter database open; Statement processed RMAN>
-
Check database structure from sqlplus after recovery to observe that all VLDB data files with exception of control, temp, and current log files are now switched over to copy on GCNV NFS file system.
[oracle@orap ~]$ sqlplus / as sysdba; SQL*Plus: Release 19.0.0.0.0 - Production on Tue May 27 17:45:04 2025 Version 19.18.0.0.0 Copyright (c) 1982, 2022, Oracle. All rights reserved. Connected to: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production Version 19.18.0.0.0 SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 NTAP_PDB1 READ WRITE NO 4 NTAP_PDB2 READ WRITE NO 5 NTAP_PDB3 READ WRITE NO SQL> select name from v$datafile 2 union 3 select name from v$tempfile 4 union 5 select name from v$controlfile 6 union 7 select member from v$logfile; NAME -------------------------------------------------------------------------------- +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335 +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271 +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295 +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319 +DATA/NTAP/CONTROLFILE/current.261.1201727423 +DATA/NTAP/ONLINELOG/group_1.262.1201727425 +DATA/NTAP/ONLINELOG/group_2.263.1201727425 +DATA/NTAP/ONLINELOG/group_3.264.1201727425 +DATA/NTAP/TEMPFILE/temp.265.1201727469 +LOGS/NTAP/CONTROLFILE/current.256.1201727423 +LOGS/NTAP/ONLINELOG/group_1.258.1201727433 NAME -------------------------------------------------------------------------------- +LOGS/NTAP/ONLINELOG/group_2.257.1201727431 +LOGS/NTAP/ONLINELOG/group_3.259.1201727433 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg 62 rows selected. -
From SQL plus, validate that the test row which we have inerted after the last incremental backup and before switching over to image backup copy has been recovered.
SQL> alter session set container=ntap_pdb1; Session altered. SQL> select * from test; ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- 1 27-MAY-25 05.35.44.000000 PM validate a full recovery after a switch to DB backup copy on GCNV SQL>
Reverse the Oracle VLDB back to the primary storage from the backup copy
Details
After the storage failure at the primary storage is fixed, the database can be easily reverse back to primary storage with minimal down time. Following are procedures step-by-step.
-
From RMAN check that the DB schema is currently located on GCNV backup storage.
RMAN> report schema; Report of database schema for database with db_unique_name NTAP List of Permanent Datafiles =========================== File Size(MB) Tablespace RB segs Datafile Name ---- -------- -------------------- ------- ------------------------ 1 1070 SYSTEM YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 3 970 SYSAUX NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 4 680 UNDOTBS1 YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa 5 400 PDB$SEED:SYSTEM NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a 6 460 PDB$SEED:SYSAUX NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e 7 5 USERS NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg 8 235 PDB$SEED:UNDOTBS1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 9 410 NTAP_PDB1:SYSTEM YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 10 510 NTAP_PDB1:SYSAUX NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu 11 240 NTAP_PDB1:UNDOTBS1 YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 12 5 NTAP_PDB1:USERS NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh 13 410 NTAP_PDB2:SYSTEM YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d 14 510 NTAP_PDB2:SYSAUX NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp 15 235 NTAP_PDB2:UNDOTBS1 YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p 16 5 NTAP_PDB2:USERS NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi 17 410 NTAP_PDB3:SYSTEM YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 18 510 NTAP_PDB3:SYSAUX NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e 19 235 NTAP_PDB3:UNDOTBS1 YES /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p 20 5 NTAP_PDB3:USERS NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi 21 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm 22 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm 23 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr 24 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 25 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn 26 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 27 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk 28 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn 29 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h 30 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b 31 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p 32 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl 33 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf 34 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o 35 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m 36 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 37 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu 38 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 39 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th 40 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did 41 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd 42 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv 43 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp 44 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc 45 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 46 30720 NTAP_PDB1:SOE1 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc 47 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i 48 30720 NTAP_PDB2:SOE2 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd 49 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 50 30720 NTAP_PDB3:SOE3 NO /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 List of Temporary Files ======================= File Size(MB) Tablespace Maxsize(MB) Tempfile Name ---- -------- -------------------- ----------- -------------------- 1 123 TEMP 32767 +DATA/NTAP/TEMPFILE/temp.265.1201727469 2 123 PDB$SEED:TEMP 32767 +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335 3 16384 NTAP_PDB1:TEMP 32767 +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271 4 30720 NTAP_PDB2:TEMP 32767 +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295 5 30720 NTAP_PDB3:TEMP 32767 +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319
-
Once primary database was switched to image copy, the primary database is now a copy in RMAN record.
RMAN> list copy of database; List of Datafile Copies ======================= Key File S Completion Time Ckp SCN Ckp Time Sparse ------- ---- - --------------- ---------- --------------- ------ 53 1 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/system.257.1201727295 54 3 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/sysaux.258.1201727339 55 4 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/undotbs1.259.1201727365 56 5 A 27-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307 Container ID: 2, PDB Name: PDB$SEED 57 6 A 27-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307 Container ID: 2, PDB Name: PDB$SEED 58 7 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/users.260.1201727365 59 8 A 27-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307 Container ID: 2, PDB Name: PDB$SEED 60 9 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255 Container ID: 3, PDB Name: NTAP_PDB1 61 10 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255 Container ID: 3, PDB Name: NTAP_PDB1 62 11 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255 Container ID: 3, PDB Name: NTAP_PDB1 63 12 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277 Container ID: 3, PDB Name: NTAP_PDB1 64 13 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279 Container ID: 4, PDB Name: NTAP_PDB2 65 14 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279 Container ID: 4, PDB Name: NTAP_PDB2 66 15 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279 Container ID: 4, PDB Name: NTAP_PDB2 67 16 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301 Container ID: 4, PDB Name: NTAP_PDB2 68 17 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301 Container ID: 5, PDB Name: NTAP_PDB3 69 18 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301 Container ID: 5, PDB Name: NTAP_PDB3 70 19 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301 Container ID: 5, PDB Name: NTAP_PDB3 71 20 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323 Container ID: 5, PDB Name: NTAP_PDB3 72 21 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019 Container ID: 3, PDB Name: NTAP_PDB1 73 22 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419 Container ID: 3, PDB Name: NTAP_PDB1 74 23 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535 Container ID: 4, PDB Name: NTAP_PDB2 75 24 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665 Container ID: 5, PDB Name: NTAP_PDB3 76 25 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401 Container ID: 3, PDB Name: NTAP_PDB1 77 26 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153 Container ID: 4, PDB Name: NTAP_PDB2 78 27 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207 Container ID: 5, PDB Name: NTAP_PDB3 79 28 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271 Container ID: 3, PDB Name: NTAP_PDB1 80 29 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261 Container ID: 4, PDB Name: NTAP_PDB2 81 30 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317 Container ID: 4, PDB Name: NTAP_PDB2 82 31 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343 Container ID: 5, PDB Name: NTAP_PDB3 83 32 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351 Container ID: 3, PDB Name: NTAP_PDB1 84 33 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805 Container ID: 3, PDB Name: NTAP_PDB1 85 34 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829 Container ID: 4, PDB Name: NTAP_PDB2 86 35 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821 Container ID: 5, PDB Name: NTAP_PDB3 87 36 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969 Container ID: 3, PDB Name: NTAP_PDB1 88 37 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025 Container ID: 4, PDB Name: NTAP_PDB2 89 38 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375 Container ID: 5, PDB Name: NTAP_PDB3 90 39 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375 Container ID: 4, PDB Name: NTAP_PDB2 91 40 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381 Container ID: 5, PDB Name: NTAP_PDB3 92 41 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399 Container ID: 3, PDB Name: NTAP_PDB1 93 42 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601 Container ID: 4, PDB Name: NTAP_PDB2 94 43 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629 Container ID: 5, PDB Name: NTAP_PDB3 95 44 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651 Container ID: 3, PDB Name: NTAP_PDB1 96 45 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031 Container ID: 5, PDB Name: NTAP_PDB3 97 46 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095 Container ID: 3, PDB Name: NTAP_PDB1 98 47 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051 Container ID: 4, PDB Name: NTAP_PDB2 99 48 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549 Container ID: 4, PDB Name: NTAP_PDB2 100 49 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563 Container ID: 5, PDB Name: NTAP_PDB3 101 50 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477 Container ID: 5, PDB Name: NTAP_PDB3 -
Purge the now obselete data files on primary storage if exist to release space and/or clear record.
RMAN> delete copy of database; allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=137 device type=DISK List of Datafile Copies ======================= Key File S Completion Time Ckp SCN Ckp Time Sparse ------- ---- - --------------- ---------- --------------- ------ 53 1 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/system.257.1201727295 54 3 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/sysaux.258.1201727339 55 4 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/undotbs1.259.1201727365 56 5 A 27-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307 Container ID: 2, PDB Name: PDB$SEED 57 6 A 27-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307 Container ID: 2, PDB Name: PDB$SEED 58 7 A 27-MAY-25 2901679 27-MAY-25 NO Name: +DATA/NTAP/DATAFILE/users.260.1201727365 59 8 A 27-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307 Container ID: 2, PDB Name: PDB$SEED 60 9 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255 Container ID: 3, PDB Name: NTAP_PDB1 61 10 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255 Container ID: 3, PDB Name: NTAP_PDB1 62 11 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255 Container ID: 3, PDB Name: NTAP_PDB1 63 12 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277 Container ID: 3, PDB Name: NTAP_PDB1 64 13 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279 Container ID: 4, PDB Name: NTAP_PDB2 65 14 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279 Container ID: 4, PDB Name: NTAP_PDB2 66 15 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279 Container ID: 4, PDB Name: NTAP_PDB2 67 16 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301 Container ID: 4, PDB Name: NTAP_PDB2 68 17 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301 Container ID: 5, PDB Name: NTAP_PDB3 69 18 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301 Container ID: 5, PDB Name: NTAP_PDB3 70 19 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301 Container ID: 5, PDB Name: NTAP_PDB3 71 20 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323 Container ID: 5, PDB Name: NTAP_PDB3 72 21 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019 Container ID: 3, PDB Name: NTAP_PDB1 73 22 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419 Container ID: 3, PDB Name: NTAP_PDB1 74 23 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535 Container ID: 4, PDB Name: NTAP_PDB2 75 24 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665 Container ID: 5, PDB Name: NTAP_PDB3 76 25 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401 Container ID: 3, PDB Name: NTAP_PDB1 77 26 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153 Container ID: 4, PDB Name: NTAP_PDB2 78 27 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207 Container ID: 5, PDB Name: NTAP_PDB3 79 28 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271 Container ID: 3, PDB Name: NTAP_PDB1 80 29 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261 Container ID: 4, PDB Name: NTAP_PDB2 81 30 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317 Container ID: 4, PDB Name: NTAP_PDB2 82 31 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343 Container ID: 5, PDB Name: NTAP_PDB3 83 32 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351 Container ID: 3, PDB Name: NTAP_PDB1 84 33 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805 Container ID: 3, PDB Name: NTAP_PDB1 85 34 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829 Container ID: 4, PDB Name: NTAP_PDB2 86 35 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821 Container ID: 5, PDB Name: NTAP_PDB3 87 36 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969 Container ID: 3, PDB Name: NTAP_PDB1 88 37 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025 Container ID: 4, PDB Name: NTAP_PDB2 89 38 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375 Container ID: 5, PDB Name: NTAP_PDB3 90 39 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375 Container ID: 4, PDB Name: NTAP_PDB2 91 40 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381 Container ID: 5, PDB Name: NTAP_PDB3 92 41 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399 Container ID: 3, PDB Name: NTAP_PDB1 93 42 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601 Container ID: 4, PDB Name: NTAP_PDB2 94 43 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629 Container ID: 5, PDB Name: NTAP_PDB3 95 44 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651 Container ID: 3, PDB Name: NTAP_PDB1 96 45 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031 Container ID: 5, PDB Name: NTAP_PDB3 97 46 A 27-MAY-25 2901354 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095 Container ID: 3, PDB Name: NTAP_PDB1 98 47 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051 Container ID: 4, PDB Name: NTAP_PDB2 99 48 A 27-MAY-25 2901510 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549 Container ID: 4, PDB Name: NTAP_PDB2 100 49 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563 Container ID: 5, PDB Name: NTAP_PDB3 101 50 A 27-MAY-25 2901509 27-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477 Container ID: 5, PDB Name: NTAP_PDB3 Do you really want to delete the above objects (enter YES or NO)? YES deleted datafile copy datafile copy file name=+DATA/NTAP/DATAFILE/system.257.1201727295 RECID=53 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/DATAFILE/sysaux.258.1201727339 RECID=54 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/DATAFILE/undotbs1.259.1201727365 RECID=55 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307 RECID=56 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307 RECID=57 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/DATAFILE/users.260.1201727365 RECID=58 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307 RECID=59 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255 RECID=60 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255 RECID=61 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255 RECID=62 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277 RECID=63 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279 RECID=64 STAMP=1202233336 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279 RECID=65 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279 RECID=66 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301 RECID=67 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301 RECID=68 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301 RECID=69 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301 RECID=70 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323 RECID=71 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019 RECID=72 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419 RECID=73 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535 RECID=74 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665 RECID=75 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401 RECID=76 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153 RECID=77 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207 RECID=78 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271 RECID=79 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261 RECID=80 STAMP=1202233337 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317 RECID=81 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343 RECID=82 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351 RECID=83 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805 RECID=84 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829 RECID=85 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821 RECID=86 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969 RECID=87 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025 RECID=88 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375 RECID=89 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375 RECID=90 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381 RECID=91 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399 RECID=92 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601 RECID=93 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629 RECID=94 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651 RECID=95 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031 RECID=96 STAMP=1202233338 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095 RECID=97 STAMP=1202233339 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051 RECID=98 STAMP=1202233339 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549 RECID=99 STAMP=1202233339 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563 RECID=100 STAMP=1202233339 deleted datafile copy datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477 RECID=101 STAMP=1202233339 Deleted 49 objects RMAN> list copy of database; specification does not match any datafile copy in the repository -
Revise rman backup and merge script to point to primary storage and in our test case - the ASM disk group +DATA in RMAN channel definition. Execute the revised backup script to create a new image copy on primary storage.
RMAN> @/home/oracle/rman_bkup_merge.cmd.1 RMAN> RUN 2> { 3> allocate channel c1 device type disk format '+DATA'; 4> allocate channel c2 device type disk format '+DATA'; 5> allocate channel c3 device type disk format '+DATA'; 6> allocate channel c4 device type disk format '+DATA'; 7> delete obsolete; 8> sql 'alter system archive log current'; 9> recover copy of database with tag 'OraCopyBKUPonGCNV_level_0'; 10> backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonGCNV_level_0' database; 11> } released channel: ORA_DISK_1 allocated channel: c1 channel c1: SID=137 device type=DISK allocated channel: c2 channel c2: SID=397 device type=DISK allocated channel: c3 channel c3: SID=390 device type=DISK allocated channel: c4 channel c4: SID=274 device type=DISK RMAN retention policy will be applied to the command RMAN retention policy is set to redundancy 1 Deleting the following obsolete backups and copies: Type Key Completion Time Filename/Handle -------------------- ------ ------------------ -------------------- Backup Set 12 24-MAY-25 Backup Piece 12 24-MAY-25 /nfsgcnv/archlog/NTAP/autobackup/2025_05_24/o1_mf_s_1201919173_n32cl775_.bkp deleted backup piece backup piece handle=/nfsgcnv/archlog/NTAP/autobackup/2025_05_24/o1_mf_s_1201919173_n32cl775_.bkp RECID=12 STAMP=1201919175 Deleted 1 objects sql statement: alter system archive log current Starting recover at 27-MAY-25 no copy of datafile 1 found to recover no copy of datafile 3 found to recover no copy of datafile 4 found to recover no copy of datafile 5 found to recover no copy of datafile 6 found to recover no copy of datafile 7 found to recover no copy of datafile 8 found to recover no copy of datafile 9 found to recover no copy of datafile 10 found to recover no copy of datafile 11 found to recover no copy of datafile 12 found to recover no copy of datafile 13 found to recover no copy of datafile 14 found to recover no copy of datafile 15 found to recover no copy of datafile 16 found to recover no copy of datafile 17 found to recover no copy of datafile 18 found to recover no copy of datafile 19 found to recover no copy of datafile 20 found to recover no copy of datafile 21 found to recover no copy of datafile 22 found to recover no copy of datafile 23 found to recover no copy of datafile 24 found to recover no copy of datafile 25 found to recover no copy of datafile 26 found to recover no copy of datafile 27 found to recover no copy of datafile 28 found to recover no copy of datafile 29 found to recover no copy of datafile 30 found to recover no copy of datafile 31 found to recover no copy of datafile 32 found to recover no copy of datafile 33 found to recover no copy of datafile 34 found to recover no copy of datafile 35 found to recover no copy of datafile 36 found to recover no copy of datafile 37 found to recover no copy of datafile 38 found to recover no copy of datafile 39 found to recover no copy of datafile 40 found to recover no copy of datafile 41 found to recover no copy of datafile 42 found to recover no copy of datafile 43 found to recover no copy of datafile 44 found to recover no copy of datafile 45 found to recover no copy of datafile 46 found to recover no copy of datafile 47 found to recover no copy of datafile 48 found to recover no copy of datafile 49 found to recover no copy of datafile 50 found to recover Finished recover at 27-MAY-25 Starting backup at 27-MAY-25 no parent backup or copy of datafile 1 found no parent backup or copy of datafile 3 found no parent backup or copy of datafile 4 found no parent backup or copy of datafile 7 found no parent backup or copy of datafile 6 found no parent backup or copy of datafile 5 found no parent backup or copy of datafile 8 found no parent backup or copy of datafile 21 found no parent backup or copy of datafile 22 found no parent backup or copy of datafile 25 found no parent backup or copy of datafile 28 found no parent backup or copy of datafile 32 found no parent backup or copy of datafile 33 found no parent backup or copy of datafile 36 found no parent backup or copy of datafile 41 found no parent backup or copy of datafile 44 found no parent backup or copy of datafile 46 found no parent backup or copy of datafile 10 found no parent backup or copy of datafile 9 found no parent backup or copy of datafile 11 found no parent backup or copy of datafile 12 found no parent backup or copy of datafile 23 found no parent backup or copy of datafile 26 found no parent backup or copy of datafile 29 found no parent backup or copy of datafile 30 found no parent backup or copy of datafile 34 found no parent backup or copy of datafile 37 found no parent backup or copy of datafile 39 found no parent backup or copy of datafile 42 found no parent backup or copy of datafile 47 found no parent backup or copy of datafile 48 found no parent backup or copy of datafile 14 found no parent backup or copy of datafile 13 found no parent backup or copy of datafile 15 found no parent backup or copy of datafile 16 found no parent backup or copy of datafile 24 found no parent backup or copy of datafile 27 found no parent backup or copy of datafile 31 found no parent backup or copy of datafile 35 found no parent backup or copy of datafile 38 found no parent backup or copy of datafile 40 found no parent backup or copy of datafile 43 found no parent backup or copy of datafile 45 found no parent backup or copy of datafile 49 found no parent backup or copy of datafile 50 found no parent backup or copy of datafile 18 found no parent backup or copy of datafile 17 found no parent backup or copy of datafile 19 found no parent backup or copy of datafile 20 found channel c1: starting datafile copy input datafile file number=00021 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm channel c2: starting datafile copy input datafile file number=00022 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm channel c3: starting datafile copy input datafile file number=00025 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn channel c4: starting datafile copy input datafile file number=00028 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=148 STAMP=1202243608 channel c2: datafile copy complete, elapsed time: 01:03:56 channel c2: starting datafile copy input datafile file number=00032 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=149 STAMP=1202243617 channel c3: datafile copy complete, elapsed time: 01:03:60 channel c3: starting datafile copy input datafile file number=00033 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=150 STAMP=1202243621 channel c1: datafile copy complete, elapsed time: 01:04:03 channel c1: starting datafile copy input datafile file number=00036 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=151 STAMP=1202243625 channel c4: datafile copy complete, elapsed time: 01:04:11 channel c4: starting datafile copy input datafile file number=00041 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=153 STAMP=1202247449 channel c2: datafile copy complete, elapsed time: 01:03:60 channel c2: starting datafile copy input datafile file number=00044 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=152 STAMP=1202247446 channel c3: datafile copy complete, elapsed time: 01:03:57 channel c3: starting datafile copy input datafile file number=00046 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=154 STAMP=1202247463 channel c4: datafile copy complete, elapsed time: 01:04:02 channel c4: starting datafile copy input datafile file number=00023 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=155 STAMP=1202247473 channel c1: datafile copy complete, elapsed time: 01:04:12 channel c1: starting datafile copy input datafile file number=00026 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=156 STAMP=1202251305 channel c2: datafile copy complete, elapsed time: 01:04:15 channel c2: starting datafile copy input datafile file number=00029 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=157 STAMP=1202251305 channel c3: datafile copy complete, elapsed time: 01:04:15 channel c3: starting datafile copy input datafile file number=00030 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=158 STAMP=1202251311 channel c4: datafile copy complete, elapsed time: 01:04:01 channel c4: starting datafile copy input datafile file number=00034 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=159 STAMP=1202251313 channel c1: datafile copy complete, elapsed time: 01:03:59 channel c1: starting datafile copy input datafile file number=00037 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=160 STAMP=1202255139 channel c3: datafile copy complete, elapsed time: 01:03:48 channel c3: starting datafile copy input datafile file number=00039 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=161 STAMP=1202255150 channel c2: datafile copy complete, elapsed time: 01:04:04 channel c2: starting datafile copy input datafile file number=00042 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=162 STAMP=1202255155 channel c4: datafile copy complete, elapsed time: 01:04:03 channel c4: starting datafile copy input datafile file number=00047 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=163 STAMP=1202255166 channel c1: datafile copy complete, elapsed time: 01:04:17 channel c1: starting datafile copy input datafile file number=00048 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=164 STAMP=1202258984 channel c2: datafile copy complete, elapsed time: 01:03:51 channel c2: starting datafile copy input datafile file number=00024 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=165 STAMP=1202258992 channel c4: datafile copy complete, elapsed time: 01:03:59 channel c4: starting datafile copy input datafile file number=00027 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=166 STAMP=1202259002 channel c1: datafile copy complete, elapsed time: 01:03:59 channel c1: starting datafile copy input datafile file number=00031 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=167 STAMP=1202259003 channel c3: datafile copy complete, elapsed time: 01:04:30 channel c3: starting datafile copy input datafile file number=00035 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=168 STAMP=1202262811 channel c2: datafile copy complete, elapsed time: 01:03:49 channel c2: starting datafile copy input datafile file number=00038 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=169 STAMP=1202262817 channel c4: datafile copy complete, elapsed time: 01:03:43 channel c4: starting datafile copy input datafile file number=00040 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=170 STAMP=1202262857 channel c3: datafile copy complete, elapsed time: 01:04:13 channel c3: starting datafile copy input datafile file number=00043 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=171 STAMP=1202262866 channel c1: datafile copy complete, elapsed time: 01:04:16 channel c1: starting datafile copy input datafile file number=00045 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=172 STAMP=1202266648 channel c2: datafile copy complete, elapsed time: 01:03:56 channel c2: starting datafile copy input datafile file number=00049 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=173 STAMP=1202266665 channel c4: datafile copy complete, elapsed time: 01:04:10 channel c4: starting datafile copy input datafile file number=00050 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=174 STAMP=1202266695 channel c1: datafile copy complete, elapsed time: 01:03:56 channel c1: starting datafile copy input datafile file number=00001 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=175 STAMP=1202266710 channel c3: datafile copy complete, elapsed time: 01:04:08 channel c3: starting datafile copy input datafile file number=00003 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 output file name=+DATA/NTAP/DATAFILE/sysaux.281.1202266713 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=176 STAMP=1202266836 channel c3: datafile copy complete, elapsed time: 00:02:06 channel c3: starting datafile copy input datafile file number=00004 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa output file name=+DATA/NTAP/DATAFILE/system.285.1202266707 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=177 STAMP=1202266837 channel c1: datafile copy complete, elapsed time: 00:02:14 channel c1: starting datafile copy input datafile file number=00010 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=178 STAMP=1202266904 channel c1: datafile copy complete, elapsed time: 00:01:15 channel c1: starting datafile copy input datafile file number=00014 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp output file name=+DATA/NTAP/DATAFILE/undotbs1.283.1202266839 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=179 STAMP=1202266919 channel c3: datafile copy complete, elapsed time: 00:01:24 channel c3: starting datafile copy input datafile file number=00018 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=180 STAMP=1202266976 channel c1: datafile copy complete, elapsed time: 00:01:03 channel c1: starting datafile copy input datafile file number=00006 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=181 STAMP=1202266987 channel c3: datafile copy complete, elapsed time: 00:01:10 channel c3: starting datafile copy input datafile file number=00009 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 output file name=+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=182 STAMP=1202267033 channel c1: datafile copy complete, elapsed time: 00:01:00 channel c1: starting datafile copy input datafile file number=00013 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=183 STAMP=1202267043 channel c3: datafile copy complete, elapsed time: 00:00:53 channel c3: starting datafile copy input datafile file number=00017 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=184 STAMP=1202267089 channel c1: datafile copy complete, elapsed time: 00:00:53 channel c1: starting datafile copy input datafile file number=00005 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=185 STAMP=1202267099 channel c3: datafile copy complete, elapsed time: 00:01:00 channel c3: starting datafile copy input datafile file number=00011 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 output file name=+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=186 STAMP=1202267137 channel c1: datafile copy complete, elapsed time: 00:00:51 channel c1: starting datafile copy input datafile file number=00008 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=187 STAMP=1202267138 channel c3: datafile copy complete, elapsed time: 00:00:35 channel c3: starting datafile copy input datafile file number=00015 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p output file name=+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=188 STAMP=1202267172 channel c1: datafile copy complete, elapsed time: 00:00:36 channel c1: starting datafile copy input datafile file number=00019 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=189 STAMP=1202267172 channel c3: datafile copy complete, elapsed time: 00:00:35 channel c3: starting datafile copy input datafile file number=00007 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg output file name=+DATA/NTAP/DATAFILE/users.266.1202267179 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=190 STAMP=1202267179 channel c3: datafile copy complete, elapsed time: 00:00:01 channel c3: starting datafile copy input datafile file number=00012 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=191 STAMP=1202267182 channel c3: datafile copy complete, elapsed time: 00:00:03 channel c3: starting datafile copy input datafile file number=00016 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=192 STAMP=1202267185 channel c3: datafile copy complete, elapsed time: 00:00:03 channel c3: starting datafile copy input datafile file number=00020 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=193 STAMP=1202267190 channel c3: datafile copy complete, elapsed time: 00:00:03 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=194 STAMP=1202267199 channel c1: datafile copy complete, elapsed time: 00:00:24 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=195 STAMP=1202268827 channel c2: datafile copy complete, elapsed time: 00:36:19 output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=196 STAMP=1202268833 channel c4: datafile copy complete, elapsed time: 00:36:14 Finished backup at 28-MAY-25 Starting Control File and SPFILE Autobackup at 28-MAY-25 piece handle=/nfsgcnv/archlog/NTAP/autobackup/2025_05_28/o1_mf_s_1202268842_n3f11d04_.bkp comment=NONE Finished Control File and SPFILE Autobackup at 28-MAY-25 released channel: c1 released channel: c2 released channel: c3 released channel: c4 RMAN> **end-of-file** RMAN> -
Validate that a new VLDB image copy is now created on the primary storage.
RMAN> list copy of database; List of Datafile Copies ======================= Key File S Completion Time Ckp SCN Ckp Time Sparse ------- ---- - --------------- ---------- --------------- ------ 177 1 A 28-MAY-25 2951405 28-MAY-25 NO Name: +DATA/NTAP/DATAFILE/system.285.1202266707 Tag: ORACOPYBKUPONGCNV_LEVEL_0 176 3 A 28-MAY-25 2951427 28-MAY-25 NO Name: +DATA/NTAP/DATAFILE/sysaux.281.1202266713 Tag: ORACOPYBKUPONGCNV_LEVEL_0 179 4 A 28-MAY-25 2951801 28-MAY-25 NO Name: +DATA/NTAP/DATAFILE/undotbs1.283.1202266839 Tag: ORACOPYBKUPONGCNV_LEVEL_0 186 5 A 28-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 182 6 A 28-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 190 7 A 28-MAY-25 2952103 28-MAY-25 NO Name: +DATA/NTAP/DATAFILE/users.266.1202267179 Tag: ORACOPYBKUPONGCNV_LEVEL_0 188 8 A 28-MAY-25 2377077 21-MAY-25 NO Name: +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 183 9 A 28-MAY-25 2951919 28-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 178 10 A 28-MAY-25 2951806 28-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 187 11 A 28-MAY-25 2952000 28-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 191 12 A 28-MAY-25 2952108 28-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 184 13 A 28-MAY-25 2951954 28-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 180 14 A 28-MAY-25 2951863 28-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 189 15 A 28-MAY-25 2952084 28-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 192 16 A 28-MAY-25 2952113 28-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 185 17 A 28-MAY-25 2951961 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 181 18 A 28-MAY-25 2951870 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 194 19 A 28-MAY-25 2952099 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 193 20 A 28-MAY-25 2952119 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 150 21 A 27-MAY-25 2912326 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 148 22 A 27-MAY-25 2912334 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 158 23 A 27-MAY-25 2919519 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 168 24 A 28-MAY-25 2943784 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 149 25 A 27-MAY-25 2912330 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 159 26 A 27-MAY-25 2919524 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 169 27 A 28-MAY-25 2943790 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 151 28 A 27-MAY-25 2912331 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 161 29 A 27-MAY-25 2936579 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 160 30 A 27-MAY-25 2936583 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 171 31 A 28-MAY-25 2943799 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 153 32 A 27-MAY-25 2915938 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 152 33 A 27-MAY-25 2915943 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 162 34 A 27-MAY-25 2936588 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 170 35 A 28-MAY-25 2943803 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 155 36 A 27-MAY-25 2915949 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 163 37 A 27-MAY-25 2936592 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 172 38 A 28-MAY-25 2947486 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 167 39 A 28-MAY-25 2940255 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 173 40 A 28-MAY-25 2947490 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 154 41 A 27-MAY-25 2915970 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 164 42 A 28-MAY-25 2940264 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 175 43 A 28-MAY-25 2947509 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 156 44 A 27-MAY-25 2919491 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 174 45 A 28-MAY-25 2947515 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 157 46 A 27-MAY-25 2919495 27-MAY-25 NO Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 165 47 A 28-MAY-25 2940268 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 166 48 A 28-MAY-25 2940277 27-MAY-25 NO Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 195 49 A 28-MAY-25 2951380 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 196 50 A 28-MAY-25 2951389 28-MAY-25 NO Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 -
Insert a new test row in the test table and validate that reversing back to image copy on primary storage recovers all transactions.
[oracle@orap ~]$ sqlplus / as sysdba SQL*Plus: Release 19.0.0.0.0 - Production on Wed May 28 20:04:53 2025 Version 19.18.0.0.0 Copyright (c) 1982, 2022, Oracle. All rights reserved. Connected to: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production Version 19.18.0.0.0 SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 NTAP_PDB1 READ WRITE NO 4 NTAP_PDB2 READ WRITE NO 5 NTAP_PDB3 READ WRITE NO SQL> alter session set container=ntap_pdb1; Session altered. SQL> select * from test; ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- 1 27-MAY-25 05.35.44.000000 PM validate a full recovery after a switch to DB backup copy SQL> insert into test values(2, sysdate, 'Swing database back to primary storage from nfs backup mount on GCNV'); 1 row created. SQL> commit; Commit complete. SQL> select * from test; ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- 1 27-MAY-25 05.35.44.000000 PM validate a full recovery after a switch to DB backup copy on GCNV 2 28-MAY-25 08.09.34.000000 PM Swing database back to primary storage from nfs backup mount on GCNV ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- SQL> -
From RMAN, shutdown DB to switch back to backup image copy on primary storage.
[oracle@orap ~]$ rman target / nocatalog Recovery Manager: Release 19.0.0.0.0 - Production on Wed May 28 20:01:55 2025 Version 19.18.0.0.0 Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved. connected to target database: NTAP (DBID=1379265854) using target database control file instead of recovery catalog RMAN> shutdown abort; Oracle instance shut down RMAN> startup mount; connected to target database (not started) Oracle instance started database mounted Total System Global Area 5620363744 bytes Fixed Size 9175520 bytes Variable Size 1023410176 bytes Database Buffers 4580179968 bytes Redo Buffers 7598080 bytes RMAN> switch database to copy; datafile 1 switched to datafile copy "+DATA/NTAP/DATAFILE/system.285.1202266707" datafile 3 switched to datafile copy "+DATA/NTAP/DATAFILE/sysaux.281.1202266713" datafile 4 switched to datafile copy "+DATA/NTAP/DATAFILE/undotbs1.283.1202266839" datafile 5 switched to datafile copy "+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093" datafile 6 switched to datafile copy "+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977" datafile 7 switched to datafile copy "+DATA/NTAP/DATAFILE/users.266.1202267179" datafile 8 switched to datafile copy "+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143" datafile 9 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995" datafile 10 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839" datafile 11 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109" datafile 12 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181" datafile 13 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039" datafile 14 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915" datafile 15 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143" datafile 16 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185" datafile 17 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047" datafile 18 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923" datafile 19 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179" datafile 20 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189" datafile 21 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779" datafile 22 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779" datafile 23 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473" datafile 24 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989" datafile 25 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779" datafile 26 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477" datafile 27 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997" datafile 28 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779" datafile 29 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311" datafile 30 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311" datafile 31 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011" datafile 32 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617" datafile 33 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619" datafile 34 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313" datafile 35 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011" datafile 36 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625" datafile 37 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315" datafile 38 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817" datafile 39 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141" datafile 40 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819" datafile 41 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631" datafile 42 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157" datafile 43 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865" datafile 44 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457" datafile 45 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869" datafile 46 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457" datafile 47 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157" datafile 48 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171" datafile 49 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655" datafile 50 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669" RMAN> recover database; Starting recover at 28-MAY-25 allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=139 device type=DISK starting media recovery media recovery complete, elapsed time: 00:00:07 Finished recover at 28-MAY-25 RMAN> alter database open; Statement processed RMAN>
-
Validate that the database is now back to primary storage.
RMAN> report schema; Report of database schema for database with db_unique_name NTAP List of Permanent Datafiles =========================== File Size(MB) Tablespace RB segs Datafile Name ---- -------- -------------------- ------- ------------------------ 1 1070 SYSTEM YES +DATA/NTAP/DATAFILE/system.285.1202266707 3 1020 SYSAUX NO +DATA/NTAP/DATAFILE/sysaux.281.1202266713 4 680 UNDOTBS1 YES +DATA/NTAP/DATAFILE/undotbs1.283.1202266839 5 400 PDB$SEED:SYSTEM NO +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093 6 460 PDB$SEED:SYSAUX NO +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977 7 5 USERS NO +DATA/NTAP/DATAFILE/users.266.1202267179 8 235 PDB$SEED:UNDOTBS1 NO +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143 9 410 NTAP_PDB1:SYSTEM YES +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995 10 510 NTAP_PDB1:SYSAUX NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839 11 240 NTAP_PDB1:UNDOTBS1 YES +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109 12 5 NTAP_PDB1:USERS NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181 13 410 NTAP_PDB2:SYSTEM YES +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039 14 510 NTAP_PDB2:SYSAUX NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915 15 235 NTAP_PDB2:UNDOTBS1 YES +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143 16 5 NTAP_PDB2:USERS NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185 17 410 NTAP_PDB3:SYSTEM YES +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047 18 510 NTAP_PDB3:SYSAUX NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923 19 235 NTAP_PDB3:UNDOTBS1 YES +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179 20 5 NTAP_PDB3:USERS NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189 21 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779 22 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779 23 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473 24 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989 25 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779 26 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477 27 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997 28 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779 29 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311 30 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311 31 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011 32 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617 33 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619 34 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313 35 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011 36 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625 37 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315 38 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817 39 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141 40 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819 41 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631 42 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157 43 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865 44 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457 45 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869 46 30720 NTAP_PDB1:SOE1 NO +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457 47 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157 48 30720 NTAP_PDB2:SOE2 NO +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171 49 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655 50 30720 NTAP_PDB3:SOE3 NO +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669 List of Temporary Files ======================= File Size(MB) Tablespace Maxsize(MB) Tempfile Name ---- -------- -------------------- ----------- -------------------- 1 123 TEMP 32767 +DATA/NTAP/TEMPFILE/temp.265.1201727469 2 123 PDB$SEED:TEMP 32767 +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335 3 16384 NTAP_PDB1:TEMP 32767 +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271 4 30720 NTAP_PDB2:TEMP 32767 +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295 5 30720 NTAP_PDB3:TEMP 32767 +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319
-
Validate from sqlplus that all transactions are recovered in the test table.
SQL> alter session set container=ntap_pdb1; Session altered. SQL> select * from test; ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- 1 27-MAY-25 05.35.44.000000 PM validate a full recovery after a switch to DB backup copy on GCNV 2 28-MAY-25 08.09.34.000000 PM Swing database back to primary storage from nfs backup mount on GCNV ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- SQL> select systimestamp from dual; SYSTIMESTAMP --------------------------------------------------------------------------- 28-MAY-25 08.17.55.895654 PM +00:00 SQL> -
Finally, delete obsolete DB image copy on GCNV backup storage and create a new backup image on GCNV backup storage to complete the cycle.
Point-in-time recovery with the loss of all Oracle files
Details
In the event of a failure where the primary storage and/or primary DB server host are lost, any transactions not in the archived log files would be lost. However, your Oracle database backup image copy available on the GCNV NFS file system comes in handy. You can quickly recover the primary database to the same primary database server or a standby database server, if one is available, using the backup image copy. In this section, we will demonstrate the step-by-step procedures for recovery to the primary DB server. The methods for recovering to a new standby DB server are almost identical; however, the database backup image copy must be mounted on the standby DB server with the same Oracle software stack installed and configured.
-
Insert a row to test table we have created previously for Oracle VLDB point-in-time recovery validation.
SQL> insert into test values(3, sysdate, 'validate a point-in-time recovery by switching to DB backup copy on GCNV'); 1 row created. SQL> commit; Commit complete. SQL> select * from test; ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- 1 27-MAY-25 05.35.44.000000 PM validate a full recovery after a switch to DB backup copy on GCNV 2 28-MAY-25 08.09.34.000000 PM Swing database back to primary storage from nfs backup mount on GCNV ID ---------- DT --------------------------------------------------------------------------- EVENT -------------------------------------------------------------------------------- 3 29-MAY-25 03.22.22.000000 PM validate a point-in-time recovery by switching to DB backup copy on GCNV -
Archive current log file so that the transaction is pushed to an archived log file.
SQL> alter session set container=cdb$root; Session altered. SQL> alter system archive log current; System altered.
-
Shutdown primary VLDB server host to simulate a total failure of storage and DB server host.
-
If the recovery is performed on a standby DB server, ensure that it is the same OS, same version, and OS kernal were patched up as the primary DB server host. Also, the same version and patches of Oracle has been installed and configured on standby DB server with software only option.
-
Also, configure oracle environment on the standby DB server similiarly to the primary DB server, such as oratab, and oracle user .bash_profile etc. It is a good practice to backup those files to GCNV NFS mount point.
-
The Oracle database backup image copy on GCNV NFS file system is then mounted on the standby DB server for recovery. The following procedures demonstrate the process details.
As a admin user, create the mount point.
sudo mkdir /nfsgcnvAs the admin user, mount the NFS volume that stored Oracle VLDB backup image copy.
sudo mount 10.165.128.5:/orap-bkup /nfsgcnv -o rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144 -
Verify the available Oracle archived logs on the GCNV NFS mount for recovery and note the last log file log sequency number. In our test case, it was 27. Our recovery point is up to log sequency number 28.
-
If recovering from a standby DB host, as the oracle user, set ORACLE_HOME variable to current Oracle installation on standby DB server, ORACLE_SID to primary Oracle instance SID. In this test, it is NTAP.
[oracle@ora-02 ~]$ export ORACLE_HOME=/u01/app/oracle/product/19.0.0/NTAP [oracle@ora-02 ~]$ export ORACLE_SID=NTAP [oracle@ora-02 ~]$ export PATH=$PATH:$ORACLE_HOME/bin
-
As oracle user, create a generic Oracle init file in $ORACLE_HOME/dbs directory with proper admin directories configured. Most importantly, have Oracle
flash recovery areapoint to GCNV NFS mount path as defined in primary Oracle VLDB server.flash recovery areaconfiguration is demonstrated in sectionSetup Oracle RMAN incremental merge to image copy on GCNV for in-server VLDB backup. Set the Oracle control file to GCNV NFS backup file system.vi /home/oracle/initNTAP.oraWith following example entries:
*.audit_file_dest='/u01/app/oracle/admin/NTAP/adump' *.audit_trail='db' *.compatible='19.0.0' *.control_files=('/nfsgcnv/oracopy/NTAP.ctl') *.db_block_size=8192 *.db_create_file_dest='/nfsgcnv/oracopy/' *.db_name='NTAP' *.db_recovery_file_dest_size=85899345920 *.db_recovery_file_dest='/nfsgcnv/archlog/' *.diagnostic_dest='/u01/app/oracle' *.enable_pluggable_database=true *.local_listener='LISTENER' *.nls_language='AMERICAN' *.nls_territory='AMERICA' *.pga_aggregate_target=1024m *.processes=320 *.remote_login_passwordfile='EXCLUSIVE' *.sga_target=10240mThe above init file should be replaced by restored backup init file from primary Oracle VLDB server in the case of discrepancy.
-
As oracle user, launch RMAN to run Oracle recovery on the primary or standby DB server host. First, start the Oracle instance in
nomountstate.[oracle@orap ~]$ rman target / nocatalog Recovery Manager: Release 19.0.0.0.0 - Production on Thu May 29 15:46:15 2025 Version 19.18.0.0.0 Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved. connected to target database (not started) RMAN> startup nomount pfile='/home/oracle/initNTAP.ora'; Oracle instance started Total System Global Area 10737418000 bytes Fixed Size 9174800 bytes Variable Size 1577058304 bytes Database Buffers 9126805504 bytes Redo Buffers 24379392 bytes
-
Set database ID. The database ID can be retrieved from Oracle file name of image copy on GCNV NFS mount point.
RMAN> set dbid = 1379265854; executing command: SET DBID
-
Restore controlfile from autobackup. If Oracle controlfile and spfile autobackup is enabled, they are backed up in every incremental backup and merge cycle. The latest backup will be restored if multiple copies are available.
RMAN> restore controlfile from autobackup; Starting restore at 29-MAY-25 allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=2 device type=DISK recovery area destination: /nfsgcnv/archlog/ database name (or database unique name) used for search: NTAP channel ORA_DISK_1: AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp found in the recovery area channel ORA_DISK_1: looking for AUTOBACKUP on day: 20250529 channel ORA_DISK_1: restoring control file from AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp channel ORA_DISK_1: control file restore from AUTOBACKUP complete output file name=/nfsgcnv/oracopy/NTAP.ctl Finished restore at 29-MAY-25
-
Restore init file from spfile to $ORACLE_HOME/dbs folder for updating parameter file later to match with primary VLDB.
RMAN> restore spfile to pfile '/u01/app/oracle/product/19.0.0/NTAP/dbs/initNTAP.ora' from autobackup; Starting restore at 29-MAY-25 using channel ORA_DISK_1 recovery area destination: /nfsgcnv/archlog/ database name (or database unique name) used for search: NTAP channel ORA_DISK_1: AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp found in the recovery area channel ORA_DISK_1: looking for AUTOBACKUP on day: 20250529 channel ORA_DISK_1: restoring spfile from AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp channel ORA_DISK_1: SPFILE restore from AUTOBACKUP complete Finished restore at 29-MAY-25
-
Mount control file and validate the database backup image copy.
RMAN> alter database mount; released channel: ORA_DISK_1 Statement processed RMAN> list copy of database tag 'ORACOPYBKUPONGCNV_LEVEL_0'; List of Datafile Copies ======================= Key File S Completion Time Ckp SCN Ckp Time Sparse ------- ---- - --------------- ---------- --------------- ------ 273 1 A 29-MAY-25 3310055 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a Tag: ORACOPYBKUPONGCNV_LEVEL_0 274 3 A 29-MAY-25 3310333 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3 Tag: ORACOPYBKUPONGCNV_LEVEL_0 275 4 A 29-MAY-25 3310521 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu Tag: ORACOPYBKUPONGCNV_LEVEL_0 283 5 A 29-MAY-25 2377077 21-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_6t3qlaa4 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 279 6 A 29-MAY-25 2377077 21-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_6p3ql9vu Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 288 7 A 29-MAY-25 3311276 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif Tag: ORACOPYBKUPONGCNV_LEVEL_0 285 8 A 29-MAY-25 2377077 21-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_6v3qlae9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 2, PDB Name: PDB$SEED 280 9 A 29-MAY-25 3310854 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 276 10 A 29-MAY-25 3310587 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 284 11 A 29-MAY-25 3311150 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 289 12 A 29-MAY-25 3311281 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 281 13 A 29-MAY-25 3310906 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 277 14 A 29-MAY-25 3310662 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 286 15 A 29-MAY-25 3311229 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 290 16 A 29-MAY-25 3311286 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 282 17 A 29-MAY-25 3311063 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 278 18 A 29-MAY-25 3310747 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 287 19 A 29-MAY-25 3311242 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 291 20 A 29-MAY-25 3311290 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 251 21 A 28-MAY-25 3261788 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 295 22 A 29-MAY-25 3261776 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 255 23 A 29-MAY-25 3266361 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 266 24 A 29-MAY-25 3280010 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 296 25 A 29-MAY-25 3261780 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 257 26 A 29-MAY-25 3270370 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 268 27 A 29-MAY-25 3280164 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 297 28 A 29-MAY-25 3261784 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 258 29 A 29-MAY-25 3270566 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 259 30 A 29-MAY-25 3270571 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 267 31 A 29-MAY-25 3280168 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 249 32 A 28-MAY-25 3261793 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 250 33 A 28-MAY-25 3261797 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 260 34 A 29-MAY-25 3270587 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 269 35 A 29-MAY-25 3284192 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 252 36 A 28-MAY-25 3261801 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 261 37 A 29-MAY-25 3275627 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 270 38 A 29-MAY-25 3297172 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 262 39 A 29-MAY-25 3275722 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 271 40 A 29-MAY-25 3297259 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 253 41 A 29-MAY-25 3266273 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 264 42 A 29-MAY-25 3275738 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 272 43 A 29-MAY-25 3297314 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 254 44 A 29-MAY-25 3266318 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 292 45 A 29-MAY-25 3309950 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 256 46 A 29-MAY-25 3266357 28-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 3, PDB Name: NTAP_PDB1 263 47 A 29-MAY-25 3275799 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 265 48 A 29-MAY-25 3279927 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 4, PDB Name: NTAP_PDB2 293 49 A 29-MAY-25 3309965 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 294 50 A 29-MAY-25 3310038 29-MAY-25 NO Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955 Tag: ORACOPYBKUPONGCNV_LEVEL_0 Container ID: 5, PDB Name: NTAP_PDB3 -
Switch database to copy to run recovery without database restore.
RMAN> switch database to copy; Starting implicit crosscheck backup at 29-MAY-25 allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=12 device type=DISK Crosschecked 20 objects Finished implicit crosscheck backup at 29-MAY-25 Starting implicit crosscheck copy at 29-MAY-25 using channel ORA_DISK_1 Crosschecked 49 objects Finished implicit crosscheck copy at 29-MAY-25 searching for all files in the recovery area cataloging files... cataloging done List of Cataloged Files ======================= File Name: /nfsgcnv/archlog/NTAP/archivelog/2025_05_29/o1_mf_1_27_n3jzbgh2_.arc File Name: /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp datafile 1 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a" datafile 3 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3" datafile 4 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu" datafile 5 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_6t3qlaa4" datafile 6 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_6p3ql9vu" datafile 7 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif" datafile 8 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_6v3qlae9" datafile 9 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21" datafile 10 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh" datafile 11 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg" datafile 12 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij" datafile 13 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52" datafile 14 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou" datafile 15 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft" datafile 16 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik" datafile 17 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n" datafile 18 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9" datafile 19 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago" datafile 20 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail" datafile 21 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8" datafile 22 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h" datafile 23 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o" datafile 24 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv" datafile 25 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h" datafile 26 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo" datafile 27 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9" datafile 28 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h" datafile 29 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09" datafile 30 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g" datafile 31 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9" datafile 32 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9" datafile 33 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9" datafile 34 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b" datafile 35 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412" datafile 36 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda" datafile 37 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf" datafile 38 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q" datafile 39 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn" datafile 40 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5" datafile 41 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37" datafile 42 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq" datafile 43 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo" datafile 44 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m" datafile 45 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c" datafile 46 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o" datafile 47 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5" datafile 48 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4" datafile 49 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s" datafile 50 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955"
-
Run Oracle recovery up to last available archive log in flash recovery area.
RMAN> run { 2> set until sequence=28; 3> recover database; 4> } executing command: SET until clause Starting recover at 29-MAY-25 using channel ORA_DISK_1 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00011: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg destination for restore of datafile 00025: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h destination for restore of datafile 00036: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda destination for restore of datafile 00046: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/773qm6l7_231_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/773qm6l7_231_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00012: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij destination for restore of datafile 00028: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h destination for restore of datafile 00041: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37 destination for restore of datafile 00044: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7a3qm6l7_234_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7a3qm6l7_234_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:02 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00015: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft destination for restore of datafile 00029: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09 destination for restore of datafile 00039: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn destination for restore of datafile 00048: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/783qm6l7_232_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/783qm6l7_232_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00019: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago destination for restore of datafile 00031: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9 destination for restore of datafile 00043: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo destination for restore of datafile 00050: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/793qm6l7_233_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/793qm6l7_233_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00010: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh destination for restore of datafile 00021: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8 destination for restore of datafile 00032: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7d3qm6l9_237_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7d3qm6l9_237_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00014: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou destination for restore of datafile 00023: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o destination for restore of datafile 00034: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7e3qm6l9_238_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7e3qm6l9_238_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00016: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik destination for restore of datafile 00030: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g destination for restore of datafile 00042: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq destination for restore of datafile 00047: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7b3qm6l9_235_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7b3qm6l9_235_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00020: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail destination for restore of datafile 00035: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412 destination for restore of datafile 00045: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c destination for restore of datafile 00049: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7c3qm6l9_236_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7c3qm6l9_236_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00001: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7j3qm6la_243_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7j3qm6la_243_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00009: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21 destination for restore of datafile 00022: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h destination for restore of datafile 00033: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7g3qm6l9_240_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7g3qm6l9_240_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00013: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52 destination for restore of datafile 00026: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo destination for restore of datafile 00037: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7h3qm6la_241_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7h3qm6la_241_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00017: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n destination for restore of datafile 00027: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9 destination for restore of datafile 00040: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7i3qm6la_242_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7i3qm6la_242_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00018: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9 destination for restore of datafile 00024: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv destination for restore of datafile 00038: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7f3qm6l9_239_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7f3qm6l9_239_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00004: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7l3qm6la_245_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7l3qm6la_245_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:02 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00007: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7p3qm6lb_249_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7p3qm6lb_249_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 channel ORA_DISK_1: starting incremental datafile backup set restore channel ORA_DISK_1: specifying datafile(s) to restore from backup set destination for restore of datafile 00003: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3 channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7k3qm6la_244_1_1 channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7k3qm6la_244_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0 channel ORA_DISK_1: restored backup piece 1 channel ORA_DISK_1: restore complete, elapsed time: 00:00:03 starting media recovery archived log for thread 1 with sequence 27 is already on disk as file /nfsgcnv/archlog/NTAP/archivelog/2025_05_29/o1_mf_1_27_n3jzbgh2_.arc archived log file name=/nfsgcnv/archlog/NTAP/archivelog/2025_05_29/o1_mf_1_27_n3jzbgh2_.arc thread=1 sequence=27 media recovery complete, elapsed time: 00:00:01 Finished recover at 29-MAY-25 RMAN> RMAN> exit Recovery Manager complete.
For faster recovery, enable parallel sessions with recovery_parallelism parameter or specify degree of parallel in recovery command for database recovery: RECOVER DATABASE PARALLEL (DEGREE d INSTANCES DEFAULT);. In general, degrees of parallelism should be equal to number of CPU cores on the host. -
Exit RMAN, login to Oracle as oracle user via sqlplus to open database and reset log after an incomplete recovery.
SQL> select name, open_mode from v$database; NAME OPEN_MODE --------- -------------------- NTAP MOUNTED SQL> select instance_name, host_name from v$instance; INSTANCE_NAME ---------------- HOST_NAME ---------------------------------------------------------------- NTAP orap SQL> select member from v$logfile; MEMBER -------------------------------------------------------------------------------- +DATA/NTAP/ONLINELOG/group_3.264.1201727425 +LOGS/NTAP/ONLINELOG/group_3.259.1201727433 +DATA/NTAP/ONLINELOG/group_2.263.1201727425 +LOGS/NTAP/ONLINELOG/group_2.257.1201727431 +DATA/NTAP/ONLINELOG/group_1.262.1201727425 +LOGS/NTAP/ONLINELOG/group_1.258.1201727433 6 rows selected. SQL> alter database rename file '+LOGS/NTAP/ONLINELOG/group_1.258.1201727433' to '/nfsgcnv/oracopy/group_1.258.1201727433'; Database altered. SQL> alter database rename file '+DATA/NTAP/ONLINELOG/group_1.262.1201727425' to '/nfsgcnv/oracopy/group_1.262.1201727425'; Database altered. SQL> alter database rename file '+LOGS/NTAP/ONLINELOG/group_2.257.1201727431' to '/nfsgcnv/oracopy/group_2.257.1201727431'; Database altered. SQL> alter database rename file '+DATA/NTAP/ONLINELOG/group_2.263.1201727425' to '/nfsgcnv/oracopy/group_2.263.1201727425'; Database altered. SQL> alter database rename file '+LOGS/NTAP/ONLINELOG/group_3.259.1201727433' to '/nfsgcnv/oracopy/group_3.259.1201727433'; Database altered. SQL> alter database rename file '+DATA/NTAP/ONLINELOG/group_3.264.1201727425' to '/nfsgcnv/oracopy/group_3.264.1201727425'; Database altered. SQL> alter database open resetlogs; Database altered. SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 NTAP_PDB1 READ WRITE NO 4 NTAP_PDB2 READ WRITE NO 5 NTAP_PDB3 READ WRITE NO -
Validate the database files are now on backup file system on GCNV.
SQL> select name from v$datafile; NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_6t3qlaa4 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_6p3ql9vu /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_6v3qlae9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4 /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955 49 rows selected. SQL> select member from v$logfile; MEMBER -------------------------------------------------------------------------------- /nfsgcnv/oracopy/group_3.264.1201727425 /nfsgcnv/oracopy/group_3.259.1201727433 /nfsgcnv/oracopy/group_2.263.1201727425 /nfsgcnv/oracopy/group_2.257.1201727431 /nfsgcnv/oracopy/group_1.262.1201727425 /nfsgcnv/oracopy/group_1.258.1201727433 6 rows selected. SQL> select name from v$controlfile; NAME -------------------------------------------------------------------------------- /nfsgcnv/oracopy/NTAP.ctl
-
Other post recovery tasks
- Add GCNV NFS mount to fstab of the standby DB server if recovering from a standby DB server so that the NFS file system will be mounted when DB server host rebooted. - Update pfile restored to $ORACLE_HOME/dbs directory and create spfile from pfile.
-
To reverse back to primary storage, follow exactly the same procedures as detailed in section
Reverse VLDB back to primary storage from backup copy. If recovering on a standby DB server, the primary storage needs to be imported into standby DB server. There is also a need to relocate Oracle control files and current online log files from GCNV nfs mount back to the primary storage, which can be accomplished with few mins down time.
This completes the Oracle VLDB database point-in-time recovery from the backup image copy on GCNV NFS file system to the same primary DB server or a standby DB server.
Clone a Oracle VLDB for other use cases from the backup image copy
Details
Clone a new Oracle VLDB from the backup image copy on GCNV is similar to the point-in-time recovery of the primary database to a new DB server. NetApp Solutions Engineering team provides an automation toolkit to facilitate the entire processes for a fast (mins) and effortless implementation.
Following automation toolkit contains a playbook that can be used to create or refresh clones of an Oracle VLDB from a primary database backup image copy stored on GCNV storage via NFS mount for a complete clone lifecycle management. For details, referred to documentation: Automated Oracle VLDB Clone Lifecycle with In-server image backup.
https://bitbucket.ngage.netapp.com/mvc/projects/NS-BB/repos/na_oracle_bkup_clone/browse|
|
The toolkit can only be accessed by NetApp internal user with bitbucket access at this moment. For interested external users, please request access from your account team or reach out to NetApp Solutions Engineering team. |
Where to find additional information
To learn more about the information described in this document, review the following documents and/or websites:
-
NetApp's best-in-class file storage service, in Google Cloud
-
RMAN: Merged Incremental Backup Strategies (Doc ID 745798.1)
-
RMAN Backup and Recovery User's Guide
