Verify two Linux VLAN interfaces are available.

Ensure multipath-tools and iSCSI initiator utilities are installed on all OpenNebula hosts and starts on boot.

apt list | grep multipath-tools
# If need to install, execute the following line.
apt-get install multipath-tools open-iscsi
# If /etc/multipath.conf is not present, first make sure the multipathd service is started.
systemctl enable --now multipathd
systemctl enable --now open-iscsi

dnf list installed | grep device-mapper-multipath
# If need to install, execute the following line.
dnf install device-mapper-multipath iscsi-initiator-utils
# If /etc/multipath.conf is not present, first make sure the multipathd service is started.
systemctl enable --now multipathd
systemctl enable --now iscsid

Collect the iSCSI host IQN for all OpenNebula hosts and provide it to the storage administrator.

cat /etc/iscsi/initiator.name

Ensure the SVM is available with iSCSI protocol enabled. Follow ONTAP 9 documentation.

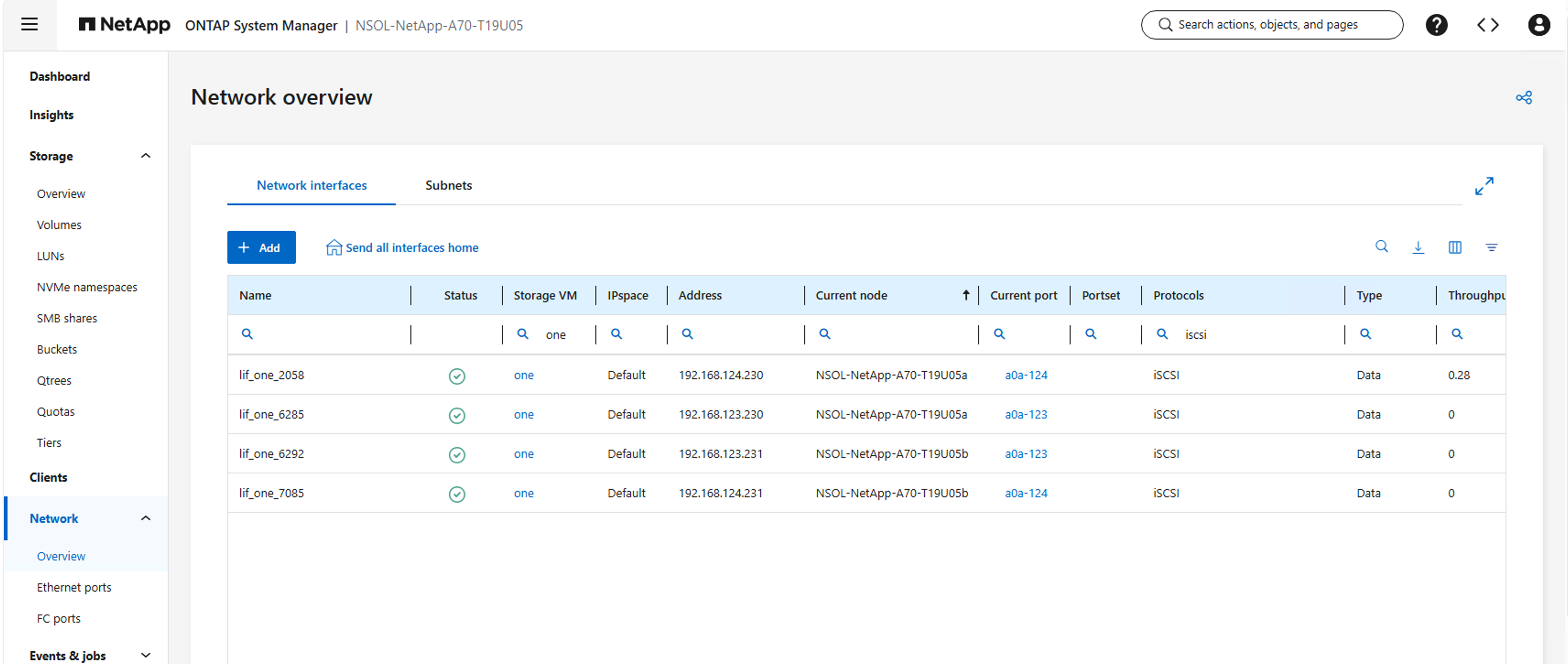

Create two LIFs per controller dedicated for iSCSI. Two LIFs per controller are recommended for redundancy and multipath performance. Ensure the LIFs are created on the VLAN interfaces configured on OpenNebula hosts. Jumbo frames (MTU 9000) are recommended for better performance.

Create an igroup and populate the host iSCSI initiators. Typically one igroup is created for one OpenNebula cluster. Include frontend servers and hypervisor hosts in the same igroup to support both Image and System datastores.

Create an ONTAP role and user account with ONTAP REST API access scoped to the target SVM. This user will be used by the NetApp driver in OpenNebula. See Work with users and roles ONTAP documentation for more information. Keep note of the Username and Password, to be used in the Virtualization Configuration Tasks.

Gather the SVM iSCSI Target IQN and UUIDs for the following resources for use in the Virtualization Configuration Tasks:

SSH to one of the frontend server and discover all iSCSI Lif portals by providing one of the iSCSI data lif addresses.

iscsiadm -m discovery -t sendtargets -p <iscsi data lif address>
iscsiadm -m node
iscsiadm -m node -l

Create a configuration file based on desired Datastore type. For complete attribute list, refer OpenNebula NetApp SAN documentation. Sample files are shown below:

$cat netapp-image.conf
NAME = "Image-NetApp-iSCSI"
TYPE = "IMAGE_DS"
DS_MAD = "netapp"
TM_MAD = "netapp"
DISK_TYPE = "BLOCK"
NETAPP_HOST = "<ontap_cluster_ip>"
NETAPP_USER = "<ontap_api_user>"
NETAPP_PASS = "<ontap_api_password>"
NETAPP_SVM = "<ontap_svm_uuid>"
NETAPP_AGGREGATES = "<ontap_aggregate_uuid>"
NETAPP_IGROUP = "<ontap_igroup_uuid>"
NETAPP_TARGET = "<ontap_iscsi_target_iqn>"
# Optional suffix to share SVM across multiple tenants
NETAPP_SUFFIX = "t1"

$cat netapp-system.conf
NAME = "System-NetApp-iSCSI"
TYPE = "SYSTEM_DS"
TM_MAD = "netapp"
DISK_TYPE = "BLOCK"
NETAPP_HOST = "<ontap_cluster_ip>"
NETAPP_USER = "<ontap_api_user>"
NETAPP_PASS = "<ontap_api_password>"
NETAPP_SVM = "<ontap_svm_uuid>"
NETAPP_AGGREGATES = "<ontap_aggregate_uuid>"
NETAPP_IGROUP = "<ontap_igroup_uuid>"
NETAPP_TARGET = "<ontap_iscsi_target_iqn>"
# Optional suffix to share SVM across multiple tenants
NETAPP_SUFFIX = "t1"

Execute onedatastore create <configuration file>. Note the datastore ID returned after creation.

Verify the datastore is created successfully by executing onedatastore show <datastore_id>.

Download Apps on Image datastore and create VM using Templates to provision on System datastore.

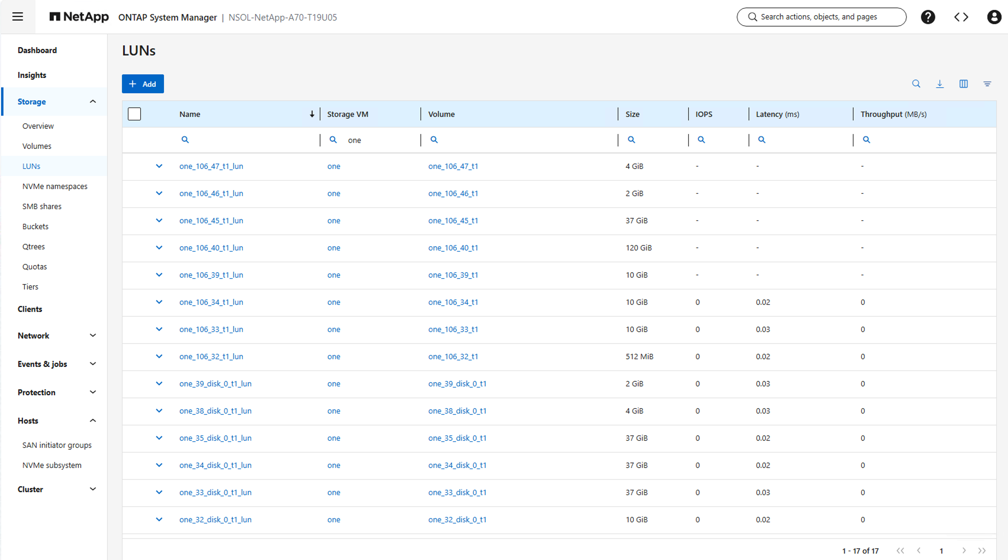

Check the LUNs created on ONTAP for the image and virtual machine disks. The naming convention used is as follows:
