Verify two Linux VLAN interfaces are available.

Ensure multipath-tools and iSCSI initiator utilities are installed on all OpenNebula hosts and starts on boot.

apt list | grep multipath-tools
# If need to install, execute the following line.
apt-get install multipath-tools open-iscsi
# If /etc/multipath.conf is not present, first make sure the multipathd service is started.
systemctl enable --now multipathd
systemctl enable --now open-iscsi

dnf list installed | grep device-mapper-multipath
# If need to install, execute the following line.
dnf install device-mapper-multipath iscsi-initiator-utils
# If /etc/multipath.conf is not present, first make sure the multipathd service is started.
systemctl enable --now multipathd
systemctl enable --now iscsid

Collect the iSCSI host IQN for all OpenNebula hosts and provide it to the storage administrator.

cat /etc/iscsi/initiator.name

Ensure the SVM is available with iSCSI protocol enabled. Follow ONTAP 9 documentation.

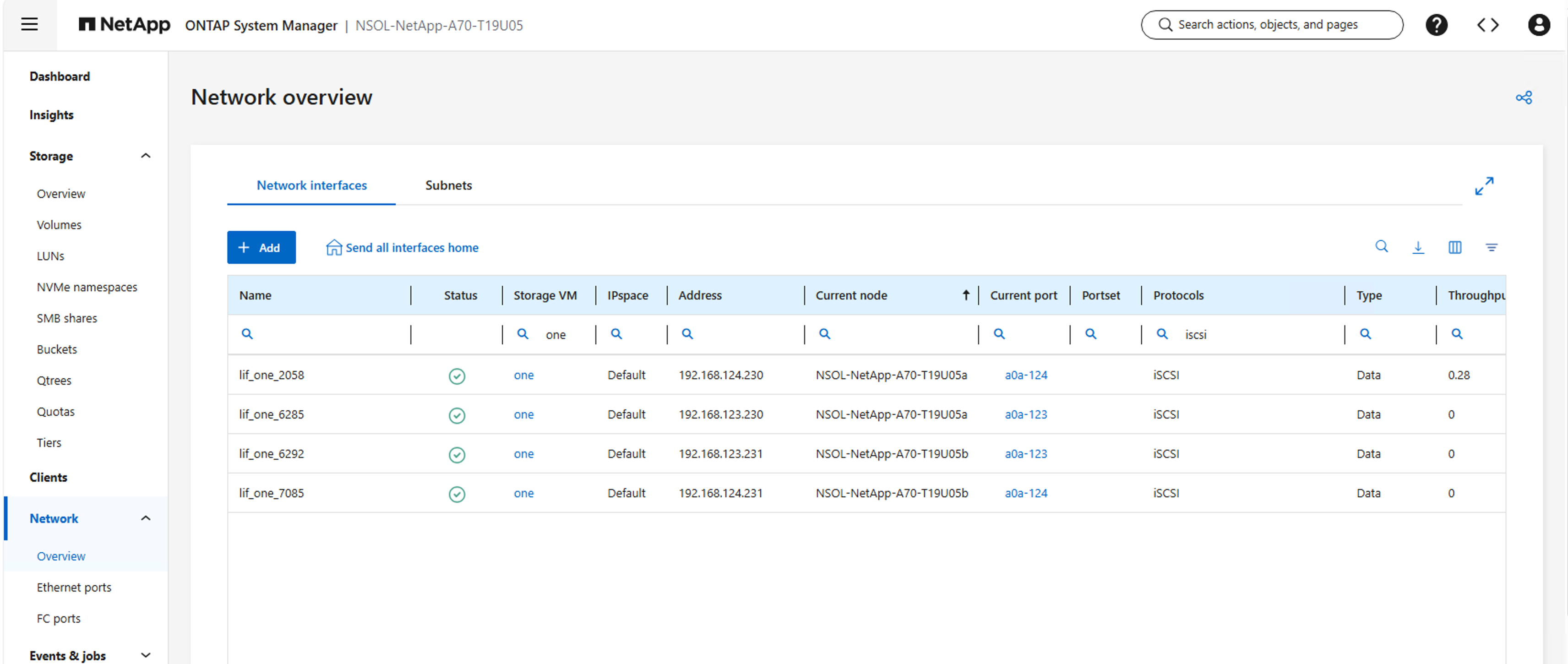

Create two LIFs per controller dedicated for iSCSI. Two LIFs per controller are recommended for redundancy and multipath performance. Ensure the LIFs are created on the VLAN interfaces configured on OpenNebula hosts. Jumbo frames (MTU 9000) are recommended for better performance.

Create LUNs and present to the host iSCSI initiators. Typically one igroup is created for one OpenNebula cluster. Include frontend servers and hypervisor hosts in the same igroup to support both Image and System datastores.

Notify the virtualization administrator that the LUN is created.

SSH to one of the frontend server and discover all iSCSI Lif portals by providing one of the iSCSI data lif addresses.

iscsiadm -m discovery -t sendtargets -p <iscsi data lif address>
iscsiadm -m node
iscsiadm -m node -l
iscsiadm -m session

Execute rescan-scsi-bus.sh or echo "- - -" > /sys/class/scsi_host/host*/scan to rescan the SCSI bus and detect new LUNs.

Verify the LUN is visible on all OpenNebula hosts using lsblk -S or fdisk -l command.

Execute iscsiadm -m session -P 3 to retrieve LUN to device name mapping.

Add the device to multipath configuration by executing multipath -a /dev/<device_name>. Then, execute multipath -r to reload the multipath configuration. Verify the multipath configuration by executing multipath -ll command.

Create a configuration file based on desired Datastore type. For complete attribute list, refer OpenNebula LVM documentation. Sample files are shown below:

$cat iscsi-restic.conf
NAME = "Backup-Restic-iSCSI01"
TYPE = "BACKUP_DS"

DS_MAD = "restic"
TM_MAD = "-"

RESTIC_PASSWORD = "<restic_password>"
RESTIC_SFTP_SERVER = "<backup server>"

$cat iscsi-rsync.conf
NAME = "Backup-Rsync-iSCSI02"
TYPE = "BACKUP_DS"

DS_MAD = "rsync"
TM_MAD = "-"

RSYNC_USER = "<rsync_user>"
RSYNC_HOST = "<backup server>"

$cat iscsi-kernel.conf
NAME = "File-Kernel-iSCSI03"
TYPE = "FILE_DS"
DS_MAD = "fs"
TM_MAD = "local"
SAFE_DIRS = "/var/tmp/files"

$cat iscsi-image.conf
NAME = "Image-iSCSI04"
TYPE = "IMAGE_DS"
DS_MAD = "fs"
TM_MAD = "fs_lvm_ssh"
DISK_TYPE = "block"
LVM_THIN_ENABLE = "yes"

$cat iscsi-system.conf
NAME = "System-iSCSI05"
TYPE = "SYSTEM_DS"
TM_MAD = "fs_lvm_ssh"
DISK_TYPE = "block"
BRIDGE_LIST = "<space-separated list of OpenNebula hosts>" # If LUN not presented to frontend hosts
LVM_THIN_ENABLE = "yes"

Execute onedatastore create <configuration file>. Note the datastore ID returned after creation.

Create volume group on the iSCSI LUN using vgcreate <vg_name> <multipath_device> command. For Image datastores, the volume group name can be named anything desired. For System datastores, the volume group name must be of format vg-one-<datastore id>. This is required for OpenNebula to identify the correct volume group for system datastores. Proceed with following steps if you are creating Backup/File/Image datastore. For system datastores, stop here.

Create logical volume thin pool using lvcreate -l 100%FREE -n <logical volume name> <volume group name> command. For System datastores, OpenNebula automatically creates the LVM thin pool when required.

Create filesystem on the logical volume using mkfs.ext4 /dev/<volume group>/<logical volume> command. System datastores do not require filesystem creation.

Update /etc/fstab or automount configuration to mount the datastore with desired mount options. Assuming the default datastore location as /var/lib/one/datastores. Can be validated with onedatastore show <datastore_id>. If not check the DATASTORE_LOCATION parameter in /etc/one/oned.conf. Ensure the <datastore_id> folder exists under the datastores location. Sample entries are shown below:

/dev/<vg name>/<logical volume> /var/lib/one/datastores/<datastore_id> ext4 _netdev,noauto,x-systemd.automount,nofail 0 2

/var/lib/one/datastores/<datastore_id> -fstype=ext4,_netdev,noauto,x-systemd.automount,nofail,rw :/dev/<vg name>/<logical volume>

Mount the datastore using mount -a or systemctl reload autofs command.

Verify the datastore is mounted with mount command and verify the datastore capacity with onedatastore show <datastore_id> command.

Ensure oneadmin user and group own the datastore folder. Adjust permissions using chown -R oneadmin:oneadmin /var/lib/one/datastores/<datastore_id> command.
