Enable the SVM for SMB. Follow ONTAP 9 documentation for more information.

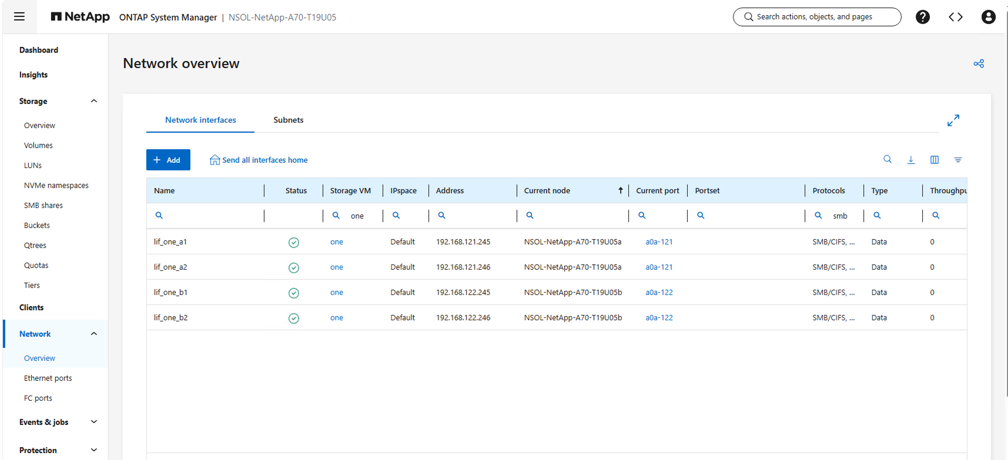

Create at least two LIFs per controller. Follow the steps from the documentation. For reference, here is a screenshot of LIFs used in this solution.

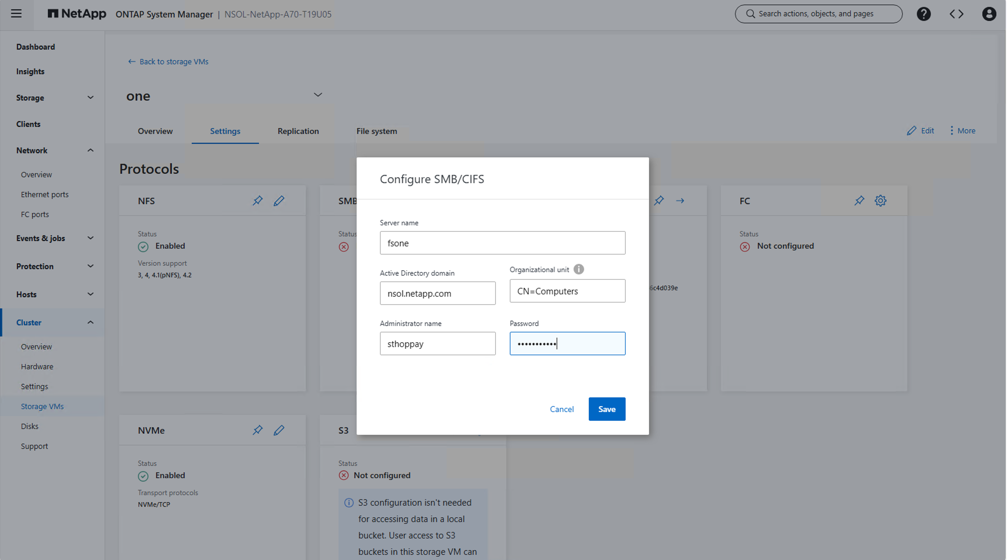

Configure Active Directory or workgroup-based authentication. Follow the steps from the documentation.

Create a volume. Check the option to distribute data across the cluster to use FlexGroup. Ensure Anti-Ransomware protection is enabled on the volume.

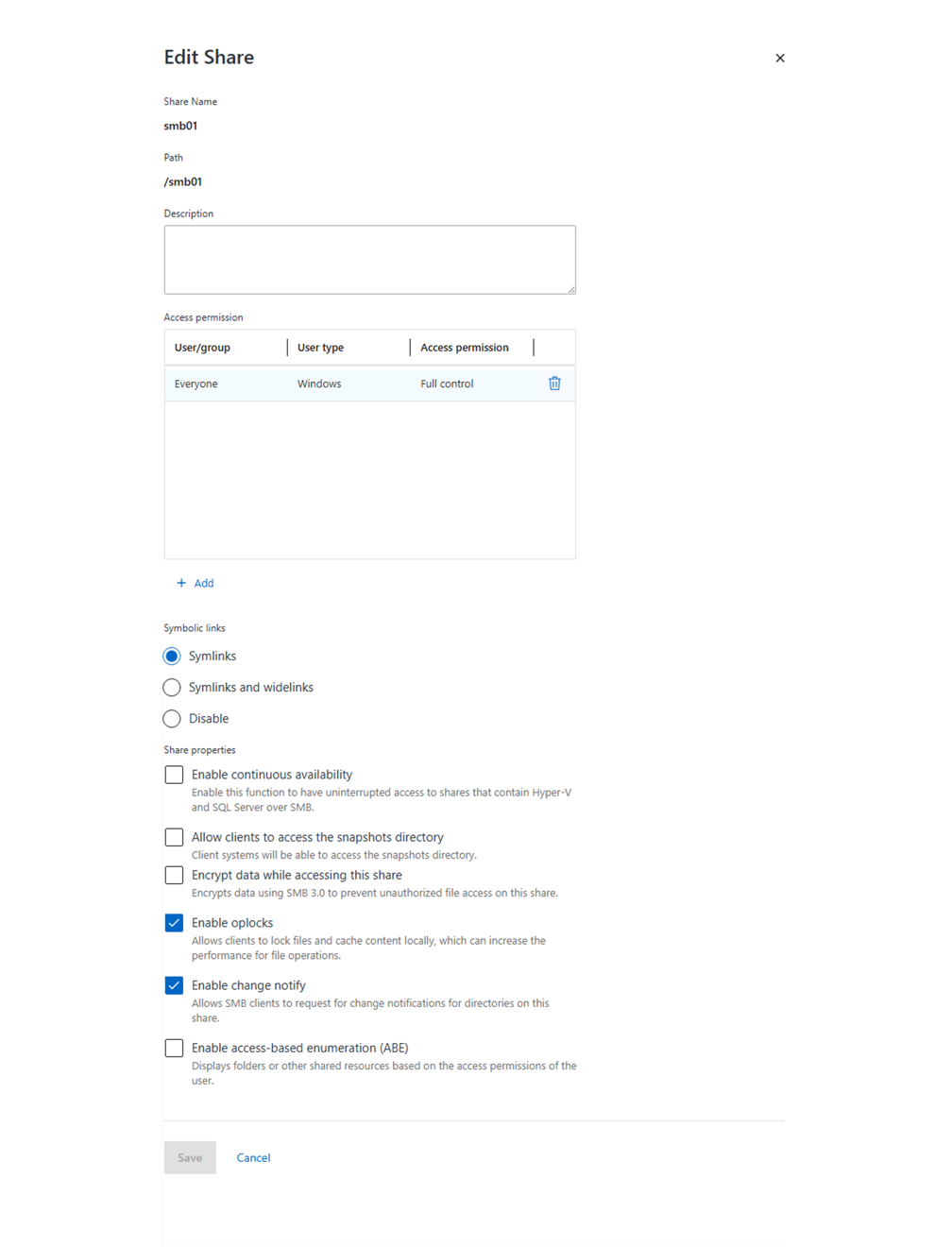

Create an SMB share and adjust permissions. Follow ONTAP 9 documentation for more information.

Provide the SMB server, share name, and credentials to the virtualization administrator.

Collect the SMB server, share name, and credentials for share authentication.

Ensure following packages are installed on Fedora sssd realmd adcli oddjob oddjob-mkhomedir samba-common-tools krb5-workstation cifs-utils for Active Directory integration and SMB mount support. Debian packages are realmd sssd sssd-tools libnss-sss libpam-sss adcli samba-common-bin packagekit krb5-user cifs-utils.

Ensure at least two interfaces are configured in different VLANs for fault tolerance. Verify the NIC supports RSS.

SSH to one of the frontend server and create a configuration file based on desired Datastore type. Sample files are shown below:

$cat smb-restic.conf
NAME = "Backup-Restic-SMB"
TYPE = "BACKUP_DS"

DS_MAD = "restic"
TM_MAD = "-"

RESTIC_PASSWORD = "<restic_password>"
RESTIC_SFTP_SERVER = "<backup server>"

$cat smb-rsync.conf
NAME = "Backup-Rsync-SMB"
TYPE = "BACKUP_DS"

DS_MAD = "rsync"
TM_MAD = "-"

RSYNC_USER = "<rsync_user>"
RSYNC_HOST = "<backup server>"

$cat smb-kernel.conf
NAME = "File-Kernel-SMB"
TYPE = "FILE_DS"
DS_MAD = "fs"
TM_MAD = "local"
SAFE_DIRS = "/var/tmp/files"

$cat smb-image.conf
NAME = "Image-SMB"
TYPE = "IMAGE_DS"
DS_MAD = "fs"
TM_MAD = "shared"

$cat smb-system.conf
NAME = "System-SMB"
TYPE = "SYSTEM_DS"
TM_MAD = "shared"

Execute onedatastore create <configuration file>. Note the datastore ID returned after creation.

Create a smb credential file in /etc/. This step is not required if using kerberos authentication (KVM host joined to <domain>).

$cat /etc/smb-credentials-<datastore_id>.cfg
username=<smb_username>
password=<smb_password>
domain=<smb_domain>

Set proper permissions (640) on the credential file. Change ownership to oneadmin user and group if required.

Gather the uid and gid of oneadmin user using id oneadmin command.

Update /etc/fstab or automount configuration to enable multichannel. Assuming the default datastore location as /var/lib/one/datastores. If not check the DATASTORE_LOCATION parameter in /etc/one/oned.conf. Ensure the <datastore_id> folder exists under the datastores location. Sample entries are shown below:

# credentials mapping to file option is not required when using kerberos authentication
//<smb_server>/<smb_share> /var/lib/one/datastores/<datastore_id> cifs credentials=/etc/smb-credentials-<datastore_id>.cfg,_netdev,noauto,x-systemd.automount,vers=3.0,multichannel,max_channels=16,nofail,uid=<oneadmin uid>,gid=<oneadmin gid> 0 0

# credentials mapping to file option is not required when using kerberos authentication
/var/lib/one/datastores/<datastore_id> -fstype=cifs,credentials=/etc/smb-credentials-<datastore_id>.cfg,vers=3.0,multichannel,max_channels=16,uid=<oneadmin uid>,gid=<oneadmin gid> ://<smb_server>/<smb_share>

Mount the datastore using mount -a or systemctl reload autofs command.

Verify the datastore is mounted with mount command and verify the datastore capacity with onedatastore show <datastore_id> command.

Ensure oneadmin user and group own the datastore folder. Adjust permissions using chown -R oneadmin:oneadmin /var/lib/one/datastores/<datastore_id> command.
