Source Cluster Setup for Red Hat OpenShift Virtualization Disaster Recovery

Contributors banum-netapp
PDFs

This section provides information about setting up the source cluster for disaster recovery of OpenShift Virtualization workloads using NetApp Trident Protect and AppMirror. This includes creating an AppVault using ONTAP S3, creating a Trident Protect Application for the source VM, and creating on-demand and scheduled snapshots of the VM using Trident Protect. These steps are essential to ensure that the source cluster is properly configured to replicate data to the disaster recovery target cluster and enable recovery of VMs in case of a disaster.

Setup Disaster Recovery Source Cluster for OpenShift Virtualization

All the following steps are performed on the source cluster, which is the cluster where the protected VM is currently running.

Create AppVault using ONTAP S3

This section shows how to set up an AppVault object in Trident Protect using ONTAP S3 object storage. The AppVault created in this step will be used to store replicated data from the source cluster, and that data will be used for recovery in the disaster recovery target cluster.

Use oc commands and the yaml files shown below to create a secret and the AppVault custom resource for ONTAP s3. Ensure that you create them in the trident-protect namespace.

Show example
apiVersion: v1
# You can provide the keys either as stringData or base 64 encoded data
stringData:
  accessKeyID: "<access key id as obtained from ONTAP>"
  secretAccessKey: "<secret access key as obtained from ONTAP>"
#data:
  #accessKeyID: <base 64 encoded value of access key>
  #secretAccessKey: <base 64 encoded value of secret access key>
kind: Secret
metadata:
  name: appvault-secret
  namespace: trident-protect
type: Opaque
apiVersion: protect.trident.netapp.io/v1
kind: AppVault
metadata:
  name: ontap-s3-appvault
  namespace: trident-protect
spec:
  providerConfig:
    s3:
      bucketName: oc-dr
      endpoint: <data lif to use to access S3>
      secure: "false" # Setting this to "false" will disable TLS, which is not recommended for production environments.
      skipCertValidation: "true" # When TLS is enabled, setting skipCertValidation to "true" will skip TLS certificate validation, which is not recommended for production environments.
  providerCredentials:
    accessKeyID:
      valueFromSecret:
        key: accessKeyID
        name: appvault-secret
    secretAccessKey:
      valueFromSecret:
        key: secretAccessKey
        name: appvault-secret
  providerType: OntapS3

Ensure that ONTAP S3 vault is created and is in the Available state

oc create -f app-vault-secret.yaml -n trident-protect
oc create -f app-vault.yaml -n trident-protect

OCP-v AppVault in trident-protect namespace

Create a Trident Protect App for the source VM

Create an Application custom resource in the namespace where the source VM is located.

Show example
# cat app.yaml
apiVersion: protect.trident.netapp.io/v1
kind: Application
metadata:
  creationTimestamp: null
  name: test-source-app
  namespace: test-dr-ns
spec:
  includedNamespaces:
  - namespace: test-dr-ns
tridentctl-protect create app <source-vm> -n <source-ns> --namespaces <source-ns>

OCP-v app in source-ns namespace

The VM and its PVC in the namespace included in the App custom resource is shown below.

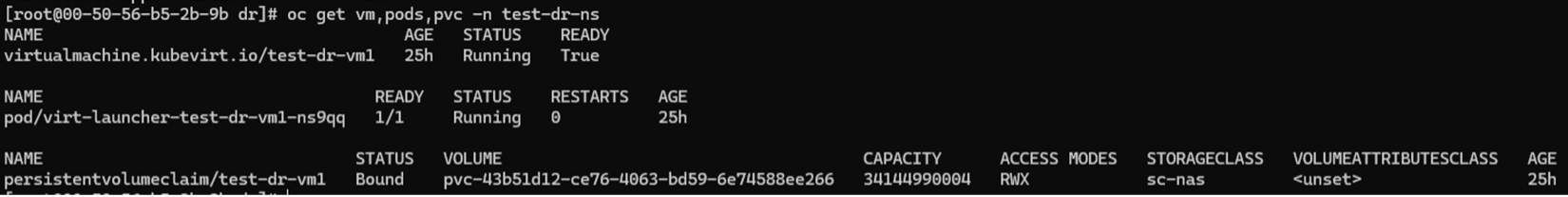

VM and its PVC in the namespace included in the App custom resource

Create a snapshot of the VM using Trident Protect

You can create an on-demand snapshot of the VM using Trident Protect CLI or API. This snapshot will be stored in the AppVault created in the previous step and can be used for recovery in the disaster recovery target cluster.

Show example
# snapshot.yaml
apiVersion: protect.trident.netapp.io/v1
kind: Snapshot
metadata:
  name: test-source-dr-init-snapshot
  namespace: test-dr-ns
spec:
  applicationRef: test-source-app
  appVaultRef: ontap-s3-appvault
  reclaimPolicy: Delete

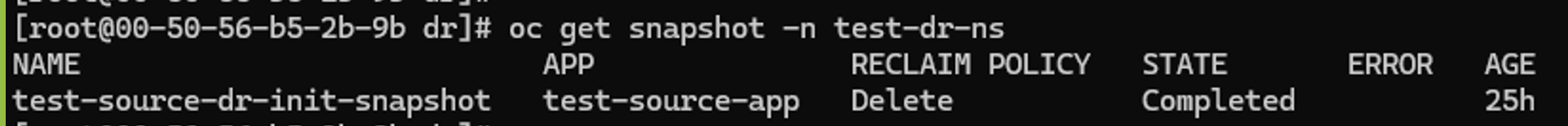

OCP-v ondemand snapshot of the VM created using Trident Protect CLI

Create a scheduled snapshot of the VM using Trident Protect

You can also create a scheduled snapshot by creating a Schedule custom resource in the same namespace as the Application custom resource. The schedule will automatically create snapshots of the VM at the specified schedule and store them in the AppVault.

Show example
apiVersion: protect.trident.netapp.io/v1
kind: Schedule
metadata:
  name: appmirror-sched1
spec:
  appVaultRef: ontap-s3-appvault
  applicationRef: test-source-app
  backupRetention: "0"
  enabled: true
  granularity: Custom
  recurrenceRule: |-
    DTSTART:20240901T000200Z
    RRULE:FREQ=MINUTELY;INTERVAL=5
  snapshotRetention: "2"
