Complete the Cisco Nexus 9336C-FX2 cabling worksheet

Contributors netapp-karunesh netapp-yvonneo netapp-jolieg
PDFs

Use the following cabling images to complete the cabling between the controllers and the switches.

Cable NS224 storage as switch-attached

If you want to cable NS224 storage as switch-attached, follow the switch-attached diagram:

Switch-attached

See the Hardware Universe for more information on switch ports.

Cable NS224 storage as direct-attached

If you want to cable NS224 storage as direct-attached instead of using the shared switch storage ports, follow the direct-attached diagram:

Direct-attached

See the Hardware Universe for more information on switch ports.

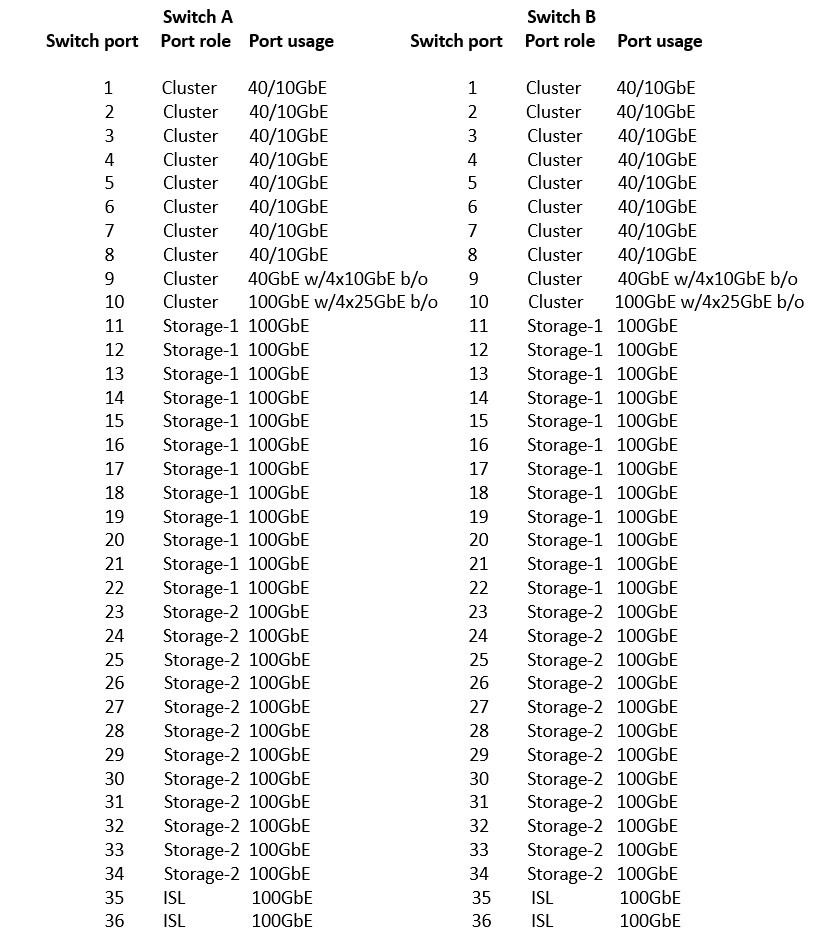

Cisco Nexus 9336C-FX2 cabling worksheet

If you want to document the supported platforms, you must complete the blank cabling worksheet by using completed sample cabling worksheet as a guide.

The sample port definition on each pair of switches is as follows:

Cabling worksheet

Where:

  • 100G ISL to switch A port 35

  • 100G ISL to switch A port 36

  • 100G ISL to switch B port 35

  • 100G ISL to switch B port 36

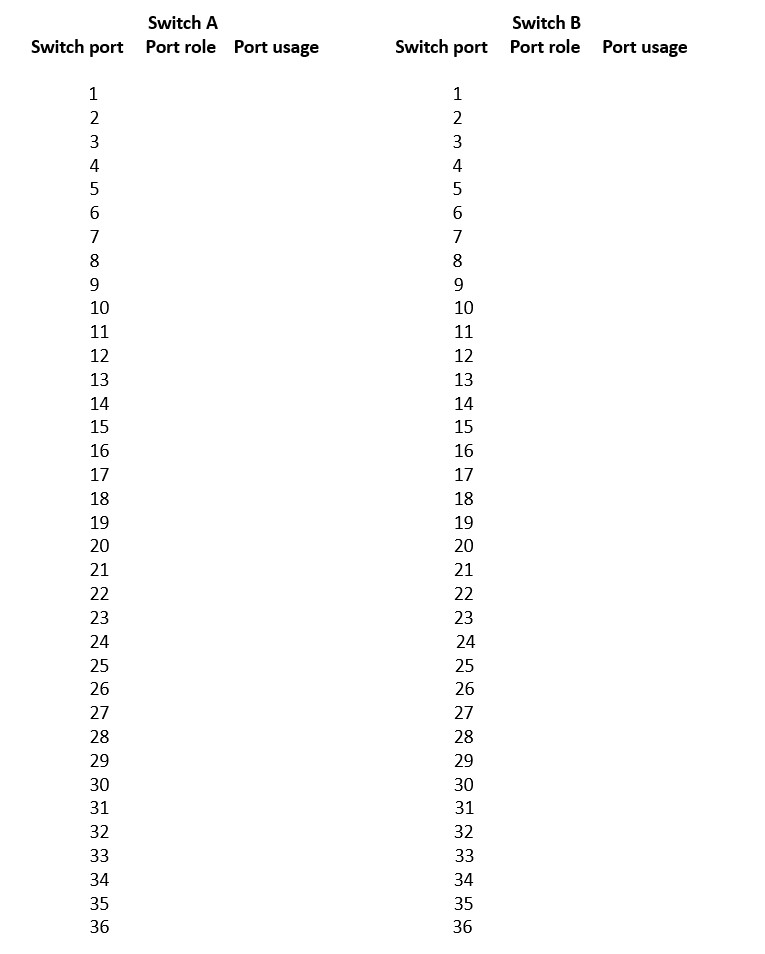

Blank cabling worksheet

You can use the blank cabling worksheet to document the platforms that are supported as nodes in a cluster. The Supported Cluster Connections table of the Hardware Universe defines the cluster ports used by the platform.

Blank cabling worksheet

Where:

  • 100G ISL to switch A port 35

  • 100G ISL to switch A port 36

  • 100G ISL to switch B port 35

  • 100G ISL to switch B port 36
