TR-4990：使用 ANF 上的增量合併快速復原 Oracle VLDB

貢獻者 kevin-hoke
PDF

Allen Cao、Niyaz Mohamed， NetApp

此解決方案提供了概述和詳細信息，用於快速恢復部署到 Azure VM 計算實例的 Oracle VLDB，並在Azure NetApp Files容量池上安裝 NFS，以暫存透過 RMAN 不斷增量合併的備用資料庫副本。

目的

使用 Oracle 復原管理器 (RMAN) 備份工具還原 Oracle 中的超大型資料庫 (VLDB) 可能是一項極具挑戰性的任務。發生故障時從備份媒體還原資料庫的過程可能非常耗時，從而延遲資料庫復原並可能嚴重影響您的服務等級協定 (SLA)。但是，從 10g 版本開始，Oracle 引入了 RMAN 功能，允許使用者在位於 DB 伺服器主機上的附加磁碟儲存上建立 Oracle 資料庫資料檔案的分階段映像副本。這些影像副本可以使用 RMAN 每天進行增量更新。如果發生故障，資料庫管理員 (DBA) 可以迅速將 Oracle 資料庫從故障媒體切換到映像副本，從而無需進行完整的資料庫媒體還原。儘管所需的資料庫儲存量增加了一倍，但其結果是 SLA 得到了極大改善。

如果您熱衷於 VLDB 的 SLA 並考慮將 Oracle 資料庫遷移到 Azure 等公有雲，則可以使用 Microsoft Azure NetApp Files (ANF) 等資源設定類似的資料庫保護結構來暫存備用資料庫映像副本。在本文檔中，我們示範如何從 ANF 容量池中配置和匯出 NFS 檔案系統，並將其安裝在 Oracle 資料庫伺服器上，以便在主儲存發生故障時暫存備用資料庫副本以便快速復原。

此解決方案適用於以下用例：

  • Oracle VLDB 映像副本透過 RMAN 在 Microsoft ANF 容量池儲存的 NFS 掛載點上進行增量合併。

  • 當同一 Azure 資料庫伺服器 VM 發生故障時，快速復原 Oracle VLDB。

  • 當備用 Azure 資料庫伺服器 VM 發生故障時，快速復原 Oracle VLDB。

對象

此解決方案適用於以下人群：

  • 一位 DBA 透過 Azure 中的 RMAN 設定 Oracle VLDB 映像複製增量合併，以便更快復原資料庫。

  • 在 Azure 公有雲中測試 Oracle 工作負載的資料庫解決方案架構師。

  • 管理部署到 ANF 容量池儲存的 Oracle 資料庫的儲存管理員。

  • 希望在 Azure 雲端環境中建立 Oracle 資料庫的應用程式擁有者。

解決方案測試和驗證環境

此解決方案的測試和驗證是在 Microsoft ANF 容量池儲存和 Azure VM 運算環境中進行的，該環境可能與最終部署環境不符。有關更多信息，請參閱部署考慮的關鍵因素 。

架構

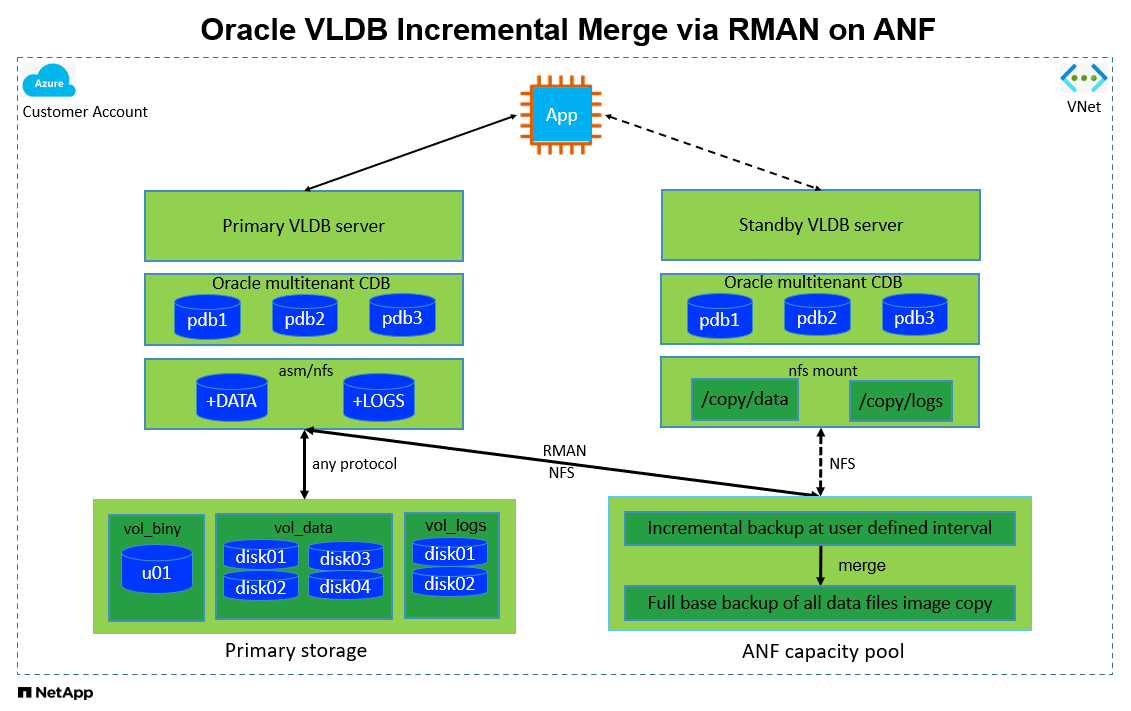

此圖提供了 Azure 公有雲中使用 ANF 實現 Oracle VLDB 增量合併的詳細圖片。

硬體和軟體組件

硬體

ANF儲存

Microsoft 提供的目前版本

具有高級服務等級的 2 TiB ANF 容量池存儲

用於資料庫伺服器的 Azure VM

Standard_B4ms - 4 個 vCPU，16GiB

2 個虛擬機，一個作為主資料庫伺服器，另一個作為備用

軟體

紅帽Linux

RHEL Linux 8.6（LVM）-x64 Gen2

部署 RedHat 訂閱進行測試

Oracle 資料庫

版本 19.18

已套用RU補丁p34765931_190000_Linux-x86-64.zip

Oracle OPatch

版本 12.2.0.1.36

最新補丁 p6880880_190000_Linux-x86-64.zip

NFS

版本 3.0

已啟用 Oracle dNFS

部署考慮的關鍵因素

  • *用於 RMAN 增量合併的 Oracle VLDB 儲存佈局。 *在我們的測試和驗證中，Oracle 增量備份和合併的 NFS 磁碟區是從單一 ANF 容量池分配的，每個磁碟區有 100 TiB，總容量限制為 1000 TiB。對於超過閾值的部署，可以將多個磁碟區和 ANF 容量池與多個 NFS 掛載點並行連接以提供更高的容量。

  • *使用 RMAN 增量合併實作 Oracle 可恢復性。 * RMAN 增量備份和合併通常會根據您的 RTO 和 RPO 目標以使用者定義的頻率執行。如果主資料儲存和/或歸檔日誌完全遺失，則可能會發生資料遺失。 Oracle 資料庫可以還原到 ANF 資料庫備份映像副本提供的最後一個增量備份。為了盡量減少資料遺失，可以在 ANF NFS 安裝點上設定 Oracle 閃回復原區，並將存檔日誌與資料庫映像副本一起備份到 ANF NFS 安裝點。

  • *在 ANF NFS 檔案系統上執行 Oracle VLDB。 *與其他用於資料庫備份的大量儲存不同，Microsoft ANF 是一種支援雲端的生產級存儲，可提供高水準的效能和儲存效率。一旦 Oracle VLDB 從主儲存切換到 ANF NFS 檔案系統上的映像副本，資料庫效能就可以保持在高水平，同時解決主儲存故障。您可以放心，用戶應用程式體驗不會因主儲存故障而受到影響。

  • Azure 計算執行個體。在這些測試和驗證中，我們使用 Standard_B4ms Azure VM 作為 Oracle 資料庫伺服器。其他 Azure VM 可能經過最佳化，更適合資料庫工作負載。您還需要根據實際工作負載需求，適當調整 Azure VM 的 vCPU 數量和 RAM 容量。

  • *ANF 容量池服務等級。 * ANF 容量池提供三種服務等級：標準、進階、超級。預設情況下，自動 QoS 適用於容量池內建立的捲，這會限製卷的吞吐量。可根據容量池的大小和服務等級手動調整磁碟區上的吞吐量。

  • *dNFS 配置。 * dNFS 內建於 Oracle 核心中，並且已知當 Oracle 部署到 NFS 儲存時可顯著提高 Oracle 資料庫效能。 dNFS 打包到 Oracle 二進位檔案中，但預設未開啟。對於 NFS 上的任何 Oracle 資料庫部署，都應該啟用它。對於 VLDB 的多個 ANF 容量池部署，應正確配置到不同 ANF 容量池儲存的 dNFS 多路徑。

解決方案部署

假設您已經在 VNet 內的 Azure 雲端環境中部署了 Oracle VLDB。如果您需要在 Azure 中部署 Oracle 的協助，請參閱下列技術報告以取得協助。

您的 Oracle VLDB 可以在 ANF 儲存體或 Azure 雲端生態系統中的任何其他儲存體上執行。以下部分提供了設定 RMAN 增量合併到在 ANF 儲存的 NFS 掛載中暫存的 Oracle VLDB 映像副本的逐步部署程序。

部署先決條件

Details

部署需要以下先決條件。

  1. 已設定 Azure 帳戶，並在您的 Azure 帳戶內建立了必要的 Azure VNet 和網路區段。

  2. 從 Azure 入口網站控制台，您必須部署兩個 Azure VM 執行個體，一個作為主 Oracle DB 伺服器，另一個作為選用的備用 DB 伺服器。有關環境設定的更多詳細信息，請參閱上一節中的架構圖。還請查看"Azure 虛擬機器系列"了解更多。

  3. 從 Azure 入口網站控制台部署 ANF 儲存體來託管儲存 Oracle 資料庫備用映像副本的 NFS 磁碟區。如果您不熟悉 ANF 的部署，請參閱文檔"快速入門：設定Azure NetApp Files並建立 NFS 卷"以獲得逐步說明。

註 確保在 Azure VM 根磁碟區中指派了至少 128G，以便有足夠的空間來暫存 Oracle 安裝檔案。

提供並匯出要安裝在主 Oracle VLDB 伺服器上的 NFS 卷

Details

在本節中，我們將展示如何透過 Azure 入口網站控制台從 ANF 容量池配置 NFS 磁碟區。如果設定了多個 ANF 容量池來適應資料庫的大小，請對其他 ANF 容量池重複這些過程。

  1. 首先，從 Azure 入口網站控制台導覽至用於暫存 Oracle VLDB 映像複製的 ANF 容量池。

    此圖提供了使用 Azure 入口網站控制台的 ANF 磁碟區設定畫面

  2. 從選定的容量池 - database ， 點選 `Volumes`進而， `Add volume`啟動新增磁碟區工作流程。

    此圖提供了使用 Azure 入口網站控制台的 ANF 磁碟區設定畫面

  3. 填寫 Volume name， Quota ， Virtual network ， 和 `Delegated subnet`移至 `Protocol`頁。

    此圖提供了使用 Azure 入口網站控制台的 ANF 磁碟區設定畫面

  4. 記下檔案路徑，輸入允許的客戶端 CIDR 範圍，然後啟用 `Root Access`音量。

    此圖提供了使用 Azure 入口網站控制台的 ANF 磁碟區設定畫面

  5. 如果需要，請新增磁碟區標籤。

    此圖提供了使用 Azure 入口網站控制台的 ANF 磁碟區設定畫面

  6. 審查並創建卷。

    此圖提供了使用 Azure 入口網站控制台的 ANF 磁碟區設定畫面

  7. 以具有 sudo 權限的使用者身分登入主 Oracle VLDB 伺服器並掛載從 ANF 儲存匯出的 NFS 磁碟區。根據需要變更為您的 ANF NFS 伺服器 IP 位址和檔案路徑。可以從 ANF 磁碟區控制台頁面擷取 ANF NFS 伺服器 IP 位址。

    sudo mkdir /nfsanf
    sudo mount 172.30.136.68:/ora-01-u02-copy /nfsanf -o rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144,nointr

  8. 將掛載點所有權更改為 oracle:oisntall，根據需要更改為您的 oracle 使用者名稱和主要群組。

    sudo chown oracle:oinstall /nfsanf

在 ANF 上設定 Oracle RMAN 增量合併到映像副本

Details

RMAN 增量合併在每個增量備份/合併間隔持續更新暫存資料庫資料檔案映像副本。資料庫備份的映像副本將與您執行增量備份/合併的頻率一樣最新。因此，在決定 RMAN 增量備份和合併的頻率時，請考慮資料庫效能、RTO 和 RPO 目標。

  1. 以 oracle 使用者登入主 Oracle VLDB 伺服器。

  2. 在掛載點 /nfsanf 下建立一個 oracopy 目錄，用於儲存 Oracle 資料檔案映像副本和用於 Oracle 閃回復原區的 archlog 目錄。

    mkdir /nfsanf/oracopy
    mkdir /nfsanf/archlog

  3. 透過 sqlplus 登入 Oracle 資料庫，啟用區塊變更追蹤以加快增量備份速度，並將 Oracle 快閃記憶體復原區變更為 ANF NFS 掛載（如果它目前位於主儲存上）。這允許將 RMAN 預設控製檔/spfile 自動備份和存檔日誌備份到 ANF NFS 掛載以進行還原。

    sqlplus / as sysdba

    在 sqlplus 提示字元下，執行以下命令。

    alter database enable block change tracking using file '/nfsanf/oracopy/bct_ntap1.ctf'
    alter system set db_recovery_file_dest='/nfsanf/archlog/' scope=both;

    預期輸出：

    [oracle@ora-01 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Wed Mar 20 16:44:21 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2022, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.18.0.0.0

SQL> alter database enable block change tracking using file '/nfsanf/oracopy/bct_ntap1.ctf';

Database altered.

SQL> alter system set db_recovery_file_dest='/nfsanf/archlog/' scope=both;

System altered.

SQL>

  4. 建立 RMAN 備份和增量合併腳本。該腳本為並行 RMAN 備份和合併分配多個通道。第一次執行將產生初始的完整基線影像副本。在完整運行過程中，它首先清除保留視窗之外的過時備份，以保持暫存區清潔。然後它在合併和備份之前切換當前日誌檔案。增量備份在合併之後進行，因此資料庫映像副本落後於目前資料庫狀態備份/合併週期。可以根據使用者的喜好逆轉合併和備份的順序，以便更快地恢復。 RMAN 腳本可以整合到一個簡單的 shell 腳本中，從主 DB 伺服器上的 crontab 執行。確保 RMAN 設定中的控製檔自動備份處於開啟狀態。

    vi /home/oracle/rman_bkup_merge.cmd

Add following lines:

RUN
{
  allocate channel c1 device type disk format '/nfsanf/oracopy/%U';
  allocate channel c2 device type disk format '/nfsanf/oracopy/%U';
  allocate channel c3 device type disk format '/nfsanf/oracopy/%U';
  allocate channel c4 device type disk format '/nfsanf/oracopy/%U';
  delete obsolete;
  sql 'alter system archive log current';
  recover copy of database with tag 'OraCopyBKUPonANF_level_0';
  backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonANF_level_0' database;
}

  5. 在主 Oracle VLDB 伺服器上，以 oracle 使用者身分本地登入 RMAN，可以使用或不使用 RMAN 目錄。在此示範中，我們沒有連接到 RMAN 目錄。

    rman target / nocatalog;

output:

[oracle@ora-01 ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Wed Mar 20 16:54:24 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: NTAP1 (DBID=2441823937)
using target database control file instead of recovery catalog

  6. 從 RMAN 提示字元執行腳本。第一次執行會建立基準資料庫映像副本，後續執行則會逐步合併和更新基準映像副本。以下是如何執行腳本以及典型的輸出。設定通道數以符合主機上的 CPU 核心。

    RMAN> @/home/oracle/rman_bkup_merge.cmd

RMAN> RUN
2> {
3>   allocate channel c1 device type disk format '/nfsanf/oracopy/%U';
4>   allocate channel c2 device type disk format '/nfsanf/oracopy/%U';
5>   allocate channel c3 device type disk format '/nfsanf/oracopy/%U';
6>   allocate channel c4 device type disk format '/nfsanf/oracopy/%U';
7>   delete obsolete;
8>   sql 'alter system archive log current';
9>   recover copy of database with tag 'OraCopyBKUPonANF_level_0';
10>   backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonANF_level_0' database;
11> }
allocated channel: c1
channel c1: SID=142 device type=DISK

allocated channel: c2
channel c2: SID=277 device type=DISK

allocated channel: c3
channel c3: SID=414 device type=DISK

allocated channel: c4
channel c4: SID=28 device type=DISK

RMAN retention policy will be applied to the command
RMAN retention policy is set to redundancy 1
Deleting the following obsolete backups and copies:
Type                 Key    Completion Time    Filename/Handle
-------------------- ------ ------------------ --------------------
Backup Set           1      18-MAR-24
  Backup Piece       1      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163958359__04h19dgr_.bkp
Backup Set           2      18-MAR-24
  Backup Piece       2      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163961675__07l1m2lg_.bkp
Backup Set           3      18-MAR-24
  Backup Piece       3      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163962888__08p6y7lx_.bkp
Backup Set           4      18-MAR-24
  Backup Piece       4      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163963796__09k8g1m4_.bkp
Backup Set           5      18-MAR-24
  Backup Piece       5      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163964697__0bd3tqg3_.bkp
Backup Set           6      18-MAR-24
  Backup Piece       6      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163965895__0chx6mzt_.bkp
Backup Set           7      18-MAR-24
  Backup Piece       7      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163966806__0dbyx344_.bkp
Backup Set           8      18-MAR-24
  Backup Piece       8      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163968012__0fgvg805_.bkp
Backup Set           9      18-MAR-24
  Backup Piece       9      18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163968919__0g9x5t1v_.bkp
Backup Set           10     18-MAR-24
  Backup Piece       10     18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163969821__0h4rfdzj_.bkp
Backup Set           11     18-MAR-24
  Backup Piece       11     18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163971026__0j8o4wk8_.bkp
Backup Set           12     18-MAR-24
  Backup Piece       12     18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163971931__0k3pnn2o_.bkp
Backup Set           13     18-MAR-24
  Backup Piece       13     18-MAR-24          /u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163972835__0kyg92t1_.bkp
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163963796__09k8g1m4_.bkp RECID=4 STAMP=1163963804
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163962888__08p6y7lx_.bkp RECID=3 STAMP=1163962897
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163961675__07l1m2lg_.bkp RECID=2 STAMP=1163961683
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163958359__04h19dgr_.bkp RECID=1 STAMP=1163958361
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163964697__0bd3tqg3_.bkp RECID=5 STAMP=1163964705
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163965895__0chx6mzt_.bkp RECID=6 STAMP=1163965906
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163966806__0dbyx344_.bkp RECID=7 STAMP=1163966814
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163968012__0fgvg805_.bkp RECID=8 STAMP=1163968018
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163968919__0g9x5t1v_.bkp RECID=9 STAMP=1163968926
deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163969821__0h4rfdzj_.bkp RECID=10 STAMP=1163969827
Deleted 3 objects

deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163971026__0j8o4wk8_.bkp RECID=11 STAMP=1163971032
Deleted 3 objects

deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163971931__0k3pnn2o_.bkp RECID=12 STAMP=1163971938
Deleted 3 objects

deleted backup piece
backup piece handle=/u03/orareco/NTAP1/autobackup/2024_03_18/o1_mf_s_1163972835__0kyg92t1_.bkp RECID=13 STAMP=1163972837
Deleted 4 objects


sql statement: alter system archive log current

Starting recover at 20-MAR-24
no copy of datafile 1 found to recover
no copy of datafile 3 found to recover
no copy of datafile 4 found to recover
.
.
no copy of datafile 31 found to recover
no copy of datafile 32 found to recover
Finished recover at 20-MAR-24

Starting backup at 20-MAR-24
no parent backup or copy of datafile 1 found
no parent backup or copy of datafile 3 found
no parent backup or copy of datafile 4 found
.
.
no parent backup or copy of datafile 19 found
no parent backup or copy of datafile 20 found
channel c1: starting datafile copy
input datafile file number=00021 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_01.dbf
channel c2: starting datafile copy
input datafile file number=00022 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_02.dbf
channel c3: starting datafile copy
input datafile file number=00023 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_03.dbf
channel c4: starting datafile copy
input datafile file number=00024 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_04.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_0g2m6brl tag=ORACOPYBKUPONANF_LEVEL_0 RECID=4 STAMP=1164132108
channel c2: datafile copy complete, elapsed time: 01:06:39
channel c2: starting datafile copy
input datafile file number=00025 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_05.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_0i2m6brl tag=ORACOPYBKUPONANF_LEVEL_0 RECID=5 STAMP=1164132121
channel c4: datafile copy complete, elapsed time: 01:06:45
channel c4: starting datafile copy
input datafile file number=00026 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_06.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_0h2m6brl tag=ORACOPYBKUPONANF_LEVEL_0 RECID=6 STAMP=1164132198
channel c3: datafile copy complete, elapsed time: 01:08:05
channel c3: starting datafile copy
input datafile file number=00027 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_07.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_0f2m6brl tag=ORACOPYBKUPONANF_LEVEL_0 RECID=7 STAMP=1164132248
channel c1: datafile copy complete, elapsed time: 01:08:57
channel c1: starting datafile copy
input datafile file number=00028 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_08.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_0j2m6fol tag=ORACOPYBKUPONANF_LEVEL_0 RECID=9 STAMP=1164136123
channel c2: datafile copy complete, elapsed time: 01:06:46
channel c2: starting datafile copy
input datafile file number=00029 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_09.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_0k2m6fot tag=ORACOPYBKUPONANF_LEVEL_0 RECID=8 STAMP=1164136113
channel c4: datafile copy complete, elapsed time: 01:06:36
channel c4: starting datafile copy
input datafile file number=00030 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_10.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_0l2m6frc tag=ORACOPYBKUPONANF_LEVEL_0 RECID=10 STAMP=1164136293
channel c3: datafile copy complete, elapsed time: 01:08:10
channel c3: starting datafile copy
input datafile file number=00031 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_11.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_0m2m6fsu tag=ORACOPYBKUPONANF_LEVEL_0 RECID=11 STAMP=1164136333
channel c1: datafile copy complete, elapsed time: 01:07:52
channel c1: starting datafile copy
input datafile file number=00032 name=/u02/oradata/NTAP1/NTAP1_pdb1/soe_12.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_0n2m6jlr tag=ORACOPYBKUPONANF_LEVEL_0 RECID=12 STAMP=1164140082
channel c2: datafile copy complete, elapsed time: 01:06:01
channel c2: starting datafile copy
input datafile file number=00001 name=/u02/oradata/NTAP1/system01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_0o2m6jlr tag=ORACOPYBKUPONANF_LEVEL_0 RECID=13 STAMP=1164140190
channel c4: datafile copy complete, elapsed time: 01:07:49
channel c4: starting datafile copy
input datafile file number=00003 name=/u02/oradata/NTAP1/sysaux01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_0r2m6nhk tag=ORACOPYBKUPONANF_LEVEL_0 RECID=14 STAMP=1164140240
channel c2: datafile copy complete, elapsed time: 00:02:38
channel c2: starting datafile copy
input datafile file number=00004 name=/u02/oradata/NTAP1/undotbs01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_0t2m6nml tag=ORACOPYBKUPONANF_LEVEL_0 RECID=15 STAMP=1164140372
channel c2: datafile copy complete, elapsed time: 00:02:15
channel c2: starting datafile copy
input datafile file number=00011 name=/u02/oradata/NTAP1/NTAP1_pdb1/undotbs01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_0s2m6nl1 tag=ORACOPYBKUPONANF_LEVEL_0 RECID=16 STAMP=1164140377
channel c4: datafile copy complete, elapsed time: 00:03:01
channel c4: starting datafile copy
input datafile file number=00010 name=/u02/oradata/NTAP1/NTAP1_pdb1/sysaux01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_0q2m6jsi tag=ORACOPYBKUPONANF_LEVEL_0 RECID=17 STAMP=1164140385
channel c1: datafile copy complete, elapsed time: 01:07:29
channel c1: starting datafile copy
input datafile file number=00014 name=/u02/oradata/NTAP1/NTAP1_pdb2/sysaux01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_0p2m6jrb tag=ORACOPYBKUPONANF_LEVEL_0 RECID=18 STAMP=1164140406
channel c3: datafile copy complete, elapsed time: 01:08:31
channel c3: starting datafile copy
input datafile file number=00018 name=/u02/oradata/NTAP1/NTAP1_pdb3/sysaux01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_0v2m6nqs tag=ORACOPYBKUPONANF_LEVEL_0 RECID=19 STAMP=1164140459
channel c4: datafile copy complete, elapsed time: 00:01:26
channel c4: starting datafile copy
input datafile file number=00006 name=/u02/oradata/NTAP1/pdbseed/sysaux01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_102m6nr3 tag=ORACOPYBKUPONANF_LEVEL_0 RECID=20 STAMP=1164140468
channel c1: datafile copy complete, elapsed time: 00:01:22
channel c1: starting datafile copy
input datafile file number=00009 name=/u02/oradata/NTAP1/NTAP1_pdb1/system01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_0u2m6nqs tag=ORACOPYBKUPONANF_LEVEL_0 RECID=21 STAMP=1164140471
channel c2: datafile copy complete, elapsed time: 00:01:33
channel c2: starting datafile copy
input datafile file number=00013 name=/u02/oradata/NTAP1/NTAP1_pdb2/system01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_112m6nrt tag=ORACOPYBKUPONANF_LEVEL_0 RECID=22 STAMP=1164140476
channel c3: datafile copy complete, elapsed time: 00:00:57
channel c3: starting datafile copy
input datafile file number=00017 name=/u02/oradata/NTAP1/NTAP1_pdb3/system01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_122m6nti tag=ORACOPYBKUPONANF_LEVEL_0 RECID=23 STAMP=1164140488
channel c4: datafile copy complete, elapsed time: 00:00:25
channel c4: starting datafile copy
input datafile file number=00005 name=/u02/oradata/NTAP1/pdbseed/system01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_142m6ntp tag=ORACOPYBKUPONANF_LEVEL_0 RECID=24 STAMP=1164140532
channel c2: datafile copy complete, elapsed time: 00:01:06
channel c2: starting datafile copy
input datafile file number=00008 name=/u02/oradata/NTAP1/pdbseed/undotbs01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_152m6nts tag=ORACOPYBKUPONANF_LEVEL_0 RECID=25 STAMP=1164140539
channel c3: datafile copy complete, elapsed time: 00:01:03
channel c3: starting datafile copy
input datafile file number=00015 name=/u02/oradata/NTAP1/NTAP1_pdb2/undotbs01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_132m6ntm tag=ORACOPYBKUPONANF_LEVEL_0 RECID=26 STAMP=1164140541
channel c1: datafile copy complete, elapsed time: 00:01:13
channel c1: starting datafile copy
input datafile file number=00019 name=/u02/oradata/NTAP1/NTAP1_pdb3/undotbs01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_162m6nuc tag=ORACOPYBKUPONANF_LEVEL_0 RECID=27 STAMP=1164140541
channel c4: datafile copy complete, elapsed time: 00:00:41
channel c4: starting datafile copy
input datafile file number=00007 name=/u02/oradata/NTAP1/users01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_172m6nvr tag=ORACOPYBKUPONANF_LEVEL_0 RECID=28 STAMP=1164140552
channel c2: datafile copy complete, elapsed time: 00:00:16
channel c2: starting datafile copy
input datafile file number=00012 name=/u02/oradata/NTAP1/NTAP1_pdb1/users01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_182m6nvs tag=ORACOPYBKUPONANF_LEVEL_0 RECID=30 STAMP=1164140561
channel c3: datafile copy complete, elapsed time: 00:00:24
channel c3: starting datafile copy
input datafile file number=00016 name=/u02/oradata/NTAP1/NTAP1_pdb2/users01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_1a2m6o01 tag=ORACOPYBKUPONANF_LEVEL_0 RECID=29 STAMP=1164140560
channel c4: datafile copy complete, elapsed time: 00:00:16
channel c4: starting datafile copy
input datafile file number=00020 name=/u02/oradata/NTAP1/NTAP1_pdb3/users01.dbf
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_192m6nvv tag=ORACOPYBKUPONANF_LEVEL_0 RECID=31 STAMP=1164140564
channel c1: datafile copy complete, elapsed time: 00:00:21
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_1b2m6o0e tag=ORACOPYBKUPONANF_LEVEL_0 RECID=32 STAMP=1164140564
channel c2: datafile copy complete, elapsed time: 00:00:02
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_1c2m6o0k tag=ORACOPYBKUPONANF_LEVEL_0 RECID=34 STAMP=1164140565
channel c3: datafile copy complete, elapsed time: 00:00:01
output file name=/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_1d2m6o0k tag=ORACOPYBKUPONANF_LEVEL_0 RECID=33 STAMP=1164140565
channel c4: datafile copy complete, elapsed time: 00:00:01
Finished backup at 20-MAR-24

Starting Control File and SPFILE Autobackup at 20-MAR-24
piece handle=/nfsanf/archlog/NTAP1/autobackup/2024_03_20/o1_mf_s_1164140565__5g56ypks_.bkp comment=NONE
Finished Control File and SPFILE Autobackup at 20-MAR-24
released channel: c1
released channel: c2
released channel: c3
released channel: c4

RMAN> **end-of-file**

RMAN>

  7. 列出備份後的資料庫映像副本，觀察在 ANF NFS 掛載點中是否建立了資料庫映像副本。

    RMAN> list copy of database tag 'OraCopyBKUPonANF_level_0';

List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
14      1    A 20-MAR-24       4161498    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_0r2m6nhk
        Tag: ORACOPYBKUPONANF_LEVEL_0

16      3    A 20-MAR-24       4161568    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_0s2m6nl1
        Tag: ORACOPYBKUPONANF_LEVEL_0

15      4    A 20-MAR-24       4161589    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_0t2m6nml
        Tag: ORACOPYBKUPONANF_LEVEL_0

27      5    A 20-MAR-24       2379694    18-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_162m6nuc
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

23      6    A 20-MAR-24       2379694    18-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_122m6nti
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

29      7    A 20-MAR-24       4161872    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_1a2m6o01
        Tag: ORACOPYBKUPONANF_LEVEL_0

28      8    A 20-MAR-24       2379694    18-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_172m6nvr
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

26      9    A 20-MAR-24       4161835    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_132m6ntm
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

19      10   A 20-MAR-24       4161784    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_0v2m6nqs
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

21      11   A 20-MAR-24       4161780    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_0u2m6nqs
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

32      12   A 20-MAR-24       4161880    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_1b2m6o0e
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

24      13   A 20-MAR-24       4161838    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_142m6ntp
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

20      14   A 20-MAR-24       4161785    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_102m6nr3
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

30      15   A 20-MAR-24       4161863    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_182m6nvs
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

34      16   A 20-MAR-24       4161884    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_1c2m6o0k
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

25      17   A 20-MAR-24       4161841    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_152m6nts
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

22      18   A 20-MAR-24       4161810    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_112m6nrt
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

31      19   A 20-MAR-24       4161869    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_192m6nvv
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

33      20   A 20-MAR-24       4161887    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_1d2m6o0k
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

7       21   A 20-MAR-24       4152514    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_0f2m6brl
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

4       22   A 20-MAR-24       4152518    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_0g2m6brl
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

6       23   A 20-MAR-24       4152522    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_0h2m6brl
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

5       24   A 20-MAR-24       4152529    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_0i2m6brl
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

9       25   A 20-MAR-24       4156120    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_0j2m6fol
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

8       26   A 20-MAR-24       4156130    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_0k2m6fot
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

10      27   A 20-MAR-24       4156159    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_0l2m6frc
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

11      28   A 20-MAR-24       4156183    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_0m2m6fsu
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

12      29   A 20-MAR-24       4158795    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_0n2m6jlr
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

13      30   A 20-MAR-24       4158803    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_0o2m6jlr
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

18      31   A 20-MAR-24       4158871    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_0p2m6jrb
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

17      32   A 20-MAR-24       4158886    20-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_0q2m6jsi
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

  8. 從 Oracle RMAN 命令提示字元報告模式以觀察目前 VLDB 資料檔案是否位於主儲存上。

    RMAN> report schema;

Report of database schema for database with db_unique_name NTAP1

List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    1060     SYSTEM               YES     /u02/oradata/NTAP1/system01.dbf
3    1000     SYSAUX               NO      /u02/oradata/NTAP1/sysaux01.dbf
4    695      UNDOTBS1             YES     /u02/oradata/NTAP1/undotbs01.dbf
5    400      PDB$SEED:SYSTEM      NO      /u02/oradata/NTAP1/pdbseed/system01.dbf
6    440      PDB$SEED:SYSAUX      NO      /u02/oradata/NTAP1/pdbseed/sysaux01.dbf
7    5        USERS                NO      /u02/oradata/NTAP1/users01.dbf
8    235      PDB$SEED:UNDOTBS1    NO      /u02/oradata/NTAP1/pdbseed/undotbs01.dbf
9    410      NTAP1_PDB1:SYSTEM    YES     /u02/oradata/NTAP1/NTAP1_pdb1/system01.dbf
10   520      NTAP1_PDB1:SYSAUX    NO      /u02/oradata/NTAP1/NTAP1_pdb1/sysaux01.dbf
11   580      NTAP1_PDB1:UNDOTBS1  YES     /u02/oradata/NTAP1/NTAP1_pdb1/undotbs01.dbf
12   5        NTAP1_PDB1:USERS     NO      /u02/oradata/NTAP1/NTAP1_pdb1/users01.dbf
13   410      NTAP1_PDB2:SYSTEM    YES     /u02/oradata/NTAP1/NTAP1_pdb2/system01.dbf
14   500      NTAP1_PDB2:SYSAUX    NO      /u02/oradata/NTAP1/NTAP1_pdb2/sysaux01.dbf
15   235      NTAP1_PDB2:UNDOTBS1  YES     /u02/oradata/NTAP1/NTAP1_pdb2/undotbs01.dbf
16   5        NTAP1_PDB2:USERS     NO      /u02/oradata/NTAP1/NTAP1_pdb2/users01.dbf
17   410      NTAP1_PDB3:SYSTEM    YES     /u02/oradata/NTAP1/NTAP1_pdb3/system01.dbf
18   500      NTAP1_PDB3:SYSAUX    NO      /u02/oradata/NTAP1/NTAP1_pdb3/sysaux01.dbf
19   235      NTAP1_PDB3:UNDOTBS1  YES     /u02/oradata/NTAP1/NTAP1_pdb3/undotbs01.dbf
20   5        NTAP1_PDB3:USERS     NO      /u02/oradata/NTAP1/NTAP1_pdb3/users01.dbf
21   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_01.dbf
22   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_02.dbf
23   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_03.dbf
24   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_04.dbf
25   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_05.dbf
26   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_06.dbf
27   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_07.dbf
28   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_08.dbf
29   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_09.dbf
30   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_10.dbf
31   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_11.dbf
32   31744    NTAP1_PDB1:SOE       NO      /u02/oradata/NTAP1/NTAP1_pdb1/soe_12.dbf

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
1    123      TEMP                 32767       /u02/oradata/NTAP1/temp01.dbf
2    123      PDB$SEED:TEMP        32767       /u02/oradata/NTAP1/pdbseed/temp012024-03-18_16-07-32-463-PM.dbf
3    31744    NTAP1_PDB1:TEMP      32767       /u02/oradata/NTAP1/NTAP1_pdb1/temp01.dbf
4    123      NTAP1_PDB2:TEMP      32767       /u02/oradata/NTAP1/NTAP1_pdb2/temp01.dbf
5    123      NTAP1_PDB3:TEMP      32767       /u02/oradata/NTAP1/NTAP1_pdb3/temp01.dbf
6    31744    NTAP1_PDB1:TEMP      31744       /u02/oradata/NTAP1/NTAP1_pdb1/temp02.dbf

RMAN>

  9. 驗證來自 OS NFS 掛載點的資料庫映像副本。

    [oracle@ora-01 ~]$ ls -l /nfsanf/oracopy
total 399482176
-rw-r----- 1 oracle oinstall    11600384 Mar 20 21:44 bct_ntap1.ctf
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 18:03 data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_0f2m6brl
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 18:01 data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_0g2m6brl
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 18:03 data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_0h2m6brl
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 18:02 data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_0i2m6brl
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 19:08 data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_0j2m6fol
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 19:08 data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_0k2m6fot
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 19:11 data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_0l2m6frc
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 19:12 data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_0m2m6fsu
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 20:14 data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_0n2m6jlr
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 20:16 data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_0o2m6jlr
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 20:20 data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_0p2m6jrb
-rw-r----- 1 oracle oinstall 33286004736 Mar 20 20:19 data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_0q2m6jsi
-rw-r----- 1 oracle oinstall   545267712 Mar 20 20:20 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_0v2m6nqs
-rw-r----- 1 oracle oinstall   524296192 Mar 20 20:21 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_102m6nr3
-rw-r----- 1 oracle oinstall   524296192 Mar 20 20:21 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_112m6nrt
-rw-r----- 1 oracle oinstall  1048584192 Mar 20 20:19 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_0s2m6nl1
-rw-r----- 1 oracle oinstall   461381632 Mar 20 20:21 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_122m6nti
-rw-r----- 1 oracle oinstall  1111498752 Mar 20 20:17 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_0r2m6nhk
-rw-r----- 1 oracle oinstall   429924352 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_142m6ntp
-rw-r----- 1 oracle oinstall   429924352 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_152m6nts
-rw-r----- 1 oracle oinstall   419438592 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_162m6nuc
-rw-r----- 1 oracle oinstall   429924352 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_132m6ntm
-rw-r----- 1 oracle oinstall   608182272 Mar 20 20:21 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_0u2m6nqs
-rw-r----- 1 oracle oinstall   246423552 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_182m6nvs
-rw-r----- 1 oracle oinstall   246423552 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_192m6nvv
-rw-r----- 1 oracle oinstall   728768512 Mar 20 20:19 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_0t2m6nml
-rw-r----- 1 oracle oinstall   246423552 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_172m6nvr
-rw-r----- 1 oracle oinstall     5251072 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_1b2m6o0e
-rw-r----- 1 oracle oinstall     5251072 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_1c2m6o0k
-rw-r----- 1 oracle oinstall     5251072 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_1d2m6o0k
-rw-r----- 1 oracle oinstall     5251072 Mar 20 20:22 data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_1a2m6o01
[oracle@ora-01 ~]$

這樣就完成了 Oracle VLDB 備用映像副本備份和合併的設定。

將 Oracle VLDB 切換到映像副本以實現快速恢復

Details

如果因主儲存問題（例如資料遺失或損壞）而發生故障，資料庫可以快速切換到 ANF NFS 掛載上的映像副本，並恢復到目前狀態，而無需資料庫還原。消除媒體復原可大幅加快 VLDB 的資料庫復原速度。此用例假設 Oracle VLDB DB 伺服器完好無損，且資料庫控製文件、存檔日誌和目前日誌均可供復原。

  1. 以 oracle 使用者登入 Azure 主 VLDB 伺服器主機，並在切換之前建立測試表。

    [oracle@ora-01 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Thu Mar 21 15:13:52 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2022, Oracle.  All rights reserved.


Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.18.0.0.0

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 NTAP1_PDB1                     READ WRITE NO
         4 NTAP1_PDB2                     READ WRITE NO
         5 NTAP1_PDB3                     READ WRITE NO
SQL> alter session set container=ntap1_pdb1;

Session altered.

SQL> create table test (id integer, dt timestamp, event varchar(100));

Table created.

SQL> insert into test values(1, sysdate, 'test oracle incremental merge switch to copy');

1 row created.

SQL> commit;

Commit complete.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
21-MAR-24 03.15.03.000000 PM
test oracle incremental merge switch to copy

  2. 透過關閉中止資料庫來模擬故障，然後在掛載階段啟動 oracle。

    SQL> shutdown abort;
ORACLE instance shut down.
SQL> startup mount;
ORACLE instance started.

Total System Global Area 6442449688 bytes
Fixed Size                  9177880 bytes
Variable Size            1325400064 bytes
Database Buffers         5100273664 bytes
Redo Buffers                7598080 bytes
Database mounted.
SQL> exit

  3. 以 oracle 使用者身份，透過 RMAN 連接到 Oracle 資料庫切換要複製的資料庫。

    [oracle@ora-01 ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Thu Mar 21 15:20:58 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: NTAP1 (DBID=2441823937, not open)
using target database control file instead of recovery catalog

RMAN> switch database to copy;

datafile 1 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_0r2m6nhk"
datafile 3 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_0s2m6nl1"
datafile 4 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_0t2m6nml"
datafile 5 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_162m6nuc"
datafile 6 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_122m6nti"
datafile 7 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_1a2m6o01"
datafile 8 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_172m6nvr"
datafile 9 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_132m6ntm"
datafile 10 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_0v2m6nqs"
datafile 11 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_0u2m6nqs"
datafile 12 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_1b2m6o0e"
datafile 13 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_142m6ntp"
datafile 14 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_102m6nr3"
datafile 15 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_182m6nvs"
datafile 16 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_1c2m6o0k"
datafile 17 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_152m6nts"
datafile 18 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_112m6nrt"
datafile 19 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_192m6nvv"
datafile 20 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_1d2m6o0k"
datafile 21 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_0f2m6brl"
datafile 22 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_0g2m6brl"
datafile 23 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_0h2m6brl"
datafile 24 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_0i2m6brl"
datafile 25 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_0j2m6fol"
datafile 26 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_0k2m6fot"
datafile 27 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_0l2m6frc"
datafile 28 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_0m2m6fsu"
datafile 29 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_0n2m6jlr"
datafile 30 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_0o2m6jlr"
datafile 31 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_0p2m6jrb"
datafile 32 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_0q2m6jsi"

  4. 還原並開啟資料庫，使其從上次增量備份更新到目前狀態。

    RMAN> recover database;

Starting recover at 21-MAR-24
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=392 device type=DISK
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00009: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_0q1sd7cm
destination for restore of datafile 00023: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_041sd6s5
destination for restore of datafile 00027: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_081sd70i
destination for restore of datafile 00031: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_0c1sd74u
destination for restore of datafile 00034: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-34_0f1sd788
channel ORA_DISK_1: reading from backup piece /nfsanf/oracopy/321sfous_98_1_1
channel ORA_DISK_1: piece handle=/nfsanf/oracopy/321sfous_98_1_1 tag=ORACOPYBKUPONANF_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00010: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_0k1sd7bb
destination for restore of datafile 00021: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_021sd6pv
destination for restore of datafile 00025: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_061sd6uc
.
.
.
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00016: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_121sd7dn
channel ORA_DISK_1: reading from backup piece /nfsanf/oracopy/3i1sfov0_114_1_1
channel ORA_DISK_1: piece handle=/nfsanf/oracopy/3i1sfov0_114_1_1 tag=ORACOPYBKUPONANF_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00020: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_131sd7do
channel ORA_DISK_1: reading from backup piece /nfsanf/oracopy/3j1sfov0_115_1_1
channel ORA_DISK_1: piece handle=/nfsanf/oracopy/3j1sfov0_115_1_1 tag=ORACOPYBKUPONANF_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01

starting media recovery
media recovery complete, elapsed time: 00:00:01

Finished recover at 21-MAR-24

RMAN> alter database open;

Statement processed

RMAN>

  5. 復原後從 sqlplus 檢查資料庫結構，觀察到除控制、臨時和目前日誌檔案之外的所有 VLDB 資料檔案現在都已切換到 ANF NFS 檔案系統上的副本。

    SQL> select name from v$datafile
  2  union
  3  select name from v$tempfile
  4  union
  5  select name from v$controlfile
  6  union
  7* select member from v$logfile
SQL> /

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_0f2m6brl
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_0g2m6brl
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_0h2m6brl
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_0i2m6brl
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_0j2m6fol
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_0k2m6fot
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_0l2m6frc
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_0m2m6fsu
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_0n2m6jlr
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_0o2m6jlr
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_0p2m6jrb

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_0q2m6jsi
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_0v2m6nqs
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_102m6nr3
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_112m6nrt
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_0s2m6nl1
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_122m6nti
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_142m6ntp
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_152m6nts
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_0r2m6nhk
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_162m6nuc
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_132m6ntm

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_0u2m6nqs
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_182m6nvs
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_192m6nvv
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_0t2m6nml
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_172m6nvr
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_1b2m6o0e
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_1c2m6o0k
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_1d2m6o0k
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_1a2m6o01
/u02/oradata/NTAP1/NTAP1_pdb1/temp01.dbf
/u02/oradata/NTAP1/NTAP1_pdb1/temp02.dbf

NAME
--------------------------------------------------------------------------------
/u02/oradata/NTAP1/NTAP1_pdb2/temp01.dbf
/u02/oradata/NTAP1/NTAP1_pdb3/temp01.dbf
/u02/oradata/NTAP1/control01.ctl
/u02/oradata/NTAP1/pdbseed/temp012024-03-18_16-07-32-463-PM.dbf
/u02/oradata/NTAP1/temp01.dbf
/u03/orareco/NTAP1/control02.ctl
/u03/orareco/NTAP1/onlinelog/redo01.log
/u03/orareco/NTAP1/onlinelog/redo02.log
/u03/orareco/NTAP1/onlinelog/redo03.log

42 rows selected.

  6. 從 SQL plus 中，檢查在切換到複製之前我們插入的測試表的內容。

    SQL> alter session set container=ntap1_pdb1;

Session altered.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
21-MAR-24 03.15.03.000000 PM
test oracle incremental merge switch to copy


SQL>

  7. 您可以在 ANF NFS 掛載中執行 Oracle VLDB 較長時間，同時保持預期的效能水準。當主儲存問題解決後，您可以透過逆轉增量備份合併過程，以最少的停機時間恢復原狀。

Oracle VLDB 從映像複製到備用資料庫伺服器的恢復

Details

如果發生故障，主儲存和主資料庫伺服器主機都會遺失，則無法從原始伺服器進行復原。但是，ANF NFS 檔案系統上提供的 Oracle 資料庫備份映像副本會很方便。您可以使用備份映像副本快速將主資料庫還原到備用資料庫伺服器（如果有）。在本節中，我們將示範此類恢復的逐步過程。

  1. 在我們之前為 Oracle VLDB 還原到備用主機驗證而建立的測試表中插入一行。

    SQL> insert into test values(2, sysdate, 'test recovery on a new Azure VM host with image copy on ANF');

1 row created.

SQL> commit;

Commit complete.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
21-MAR-24 03.15.03.000000 PM
test oracle incremental merge switch to copy

         2
22-MAR-24 02.22.06.000000 PM
test recovery on a new Azure VM host with image copy on ANF

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------


SQL>

  2. 以 oracle 使用者身分執行 RMAN 增量備份並合併以將交易刷新到 ANF NFS 掛載上的備份集。

    [oracle@ip-172-30-15-99 ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Tue May 30 17:26:03 2023
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: NTAP1 (DBID=2441823937)
using target database control file instead of recovery catalog

RMAN> @rman_bkup_merge.cmd

  3. 關閉主 VLDB 伺服器主機以模擬儲存和 DB 伺服器主機的完全故障。

  4. 在具有相同作業系統和版本的備用資料庫伺服器 ora-02 上，作業系統核心應與主 VLDB 伺服器主機一樣進行修補。此外，已在僅使用軟體選項的備用資料庫伺服器上安裝和設定了相同版本和修補程式的 Oracle。

  5. 配置與主 VLDB 伺服器 ora_01 類似的 oracle 環境，例如 oratab 和 oracle 使用者 .bash_profile 等。將這些檔案備份到 ANF NFS 掛載點是一種很好的做法。

  6. 然後將 ANF NFS 檔案系統上的 Oracle 資料庫備份映像副本安裝在備用 DB 伺服器上以進行還原。以下步驟示範了流程的細節。

    以 azueruser 身分建立掛載點。

    sudo mkdir /nfsanf

    以 azureuser 身分掛載儲存 Oracle VLDB 備份映像副本的 NFS 磁碟區。

    sudo mount 172.30.136.68:/ora-01-u02-copy /nfsanf -o rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144,nointr

  7. 驗證 ANF NFS 掛載點上的 Oracle 資料庫備份映像副本。

    [oracle@ora-02 ~]$ ls -ltr /nfsanf/oracopy/
total 400452728
-rw-r-----. 1 oracle oinstall   461381632 Mar 21 23:47 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_242m9oan
-rw-r-----. 1 oracle oinstall   419438592 Mar 21 23:49 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_282m9oem
-rw-r-----. 1 oracle oinstall   246423552 Mar 21 23:49 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_292m9oem
-rw-r-----. 1 oracle oinstall    21438464 Mar 22 14:35 2h2mbccv_81_1_1
-rw-r-----. 1 oracle oinstall    17956864 Mar 22 14:35 2i2mbcd0_82_1_1
-rw-r-----. 1 oracle oinstall    17956864 Mar 22 14:35 2j2mbcd1_83_1_1
-rw-r-----. 1 oracle oinstall    15245312 Mar 22 14:35 2k2mbcd3_84_1_1
-rw-r-----. 1 oracle oinstall     1638400 Mar 22 14:35 2m2mbcdn_86_1_1
-rw-r-----. 1 oracle oinstall    40042496 Mar 22 14:35 2l2mbcdn_85_1_1
-rw-r-----. 1 oracle oinstall    21856256 Mar 22 14:35 2n2mbcdo_87_1_1
-rw-r-----. 1 oracle oinstall     3710976 Mar 22 14:35 2o2mbcdv_88_1_1
-rw-r-----. 1 oracle oinstall     3416064 Mar 22 14:35 2p2mbcdv_89_1_1
-rw-r-----. 1 oracle oinstall     2596864 Mar 22 14:35 2r2mbce0_91_1_1
-rw-r-----. 1 oracle oinstall     2531328 Mar 22 14:35 2s2mbce1_92_1_1
-rw-r-----. 1 oracle oinstall     4718592 Mar 22 14:35 2v2mbce2_95_1_1
-rw-r-----. 1 oracle oinstall     4243456 Mar 22 14:35 302mbce2_96_1_1
-rw-r-----. 1 oracle oinstall       57344 Mar 22 14:35 312mbce3_97_1_1
-rw-r-----. 1 oracle oinstall       57344 Mar 22 14:35 322mbce3_98_1_1
-rw-r-----. 1 oracle oinstall       57344 Mar 22 14:35 332mbce3_99_1_1
-rw-r-----. 1 oracle oinstall   608182272 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_202m9o22
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_1q2m9k7a
-rw-r-----. 1 oracle oinstall   555753472 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_212m9o52
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_1m2m9g9j
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_1n2m9gcg
-rw-r-----. 1 oracle oinstall   429924352 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_252m9oc5
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_1i2m9cap
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_1j2m9cap
-rw-r-----. 1 oracle oinstall     5251072 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_2d2m9ofs
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_1o2m9gd4
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_1r2m9kfk
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_1p2m9ju6
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_1s2m9kgg
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_1l2m9g3u
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_1k2m9cap
-rw-r-----. 1 oracle oinstall 33286004736 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_1h2m9cap
-rw-r-----. 1 oracle oinstall  1121984512 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_1t2m9nij
-rw-r-----. 1 oracle oinstall  1142956032 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_1u2m9nog
-rw-r-----. 1 oracle oinstall   728768512 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_1v2m9nu6
-rw-r-----. 1 oracle oinstall   534781952 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_222m9o53
-rw-r-----. 1 oracle oinstall   534781952 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_232m9oa8
-rw-r-----. 1 oracle oinstall   429924352 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_262m9oca
-rw-r-----. 1 oracle oinstall   246423552 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_2a2m9of6
-rw-r-----. 1 oracle oinstall   429924352 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_272m9oel
-rw-r-----. 1 oracle oinstall     5251072 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_2c2m9ofn
-rw-r-----. 1 oracle oinstall     5251072 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_2e2m9og8
-rw-r-----. 1 oracle oinstall   246423552 Mar 22 15:31 data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_2b2m9ofn
-rw-r-----. 1 oracle oinstall     5251072 Mar 22 15:32 data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_2f2m9og8
-rw-r-----. 1 oracle oinstall    76546048 Mar 22 15:37 362mbft5_102_1_1
-rw-r-----. 1 oracle oinstall    14671872 Mar 22 15:37 392mbg1i_105_1_1
-rw-r-----. 1 oracle oinstall    79462400 Mar 22 15:37 372mbftb_103_1_1
-rw-r-----. 1 oracle oinstall      917504 Mar 22 15:37 3a2mbg23_106_1_1
-rw-r-----. 1 oracle oinstall   428498944 Mar 22 15:37 352mbfst_101_1_1
-rw-r-----. 1 oracle oinstall    88702976 Mar 22 15:37 382mbftm_104_1_1
-rw-r-----. 1 oracle oinstall     5021696 Mar 22 15:37 3b2mbg2b_107_1_1
-rw-r-----. 1 oracle oinstall      278528 Mar 22 15:38 3c2mbg2f_108_1_1
-rw-r-----. 1 oracle oinstall      278528 Mar 22 15:38 3d2mbg2i_109_1_1
-rw-r-----. 1 oracle oinstall      425984 Mar 22 15:38 3f2mbg2m_111_1_1
-rw-r-----. 1 oracle oinstall      442368 Mar 22 15:38 3g2mbg2q_112_1_1
-rw-r-----. 1 oracle oinstall      278528 Mar 22 15:38 3j2mbg37_115_1_1
-rw-r-----. 1 oracle oinstall      270336 Mar 22 15:38 3k2mbg3a_116_1_1
-rw-r-----. 1 oracle oinstall       57344 Mar 22 15:38 3l2mbg3f_117_1_1
-rw-r-----. 1 oracle oinstall       57344 Mar 22 15:38 3n2mbg3k_119_1_1
-rw-r-----. 1 oracle oinstall       57344 Mar 22 15:38 3m2mbg3g_118_1_1
-rw-r-----. 1 oracle oinstall    11600384 Mar 22 15:52 bct_ntap1.ctf
[oracle@ora-02 ~]$

  8. 驗證 ANF NFS 掛載上可用的 Oracle 存檔日誌以進行恢復，並記下最後一個日誌檔案日誌序號。在本例中為 10。我們的恢復點最多到日誌序號 11。

    [oracle@ora-02 ~]$ ls -ltr /nfsanf/archlog/NTAP1/archivelog/2024_03_22
total 1429548
-r--r-----. 1 oracle oinstall 176650752 Mar 22 12:00 o1_mf_1_2__9m198x6t_.arc
-r--r-----. 1 oracle oinstall  17674752 Mar 22 14:34 o1_mf_1_3__9vn701r5_.arc
-r--r-----. 1 oracle oinstall 188782080 Mar 22 15:20 o1_mf_1_4__9y6gn5co_.arc
-r--r-----. 1 oracle oinstall 183638016 Mar 22 15:21 o1_mf_1_5__9y7p68s6_.arc
-r--r-----. 1 oracle oinstall 193106944 Mar 22 15:21 o1_mf_1_6__9y8ygtss_.arc
-r--r-----. 1 oracle oinstall 179439104 Mar 22 15:22 o1_mf_1_7__9ybjdp55_.arc
-r--r-----. 1 oracle oinstall 198815232 Mar 22 15:23 o1_mf_1_8__9yctxjgy_.arc
-r--r-----. 1 oracle oinstall 185494528 Mar 22 15:24 o1_mf_1_9__9yfrj0b1_.arc
-r--r-----. 1 oracle oinstall 134470144 Mar 22 15:29 o1_mf_1_10__9yomybbc_.arc
[oracle@ora-02 ~]$

  9. 以 oracle 使用者身份，將 ORACLE_HOME 變數設定為備用 DB 伺服器 ora-02 上的目前 Oracle 安裝，將 ORACLE_SID 設定為主 Oracle 實例 SID。在這種情況下，它是 NTAP1。

    [oracle@ora-02 ~]$ export ORACLE_HOME=/u01/app/oracle/product/19.0.0/NTAP2
[oracle@ora-02 ~]$ export ORACLE_SID=NTAP1
[oracle@ora-02 ~]$ export PATH=$PATH:$ORACLE_HOME/bin

  10. 以 oracle 使用者身份，在 $ORACLE_HOME/dbs 目錄中建立一個通用 Oracle 初始化文件，並配置適當的管理目錄。最重要的是，擁有 Oracle flash recovery area`指向主 Oracle VLDB 伺服器中定義的 ANF NFS 掛載路徑。 `flash recovery area`配置在章節中進行了演示 `Setup Oracle RMAN incremental merge to image copy on ANF。將 Oracle 控制檔設定為 ANF NFS 檔案系統。

    vi $ORACLE_HOME/dbs/initNTAP1.ora

    使用以下範例條目：

    *.audit_file_dest='/u01/app/oracle/admin/NTAP1/adump'
*.audit_trail='db'
*.compatible='19.0.0'
*.control_files=('/nfsanf/oracopy/NTAP1.ctl')
*.db_block_size=8192
*.db_create_file_dest='/nfsanf/oracopy/'
*.db_domain='solutions.netapp.com'
*.db_name='NTAP1'
*.db_recovery_file_dest_size=85899345920
*.db_recovery_file_dest='/nfsanf/archlog/'
*.diagnostic_dest='/u01/app/oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=NTAP1XDB)'
*.enable_pluggable_database=true
*.local_listener='LISTENER'
*.nls_language='AMERICAN'
*.nls_territory='AMERICA'
*.open_cursors=300
*.pga_aggregate_target=1024m
*.processes=320
*.remote_login_passwordfile='EXCLUSIVE'
*.sga_target=10240m
*.undo_tablespace='UNDOTBS1'

    如果出現差異，則應使用從主 Oracle VLDB 伺服器復原的備份初始化檔案取代上述初始化檔案。

  11. 以 oracle 使用者身分啟動 RMAN 在備用資料庫伺服器主機上執行 Oracle 復原。首先，啟動 Oracle 實例 `nomount`狀態。

    [oracle@ora-02 ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Fri Mar 22 16:02:55 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database (not started)

RMAN> startup nomount;

Oracle instance started

Total System Global Area   10737418000 bytes

Fixed Size                     9174800 bytes
Variable Size               1577058304 bytes
Database Buffers            9126805504 bytes
Redo Buffers                  24379392 bytes

  12. 設定資料庫ID。可以從 ANF NFS 掛載點上的映像副本的 Oracle 檔案名稱中檢索資料庫 ID。

    RMAN> set dbid = 2441823937;

executing command: SET DBID

  13. 從自動備份還原控製檔。如果啟用了 Oracle 控製檔案和 spfile 自動備份，則它們會在每個增量備份和合併週期中備份。如果有多個副本可用，將還原最新的備份。

    RMAN> restore controlfile from autobackup;

Starting restore at 22-MAR-24
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=2 device type=DISK

recovery area destination: /nfsanf/archlog/
database name (or database unique name) used for search: NTAP1
channel ORA_DISK_1: AUTOBACKUP /nfsanf/archlog/NTAP1/autobackup/2024_03_22/o1_mf_s_1164296325__9z77zyxb_.bkp found in the recovery area
channel ORA_DISK_1: looking for AUTOBACKUP on day: 20240322
channel ORA_DISK_1: restoring control file from AUTOBACKUP /nfsanf/archlog/NTAP1/autobackup/2024_03_22/o1_mf_s_1164296325__9z77zyxb_.bkp
channel ORA_DISK_1: control file restore from AUTOBACKUP complete
output file name=/nfsanf/oracopy/NTAP1.ctl
Finished restore at 22-MAR-24

  14. 將初始化檔案從 spfile 還原到 /tmp 資料夾，以便稍後更新參數檔案以與主 VLDB 相符。

    RMAN> restore spfile to pfile '/tmp/archive/initNTAP1.ora' from autobackup;

Starting restore at 22-MAR-24
using channel ORA_DISK_1

recovery area destination: /nfsanf/archlog/
database name (or database unique name) used for search: NTAP1
channel ORA_DISK_1: AUTOBACKUP /nfsanf/archlog/NTAP1/autobackup/2024_03_22/o1_mf_s_1164296325__9z77zyxb_.bkp found in the recovery area
channel ORA_DISK_1: looking for AUTOBACKUP on day: 20240322
channel ORA_DISK_1: restoring spfile from AUTOBACKUP /nfsanf/archlog/NTAP1/autobackup/2024_03_22/o1_mf_s_1164296325__9z77zyxb_.bkp
channel ORA_DISK_1: SPFILE restore from AUTOBACKUP complete
Finished restore at 22-MAR-24

  15. 掛載控制檔並驗證資料庫備份映像副本。

    RMAN> alter database mount;

released channel: ORA_DISK_1
Statement processed

RMAN> list copy of database tag 'ORACOPYBKUPONANF_LEVEL_0';

List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
82      1    A 22-MAR-24       4598427    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_1t2m9nij
        Tag: ORACOPYBKUPONANF_LEVEL_0

83      3    A 22-MAR-24       4598423    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_1u2m9nog
        Tag: ORACOPYBKUPONANF_LEVEL_0

84      4    A 22-MAR-24       4598431    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_1v2m9nu6
        Tag: ORACOPYBKUPONANF_LEVEL_0

58      5    A 21-MAR-24       2379694    18-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_282m9oem
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

52      6    A 21-MAR-24       2379694    18-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_242m9oan
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

90      7    A 22-MAR-24       4598462    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_2c2m9ofn
        Tag: ORACOPYBKUPONANF_LEVEL_0

59      8    A 21-MAR-24       2379694    18-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_292m9oem
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

71      9    A 22-MAR-24       4598313    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_252m9oc5
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

68      10   A 22-MAR-24       4598308    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_212m9o52
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

66      11   A 22-MAR-24       4598304    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_202m9o22
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

74      12   A 22-MAR-24       4598318    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_2d2m9ofs
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

86      13   A 22-MAR-24       4598445    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_262m9oca
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

85      14   A 22-MAR-24       4598437    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_222m9o53
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

87      15   A 22-MAR-24       4598454    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_2a2m9of6
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

89      16   A 22-MAR-24       4598466    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_2e2m9og8
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 4, PDB Name: NTAP1_PDB2

91      17   A 22-MAR-24       4598450    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_272m9oel
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

88      18   A 22-MAR-24       4598441    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_232m9oa8
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

92      19   A 22-MAR-24       4598458    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_2b2m9ofn
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

93      20   A 22-MAR-24       4598470    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_2f2m9og8
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 5, PDB Name: NTAP1_PDB3

81      21   A 22-MAR-24       4598318    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_1h2m9cap
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

72      22   A 22-MAR-24       4598304    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_1i2m9cap
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

73      23   A 22-MAR-24       4598308    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_1j2m9cap
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

80      24   A 22-MAR-24       4598313    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_1k2m9cap
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

79      25   A 22-MAR-24       4598318    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_1l2m9g3u
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

69      26   A 22-MAR-24       4598304    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_1m2m9g9j
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

70      27   A 22-MAR-24       4598308    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_1n2m9gcg
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

75      28   A 22-MAR-24       4598313    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_1o2m9gd4
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

77      29   A 22-MAR-24       4598318    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_1p2m9ju6
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

67      30   A 22-MAR-24       4598304    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_1q2m9k7a
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

76      31   A 22-MAR-24       4598308    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_1r2m9kfk
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

78      32   A 22-MAR-24       4598313    22-MAR-24       NO
        Name: /nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_1s2m9kgg
        Tag: ORACOPYBKUPONANF_LEVEL_0
        Container ID: 3, PDB Name: NTAP1_PDB1

  16. 將資料庫切換到複製以運行恢復，而無需資料庫還原。

    RMAN> switch database to copy;

Starting implicit crosscheck backup at 22-MAR-24
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=12 device type=DISK
Crosschecked 33 objects
Finished implicit crosscheck backup at 22-MAR-24

Starting implicit crosscheck copy at 22-MAR-24
using channel ORA_DISK_1
Crosschecked 31 objects
Finished implicit crosscheck copy at 22-MAR-24

searching for all files in the recovery area
cataloging files...
cataloging done

List of Cataloged Files
=======================
File Name: /nfsanf/archlog/NTAP1/autobackup/2024_03_20/o1_mf_s_1164140565__5g56ypks_.bkp
File Name: /nfsanf/archlog/NTAP1/autobackup/2024_03_22/o1_mf_s_1164296325__9z77zyxb_.bkp

datafile 1 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_1t2m9nij"
datafile 3 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_1u2m9nog"
datafile 4 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_1v2m9nu6"
datafile 5 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_282m9oem"
datafile 6 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_242m9oan"
datafile 7 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_2c2m9ofn"
datafile 8 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_292m9oem"
datafile 9 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_252m9oc5"
datafile 10 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_212m9o52"
datafile 11 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_202m9o22"
datafile 12 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_2d2m9ofs"
datafile 13 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_262m9oca"
datafile 14 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_222m9o53"
datafile 15 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_2a2m9of6"
datafile 16 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_2e2m9og8"
datafile 17 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_272m9oel"
datafile 18 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_232m9oa8"
datafile 19 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_2b2m9ofn"
datafile 20 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_2f2m9og8"
datafile 21 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_1h2m9cap"
datafile 22 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_1i2m9cap"
datafile 23 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_1j2m9cap"
datafile 24 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_1k2m9cap"
datafile 25 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_1l2m9g3u"
datafile 26 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_1m2m9g9j"
datafile 27 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_1n2m9gcg"
datafile 28 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_1o2m9gd4"
datafile 29 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_1p2m9ju6"
datafile 30 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_1q2m9k7a"
datafile 31 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_1r2m9kfk"
datafile 32 switched to datafile copy "/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_1s2m9kgg"

  17. 執行 Oracle 復原直到閃回復原區中最後一個可用的存檔日誌。

    RMAN> run {
2> set until sequence=11;
3> recover database;
4> }

executing command: SET until clause

Starting recover at 22-MAR-24
using channel ORA_DISK_1

starting media recovery

archived log for thread 1 with sequence 4 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_4__9y6gn5co_.arc
archived log for thread 1 with sequence 5 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_5__9y7p68s6_.arc
archived log for thread 1 with sequence 6 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_6__9y8ygtss_.arc
archived log for thread 1 with sequence 7 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_7__9ybjdp55_.arc
archived log for thread 1 with sequence 8 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_8__9yctxjgy_.arc
archived log for thread 1 with sequence 9 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_9__9yfrj0b1_.arc
archived log for thread 1 with sequence 10 is already on disk as file /nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_10__9yomybbc_.arc
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_4__9y6gn5co_.arc thread=1 sequence=4
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_5__9y7p68s6_.arc thread=1 sequence=5
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_6__9y8ygtss_.arc thread=1 sequence=6
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_7__9ybjdp55_.arc thread=1 sequence=7
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_8__9yctxjgy_.arc thread=1 sequence=8
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_9__9yfrj0b1_.arc thread=1 sequence=9
archived log file name=/nfsanf/archlog/NTAP1/archivelog/2024_03_22/o1_mf_1_10__9yomybbc_.arc thread=1 sequence=10
media recovery complete, elapsed time: 00:01:17
Finished recover at 22-MAR-24

RMAN> exit


Recovery Manager complete.
    註 為了更快地恢復，請使用 recovery_parallelism 參數啟用並行會話或在資料庫恢復的恢復命令中指定並行度： RECOVER DATABASE PARALLEL (DEGREE d INSTANCES DEFAULT); 。一般來說，並行度應該等於主機上的 CPU 核心數。

  18. 退出 RMAN，透過 sqlplus 以 oracle 使用者登入 Oracle，以在不完全恢復後開啟資料庫並重設日誌。

    SQL> select name, open_mode from v$database;

NAME      OPEN_MODE
--------- --------------------
NTAP1     MOUNTED

SQL> select instance_name, host_name from v$instance;

INSTANCE_NAME
----------------
HOST_NAME
----------------------------------------------------------------
NTAP1
ora-02


SQL>


SQL> select member from v$logfile;

MEMBER
--------------------------------------------------------------------------------
/u03/orareco/NTAP1/onlinelog/redo03.log
/u03/orareco/NTAP1/onlinelog/redo02.log
/u03/orareco/NTAP1/onlinelog/redo01.log

SQL> alter database rename file '/u03/orareco/NTAP1/onlinelog/redo01.log' to '/nfsanf/oracopy/redo01.log';

Database altered.

SQL> alter database rename file '/u03/orareco/NTAP1/onlinelog/redo02.log' to '/nfsanf/oracopy/redo02.log';

Database altered.

SQL> alter database rename file '/u03/orareco/NTAP1/onlinelog/redo03.log' to '/nfsanf/oracopy/redo03.log';

Database altered.

SQL> alter database open resetlogs;

Database altered.

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 NTAP1_PDB1                     READ WRITE NO
         4 NTAP1_PDB2                     READ WRITE NO
         5 NTAP1_PDB3                     READ WRITE NO

  19. 驗證還原到新主機的資料庫結構以及我們在主 VLDB 故障之前插入的測試行。

    SQL> select name from v$datafile;

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-1_1t2m9nij
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-3_1u2m9nog
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-4_1v2m9nu6
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-5_282m9oem
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-6_242m9oan
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-7_2c2m9ofn
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-8_292m9oem
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-9_252m9oc5
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-10_212m9o52
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-11_202m9o22
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-12_2d2m9ofs

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-13_262m9oca
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-14_222m9o53
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-15_2a2m9of6
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-16_2e2m9og8
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSTEM_FNO-17_272m9oel
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SYSAUX_FNO-18_232m9oa8
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-UNDOTBS1_FNO-19_2b2m9ofn
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-USERS_FNO-20_2f2m9og8
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-21_1h2m9cap
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-22_1i2m9cap
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-23_1j2m9cap

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-24_1k2m9cap
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-25_1l2m9g3u
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-26_1m2m9g9j
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-27_1n2m9gcg
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-28_1o2m9gd4
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-29_1p2m9ju6
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-30_1q2m9k7a
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-31_1r2m9kfk
/nfsanf/oracopy/data_D-NTAP1_I-2441823937_TS-SOE_FNO-32_1s2m9kgg

31 rows selected.

SQL> select member from v$logfile;

MEMBER
--------------------------------------------------------------------------------
/nfsanf/oracopy/redo03.log
/nfsanf/oracopy/redo02.log
/nfsanf/oracopy/redo01.log

SQL> select name from v$controlfile;

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/NTAP1.ctl

SQL> alter session set container=ntap1_pdb1;

Session altered.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
21-MAR-24 03.15.03.000000 PM
test oracle incremental merge switch to copy

         2
22-MAR-24 02.22.06.000000 PM
test recovery on a new Azure VM host with image copy on ANF

  20. 刪除無效的臨時檔案並將新的臨時檔案新增至臨時表空間。

    SQL> select name from v$tempfile;

NAME
--------------------------------------------------------------------------------
/u02/oradata/NTAP1/NTAP1_pdb1/temp01.dbf
/u02/oradata/NTAP1/NTAP1_pdb1/temp02.dbf

SQL> alter tablespace temp add tempfile '/nfsanf/oracopy/ntap1_pdb1_temp01.dbf' size 100M;

Tablespace altered.

SQL> select name from v$tempfile;

NAME
--------------------------------------------------------------------------------
/u02/oradata/NTAP1/NTAP1_pdb1/temp01.dbf
/u02/oradata/NTAP1/NTAP1_pdb1/temp02.dbf
/nfsanf/oracopy/ntap1_pdb1_temp01.dbf

SQL> alter database tempfile '/u02/oradata/NTAP1/NTAP1_pdb1/temp01.dbf' offline;

Database altered.

SQL> alter database tempfile '/u02/oradata/NTAP1/NTAP1_pdb1/temp01.dbf' drop;

Database altered.

SQL> alter database tempfile '/u02/oradata/NTAP1/NTAP1_pdb1/temp02.dbf' offline;

Database altered.

SQL> alter database tempfile '/u02/oradata/NTAP1/NTAP1_pdb1/temp02.dbf' drop;

Database altered.

SQL> select name from v$tempfile;

NAME
--------------------------------------------------------------------------------
/nfsanf/oracopy/ntap1_pdb1_temp01.dbf

SQL>

  21. 其他恢復後任務

    - Add ANF NFS mount to fstab so that the NFS file system will be mounted when DB server host rebooted.

        As azureuser, sudo vi /etc/fstab and add following entry:

        172.30.136.68:/ora-01-u02-copy       /nfsanf        nfs     rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144,nointr  0       0

- Update the Oracle init file from primary databse init file backup that is restored to /tmp/archive and create spfile as needed.

這樣就完成了從 ANF NFS 檔案系統上的備份映像副本到備用 DB 伺服器主機的 Oracle VLDB 資料庫復原。

在哪裡可以找到更多信息

要了解有關本文檔中描述的信息的更多信息，請查看以下文檔和/或網站：
