Provisioning e installazione del sistema HANA
Collaboratori
Suggerisci modifiche
PDF
Questo capitolo descrive l'installazione e la configurazione specifiche del sistema SAP HANA BM1 utilizzato per la documentazione di questa soluzione. Il sistema HANA QM1 è stato implementato allo stesso modo.
Ulteriori informazioni generiche sull'implementazione e le best practice sono disponibili "SAP HANA su sistemi NetApp ASA con protocollo Fibre Channel".
Configurazione dello storage

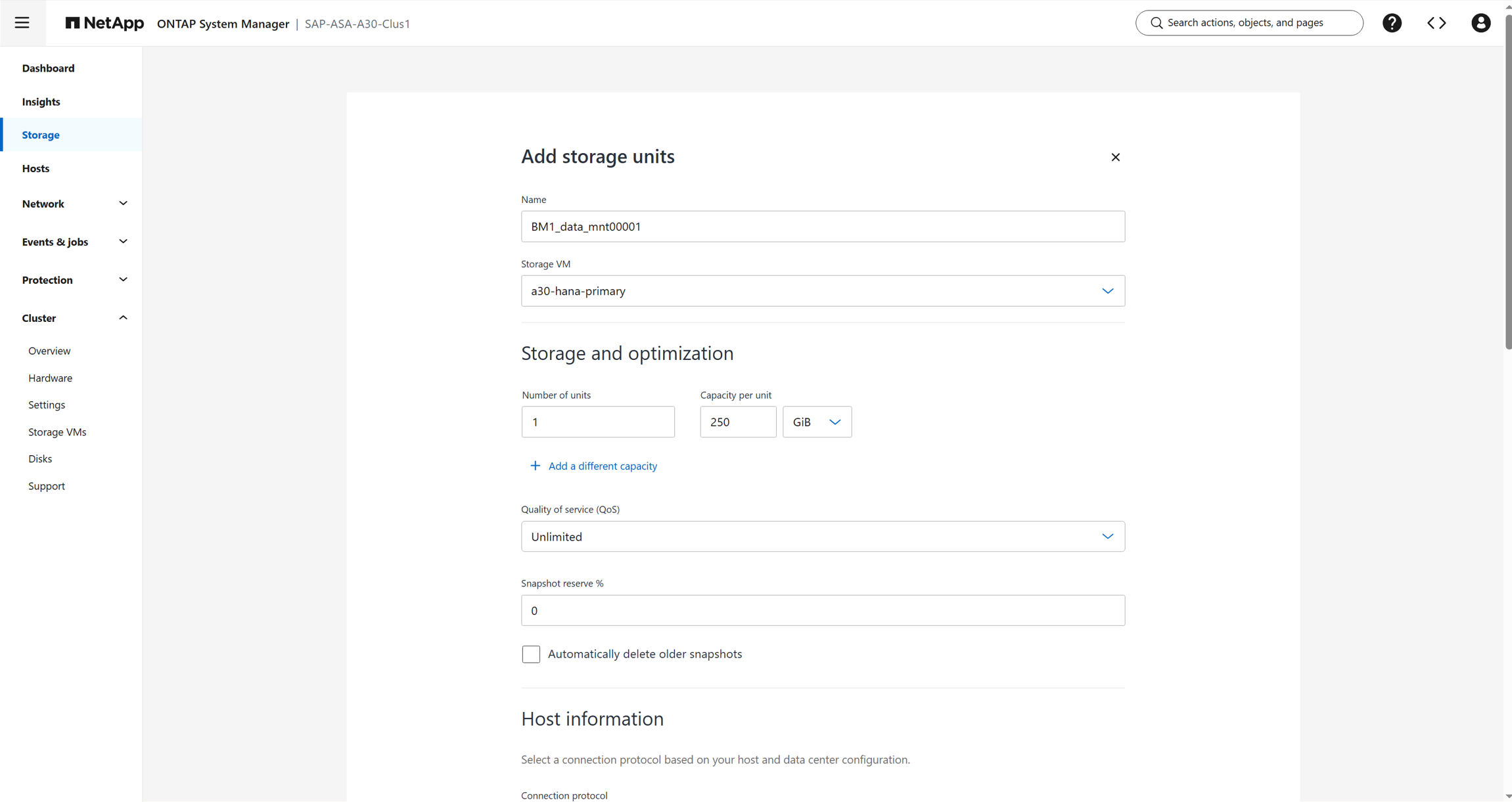

Le seguenti screenshot mostrano la creazione della storage unit BM1_data_mnt00001. Le storage unit per HANA log e shared sono state create allo stesso modo.
Il WWPN degli adattatori FCP dell'host HANA può essere elencato con il comando sanlun, che fa parte delle utilità host NetApp come descritto nel capitolo "Configurazione host HANA".
sapcc-hana-tst-02:~ # sanlun fcp show adapter host20 WWPN:100070b7e40bbadb host21 WWPN:100070b7e40bbadc

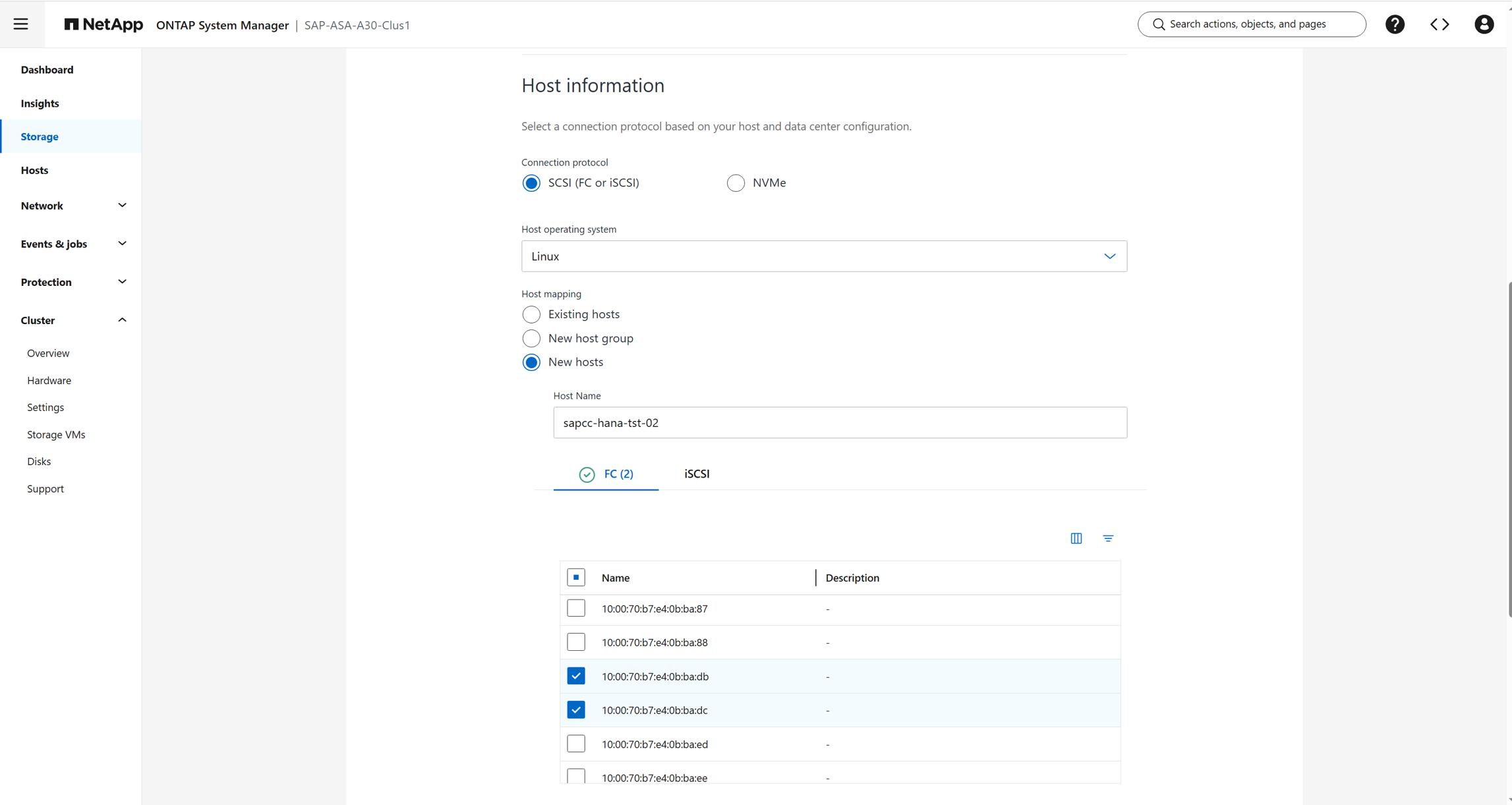

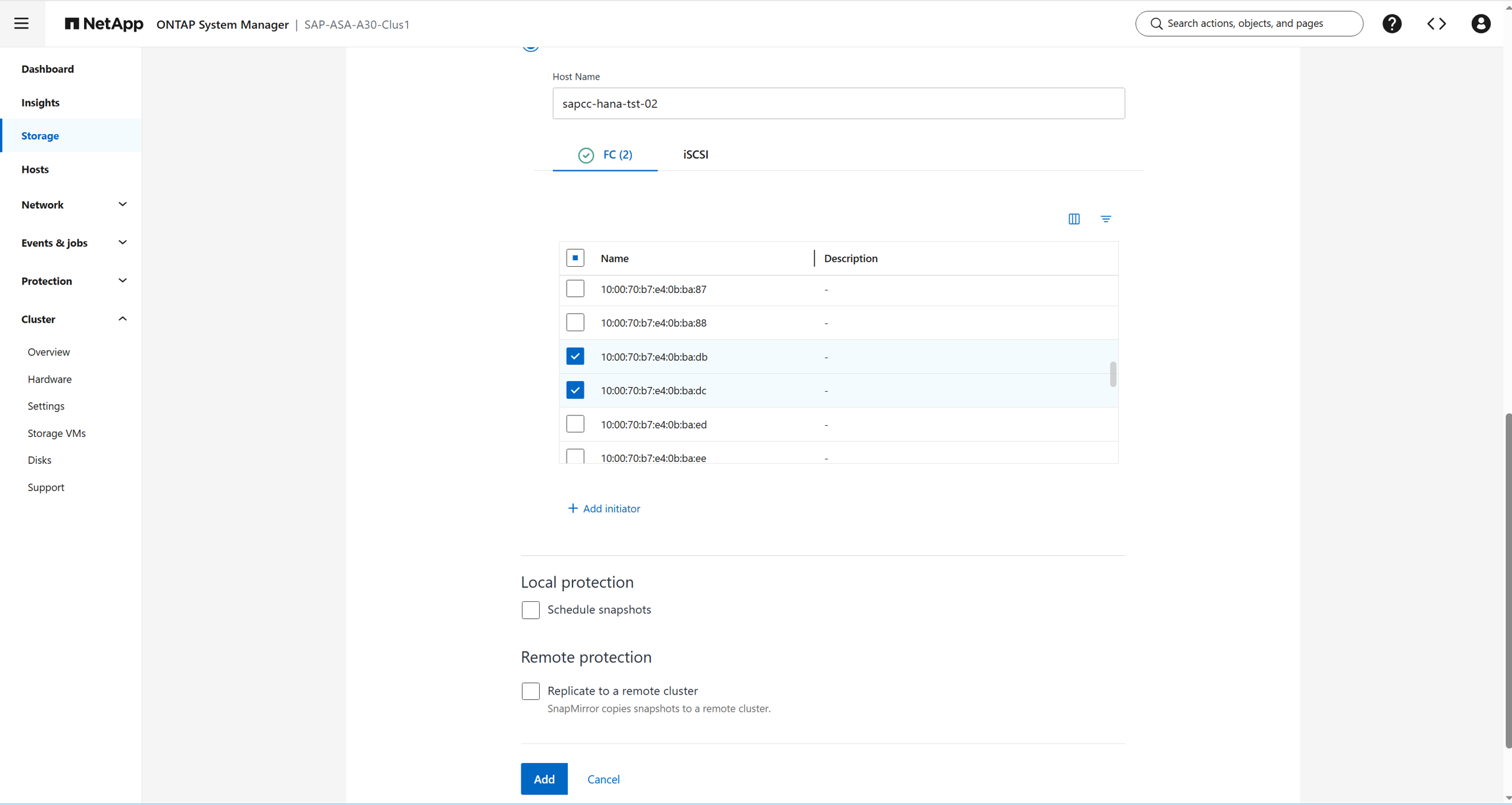

Fai clic su "aggiungi" per creare l'unità di archiviazione.

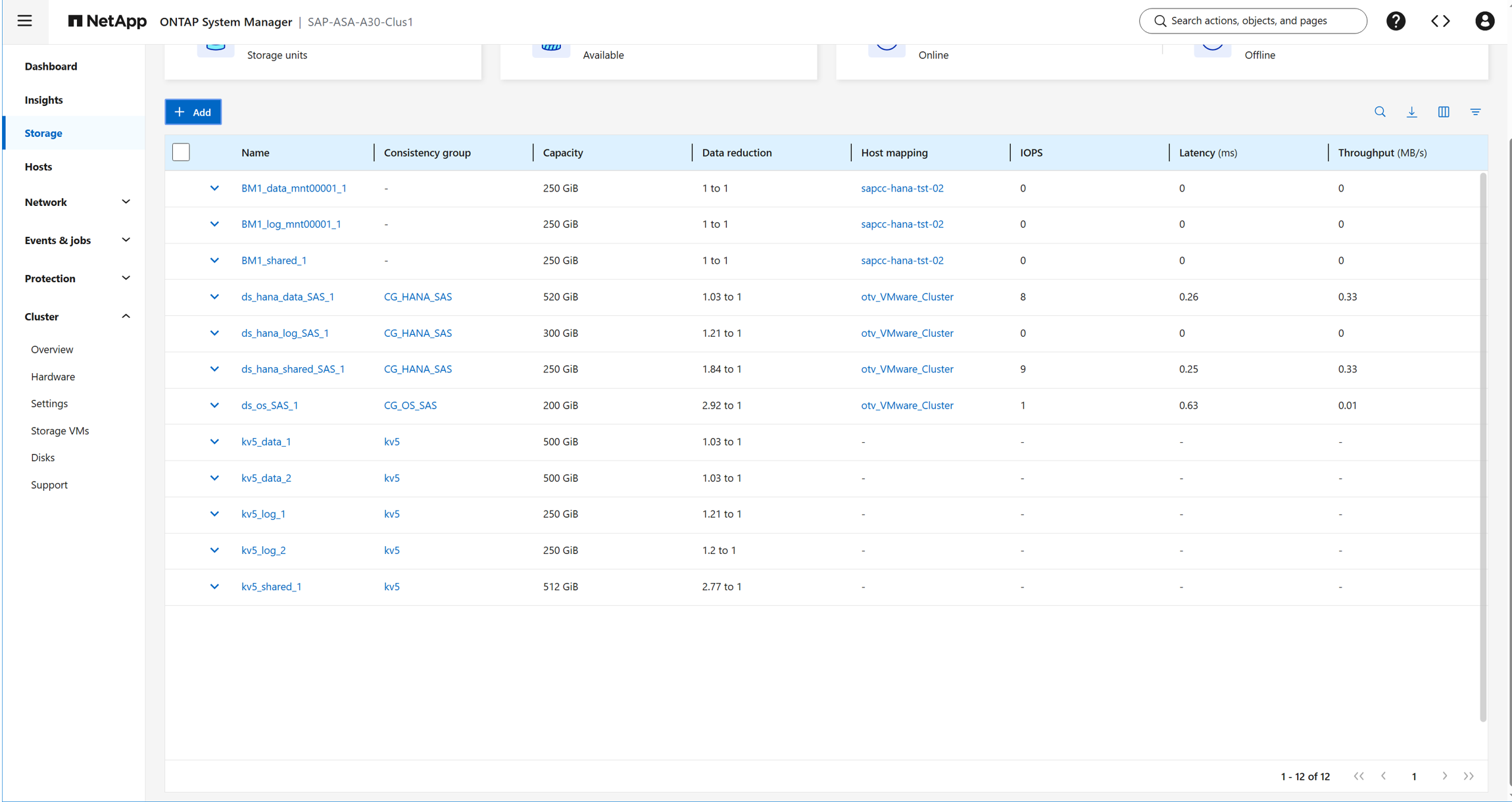

Lo screenshot mostra le tre storage unit create per il sistema HANA BM1.
Configurazione host HANA
Prima di configurare l'host, è necessario scaricare le utilità host SAN NetApp dal sito "Supporto NetApp" e installarle sui server HANA. La documentazione delle utilità host include informazioni sul software aggiuntivo che devi installare a seconda dell'HBA FCP utilizzato.
Le NetApp SAN host utilities possono essere utilizzate anche per ottenere il WWPN degli adattatori host necessari per configurare la mappatura host sul sistema storage.
sapcc-hana-tst-02:~ # sanlun fcp show adapter host20 WWPN:100070b7e40bbadb host21 WWPN:100070b7e40bbadc
Configurazione multipath
-
Esegui il comando Linux rescan-scsi-bus.sh -a su ogni server per rilevare nuove LUN.
-
Esegui il comando sanlun lun show e verifica che tutti i LUN richiesti siano visibili. L'output mostra i LUN e i relativi file di dispositivo che hanno quattro percorsi FC dall'host ai controller di storage.
sapcc-hana-tst-02:~ # sanlun lun show | grep BM1 a30-hana-primary BM1_shared_1 /dev/sdx host21 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdw host21 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdv host21 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdu host21 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdt host21 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sds host21 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdh host20 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdg host20 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdk host20 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdl host20 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdi host20 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdj host20 FCP 250g cDOT sapcc-hana-tst-02:~ #
-
Esegui i comandi multipath -r e multipath -ll per ottenere gli identificatori mondiali (WWID) per i nomi dei file del dispositivo.
sapcc-hana-tst-02:~ # multipath -r sapcc-hana-tst-02:~ # multipath -ll 3600a0980383235324a245a4749384947 dm-3 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:2 sdk 8:160 active ready running |- 20:0:11:2 sdh 8:112 active ready running |- 21:0:9:2 sdu 65:64 active ready running `- 21:0:11:2 sdx 65:112 active ready running 3600a098038323537342b596e55666737 dm-2 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:0 sdj 8:144 active ready running |- 20:0:11:0 sdl 8:176 active ready running |- 21:0:9:0 sds 65:32 active ready running `- 21:0:11:0 sdv 65:80 active ready running 3600a098038323537342b596e55666738 dm-5 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:1 sdi 8:128 active ready running |- 20:0:11:1 sdg 8:96 active ready running |- 21:0:9:1 sdt 65:48 active ready running `- 21:0:11:1 sdw 65:96 active ready running sapcc-hana-tst-02:~ #
-
Modifica il file /etc/multipath.conf e aggiungi i WWID e i nomi alias.
sapcc-hana-tst-02:~ # cat /etc/multipath.conf
multipaths {
multipath {
wwid 3600a098038323537342b596e55666737
alias a30-hana-primary-BM1-data-mnt00001
}
multipath {
wwid 3600a098038323537342b596e55666738
alias a30-hana-primary-BM1-log-mnt00001
}
multipath {
wwid 3600a0980383235324a245a4749384947
alias a30-hana-primary-BM1-shared
}
}
-
Esegui il comando multipath -r per ricaricare la mappa dei dispositivi.
-
Verifica la configurazione eseguendo il comando multipath -ll per elencare tutte le LUN, i nomi alias e i percorsi dello storage.
sapcc-hana-tst-02:~ # multipath -r sapcc-hana-tst-02:~ # multipath -ll a30-hana-primary-BM1-data-mnt00001 (3600a098038323537342b596e55666737) dm-2 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:0 sdj 8:144 active ready running |- 20:0:11:0 sdl 8:176 active ready running |- 21:0:9:0 sds 65:32 active ready running `- 21:0:11:0 sdv 65:80 active ready running a30-hana-primary-BM1-log-mnt00001 (3600a098038323537342b596e55666738) dm-5 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:1 sdi 8:128 active ready running |- 20:0:11:1 sdg 8:96 active ready running |- 21:0:9:1 sdt 65:48 active ready running `- 21:0:11:1 sdw 65:96 active ready running a30-hana-primary-BM1-shared (3600a0980383235324a245a4749384947) dm-3 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:2 sdk 8:160 active ready running |- 20:0:11:2 sdh 8:112 active ready running |- 21:0:9:2 sdu 65:64 active ready running `- 21:0:11:2 sdx 65:112 active ready running sapcc-hana-tst-02:~ #
Configurazione del file system host
Creare file system
sapcc-hana-tst-02:~ # ls -al /dev/mapper
total 0
drwxr-xr-x 2 root root 200 Feb 9 10:12 .
drwxr-xr-x 21 root root 5360 Feb 9 08:53 ..
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-data-mnt00001 -> ../dm-2
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-log-mnt00001 -> ../dm-5
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-shared -> ../dm-3
crw------- 1 root root 10, 236 Feb 9 08:53 control
lrwxrwxrwx 1 root root 7 Feb 9 08:53 system-root -> ../dm-0
lrwxrwxrwx 1 root root 7 Feb 9 08:53 system-swap -> ../dm-1
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-data-mnt00001
meta-data=/dev/mapper/a30-hana-primary-BM1-data-mnt00001 isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-log-mnt00001
meta-data=/dev/mapper/a30-hana-primary-BM1-log-mnt00001 isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-shared
meta-data=/dev/mapper/a30-hana-primary-BM1-shared isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ #
Creare punti di montaggio
sapcc-hana-tst-02:~ # mkdir -p /hana/data/BM1/mnt00001 sapcc-hana-tst-02:~ # mkdir -p /hana/log/BM1/mnt00001 sapcc-hana-tst-02:~ # mkdir -p /hana/shared/BM1 sapcc-hana-tst-02:~ # chmod -R /hana/data sapcc-hana-tst-02:~ # chmod 777 -R /hana/data sapcc-hana-tst-02:~ # chmod 777 -R /hana/log sapcc-hana-tst-02:~ # chmod 777 -R /hana/shared sapcc-hana-tst-02:~ #
Montare i file system
sapcc-hana-tst-02:~ # cat /etc/fstab /dev/system/root / btrfs defaults 0 0 /dev/system/root /var btrfs subvol=/@/var 0 0 /dev/system/root /usr/local btrfs subvol=/@/usr/local 0 0 /dev/system/root /tmp btrfs subvol=/@/tmp 0 0 /dev/system/root /srv btrfs subvol=/@/srv 0 0 /dev/system/root /root btrfs subvol=/@/root 0 0 /dev/system/root /opt btrfs subvol=/@/opt 0 0 /dev/system/root /home btrfs subvol=/@/home 0 0 /dev/system/root /boot/grub2/x86_64-efi btrfs subvol=/@/boot/grub2/x86_64-efi 0 0 /dev/system/root /boot/grub2/i386-pc btrfs subvol=/@/boot/grub2/i386-pc 0 0 /dev/system/swap swap swap defaults 0 0 /dev/system/root /.snapshots btrfs subvol=/@/.snapshots 0 0 UUID=E88D-60DA /boot/efi vfat utf8 0 2 192.168.175.86:/sapcc_share/ /mnt/sapcc-share/ nfs rw,vers=3,hard,timeo=600,rsize=1048576,wsize=1048576,intr,noatime,nolock 0 0 /dev/mapper/a30-hana-primary-BM1-shared /hana/shared xfs defaults 0 0 /dev/mapper/a30-hana-primary-BM1-log-mnt00001 /hana/log/BM1/mnt00001 xfs relatime,inode64 0 0 /dev/mapper/a30-hana-primary-BM1-data-mnt00001 /hana/data/BM1/mnt00001 xfs relatime,inode64 0 0 sapcc-hana-tst-02:~ # sapcc-hana-tst-02:~ # df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 4.0M 0 4.0M 0% /dev tmpfs 190G 8.0K 190G 1% /dev/shm tmpfs 51G 11M 51G 1% /run tmpfs 4.0M 0 4.0M 0% /sys/fs/cgroup /dev/mapper/system-root 60G 15G 45G 25% / /dev/mapper/system-root 60G 15G 45G 25% /.snapshots /dev/mapper/system-root 60G 15G 45G 25% /boot/grub2/i386-pc /dev/mapper/system-root 60G 15G 45G 25% /boot/grub2/x86_64-efi /dev/mapper/system-root 60G 15G 45G 25% /home /dev/mapper/system-root 60G 15G 45G 25% /opt /dev/mapper/system-root 60G 15G 45G 25% /root /dev/mapper/system-root 60G 15G 45G 25% /srv /dev/mapper/system-root 60G 15G 45G 25% /tmp /dev/mapper/system-root 60G 15G 45G 25% /usr/local /dev/mapper/system-root 60G 15G 45G 25% /var /dev/nvme0n1p1 253M 5.1M 247M 3% /boot/efi 192.168.175.86:/sapcc_share/ 1.4T 859G 567G 61% /mnt/sapcc-share tmpfs 26G 44K 26G 1% /run/user/463 tmpfs 26G 24K 26G 1% /run/user/0 /dev/mapper/a30-hana-primary-BM1-shared 250G 288M 250G 1% /hana/shared /dev/mapper/a30-hana-primary-BM1-log-mnt00001 250G 288M 250G 1% /hana/log/BM1/mnt00001 /dev/mapper/a30-hana-primary-BM1-data-mnt00001 250G 288M 250G 1% /hana/data/BM1/mnt00001 sapcc-hana-tst-02:~ #
Installazione HANA
Ora è possibile eseguire l'installazione HANA.
|
Con la configurazione descritta, la directory /usr/sap/BM1 verrà memorizzata sul disco del sistema operativo. Se /usr/sap/BM1 deve essere memorizzata su un disco separato, è necessario configurare un LUN aggiuntivo sul sistema storage. |
