데이터 과학자 및 기타 애플리케이션을 위한 데이터 이중성
데이터는 NFS에서 사용할 수 있으며 AWS SageMaker의 S3에서 액세스할 수 있습니다.
기술 요구 사항
데이터 이중성 사용 사례에는 NetApp BlueXP, NetApp Cloud Volumes ONTAP 및 AWS SageMaker Notebooks가 필요합니다.
소프트웨어 요구 사항
다음 표는 사용 사례를 구현하는 데 필요한 소프트웨어 구성 요소를 나열합니다.
소프트웨어 | 수량 |
---|---|
BlueXP |
1 |
NetApp Cloud Volumes ONTAP |
1 |
AWS SageMaker 노트북 |
1 |
배포 절차
데이터 이중성 솔루션을 배포하려면 다음 작업이 필요합니다.
-
BlueXP 커넥터
-
NetApp Cloud Volumes ONTAP
-
머신러닝을 위한 데이터
-
AWS 세이지메이커
-
Jupyter Notebooks에서 검증된 머신 러닝
BlueXP 커넥터
이 검증에서는 AWS를 사용했습니다. Azure와 Google Cloud에도 적용할 수 있습니다. AWS에서 BlueXP 커넥터를 생성하려면 다음 단계를 완료하세요.
-
우리는 BlueXP 의 mcarl-marketplace-subscription에 기반한 자격 증명을 사용했습니다.
-
사용자 환경에 적합한 지역(예: us-east-1[N. Virginia])을 선택하고 인증 방법(예: 역할 가정 또는 AWS 키)을 선택합니다. 이 검증에서는 AWS 키를 사용합니다.
-
커넥터의 이름을 제공하고 역할을 만듭니다.
-
공용 IP가 필요한지 여부에 따라 VPC, 서브넷 또는 키 쌍과 같은 네트워크 세부 정보를 제공합니다.
-
소스 유형에서 HTTP, HTTPS 또는 SSH 액세스와 같은 보안 그룹에 대한 세부 정보(어디서나 가능, IP 범위 정보 등)를 제공합니다.
-
BlueXP 커넥터를 검토하고 생성합니다.
-
AWS 콘솔에서 BlueXP EC2 인스턴스 상태가 실행 중인지 확인하고, 네트워킹 탭에서 IP 주소를 확인하세요.
-
BlueXP 포털에서 커넥터 사용자 인터페이스에 로그인하거나 브라우저에서 IP 주소를 사용하여 액세스할 수 있습니다.
NetApp Cloud Volumes ONTAP
BlueXP 에서 Cloud Volumes ONTAP 인스턴스를 생성하려면 다음 단계를 완료하세요.
-
새로운 작업 환경을 만들고, 클라우드 공급자를 선택하고, Cloud Volumes ONTAP 인스턴스 유형(단일 CVO, HA 또는 ONTAP 용 Amazon FSx ONTAP 등)을 선택합니다.
-
Cloud Volumes ONTAP 클러스터 이름 및 자격 증명과 같은 세부 정보를 제공합니다. 이 검증에서 우리는 Cloud Volumes ONTAP 인스턴스를 생성했습니다.
svm_sagemaker_cvo_sn1
. -
Cloud Volumes ONTAP 에 필요한 서비스를 선택하세요. 이 검증에서는 모니터링만 하기로 했기 때문에 *데이터 감지 및 규정 준수*와 *클라우드 서비스에 대한 백업*을 비활성화했습니다.
-
위치 및 연결 섹션에서 AWS 지역, VPC, 서브넷, 보안 그룹, SSH 인증 방법, 비밀번호 또는 키 쌍을 선택합니다.
-
충전 방법을 선택하세요. 이 검증에는 전문가 모드를 사용했습니다.
-
POC 및 소규모 워크로드, 데이터베이스 및 애플리케이션 데이터 프로덕션 워크로드, 비용 효율적인 DR 또는 *최고 성능 프로덕션 워크로드*와 같은 미리 구성된 패키지를 선택할 수 있습니다. 이 검증에서는 *Poc 및 소규모 워크로드*를 선택합니다.
-
특정 크기, 허용되는 프로토콜, 내보내기 옵션으로 볼륨을 생성합니다. 이 검증에서 우리는 볼륨이라는 것을 생성했습니다.
vol1
. -
프로필 디스크 유형과 계층화 정책을 선택하세요. 이 검증 과정에서는 *저장소 효율성*과 *범용 SSD - 동적 성능*을 비활성화했습니다.
-
마지막으로 Cloud Volumes ONTAP 인스턴스를 검토하고 생성합니다. 그런 다음 BlueXP 가 Cloud Volumes ONTAP 작업 환경을 생성하는 동안 15~20분 정도 기다립니다.
-
Duality 프로토콜을 활성화하려면 다음 매개변수를 구성하세요. Duality 프로토콜(NFS/S3)은 ONTAP 9부터 지원됩니다. 12.1 이상.
-
이 검증에서 우리는 SVM을 생성했습니다.
svm_sagemaker_cvo_sn1
그리고 볼륨vol1
. -
SVM이 NFS 및 S3에 대한 프로토콜을 지원하는지 확인하세요. 그렇지 않은 경우 이를 지원하도록 SVM을 수정하세요.
sagemaker_cvo_sn1::> vserver show -vserver svm_sagemaker_cvo_sn1 Vserver: svm_sagemaker_cvo_sn1 Vserver Type: data Vserver Subtype: default Vserver UUID: 911065dd-a8bc-11ed-bc24-e1c0f00ad86b Root Volume: svm_sagemaker_cvo_sn1_root Aggregate: aggr1 NIS Domain: - Root Volume Security Style: unix LDAP Client: - Default Volume Language Code: C.UTF-8 Snapshot Policy: default Data Services: data-cifs, data-flexcache, data-iscsi, data-nfs, data-nvme-tcp Comment: Quota Policy: default List of Aggregates Assigned: aggr1 Limit on Maximum Number of Volumes allowed: unlimited Vserver Admin State: running Vserver Operational State: running Vserver Operational State Stopped Reason: - Allowed Protocols: nfs, cifs, fcp, iscsi, ndmp, s3 Disallowed Protocols: nvme Is Vserver with Infinite Volume: false QoS Policy Group: - Caching Policy Name: - Config Lock: false IPspace Name: Default Foreground Process: - Logical Space Reporting: true Logical Space Enforcement: false Default Anti_ransomware State of the Vserver's Volumes: disabled Enable Analytics on New Volumes: false Enable Activity Tracking on New Volumes: false sagemaker_cvo_sn1::>
-
-
필요한 경우 CA 인증서를 만들고 설치합니다.
-
서비스 데이터 정책을 만듭니다.
sagemaker_cvo_sn1::*> network interface service-policy create -vserver svm_sagemaker_cvo_sn1 -policy sagemaker_s3_nfs_policy -services data-core,data-s3-server,data-nfs,data-flexcache sagemaker_cvo_sn1::*> network interface create -vserver svm_sagemaker_cvo_sn1 -lif svm_sagemaker_cvo_sn1_s3_lif -service-policy sagemaker_s3_nfs_policy -home-node sagemaker_cvo_sn1-01 -address 172.30.10.41 -netmask 255.255.255.192 Warning: The configured failover-group has no valid failover targets for the LIF's failover-policy. To view the failover targets for a LIF, use the "network interface show -failover" command. sagemaker_cvo_sn1::*> sagemaker_cvo_sn1::*> network interface show Logical Status Network Current Current Is Vserver Interface Admin/Oper Address/Mask Node Port Home ----------- ---------- ---------- ------------------ ------------- ------- ---- sagemaker_cvo_sn1 cluster-mgmt up/up 172.30.10.40/26 sagemaker_cvo_sn1-01 e0a true intercluster up/up 172.30.10.48/26 sagemaker_cvo_sn1-01 e0a true sagemaker_cvo_sn1-01_mgmt1 up/up 172.30.10.58/26 sagemaker_cvo_sn1-01 e0a true svm_sagemaker_cvo_sn1 svm_sagemaker_cvo_sn1_data_lif up/up 172.30.10.23/26 sagemaker_cvo_sn1-01 e0a true svm_sagemaker_cvo_sn1_mgmt_lif up/up 172.30.10.32/26 sagemaker_cvo_sn1-01 e0a true svm_sagemaker_cvo_sn1_s3_lif up/up 172.30.10.41/26 sagemaker_cvo_sn1-01 e0a true 6 entries were displayed. sagemaker_cvo_sn1::*> sagemaker_cvo_sn1::*> vserver object-store-server create -vserver svm_sagemaker_cvo_sn1 -is-http-enabled true -object-store-server svm_sagemaker_cvo_s3_sn1 -is-https-enabled false sagemaker_cvo_sn1::*> vserver object-store-server show Vserver: svm_sagemaker_cvo_sn1 Object Store Server Name: svm_sagemaker_cvo_s3_sn1 Administrative State: up HTTP Enabled: true Listener Port For HTTP: 80 HTTPS Enabled: false Secure Listener Port For HTTPS: 443 Certificate for HTTPS Connections: - Default UNIX User: pcuser Default Windows User: - Comment: sagemaker_cvo_sn1::*>
-
집계 세부 정보를 확인하세요.
sagemaker_cvo_sn1::*> aggr show Aggregate Size Available Used% State #Vols Nodes RAID Status --------- -------- --------- ----- ------- ------ ---------------- ------------ aggr0_sagemaker_cvo_sn1_01 124.0GB 50.88GB 59% online 1 sagemaker_cvo_ raid0, sn1-01 normal aggr1 907.1GB 904.9GB 0% online 2 sagemaker_cvo_ raid0, sn1-01 normal 2 entries were displayed. sagemaker_cvo_sn1::*>
-
사용자와 그룹을 만듭니다.
sagemaker_cvo_sn1::*> vserver object-store-server user create -vserver svm_sagemaker_cvo_sn1 -user s3user sagemaker_cvo_sn1::*> vserver object-store-server user show Vserver User ID Access Key Secret Key ----------- --------------- --------- ------------------- ------------------- svm_sagemaker_cvo_sn1 root 0 - - Comment: Root User svm_sagemaker_cvo_sn1 s3user 1 0ZNAX21JW5Q8AP80CQ2E PpLs4gA9K0_2gPhuykkp014gBjcC9Rbi3QDX_6rr 2 entries were displayed. sagemaker_cvo_sn1::*> sagemaker_cvo_sn1::*> vserver object-store-server group create -name s3group -users s3user -comment "" sagemaker_cvo_sn1::*> sagemaker_cvo_sn1::*> vserver object-store-server group delete -gid 1 -vserver svm_sagemaker_cvo_sn1 sagemaker_cvo_sn1::*> vserver object-store-server group create -name s3group -users s3user -comment "" -policies FullAccess sagemaker_cvo_sn1::*>
-
NFS 볼륨에 버킷을 생성합니다.
sagemaker_cvo_sn1::*> vserver object-store-server bucket create -bucket ontapbucket1 -type nas -comment "" -vserver svm_sagemaker_cvo_sn1 -nas-path /vol1 sagemaker_cvo_sn1::*> vserver object-store-server bucket show Vserver Bucket Type Volume Size Encryption Role NAS Path ----------- --------------- -------- ----------------- ---------- ---------- ---------- ---------- svm_sagemaker_cvo_sn1 ontapbucket1 nas vol1 - false - /vol1 sagemaker_cvo_sn1::*>
AWS 세이지메이커
AWS SageMaker에서 AWS Notebook을 만들려면 다음 단계를 완료하세요.
-
Notebook 인스턴스를 생성하는 사용자에게 AmazonSageMakerFullAccess IAM 정책이 있는지 또는 AmazonSageMakerFullAccess 권한이 있는 기존 그룹에 속해 있는지 확인하세요. 이 검증에서 사용자는 기존 그룹의 일부입니다.
-
다음 정보를 제공하세요.
-
노트북 인스턴스 이름.
-
인스턴스 유형.
-
플랫폼 식별자.
-
AmazonSageMakerFullAccess 권한이 있는 IAM 역할을 선택합니다.
-
루트 접근 - 활성화.
-
암호화 키 - 사용자 정의 암호화를 선택하지 않습니다.
-
나머지 기본 옵션은 그대로 둡니다.
-
-

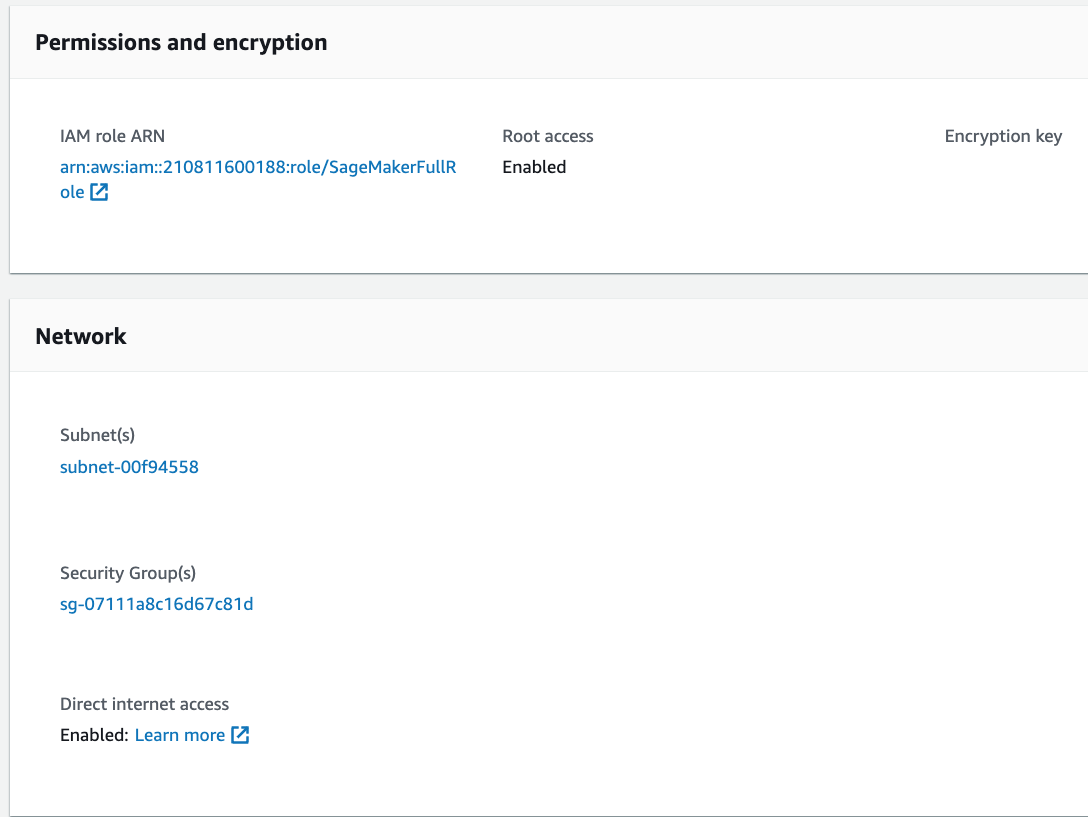

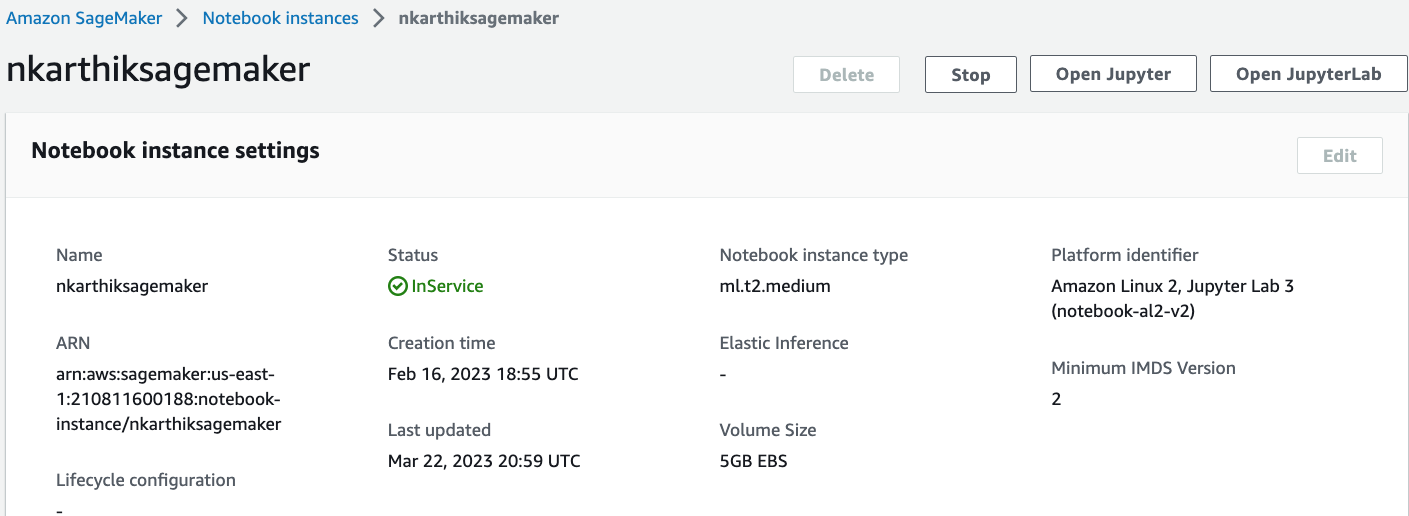

이 검증에서 SageMaker 인스턴스 세부 정보는 다음과 같습니다.
-

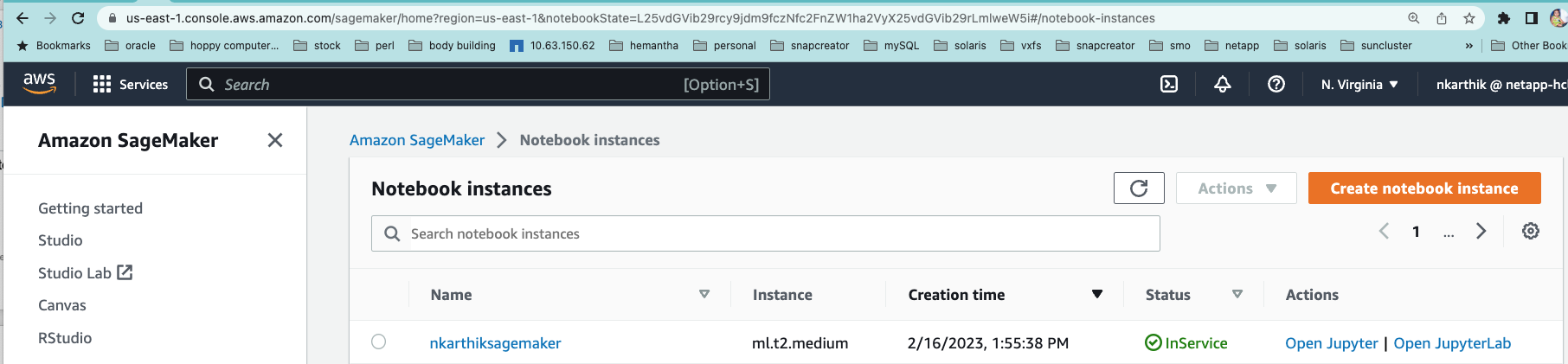

AWS Notebook을 시작합니다.
-

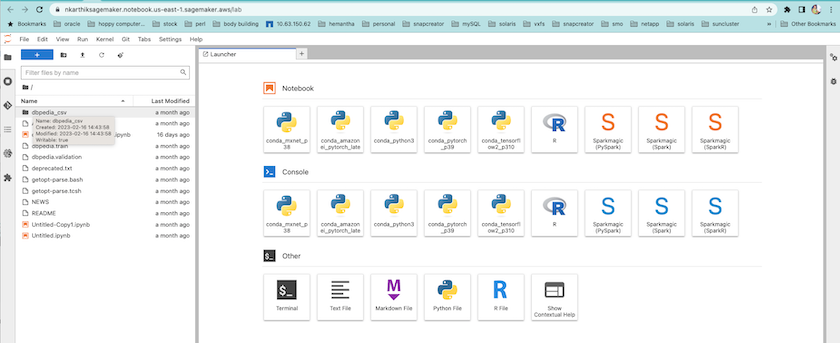

Jupyter 랩을 엽니다.
-
터미널에 로그인하여 Cloud Volumes ONTAP 볼륨을 마운트합니다.
sh-4.2$ sudo mkdir /vol1; sudo mount -t nfs 172.30.10.41:/vol1 /vol1 sh-4.2$ df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 2.0G 0 2.0G 0% /dev tmpfs 2.0G 0 2.0G 0% /dev/shm tmpfs 2.0G 624K 2.0G 1% /run tmpfs 2.0G 0 2.0G 0% /sys/fs/cgroup /dev/xvda1 140G 114G 27G 82% / /dev/xvdf 4.8G 72K 4.6G 1% /home/ec2-user/SageMaker tmpfs 393M 0 393M 0% /run/user/1001 tmpfs 393M 0 393M 0% /run/user/1002 tmpfs 393M 0 393M 0% /run/user/1000 172.30.10.41:/vol1 973M 189M 785M 20% /vol1 sh-4.2$
-
AWS CLI 명령을 사용하여 Cloud Volumes ONTAP 볼륨에 생성된 버킷을 확인합니다.
sh-4.2$ aws configure --profile netapp AWS Access Key ID [None]: 0ZNAX21JW5Q8AP80CQ2E AWS Secret Access Key [None]: PpLs4gA9K0_2gPhuykkp014gBjcC9Rbi3QDX_6rr Default region name [None]: us-east-1 Default output format [None]: sh-4.2$ sh-4.2$ aws s3 ls --profile netapp --endpoint-url 2023-02-10 17:59:48 ontapbucket1 sh-4.2$ aws s3 ls --profile netapp --endpoint-url s3://ontapbucket1/ 2023-02-10 18:46:44 4747 1 2023-02-10 18:48:32 96 setup.cfg sh-4.2$
머신러닝을 위한 데이터
이 검증 과정에서 우리는 크라우드 소싱 커뮤니티 활동인 DBpedia의 데이터 세트를 사용하여 다양한 위키미디어 프로젝트에서 생성된 정보로부터 구조화된 콘텐츠를 추출했습니다.
-
DBpedia GitHub 위치에서 데이터를 다운로드하고 추출합니다. 이전 섹션에서 사용한 것과 동일한 터미널을 사용하세요.
sh-4.2$ wget --2023-02-14 23:12:11-- Resolving github.com (github.com)... 140.82.113.3 Connecting to github.com (github.com)|140.82.113.3|:443... connected. HTTP request sent, awaiting response... 302 Found Location: [following] --2023-02-14 23:12:11-- Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.109.133, 185.199.110.133, 185.199.111.133, ... Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.109.133|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 68431223 (65M) [application/octet-stream] Saving to: 'dbpedia_csv.tar.gz' 100%[==============================================================================================================================================================>] 68,431,223 56.2MB/s in 1.2s 2023-02-14 23:12:13 (56.2 MB/s) - 'dbpedia_csv.tar.gz' saved [68431223/68431223] sh-4.2$ tar -zxvf dbpedia_csv.tar.gz dbpedia_csv/ dbpedia_csv/test.csv dbpedia_csv/classes.txt dbpedia_csv/train.csv dbpedia_csv/readme.txt sh-4.2$
-
데이터를 Cloud Volumes ONTAP 위치로 복사한 다음 AWS CLI를 사용하여 S3 버킷에서 확인합니다.
sh-4.2$ df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 2.0G 0 2.0G 0% /dev tmpfs 2.0G 0 2.0G 0% /dev/shm tmpfs 2.0G 628K 2.0G 1% /run tmpfs 2.0G 0 2.0G 0% /sys/fs/cgroup /dev/xvda1 140G 114G 27G 82% / /dev/xvdf 4.8G 52K 4.6G 1% /home/ec2-user/SageMaker tmpfs 393M 0 393M 0% /run/user/1002 tmpfs 393M 0 393M 0% /run/user/1001 tmpfs 393M 0 393M 0% /run/user/1000 172.30.10.41:/vol1 973M 384K 973M 1% /vol1 sh-4.2$ pwd /home/ec2-user sh-4.2$ cp -ra dbpedia_csv /vol1 sh-4.2$ aws s3 ls --profile netapp --endpoint-url s3://ontapbucket1/ PRE dbpedia_csv/ 2023-02-10 18:46:44 4747 1 2023-02-10 18:48:32 96 setup.cfg sh-4.2$
-
기본 검증을 수행하여 S3 버킷에서 읽기/쓰기 기능이 작동하는지 확인합니다.
sh-4.2$ aws s3 cp --profile netapp --endpoint-url /usr/share/doc/util-linux-2.30.2 s3://ontapbucket1/ --recursive upload: ../../../usr/share/doc/util-linux-2.30.2/deprecated.txt to s3://ontapbucket1/deprecated.txt upload: ../../../usr/share/doc/util-linux-2.30.2/getopt-parse.bash to s3://ontapbucket1/getopt-parse.bash upload: ../../../usr/share/doc/util-linux-2.30.2/README to s3://ontapbucket1/README upload: ../../../usr/share/doc/util-linux-2.30.2/getopt-parse.tcsh to s3://ontapbucket1/getopt-parse.tcsh upload: ../../../usr/share/doc/util-linux-2.30.2/AUTHORS to s3://ontapbucket1/AUTHORS upload: ../../../usr/share/doc/util-linux-2.30.2/NEWS to s3://ontapbucket1/NEWS sh-4.2$ aws s3 ls --profile netapp --endpoint-url s3://ontapbucket1/s3://ontapbucket1/ An error occurred (InternalError) when calling the ListObjectsV2 operation: We encountered an internal error. Please try again. sh-4.2$ aws s3 ls --profile netapp --endpoint-url s3://ontapbucket1/ PRE dbpedia_csv/ 2023-02-16 19:19:27 26774 AUTHORS 2023-02-16 19:19:27 72727 NEWS 2023-02-16 19:19:27 4493 README 2023-02-16 19:19:27 2825 deprecated.txt 2023-02-16 19:19:27 1590 getopt-parse.bash 2023-02-16 19:19:27 2245 getopt-parse.tcsh sh-4.2$ ls -ltr /vol1 total 132 drwxrwxr-x 2 ec2-user ec2-user 4096 Mar 29 2015 dbpedia_csv -rw-r--r-- 1 nobody nobody 2245 Apr 10 17:37 getopt-parse.tcsh -rw-r--r-- 1 nobody nobody 2825 Apr 10 17:37 deprecated.txt -rw-r--r-- 1 nobody nobody 4493 Apr 10 17:37 README -rw-r--r-- 1 nobody nobody 1590 Apr 10 17:37 getopt-parse.bash -rw-r--r-- 1 nobody nobody 26774 Apr 10 17:37 AUTHORS -rw-r--r-- 1 nobody nobody 72727 Apr 10 17:37 NEWS sh-4.2$ ls -ltr /vol1/dbpedia_csv/ total 192104 -rw------- 1 ec2-user ec2-user 174148970 Mar 28 2015 train.csv -rw------- 1 ec2-user ec2-user 21775285 Mar 28 2015 test.csv -rw------- 1 ec2-user ec2-user 146 Mar 28 2015 classes.txt -rw-rw-r-- 1 ec2-user ec2-user 1758 Mar 29 2015 readme.txt sh-4.2$ chmod -R 777 /vol1/dbpedia_csv sh-4.2$ ls -ltr /vol1/dbpedia_csv/ total 192104 -rwxrwxrwx 1 ec2-user ec2-user 174148970 Mar 28 2015 train.csv -rwxrwxrwx 1 ec2-user ec2-user 21775285 Mar 28 2015 test.csv -rwxrwxrwx 1 ec2-user ec2-user 146 Mar 28 2015 classes.txt -rwxrwxrwx 1 ec2-user ec2-user 1758 Mar 29 2015 readme.txt sh-4.2$ aws s3 cp --profile netapp --endpoint-url http://172.30.2.248/ s3://ontapbucket1/ /tmp --recursive download: s3://ontapbucket1/AUTHORS to ../../tmp/AUTHORS download: s3://ontapbucket1/README to ../../tmp/README download: s3://ontapbucket1/NEWS to ../../tmp/NEWS download: s3://ontapbucket1/dbpedia_csv/classes.txt to ../../tmp/dbpedia_csv/classes.txt download: s3://ontapbucket1/dbpedia_csv/readme.txt to ../../tmp/dbpedia_csv/readme.txt download: s3://ontapbucket1/deprecated.txt to ../../tmp/deprecated.txt download: s3://ontapbucket1/getopt-parse.bash to ../../tmp/getopt-parse.bash download: s3://ontapbucket1/getopt-parse.tcsh to ../../tmp/getopt-parse.tcsh download: s3://ontapbucket1/dbpedia_csv/test.csv to ../../tmp/dbpedia_csv/test.csv download: s3://ontapbucket1/dbpedia_csv/train.csv to ../../tmp/dbpedia_csv/train.csv sh-4.2$ sh-4.2$ aws s3 ls --profile netapp --endpoint-url s3://ontapbucket1/ PRE dbpedia_csv/ 2023-02-16 19:19:27 26774 AUTHORS 2023-02-16 19:19:27 72727 NEWS 2023-02-16 19:19:27 4493 README 2023-02-16 19:19:27 2825 deprecated.txt 2023-02-16 19:19:27 1590 getopt-parse.bash 2023-02-16 19:19:27 2245 getopt-parse.tcsh sh-4.2$
Jupyter Notebooks에서 머신 러닝 검증
다음 검증은 아래의 SageMaker BlazingText 예제를 사용하여 텍스트 분류를 통해 머신 러닝 모델을 빌드, 학습 및 배포하는 방법을 제공합니다.
-
boto3 및 SageMaker 패키지를 설치합니다.
In [1]: pip install --upgrade boto3 sagemaker
산출:
Looking in indexes: https://pypi.org/simple, https://pip.repos.neuron.amazo naws.com Requirement already satisfied: boto3 in /home/ec2-user/anaconda3/envs/pytho n3/lib/python3.10/site-packages (1.26.44) Collecting boto3 Downloading boto3-1.26.72-py3-none-any.whl (132 kB) ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 132.7/132.7 kB 14.6 MB/s eta 0: 00:00 Requirement already satisfied: sagemaker in /home/ec2-user/anaconda3/envs/p ython3/lib/python3.10/site-packages (2.127.0) Collecting sagemaker Downloading sagemaker-2.132.0.tar.gz (668 kB) ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 668.0/668.0 kB 12.3 MB/s eta 0: 00:0000:01 Preparing metadata (setup.py) ... done Collecting botocore<1.30.0,>=1.29.72 Downloading botocore-1.29.72-py3-none-any.whl (10.4 MB) ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 10.4/10.4 MB 44.3 MB/s eta 0: 00:0000:010:01 Requirement already satisfied: s3transfer<0.7.0,>=0.6.0 in /home/ec2-user/a naconda3/envs/python3/lib/python3.10/site-packages (from boto3) (0.6.0) Requirement already satisfied: jmespath<2.0.0,>=0.7.1 in /home/ec2-user/ana conda3/envs/python3/lib/python3.10/site-packages (from boto3) (0.10.0) Requirement already satisfied: attrs<23,>=20.3.0 in /home/ec2-user/anaconda 3/envs/python3/lib/python3.10/site-packages (from sagemaker) (22.1.0) Requirement already satisfied: google-pasta in /home/ec2-user/anaconda3/env s/python3/lib/python3.10/site-packages (from sagemaker) (0.2.0) Requirement already satisfied: numpy<2.0,>=1.9.0 in /home/ec2-user/anaconda 3/envs/python3/lib/python3.10/site-packages (from sagemaker) (1.22.4) Requirement already satisfied: protobuf<4.0,>=3.1 in /home/ec2-user/anacond a3/envs/python3/lib/python3.10/site-packages (from sagemaker) (3.20.3) Requirement already satisfied: protobuf3-to-dict<1.0,>=0.1.5 in /home/ec2-u ser/anaconda3/envs/python3/lib/python3.10/site-packages (from sagemaker) (0.1.5) Requirement already satisfied: smdebug_rulesconfig==1.0.1 in /home/ec2-use r/anaconda3/envs/python3/lib/python3.10/site-packages (from sagemaker) (1. 0.1) Requirement already satisfied: importlib-metadata<5.0,>=1.4.0 in /home/ec2user/anaconda3/envs/python3/lib/python3.10/site-packages (from sagemaker) (4.13.0) Requirement already satisfied: packaging>=20.0 in /home/ec2-user/anaconda3/ envs/python3/lib/python3.10/site-packages (from sagemaker) (21.3) Requirement already satisfied: pandas in /home/ec2-user/anaconda3/envs/pyth on3/lib/python3.10/site-packages (from sagemaker) (1.5.1) Requirement already satisfied: pathos in /home/ec2-user/anaconda3/envs/pyth on3/lib/python3.10/site-packages (from sagemaker) (0.3.0) Requirement already satisfied: schema in /home/ec2-user/anaconda3/envs/pyth on3/lib/python3.10/site-packages (from sagemaker) (0.7.5) Requirement already satisfied: python-dateutil<3.0.0,>=2.1 in /home/ec2-use r/anaconda3/envs/python3/lib/python3.10/site-packages (from botocore<1.30. 0,>=1.29.72->boto3) (2.8.2) Requirement already satisfied: urllib3<1.27,>=1.25.4 in /home/ec2-user/anac onda3/envs/python3/lib/python3.10/site-packages (from botocore<1.30.0,>=1.2 9.72->boto3) (1.26.8) Requirement already satisfied: zipp>=0.5 in /home/ec2-user/anaconda3/envs/p ython3/lib/python3.10/site-packages (from importlib-metadata<5.0,>=1.4.0->s agemaker) (3.10.0) Requirement already satisfied: pyparsing!=3.0.5,>=2.0.2 in /home/ec2-user/a naconda3/envs/python3/lib/python3.10/site-packages (from packaging>=20.0->s agemaker) (3.0.9) Requirement already satisfied: six in /home/ec2-user/anaconda3/envs/python 3/lib/python3.10/site-packages (from protobuf3-to-dict<1.0,>=0.1.5->sagemak er) (1.16.0) Requirement already satisfied: pytz>=2020.1 in /home/ec2-user/anaconda3/env s/python3/lib/python3.10/site-packages (from pandas->sagemaker) (2022.5) Requirement already satisfied: ppft>=1.7.6.6 in /home/ec2-user/anaconda3/en vs/python3/lib/python3.10/site-packages (from pathos->sagemaker) (1.7.6.6) Requirement already satisfied: multiprocess>=0.70.14 in /home/ec2-user/anac onda3/envs/python3/lib/python3.10/site-packages (from pathos->sagemaker) (0.70.14) Requirement already satisfied: dill>=0.3.6 in /home/ec2-user/anaconda3/env s/python3/lib/python3.10/site-packages (from pathos->sagemaker) (0.3.6) Requirement already satisfied: pox>=0.3.2 in /home/ec2-user/anaconda3/envs/ python3/lib/python3.10/site-packages (from pathos->sagemaker) (0.3.2) Requirement already satisfied: contextlib2>=0.5.5 in /home/ec2-user/anacond a3/envs/python3/lib/python3.10/site-packages (from schema->sagemaker) (21. 6.0) Building wheels for collected packages: sagemaker Building wheel for sagemaker (setup.py) ... done Created wheel for sagemaker: filename=sagemaker-2.132.0-py2.py3-none-any. whl size=905449 sha256=f6100a5dc95627f2e2a49824e38f0481459a27805ee19b5a06ec 83db0252fd41 Stored in directory: /home/ec2-user/.cache/pip/wheels/60/41/b6/482e7ab096 520df034fbf2dddd244a1d7ba0681b27ef45aa61 Successfully built sagemaker Installing collected packages: botocore, boto3, sagemaker Attempting uninstall: botocore Found existing installation: botocore 1.24.19 Uninstalling botocore-1.24.19: Successfully uninstalled botocore-1.24.19 Attempting uninstall: boto3 Found existing installation: boto3 1.26.44 Uninstalling boto3-1.26.44: Successfully uninstalled boto3-1.26.44 Attempting uninstall: sagemaker Found existing installation: sagemaker 2.127.0 Uninstalling sagemaker-2.127.0: Successfully uninstalled sagemaker-2.127.0 ERROR: pip's dependency resolver does not currently take into account all t he packages that are installed. This behaviour is the source of the followi ng dependency conflicts. awscli 1.27.44 requires botocore==1.29.44, but you have botocore 1.29.72 wh ich is incompatible. aiobotocore 2.0.1 requires botocore<1.22.9,>=1.22.8, but you have botocore 1.29.72 which is incompatible. Successfully installed boto3-1.26.72 botocore-1.29.72 sagemaker-2.132.0 Note: you may need to restart the kernel to use updated packages.
-
다음 단계에서는 데이터(
dbpedia_csv
)은 s3 버킷에서 다운로드됩니다.ontapbucket1
머신 러닝에 사용되는 Jupyter Notebook 인스턴스로.In [2]: import sagemaker In [3]: from sagemaker import get_execution_role In [4]: import json import boto3 sess = sagemaker.Session() role = get_execution_role() print(role) bucket = "ontapbucket1" print(bucket) sess.s3_client = boto3.client('s3',region_name='',aws_access_key_id = '0ZNAX21JW5Q8AP80CQ2E', aws_secret_access_key = 'PpLs4gA9K0_2gPhuykkp014gBjcC9Rbi3QDX_6rr', use_ssl = False, endpoint_url = 'http://172.30.10.41', config=boto3.session.Config(signature_version='s3v4', s3={'addressing_style':'path'}) ) sess.s3_resource = boto3.resource('s3',region_name='',aws_access_key_id = '0ZNAX21JW5Q8AP80CQ2E', aws_secret_access_key = 'PpLs4gA9K0_2gPhuykkp014gBjcC9Rbi3QDX_6rr', use_ssl = False, endpoint_url = 'http://172.30.10.41', config=boto3.session.Config(signature_version='s3v4', s3={'addressing_style':'path'}) ) prefix = "blazingtext/supervised" import os my_bucket = sess.s3_resource.Bucket(bucket) my_bucket = sess.s3_resource.Bucket(bucket) #os.mkdir('dbpedia_csv') for s3_object in my_bucket.objects.all(): filename = s3_object.key # print(filename) # print(s3_object.key) my_bucket.download_file(s3_object.key, filename)
-
다음 코드는 추론 중에 실제 클래스 이름을 검색하는 데 사용되는 정수 인덱스에서 클래스 레이블로의 매핑을 생성합니다.
index_to_label = {} with open("dbpedia_csv/classes.txt") as f: for i,label in enumerate(f.readlines()): index_to_label[str(i + 1)] = label.strip()
출력에는 파일과 폴더가 나열됩니다.
ontapbucket1
AWS SageMaker 머신 러닝 검증을 위한 데이터로 사용되는 버킷입니다.arn:aws:iam::210811600188:role/SageMakerFullRole ontapbucket1 AUTHORS AUTHORS NEWS NEWS README README dbpedia_csv/classes.txt dbpedia_csv/classes.txt dbpedia_csv/readme.txt dbpedia_csv/readme.txt dbpedia_csv/test.csv dbpedia_csv/test.csv dbpedia_csv/train.csv dbpedia_csv/train.csv deprecated.txt deprecated.txt getopt-parse.bash getopt-parse.bash getopt-parse.tcsh getopt-parse.tcsh In [5]: ls AUTHORS deprecated.txt getopt-parse.tcsh NEWS Untitled.ipynb dbpedia_csv/ getopt-parse.bash lost+found/ README In [6]: ls -l dbpedia_csv total 191344 -rw-rw-r-- 1 ec2-user ec2-user 146 Feb 16 19:43 classes.txt -rw-rw-r-- 1 ec2-user ec2-user 1758 Feb 16 19:43 readme.txt -rw-rw-r-- 1 ec2-user ec2-user 21775285 Feb 16 19:43 test.csv -rw-rw-r-- 1 ec2-user ec2-user 174148970 Feb 16 19:43 train.csv
-
데이터 전처리 단계를 시작하여 훈련 데이터를 공백으로 구분된 토큰화된 텍스트 형식으로 전처리합니다. 이 텍스트는 BlazingText 알고리즘과 nltk 라이브러리에서 사용되어 DBPedia 데이터 세트의 입력 문장을 토큰화합니다. nltk 토크나이저와 기타 라이브러리를 다운로드하세요. 그만큼
transform_instance
각 데이터 인스턴스에 병렬로 적용하려면 Python multiprocessing 모듈을 사용합니다.ln [7]: from random import shuffle import multiprocessing from multiprocessing import Pool import csv import nltk nltk.download("punkt") def transform_instance(row): cur_row = [] label ="__label__" + index_to_label [row[0]] # Prefix the index-ed label with __label__ cur_row.append (label) cur_row.extend(nltk.word_tokenize(row[1].lower ())) cur_row.extend(nltk.word_tokenize(row[2].lower ())) return cur_row def preprocess(input_file, output_file, keep=1): all_rows = [] with open(input_file,"r") as csvinfile: csv_reader = csv.reader(csvinfile, delimiter=",") for row in csv_reader: all_rows.append(row) shuffle(all_rows) all_rows = all_rows[: int(keep * len(all_rows))] pool = Pool(processes=multiprocessing.cpu_count()) transformed_rows = pool.map(transform_instance, all_rows) pool.close() pool. join() with open(output_file, "w") as csvoutfile: csv_writer = csv.writer (csvoutfile, delimiter=" ", lineterminator="\n") csv_writer.writerows (transformed_rows) # Preparing the training dataset # since preprocessing the whole dataset might take a couple of minutes, # we keep 20% of the training dataset for this demo. # Set keep to 1 if you want to use the complete dataset preprocess("dbpedia_csv/train.csv","dbpedia.train", keep=0.2) # Preparing the validation dataset preprocess("dbpedia_csv/test.csv","dbpedia.validation") sess = sagemaker.Session() role = get_execution_role() print (role) # This is the role that sageMaker would use to leverage Aws resources (S3, Cloudwatch) on your behalf bucket = sess.default_bucket() # Replace with your own bucket name if needed print("default Bucket::: ") print(bucket)
산출:
[nltk_data] Downloading package punkt to /home/ec2-user/nltk_data... [nltk_data] Package punkt is already up-to-date! arn:aws:iam::210811600188:role/SageMakerFullRole default Bucket::: sagemaker-us-east-1-210811600188
-
포맷된 학습 데이터 세트를 S3에 업로드하여 SageMaker에서 학습 작업을 실행할 수 있도록 합니다. 그런 다음 Python SDK를 사용하여 두 개의 파일을 버킷과 접두사 위치에 업로드합니다.
ln [8]: %%time train_channel = prefix + "/train" validation_channel = prefix + "/validation" sess.upload_data(path="dbpedia.train", bucket=bucket, key_prefix=train_channel) sess.upload_data(path="dbpedia.validation", bucket=bucket, key_prefix=validation_channel) s3_train_data = "s3://{}/{}".format(bucket, train_channel) s3_validation_data = "s3://{}/{}".format(bucket, validation_channel)
산출:
CPU times: user 546 ms, sys: 163 ms, total: 709 ms Wall time: 1.32 s
-
모델 아티팩트가 로드되는 S3에 출력 위치를 설정하여 아티팩트가 알고리즘의 학습 작업의 출력이 될 수 있도록 합니다. 생성하다
sageMaker.estimator.Estimator
훈련 작업을 시작하기 위한 객체입니다.In [9]: s3_output_location = "s3://{}/{}/output".format(bucket, prefix) In [10]: region_name = boto3.Session().region_name In [11]: container = sagemaker.amazon.amazon_estimator.get_image_uri(region_name, "blazingtext","latest") print("Using SageMaker BlazingText container: {} ({})".format(container, region_name))
산출:
The method get_image_uri has been renamed in sagemaker>=2. See: https://sagemaker.readthedocs.io/en/stable/v2.html for details. Defaulting to the only supported framework/algorithm version: 1. Ignoring f ramework/algorithm version: latest. Using SageMaker BlazingText container: 811284229777.dkr.ecr.us-east-1.amazo naws.com/blazingtext:1 (us-east-1)
-
SageMaker 정의
Estrimator
DBPedia 데이터세트에서 c4.4xlarge 인스턴스의 감독 모드를 사용하여 텍스트 분류를 훈련하기 위한 리소스 구성과 하이퍼파라미터를 사용합니다.In [12]: bt_model = sagemaker.estimator.Estimator( container, role, instance_count=1, instance_type="ml.c4.4xlarge", volume_size=30, max_run=360000, input_mode="File", output_path=s3_output_location, hyperparameters={ "mode": "supervised", "epochs": 1, "min_count": 2, "learning_rate": 0.05, "vector_dim": 10, "early_stopping": True, "patience": 4, "min_epochs": 5, "word_ngrams": 2, }, )
-
데이터 채널과 알고리즘 간의 핸드셰이크를 준비합니다. 이를 위해 다음을 생성합니다.
sagemaker.session.s3_input
데이터 채널의 객체를 알고리즘이 사용할 수 있도록 사전에 보관합니다.ln [13]: train_data = sagemaker.inputs.TrainingInput( s3_train_data, distribution="FullyReplicated", content_type="text/plain", s3_data_type="S3Prefix", ) validation_data = sagemaker.inputs.TrainingInput( s3_validation_data, distribution="FullyReplicated", content_type="text/plain", s3_data_type="S3Prefix", ) data_channels = {"train": train_data, "validation": validation_data}
-
작업이 완료되면 작업 완료 메시지가 나타납니다. 훈련된 모델은 설정된 S3 버킷에서 찾을 수 있습니다.
output_path
추정자에서.ln [14]: bt_model.fit(inputs=data_channels, logs=True)
산출:
INFO:sagemaker:Creating training-job with name: blazingtext-2023-02-16-20-3 7-30-748 2023-02-16 20:37:30 Starting - Starting the training job...... 2023-02-16 20:38:09 Starting - Preparing the instances for training...... 2023-02-16 20:39:24 Downloading - Downloading input data 2023-02-16 20:39:24 Training - Training image download completed. Training in progress... Arguments: train [02/16/2023 20:39:41 WARNING 140279908747072] Loggers have already been set up. [02/16/2023 20:39:41 WARNING 140279908747072] Loggers have already been set up. [02/16/2023 20:39:41 INFO 140279908747072] nvidia-smi took: 0.0251793861389 16016 secs to identify 0 gpus [02/16/2023 20:39:41 INFO 140279908747072] Running single machine CPU Blazi ngText training using supervised mode. Number of CPU sockets found in instance is 1 [02/16/2023 20:39:41 INFO 140279908747072] Processing /opt/ml/input/data/tr ain/dbpedia.train . File size: 35.0693244934082 MB [02/16/2023 20:39:41 INFO 140279908747072] Processing /opt/ml/input/data/va lidation/dbpedia.validation . File size: 21.887572288513184 MB Read 6M words Number of words: 149301 Loading validation data from /opt/ml/input/data/validation/dbpedia.validati on Loaded validation data. -------------- End of epoch: 1 ##### Alpha: 0.0000 Progress: 100.00% Million Words/sec: 10.39 ##### Training finished. Average throughput in Million words/sec: 10.39 Total training time in seconds: 0.60 #train_accuracy: 0.7223 Number of train examples: 112000 #validation_accuracy: 0.7205 Number of validation examples: 70000 2023-02-16 20:39:55 Uploading - Uploading generated training model 2023-02-16 20:40:11 Completed - Training job completed Training seconds: 68 Billable seconds: 68
-
학습이 완료되면 학습된 모델을 Amazon SageMaker 실시간 호스팅 엔드포인트로 배포하여 예측을 수행합니다.
In [15]: from sagemaker.serializers import JSONSerializer text_classifier = bt_model.deploy( initial_instance_count=1, instance_type="ml.m4.xlarge", serializer=JSONS )
산출:
INFO:sagemaker:Creating model with name: blazingtext-2023-02-16-20-41-33-10 0 INFO:sagemaker:Creating endpoint-config with name blazingtext-2023-02-16-20 -41-33-100 INFO:sagemaker:Creating endpoint with name blazingtext-2023-02-16-20-41-33- 100 -------!
In [16]: sentences = [ "Convair was an american aircraft manufacturing company which later expanded into rockets and spacecraft.", "Berwick secondary college is situated in the outer melbourne metropolitan suburb of berwick .", ] # using the same nltk tokenizer that we used during data preparation for training tokenized_sentences = [" ".join(nltk.word_tokenize(sent)) for sent in sentences] payload = {"instances": tokenized_sentences} response = text_classifier.predict(payload) predictions = json.loads(response) print(json.dumps(predictions, indent=2))
[ { "label": [ "__label__Artist" ], "prob": [ 0.4090951681137085 ] }, { "label": [ "__label__EducationalInstitution" ], "prob": [ 0.49466073513031006 ] } ]
-
기본적으로 모델은 확률이 가장 높은 예측 하나를 반환합니다. 상단을 검색하려면
k
예측, 설정k
구성 파일에서.In [17]: payload = {"instances": tokenized_sentences, "configuration": {"k": 2}} response = text_classifier.predict(payload) predictions = json.loads(response) print(json.dumps(predictions, indent=2))
[ { "label": [ "__label__Artist", "__label__MeanOfTransportation" ], "prob": [ 0.4090951681137085, 0.26930734515190125 ] }, { "label": [ "__label__EducationalInstitution", "__label__Building" ], "prob": [ 0.49466073513031006, 0.15817692875862122 ] } ]
-
노트북을 닫기 전에 엔드포인트를 삭제하세요.
In [18]: sess.delete_endpoint(text_classifier.endpoint) WARNING:sagemaker.deprecations:The endpoint attribute has been renamed in s agemaker>=2. See: https://sagemaker.readthedocs.io/en/stable/v2.html for details. INFO:sagemaker:Deleting endpoint with name: blazingtext-2023-02-16-20-41-33 -100
