Manage capacity-based licenses

Contributors netapp-manini netapp-bcammett netapp-rlithman netapp-driley netapp-dbagwell
PDFs

Manage your capacity-based licenses from the BlueXP digital wallet to ensure that your NetApp account has enough capacity for your Cloud Volumes ONTAP systems.

Capacity-based licenses enable you to pay for Cloud Volumes ONTAP per TiB of capacity.

The BlueXP digital wallet enables you to manage licenses for Cloud Volumes ONTAP from a single location. You can add new licenses and update existing licenses.

Note While the actual usage and metering for the products and services managed in BlueXP are always calculated in GiB and TiB, the terms GB/GiB and TB/TiB are used interchangeably. This is reflected in the Cloud Marketplace listings, price quotes, listing descriptions, and in other supporting documentation

Learn more about Cloud Volumes ONTAP licenses.

How licenses are added to the BlueXP digital wallet

After you purchase a license from your NetApp sales representative, NetApp will send you an email with the serial number and additional licensing details.

In the meantime, BlueXP automatically queries NetApp's licensing service to obtain details about the licenses associated with your NetApp Support Site account. If there are no errors, BlueXP automatically adds the licenses to the digital wallet.

If BlueXP can't add the license, you'll need to manually add them to the digital wallet yourself. For example, if the Connector is installed in a location that doesn't have internet access, you'll need to add the licenses yourself. Learn how to add purchased licenses to your account.

View the consumed capacity in your account

The BlueXP digital wallet shows you the total consumed capacity in your account and the consumed capacity by licensing package. This can help you understand how you're being charged and whether you need to purchase additional capacity.

Steps

  1. From the BlueXP navigation menu, select Governance > Digital wallet.

  2. On the Cloud Volumes ONTAP tab, keep Capacity Based Licenses selected.

  3. View the packages summary, which shows you consumed capacity, total precommitted capacity, and total pay-as-you-go (PAYGO) capacity.

    • Total consumed capacity is the total provisioned capacity of all Cloud Volumes ONTAP systems in your NetApp account. The charging is based on each volume's provisioned size, regardless of local, used, stored, or effective space within the volume.

    • Total precommitted capacity is the total licensed capacity (bring your own license (BYOL) or Marketplace Contract) that you purchased from NetApp.

    • Total PAYGO is the total provisioned capacity using cloud marketplace subscriptions. Charging via PAYGO is used only if the consumed capacity is higher than the licensed capacity or if there is no BYOL license available in the BlueXP digital wallet.

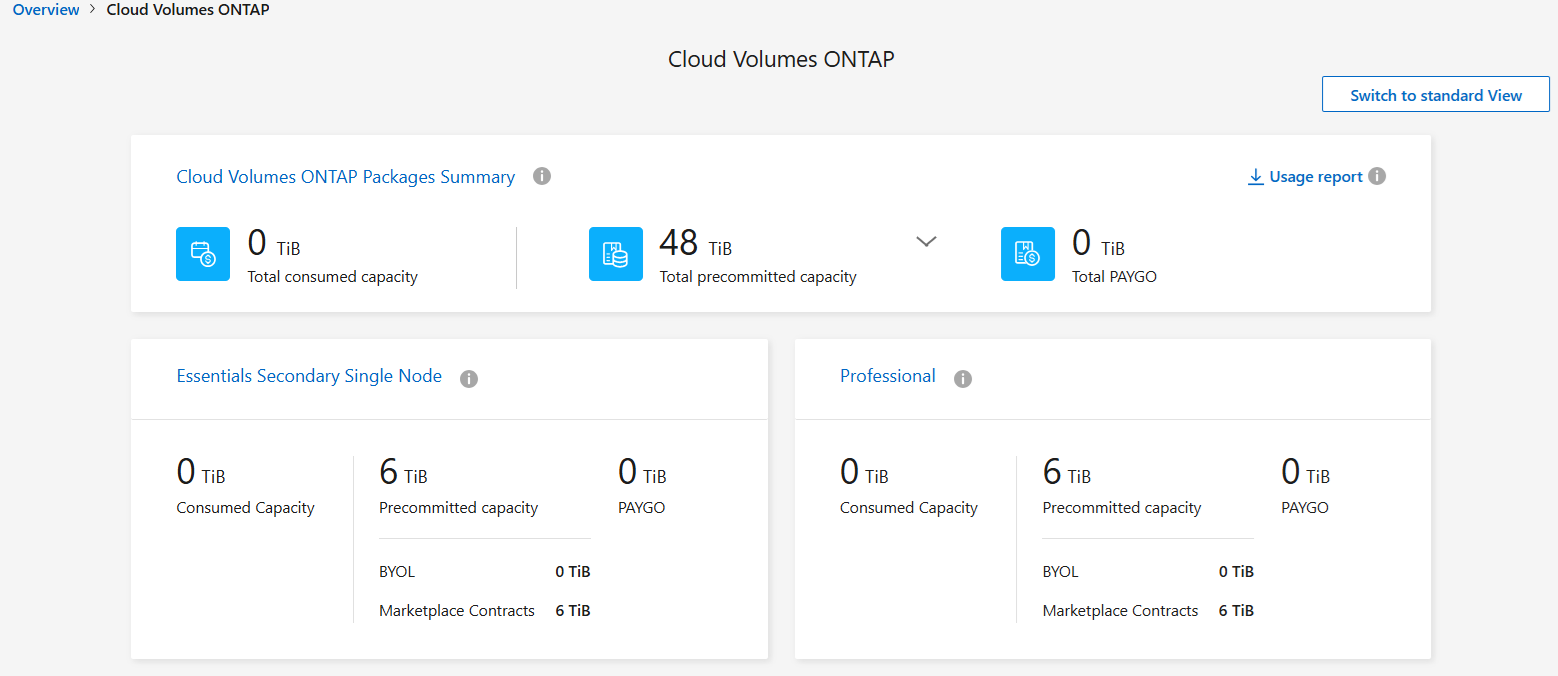

      Here's an example of a Cloud Volumes ONTAP packages summary in BlueXP digital wallet:

      A screenshot that shows a Cloud Volumes ONTAP packages summary including total consumed capacity

  4. Under the summary, view the consumed capacity for each of your licensing packages.

    • Consumed capacity shows you the capacity of the volumes for that package. For more details about a specific package, hover your mouse over the tooltip.

      To better understand the capacities that display for the Essentials package, you should be familiar with how charging works. Learn about charging for the Essentials package.

    • Precommitted capacity is the licensed capacity (BYOL or Marketplace Contract) that you purchased from NetApp.

      • BYOL shows you the licensed capacity that you purchased from NetApp for this package type.

      • Marketplace Contracts shows the licensed capacity that you purchased with a marketplace contract for this package type.

    • PAYGO shows you the consumed capacity by license consumption model.

      Here's an example for an account that has several licensing packages:

      A screenshot that shows consumed capacity

Download usage reports

You can download four usage reports from the BlueXP digital wallet. These usage reports provide capacity details of your subscriptions and tell you how you're being charged for the resources in your Cloud Volumes ONTAP subscriptions. The downloadable reports capture data at a point in time and can be easily shared with others.

Screenshot shows the digital wallet Cloud Volumes ONTAP capacity based licenses page and highlights the usage report button.

The following reports are available for download. Capacity values shown are in TiB.

  • High-level usage: This report shows you exactly what's in the “Cloud Volumes ONTAP Packages Summary” card in the digital wallet. It includes the following information:

    • Total consumed capacity

    • Total precommitted capacity

    • Total BYOL capacity

    • Total Marketplace contracts capacity

    • Total PAYGO capacity

  • Cloud Volumes ONTAP package usage: This report shows you exactly what's on the package cards in the digital wallet. It includes the following information for each package except the Optimized I/O package:

    • Total consumed capacity

    • Total precommitted capacity

    • Total BYOL capacity

    • Total Marketplace contracts capacity

    • Total PAYGO capacity

  • Storage VMs usage: This report shows how charged capacity is broken down across Cloud Volumes ONTAP systems and storage virtual machines (SVMs). This information is not available on any screen in the digital wallet. It includes the following information:

    • Working environment ID and name (appears as the UUID)

    • Cloud

    • NetApp account ID

    • Working environment configuration

    • SVM name

    • Provisioned capacity

    • Charged capacity roundup

    • Marketplace billing term

    • Cloud Volumes ONTAP package or feature

    • Charging SaaS Marketplace subscription name

    • Charging SaaS Marketplace subscription ID

    • Workload type

  • Volumes usage: This report shows how charged capacity is broken down by volumes in a working environment. This information is not available on any screen in the digital wallet. It includes the following information:

    • Working environment ID and name (appears as the UUID)

    • SVN name

    • Volume ID

    • Volume type

    • Volume provisioned capacity

      Note FlexClone volumes aren't included in this report because these types of volumes don't incur charges.
Steps

  1. From the BlueXP navigation menu, select Governance > Digital wallet.

  2. On the Cloud Volumes ONTAP tab, keep Capacity Based Licenses selected and click Usage report.

    The usage report downloads.

  3. Open the downloaded file to access the reports.

Add purchased licenses to your account

If you don't see your purchased licenses in the BlueXP digital wallet, you'll need to add the licenses to BlueXP so that the capacity is available for Cloud Volumes ONTAP.

What you'll need

  • You need to provide BlueXP the serial number of the license or the license file.

  • If you want to enter the serial number, you first need to add your NetApp Support Site account to BlueXP. This is the NetApp Support Site account that's authorized to access the serial number.

Steps

  1. From the BlueXP navigation menu, select Governance > Digital wallet.

  2. On the Cloud Volumes ONTAP tab, keep Capacity Based Licenses selected and click Add License.

  3. Enter the serial number for your capacity-based license or upload the license file.

    If you entered a serial number, you also need to select the NetApp Support Site account that's authorized to access the serial number.

  4. Click Add License.

Update a capacity-based license

If you purchased additional capacity or extended the term of your license, BlueXP automatically updates the license in the digital wallet. There's nothing that you need to do.

However, if you deployed BlueXP in a location that doesn't have internet access, then you'll need to manually update the license in BlueXP.

What you'll need

The license file (or files if you have an HA pair).

Note For more information on how to obtain a license file, refer to Obtain a system license file.
Steps

  1. From the BlueXP navigation menu, select Governance > Digital wallet.

  2. On the Cloud Volumes ONTAP tab, click the action menu next to the license and select Update License.

  3. Upload the license file.

  4. Click Upload License.

Change charging methods

Capacity-based licensing is available in the form of a package. When you create a Cloud Volumes ONTAP working environment, you can choose from several licensing packages based on your business needs. If your needs change after you create the working environment, you can change the package at any time. For example, you might change from the Essentials package to the Professional package.

Learn more about capacity-based licensing packages.

About this task

  • Changing the charging method doesn't affect whether you're charged through a license purchased from NetApp (BYOL) or from your cloud provider's marketplace pay-as-you-go (PAYGO) subscription.

    BlueXP always attempts to charge against a license first. If a license isn't available, it charges against a marketplace subscription. No "conversion" is required for BYOL to marketplace subscription or vice versa.

  • If you have a private offer or contract from your cloud provider's marketplace, changing to a charging method that's not included in your contract will result in charging against BYOL (if you purchased a license from NetApp) or PAYGO.

Steps

  1. From the BlueXP navigation menu, select Governance > Digital wallet.

  2. On the Cloud Volumes ONTAP tab, click Change Charging Method.

    A screenshot of the Cloud Volumes ONTAP page in the BlueXP digital wallet where the Change Charging Method button is just above the table.

  3. Select a working environment, choose the new charging method, and then confirm your understanding that changing the package type will affect service charges.

    A screenshot of the Change Charging Method dialog box where you choose a new charging method for a Cloud Volumes ONTAP working environment.

  4. Click Change Charging Method.

Result

BlueXP changes the charging method for the Cloud Volumes ONTAP system.

You might also notice that the BlueXP digital wallet refreshes the consumed capacity for each package type to account for the change that you just made.

Remove a capacity-based license

If a capacity-based license expired and is no longer in use, then you can remove it any time.

To learn about what happens to your Cloud Volumes ONTAP data on expiration or removal of your license, refer to this knowledge base (KB) article.

Steps

  1. From the BlueXP navigation menu, select Governance > Digital wallet.

  2. On the Cloud Volumes ONTAP tab, click the action menu next to the license and select Remove License.

  3. Click Remove to confirm.
