Cloud Insights Reporting Schema Diagrams

Contributors netapp-alavoie

This document provides the schema diagrams for the Reporting Database. You can also download a file containing the schema tables.

Note The Reporting feature is available in Cloud Insights Premium Edition.

Inventory Datamart

The following images describe the inventory datamart.

Annotations

annotations

Applications

apps annot

Kubernetes Metrics

Kubernetes

Kubernetes Cluster Metrics Fact

Kubernetes Cluster Metrics Fact

Kubernetes Namespace Metrics Fact

Kubernetes Namespace Metrics Fact

Kubernetes Node Metrics Fact

Kubernetes Node Metrics Fact

Kubernetes PVC Metrics Fact

Kubernetes PVC Metrics Fact

Kubernetes Workload Metrics Fact

Kubernetes Workload Metrics Fact

NAS

nas

Paths and Violations

logical

Port Connectivity

connectivity

SAN Fabric

fabric

Storage

storage

Storage Node

storage node

VM

vm


Capacity Datamart

The following images describe the capacity datamart.

Chargeback

Chargeback Fact

Disk Group Capacity

Disk Group Capacity

File System Utilization

fs util

Internal Volume Capacity

Internal Volume Capacity Fact

Kubernetes PV Capacity

k8s pvc capacity fact

Port Capacity

ports

Qtree Capacity

Qtree Capacity Fact

Storage Capacity Efficiency

efficiency

Storage and Storage Pool Capacity

Storage and Storage Pool Capacity Fact

Storage Node Capacity

Storage Node Capacity Fact

VM Capacity

VM Capacity Fact

Volume Capacity

Volume Capacity


Performance Datamart

The following images describe the performance datamart.

Application Volume Hourly Performance

application performance fact

Disk Daily Performance

disk daily performance fact

Disk Hourly Performance

disk hourly performance fact

Host Hourly Performance

host performance fact

Internal Volume Hourly Performance

internal volume performance fact

Internal Volume Daily Performance

internal volume daily performance fact

Qtree Daily Performance

QtreeDailyPerformanceFact

Storage Node Daily Performance

storage node daily performance fact

Storage Node Hourly Performance

storage node hourly performance fact

Switch Hourly Performance for Host

switch performance for host hourly fact

Switch Hourly Performance for Port

switch performance for port hourly fact

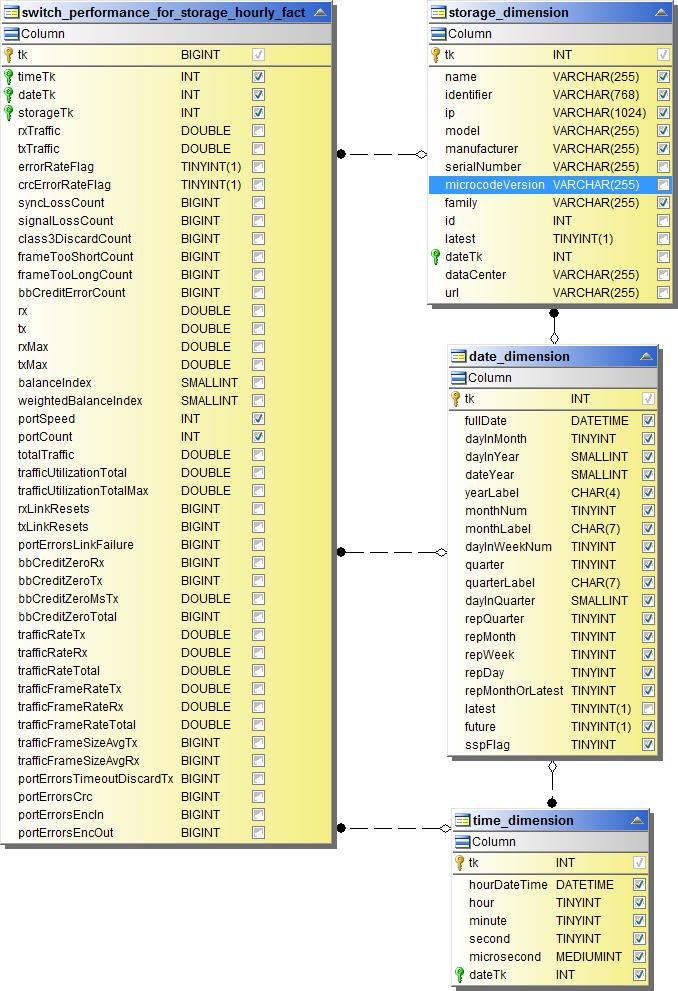

Switch Hourly Performance for Storage

switch performance for storage hourly fact

Switch Hourly Performance for Tape

switch performance for tape hourly fact

VM Performance

vm hourly performance fact

VM Daily Performance for Host

vm daily performance fact

VM Hourly Performance for Host

vm hourly performance fact

VM Daily Performance for Host

vm daily performance fact

VM Hourly Performance for Host

vm hourly performance fact

VMDK Daily Performance

vmdk daily performance fact

VMDK Hourly Performance

vmdk hourly performance fact

Volume Hourly Performance

volume performance fact

Volume Daily Performance

volume daily performance fact
