ONTAP platform-specific network speeds and switch port modes for MetroCluster-compliant switches

Contributors netapp-aoife
PDFs

If you are using MetroCluster compliant switches, you should be aware of the platform-specific network speeds and switch port mode requirements.

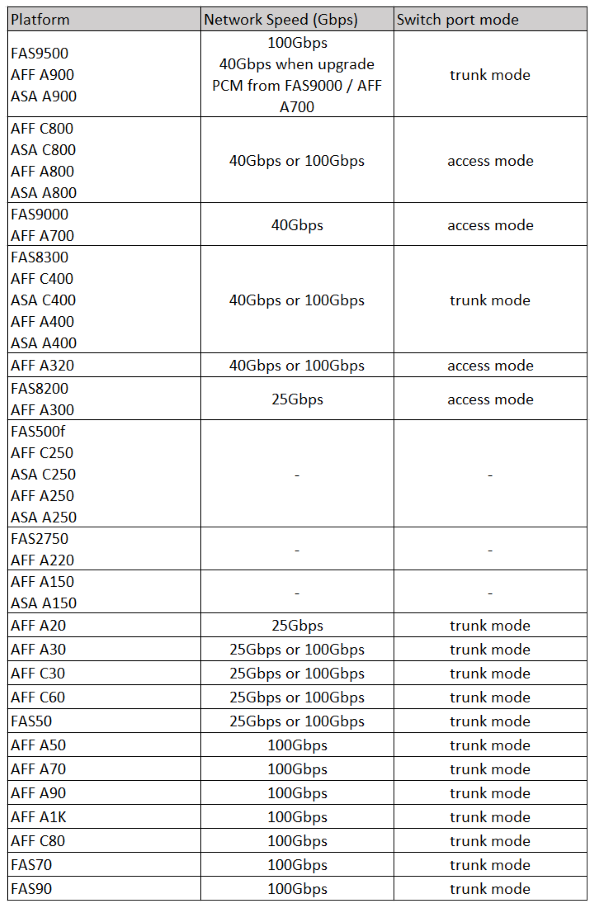

The following table provides platform-specific network speeds and switch port modes for MetroCluster-compliant switches. You should configure the switch port mode according to the table.

Note

  • Missing values indicate that the platform cannot be used with a MetroCluster-compliant switch.

  • AFF A30, AFF C30, AFF C60, and FAS50 systems require a QSFP-to-SFP adapter in the card on the controller to support a 25Gbps network speed.
Platform Network speed (Gbps) Switch port mode

FAS9500

AFF A900

ASA A900

100Gbps

40Gbps when upgrading PCM from FAS9000 or AFF A700

Trunk mode

AFF C800

ASA C800

AFF A800

ASA A800

40Gbps or 100Gbps

Access mode

FAS9000

AFF A700

40Gbps

Access mode

FAS8300

AFF C400

ASA C400

AFF A400

ASA A400

40Gbps or 100Gbps

Trunk mode

AFF A320

40Gbps or 100Gbps

Access mode

FAS8200

AFF A300

25Gbps

Access mode

FAS500f

AFF C250

ASA C250

AFF A250

ASA A250

-

-

FAS2750

AFF A220

-

-

AFF A150

ASA A150

-

-

AFF A20

25Gbps

Trunk mode

AFF A30

25Gbps or 100Gbps

Trunk mode

AFF C30

25Gbps or 100Gbps

Trunk mode

AFF C60

25Gbps or 100Gbps

Trunk mode

FAS50

25Gbps or 100Gbps

Trunk mode

AFF A50

100Gbps

Trunk mode

AFF A70

100Gbps

Trunk mode

AFF A90

100Gbps

Trunk mode

AFF A1K

100Gbps

Trunk mode

AFF C80

100Gbps

Trunk mode

FAS70

100Gbps

Trunk mode

FAS90

100Gbps

Trunk mode
