How NetApp AFX architecture differs from unified ONTAP

Contributors whyistheinternetbroken
PDFs

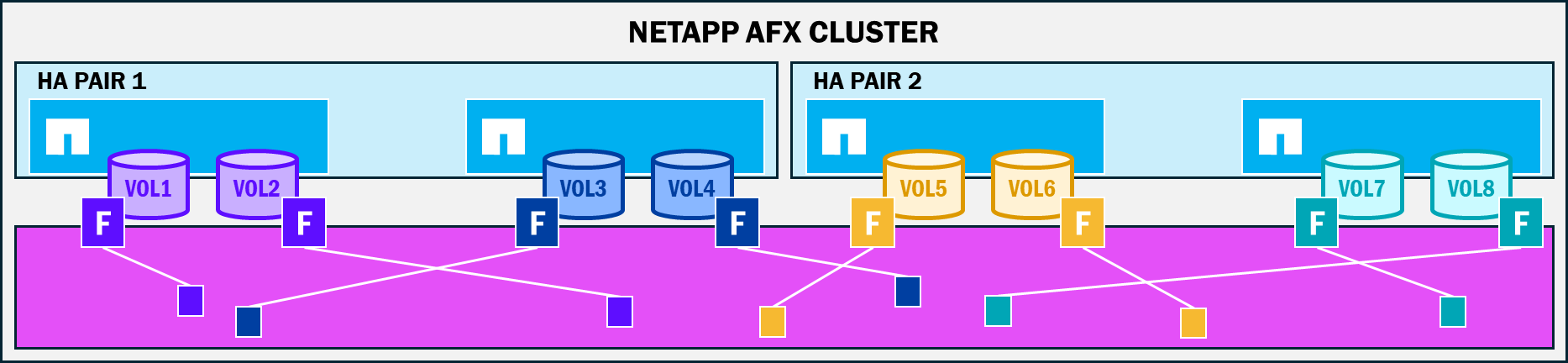

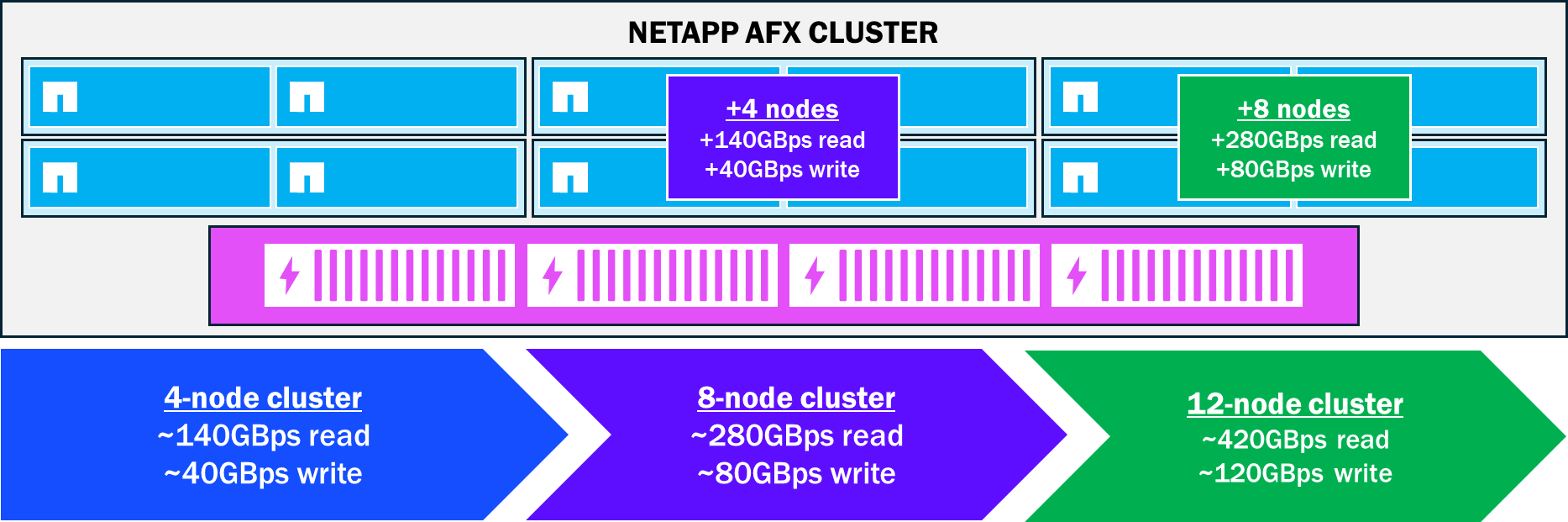

NetApp AFX introduces significant architectural differences from unified ONTAP in how storage is presented, how nodes interact with disks, and how capacity is managed.

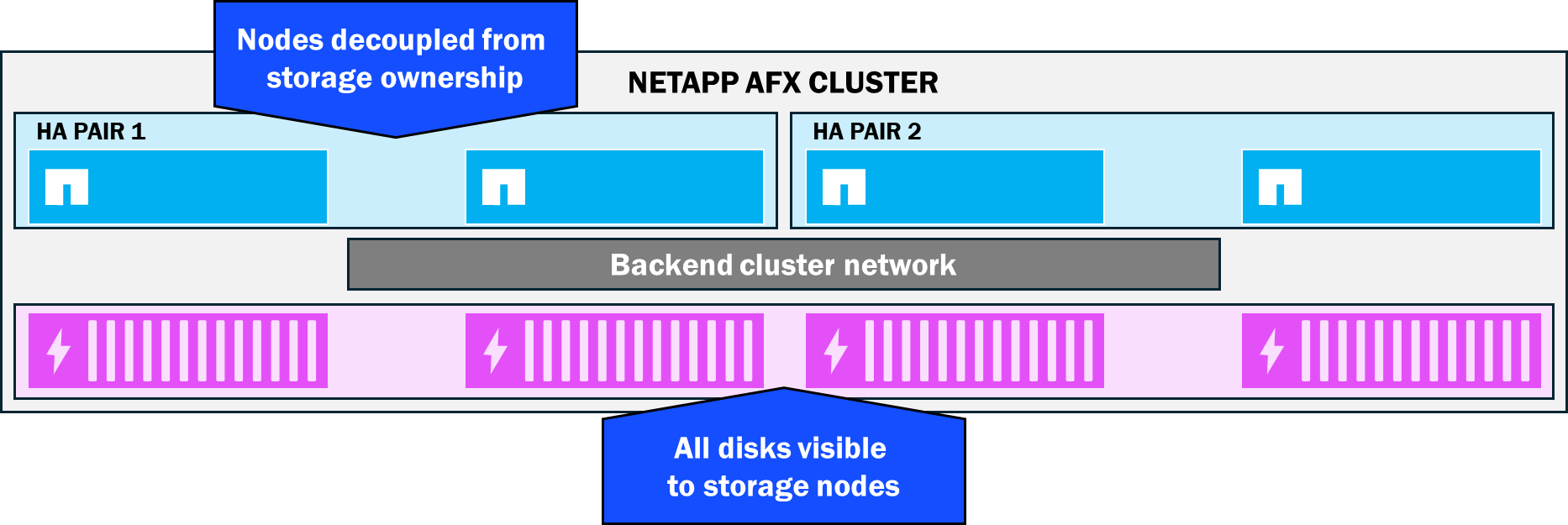

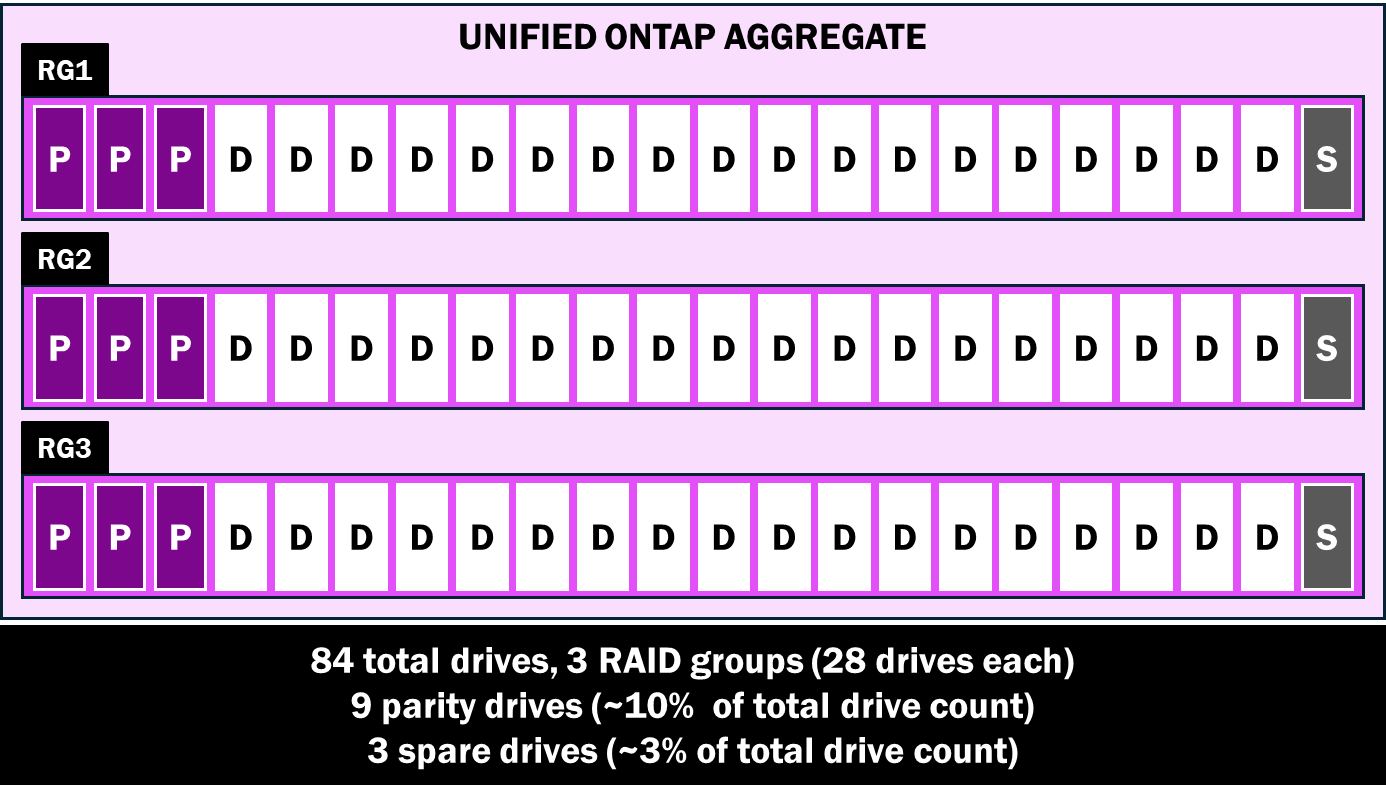

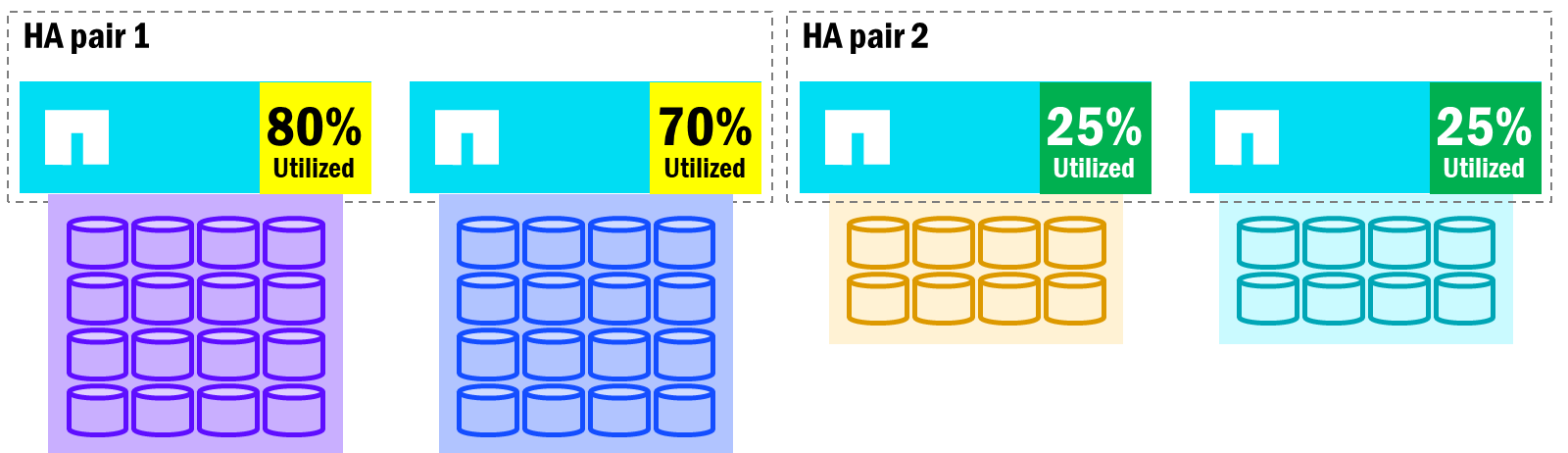

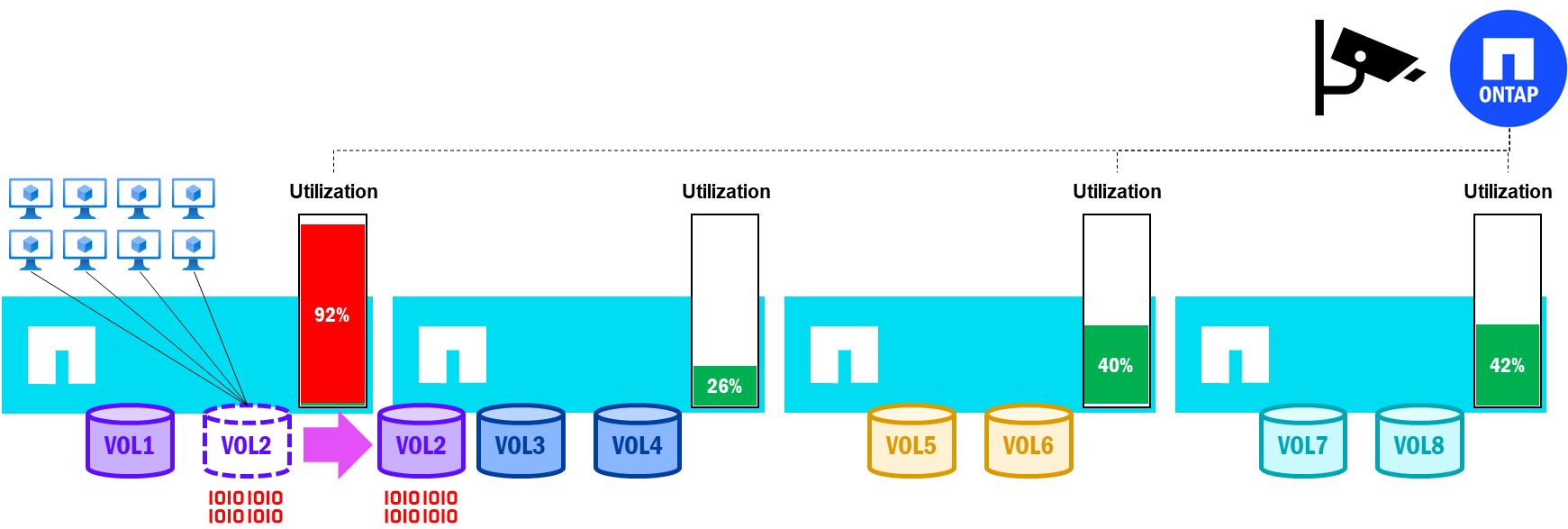

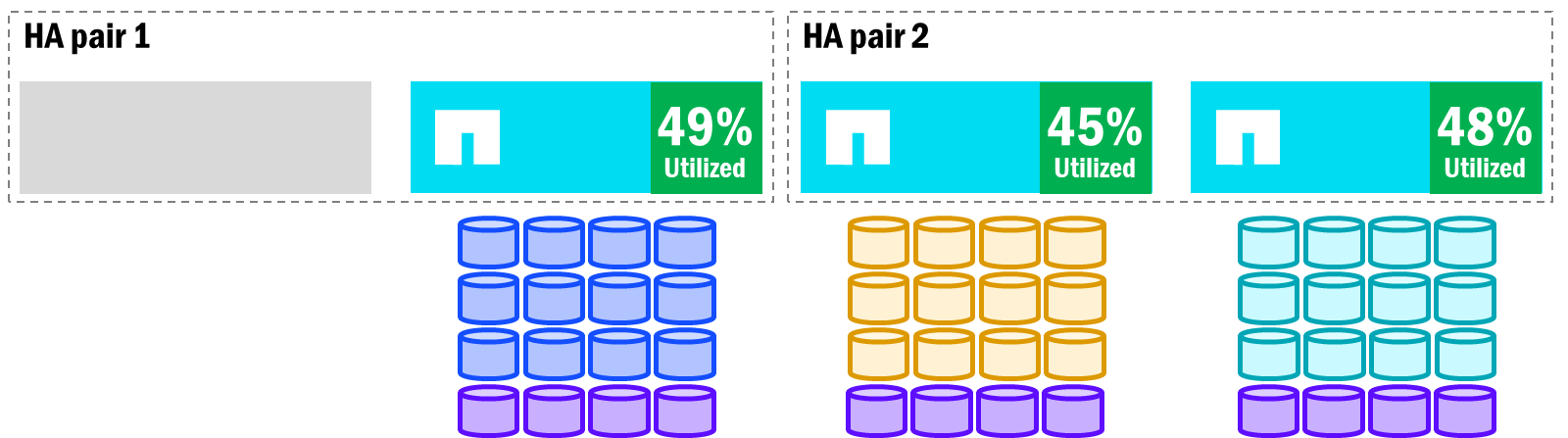

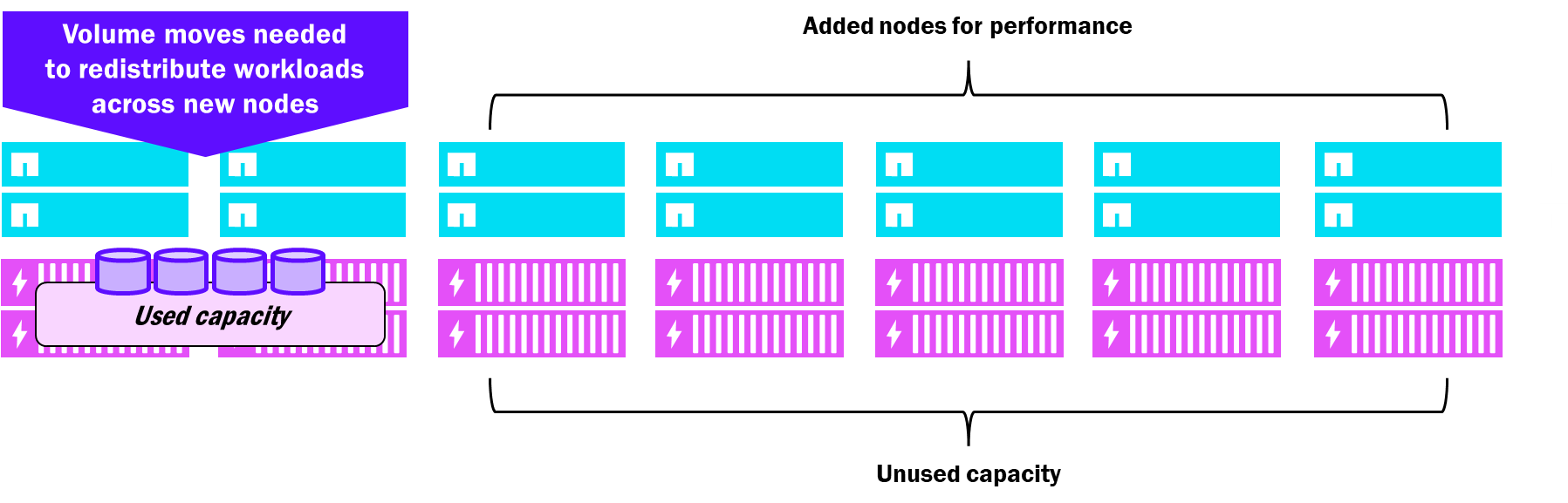

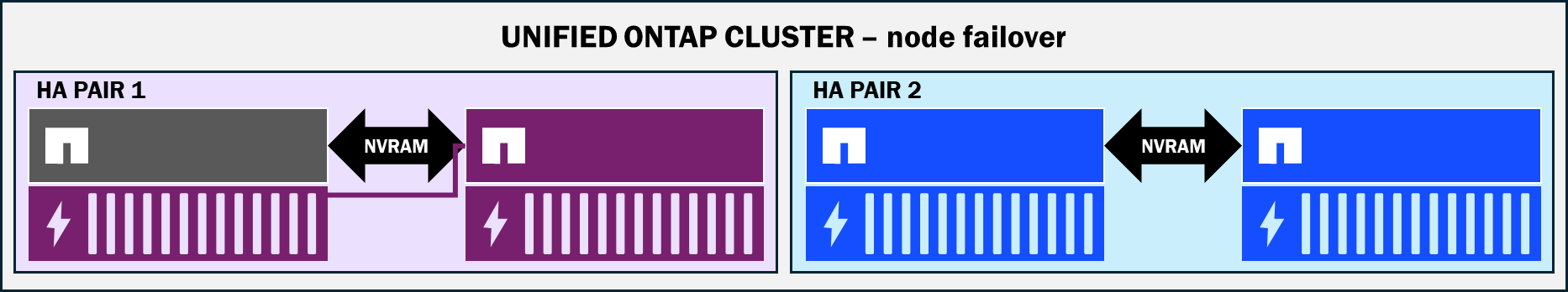

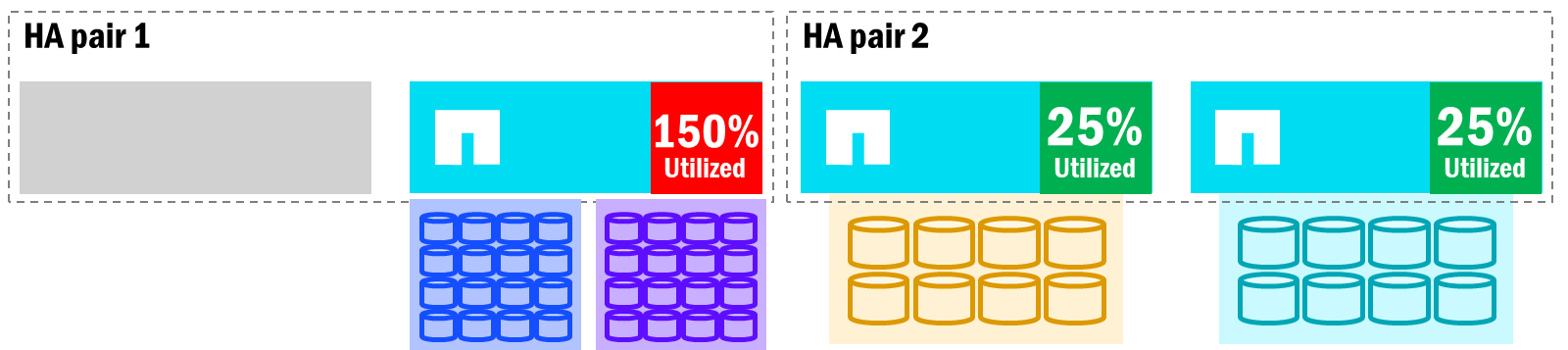

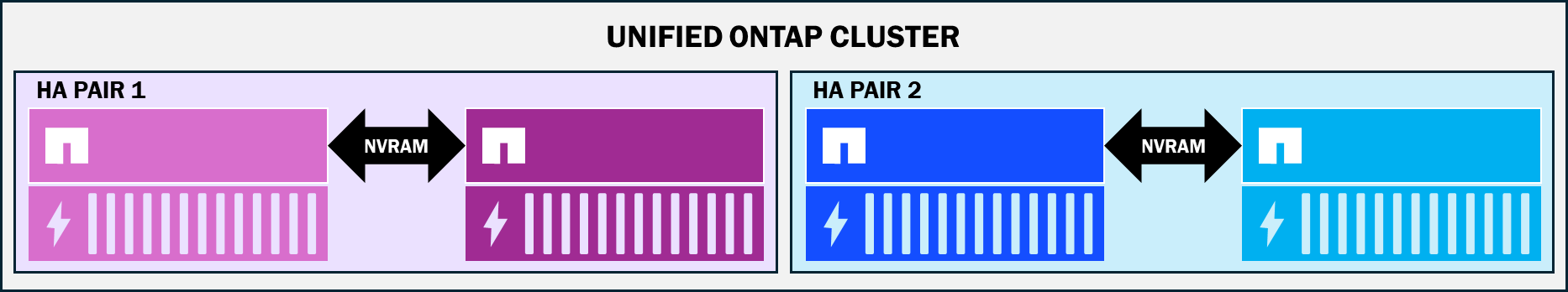

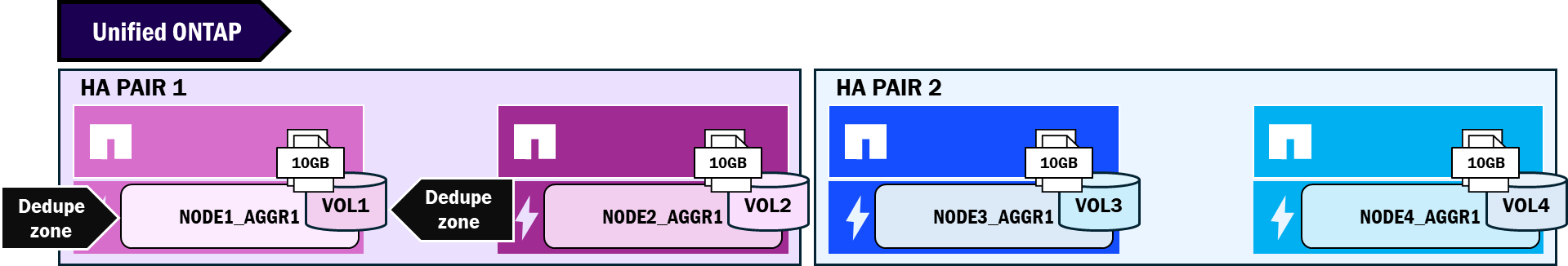

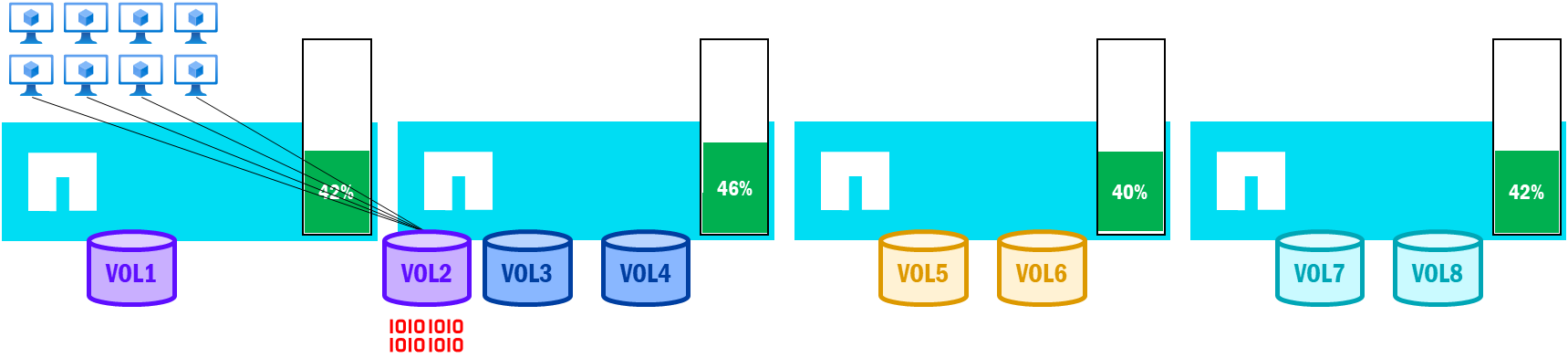

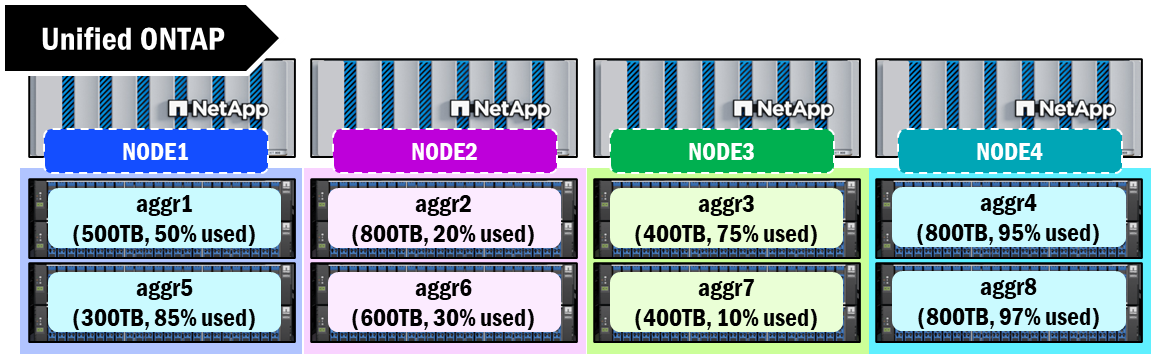

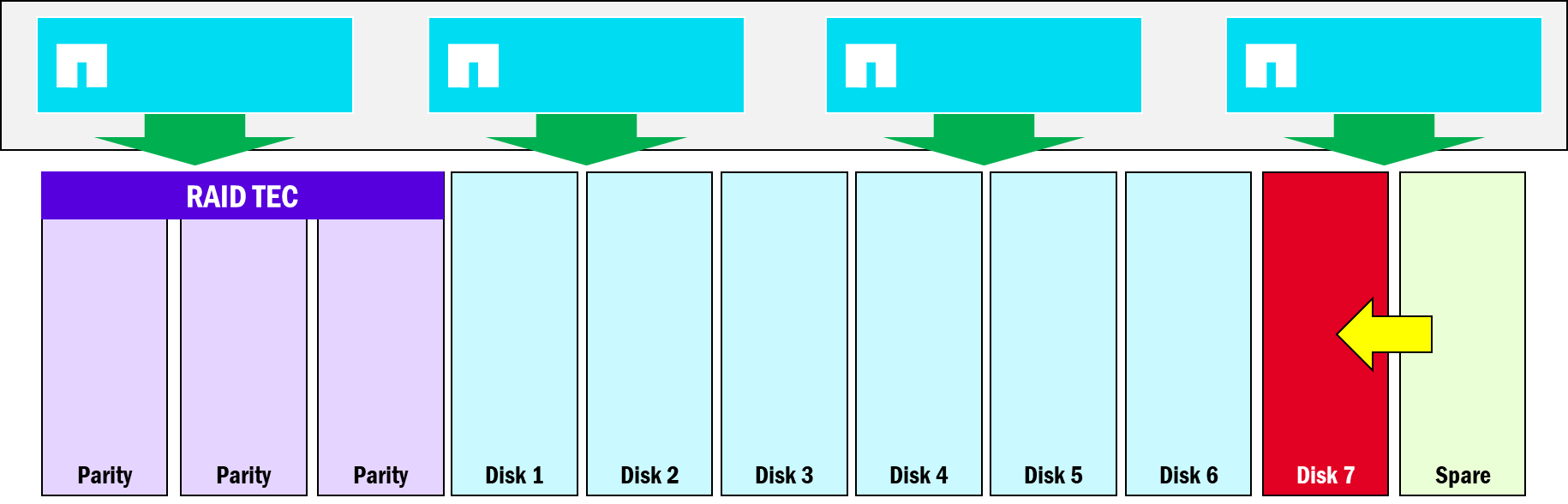

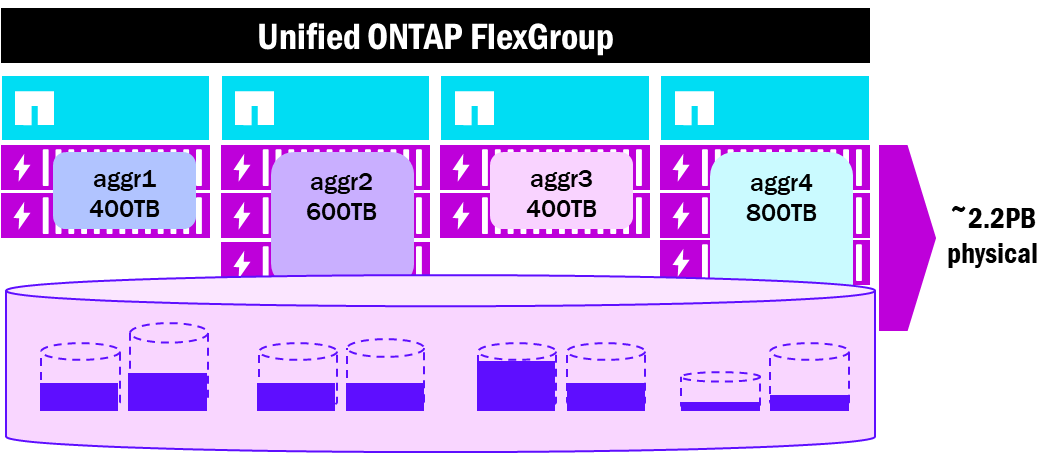

Previously, we showed a general picture of how unified ONTAP architecture delivers file, object, and block data storage via directly connected HA pairs that own their own sets of disks and present physical capacity via aggregates of disks. In this section, we'll discuss some of the major differences between unified ONTAP and NetApp AFX architectures in further detail.

How to tell if a system is running NetApp AFX

The main way to see if your system is running NetApp AFX is to run the following command:

AFX::> node show -fields personality
node             personality
---------------- -----------
afx-01           AFX
afx-02           AFX

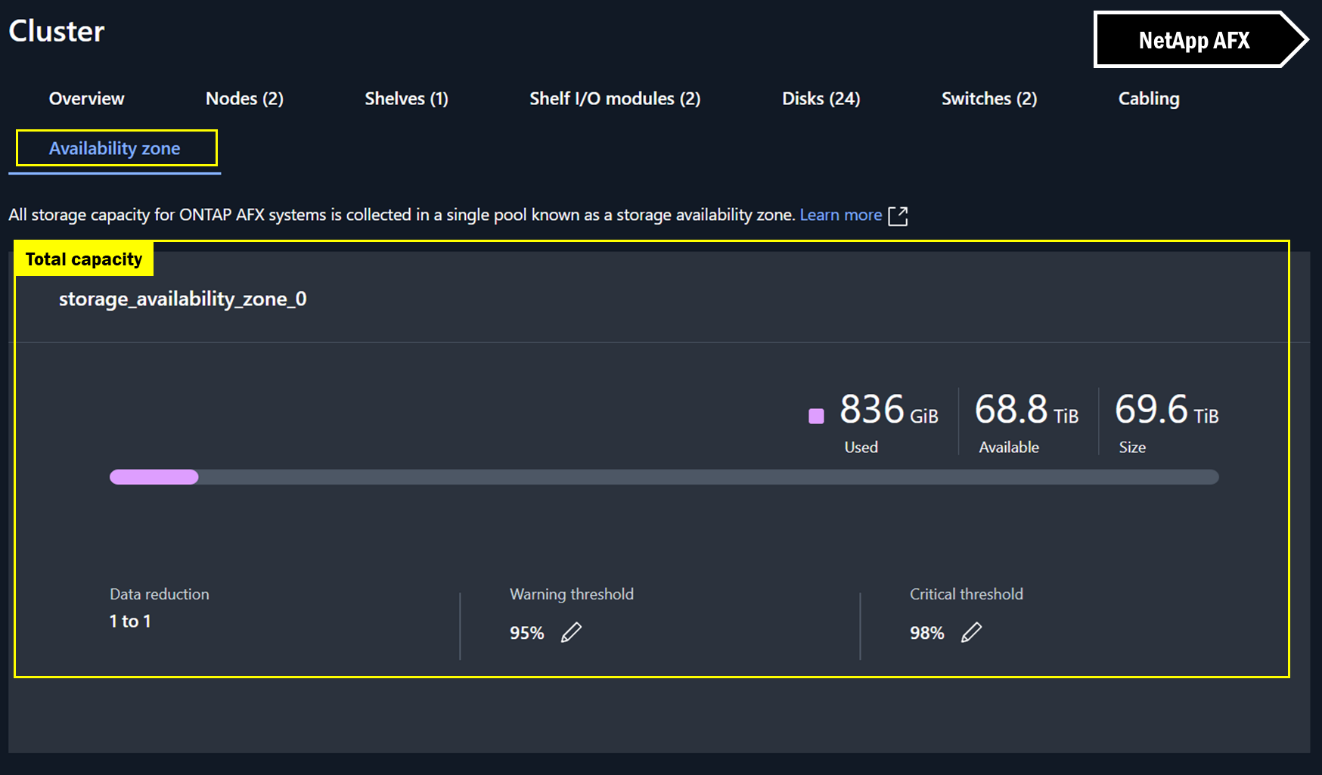

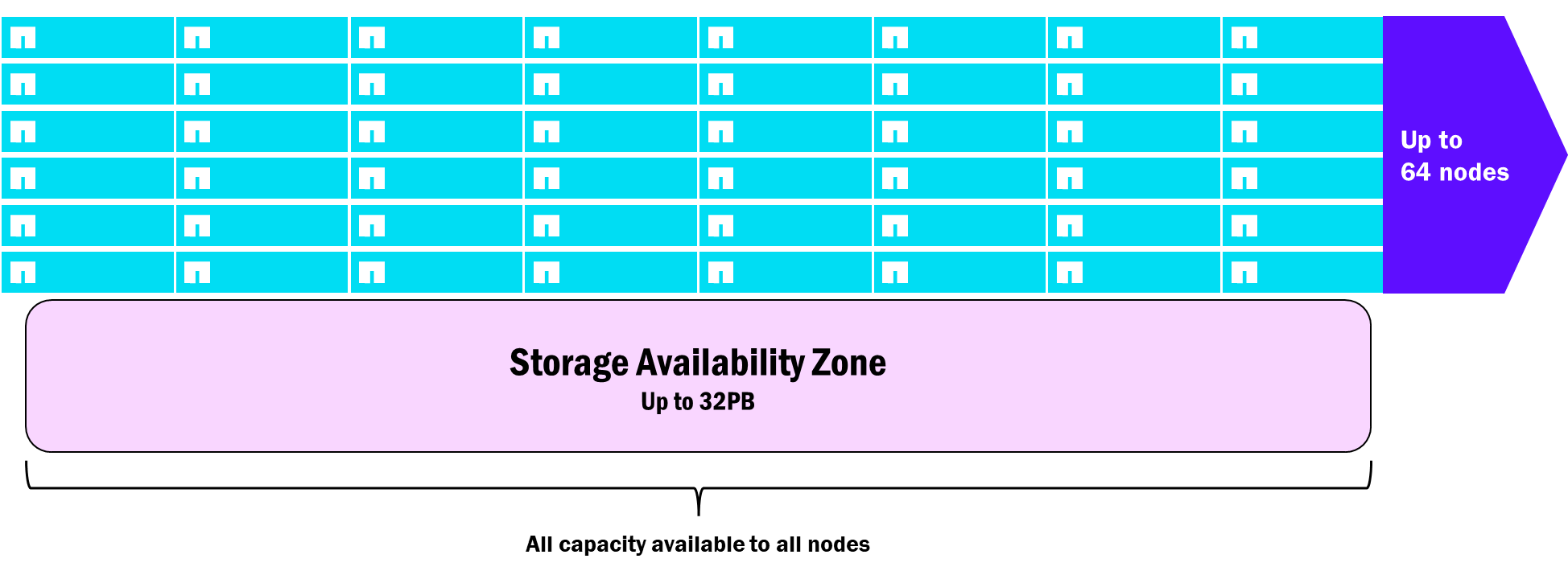

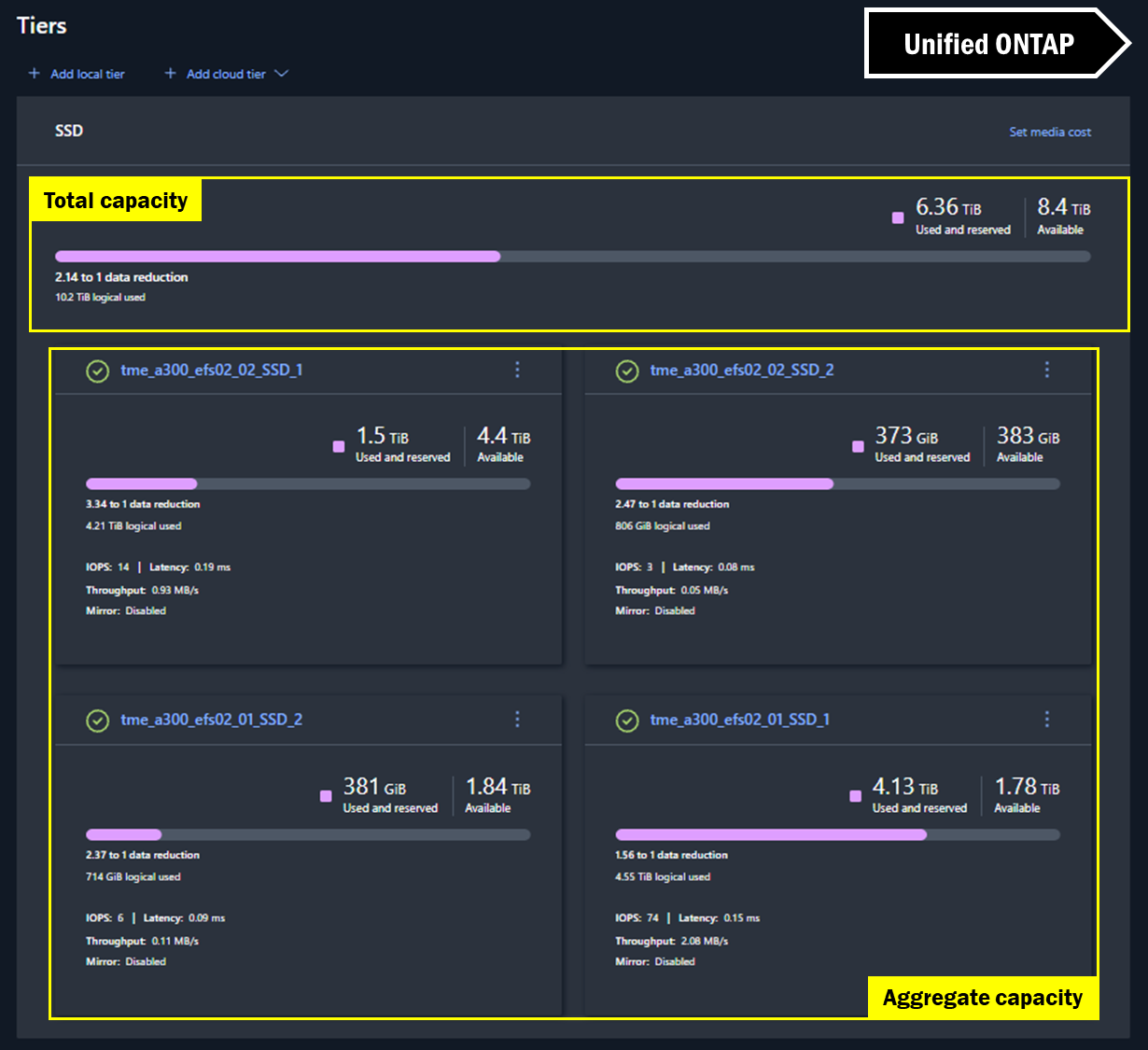

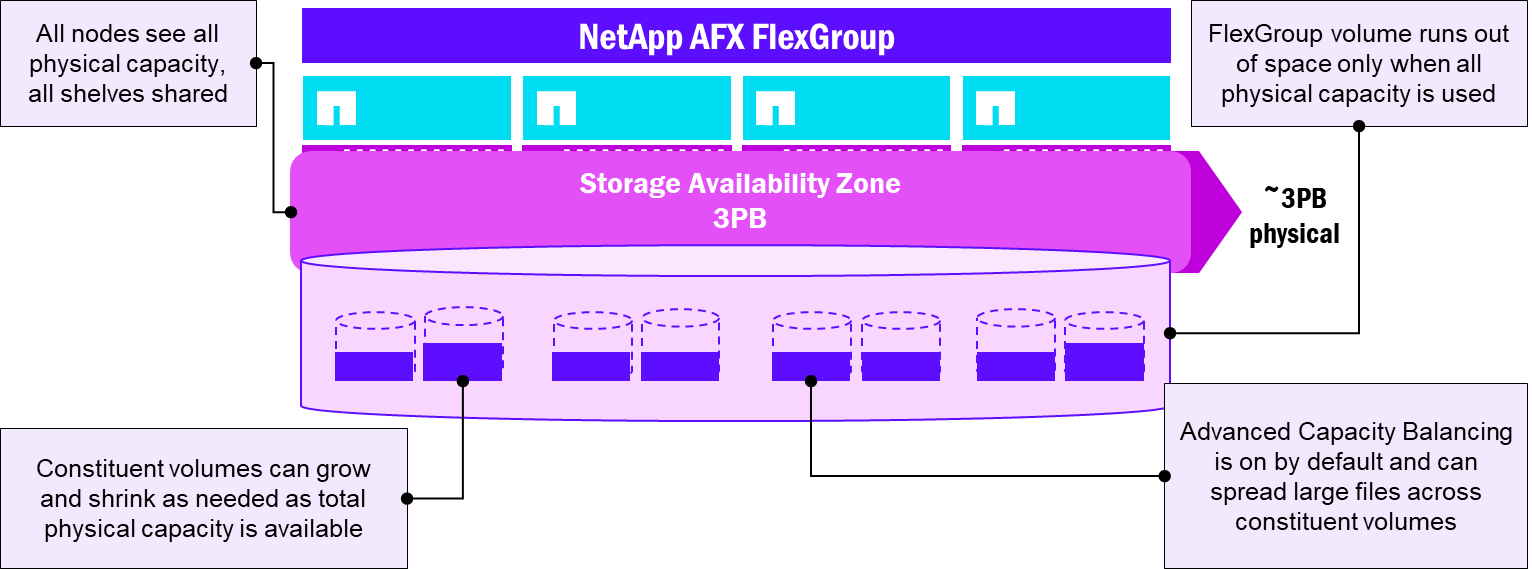

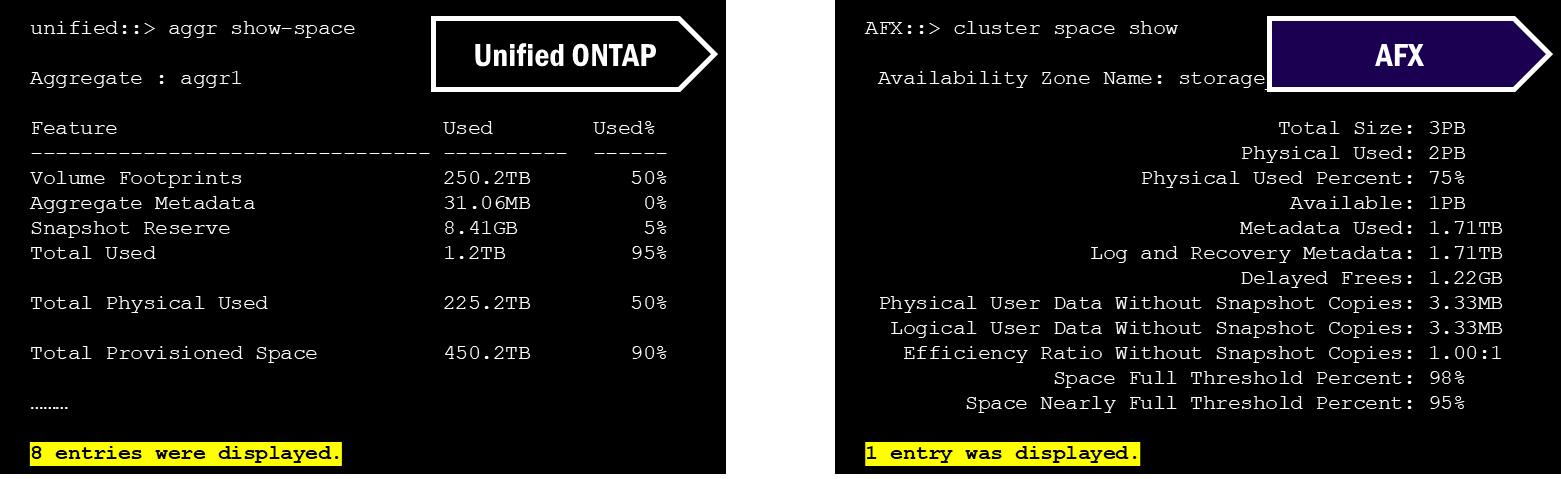

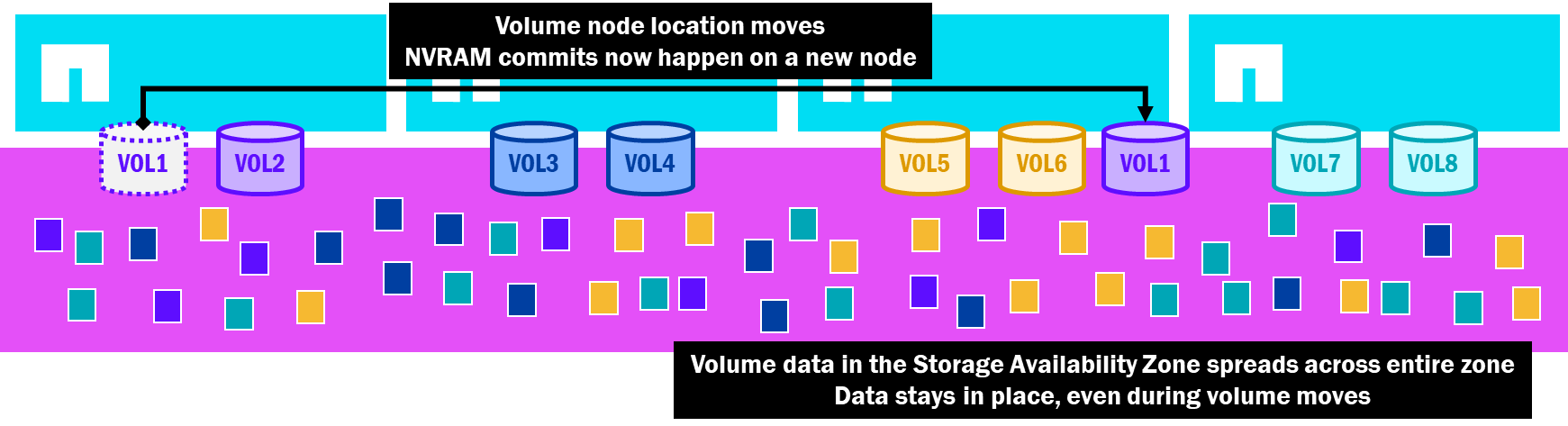

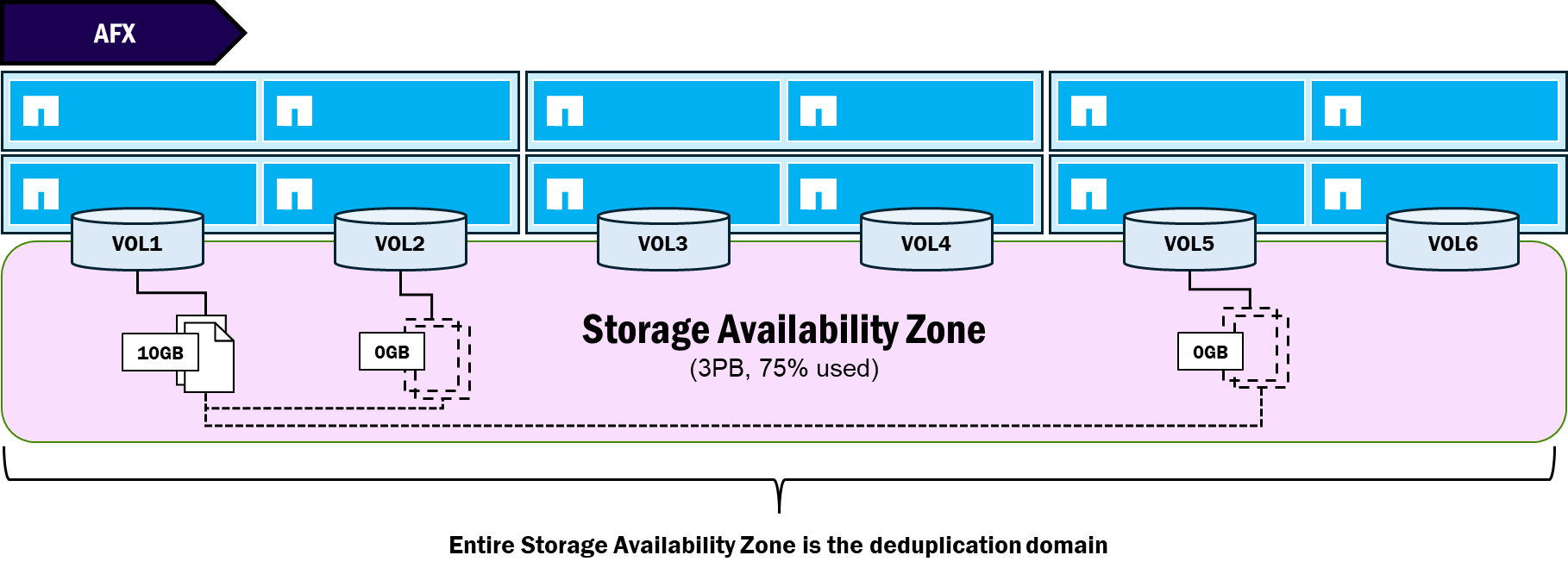

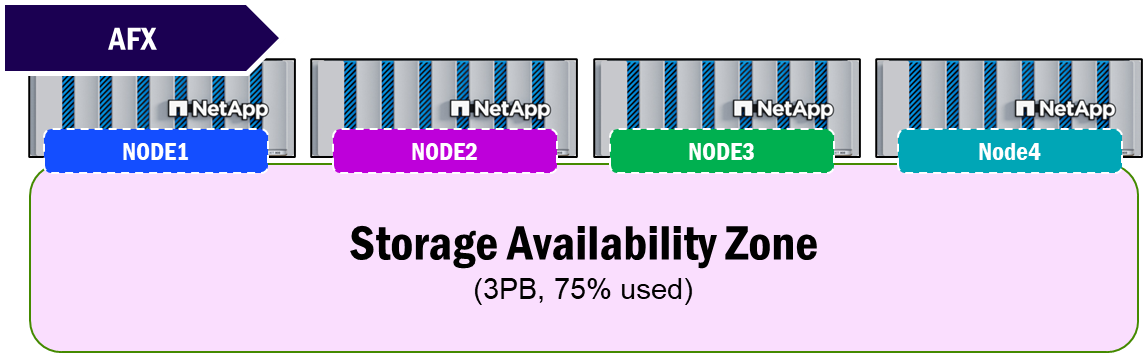

Another clue is the new Storage Availability Zone, but that is also a concept available to NetApp All-SAN Arrays (ASA). You can see your capacity via that command.

AFX::> storage availability-zone show
                     Availability Zone Name: storage_availability_zone_0
                     Availability Zone UUID: 545cb59f-32e9-11f1-a2f5-d039eabdd925
                                 Total Size: 69.59TB
                              Physical Used: 837.1GB
                      Physical Used Percent: 1%
                                  Available: 68.77TB
                              Metadata Used: 837.1GB
                  Log and Recovery Metadata: 834.6GB
                              Delayed Frees: 2.50GB
 Physical User Data Without Snapshot Copies: 17.24MB
  Logical User Data Without Snapshot Copies: 17.24MB
   Efficiency Ratio Without Snapshot Copies: 1.00:1
               Space Full Threshold Percent: 98%
        Space Nearly Full Threshold Percent: 95%
