Monitor workload operations with Tracker in BlueXP workload factory

Contributors netapp-mwallis
PDFs

Monitor and track the execution of workload operations and monitor task progress with Tracker in BlueXP workload factory.

About this task

Workload factory provides Tracker, a monitoring feature, so you can monitor and track the progress and status of workload operations, review details for operation tasks and subtasks, and diagnose any issues or failures.

Several actions are available in Tracker. You can filter jobs by time frame (last 24 hours, 7 days, 14 days, or 30 days), workload, status, and user; find jobs using the search function; and download the jobs table as a CSV file. You can refresh Tracker at any time, and quickly retry a failed operation or edit parameters for a failed operation and try the operation again.

Tracker supports two levels of monitoring depending on the operation. Each task, such as file system deployment, displays the task description, status, start time, task duration, user, region, proxy resource, task ID, and all related sub tasks. You can view API responses to understand what happened during the operation.

Tracker task levels with examples

  • Level 1 (task): Tracks file system deployment.

  • Level 2 (sub task): Tracks the sub tasks related to the file system deployment.

Operation status

Operation status in Tracker is as follows in progress, success, and failed.

Operation frequency

Operation frequency is based on the job type and the job schedule.

Events retention

Events are retained in the user interface for 30 days.

Track and monitor operations

Track and monitor operations in BlueXP with Tracker.

Steps

  1. Log in using one of the console experiences.

  2. In the workload, select the account settings menu and then select Tracker.

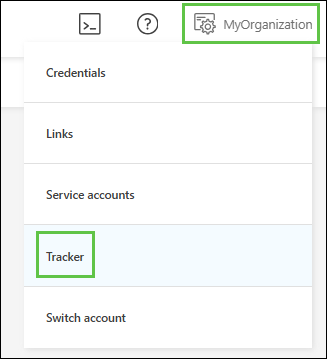

    A screenshot of the account settings menu with the Tracker option highlighted.

  3. In the Tracker tab, use the filters or search to narrow job results. You can also download a jobs report.

View API request

View the API request in the Codebox for a task in Tracker.

Steps

  1. In Tracker, select a task.

  2. Select the three-dot menu and then select View API request.

Retry a failed operation

Retry a failed operation in Tracker. You can also copy the error message of a failed operation.

Note You can retry a failed operation up to 10 times.
Steps

  1. In Tracker, select a failed operation.

  2. Select the three-dot menu and then select Retry.

Result

The operation is re-initiated.

Edit and retry a failed operation

Edit the parameters of the failed operation and retry the operation outside Tracker.

Steps

  1. In Tracker, select a failed operation.

  2. Select the three-dot menu and then select Edit and retry.

    You are redirected to the operation page where you can edit the parameters and retry the operation.

Result

The operation is re-initiated. Go to Tracker to view the status of the operation.
