HANA系统配置和安装
贡献者
建议更改
PDF
本章介绍用于本解决方案文档的 SAP HANA 系统 BM1 的具体安装和配置。HANA 系统 QM1 的部署方式相同。
可以找到其他通用部署信息和最佳实践 "基于采用光纤通道协议的 NetApp ASA 系统的 SAP HANA"。
存储配置

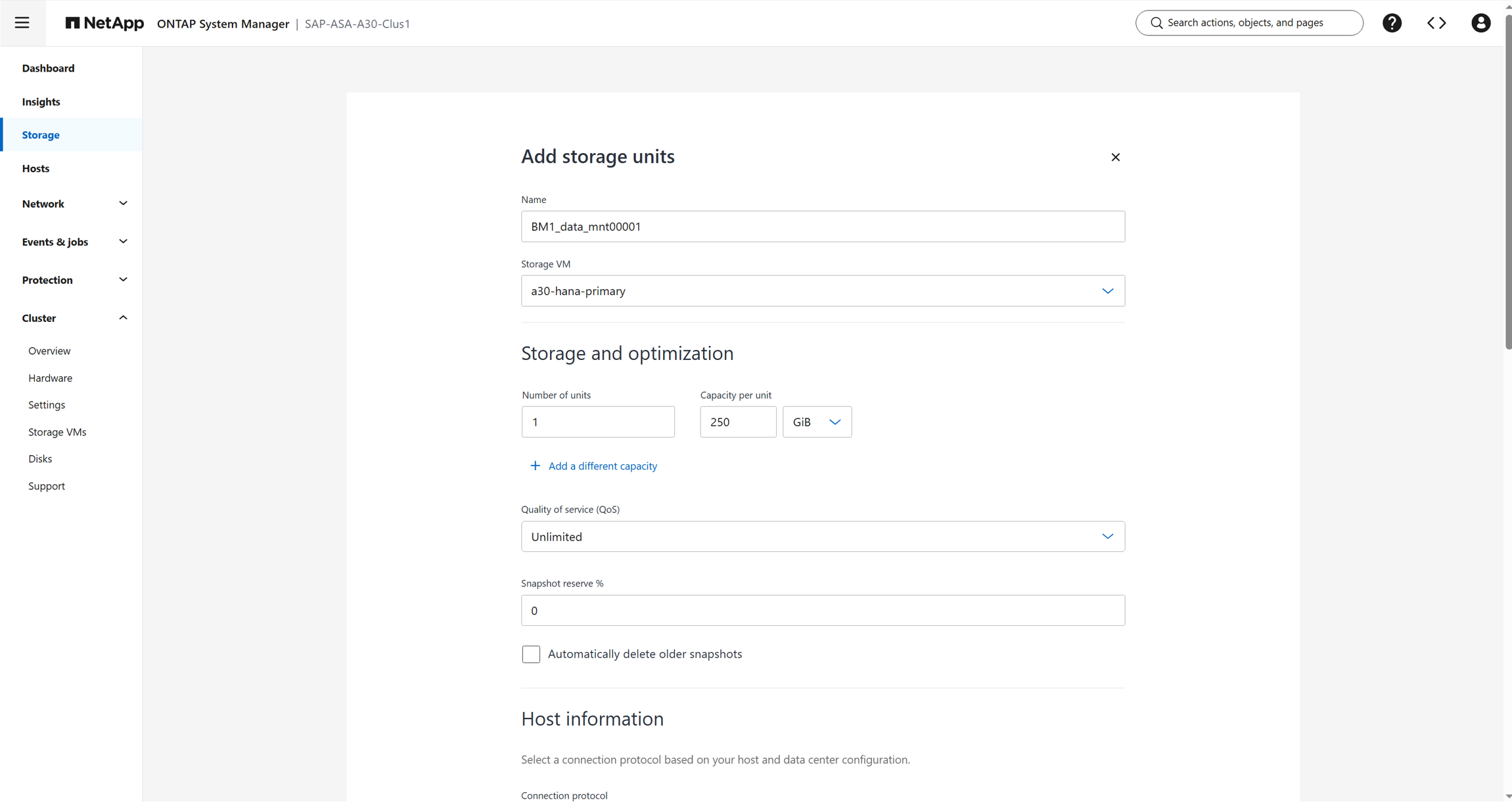

以下屏幕截图显示了存储单元 BM1_data_mnt00001 的创建。HANA 日志和共享的存储单元以相同的方式创建。

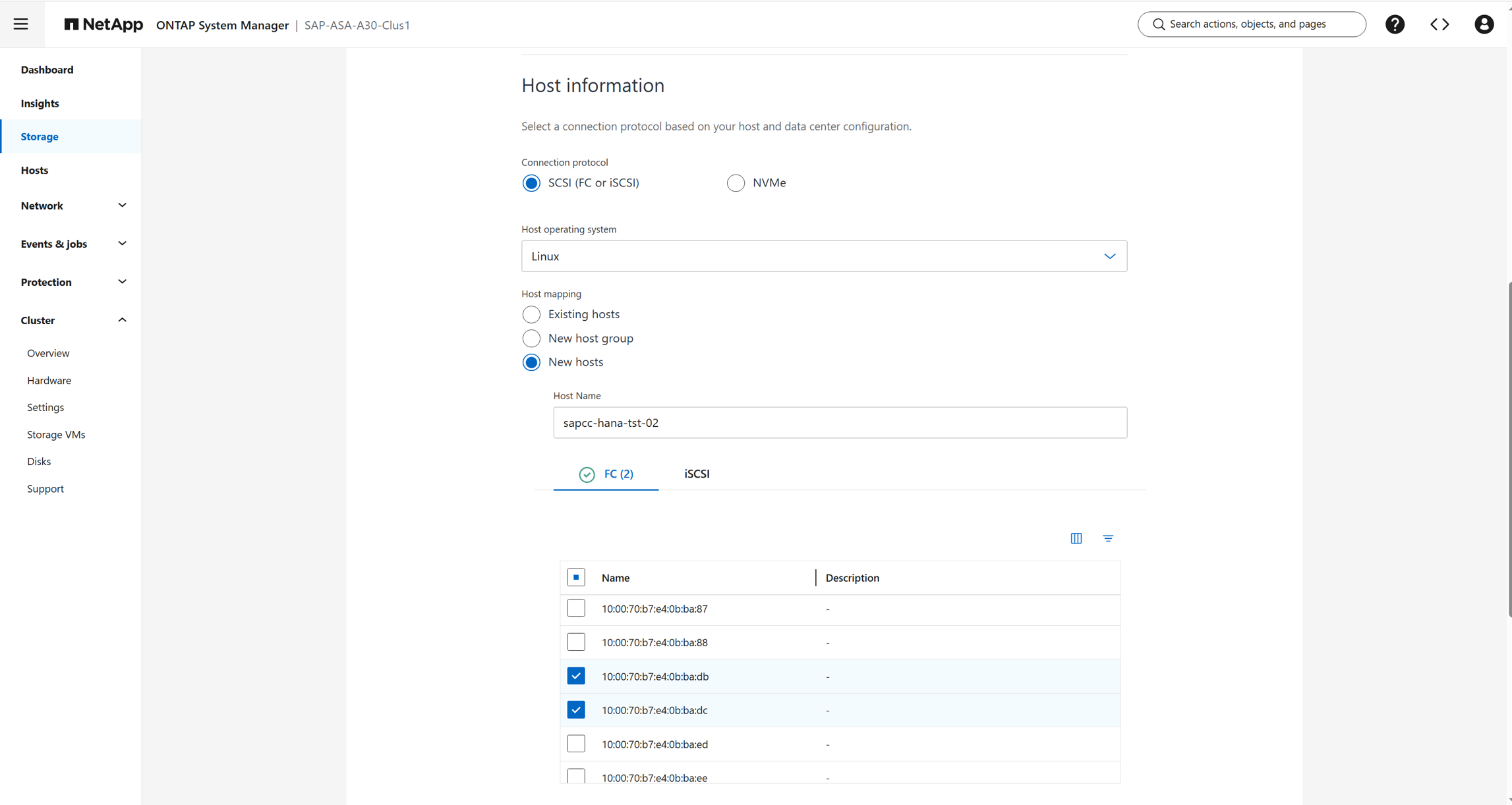

HANA 主机 FCP 适配器的 WWPN 可以使用 sanlun 命令列出，该命令是 NetApp 主机实用程序的一部分，如第 "HANA 主机配置" 章所述。
sapcc-hana-tst-02:~ # sanlun fcp show adapter host20 WWPN:100070b7e40bbadb host21 WWPN:100070b7e40bbadc

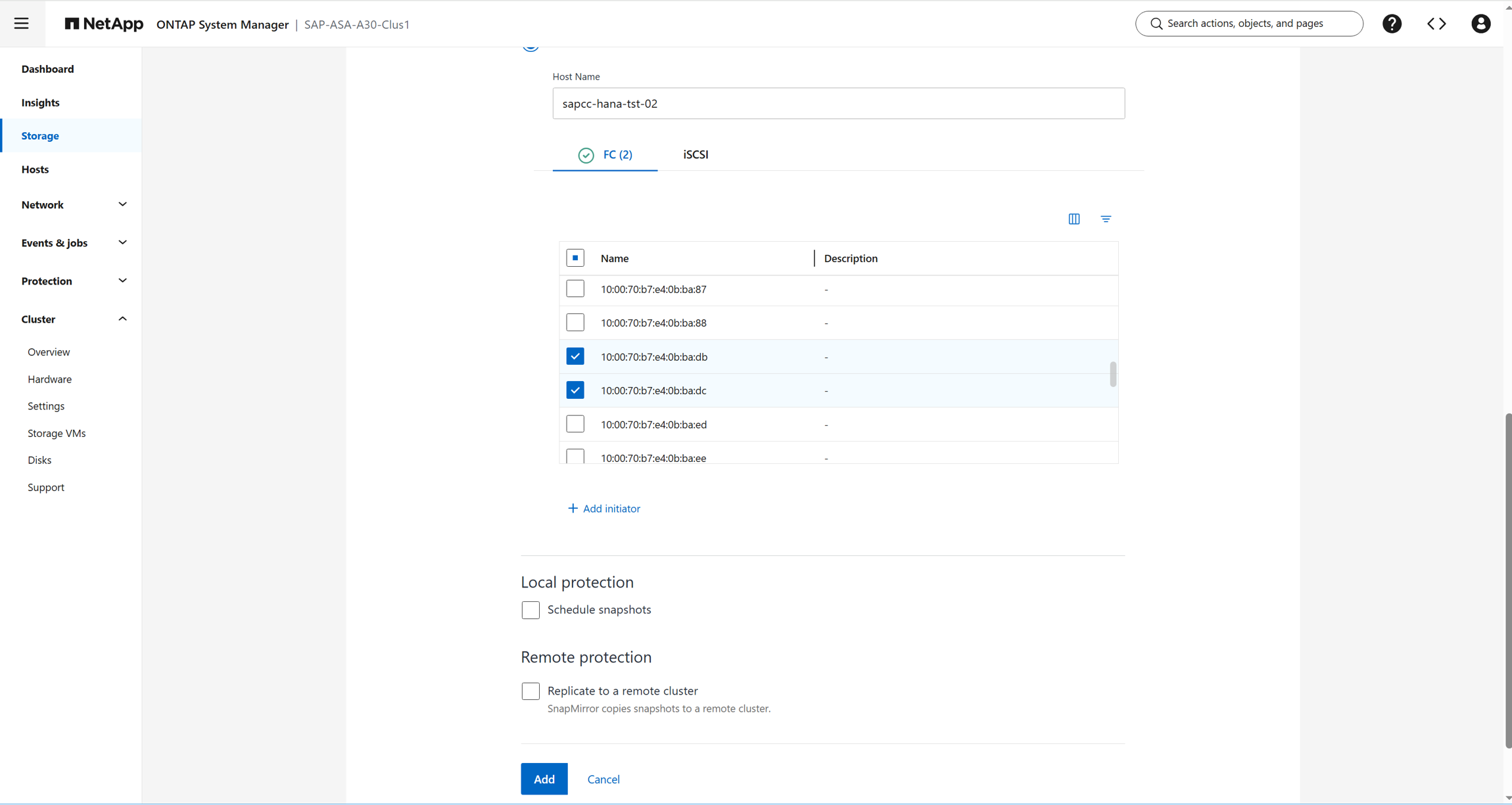

单击添加以创建存储单元。
屏幕截图显示了为 HANA 系统 BM1 创建的三个存储单元。
HANA 主机配置
在设置主机之前，必须从 "NetApp 支持"站点下载 NetApp SAN 主机实用程序并安装在 HANA 服务器上。主机实用程序文档包括有关必须安装的其他软件的信息，具体取决于所使用的 FCP HBA。
还可以使用 NetApp SAN 主机实用程序获取在存储系统上配置主机映射所需的主机适配器的 WWPN。
sapcc-hana-tst-02:~ # sanlun fcp show adapter host20 WWPN:100070b7e40bbadb host21 WWPN:100070b7e40bbadc
多路径配置
-
在每台服务器上运行 Linux rescan-scsi-bus.sh -a 命令以发现新的 LUN。
-
运行 sanlun lun show 命令，验证所有必需的 LUN 都可见。输出显示 LUN 和相应的设备文件具有从主机到存储控制器的四个 FC 路径。
sapcc-hana-tst-02:~ # sanlun lun show | grep BM1 a30-hana-primary BM1_shared_1 /dev/sdx host21 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdw host21 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdv host21 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdu host21 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdt host21 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sds host21 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdh host20 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdg host20 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdk host20 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdl host20 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdi host20 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdj host20 FCP 250g cDOT sapcc-hana-tst-02:~ #
-
运行 multipath -r 和 multipath -ll 命令以获取设备文件名的全球标识符 (WWID)。
sapcc-hana-tst-02:~ # multipath -r sapcc-hana-tst-02:~ # multipath -ll 3600a0980383235324a245a4749384947 dm-3 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:2 sdk 8:160 active ready running |- 20:0:11:2 sdh 8:112 active ready running |- 21:0:9:2 sdu 65:64 active ready running `- 21:0:11:2 sdx 65:112 active ready running 3600a098038323537342b596e55666737 dm-2 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:0 sdj 8:144 active ready running |- 20:0:11:0 sdl 8:176 active ready running |- 21:0:9:0 sds 65:32 active ready running `- 21:0:11:0 sdv 65:80 active ready running 3600a098038323537342b596e55666738 dm-5 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:1 sdi 8:128 active ready running |- 20:0:11:1 sdg 8:96 active ready running |- 21:0:9:1 sdt 65:48 active ready running `- 21:0:11:1 sdw 65:96 active ready running sapcc-hana-tst-02:~ #
-
编辑 /etc/multipath.conf 文件并添加 WWID 和别名。
sapcc-hana-tst-02:~ # cat /etc/multipath.conf
multipaths {
multipath {
wwid 3600a098038323537342b596e55666737
alias a30-hana-primary-BM1-data-mnt00001
}
multipath {
wwid 3600a098038323537342b596e55666738
alias a30-hana-primary-BM1-log-mnt00001
}
multipath {
wwid 3600a0980383235324a245a4749384947
alias a30-hana-primary-BM1-shared
}
}
-
运行 multipath -r 命令重新加载设备映射。
-
运行 multipath -ll 命令以列出所有 LUN、别名和存储路径，从而验证配置。
sapcc-hana-tst-02:~ # multipath -r sapcc-hana-tst-02:~ # multipath -ll a30-hana-primary-BM1-data-mnt00001 (3600a098038323537342b596e55666737) dm-2 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:0 sdj 8:144 active ready running |- 20:0:11:0 sdl 8:176 active ready running |- 21:0:9:0 sds 65:32 active ready running `- 21:0:11:0 sdv 65:80 active ready running a30-hana-primary-BM1-log-mnt00001 (3600a098038323537342b596e55666738) dm-5 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:1 sdi 8:128 active ready running |- 20:0:11:1 sdg 8:96 active ready running |- 21:0:9:1 sdt 65:48 active ready running `- 21:0:11:1 sdw 65:96 active ready running a30-hana-primary-BM1-shared (3600a0980383235324a245a4749384947) dm-3 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:2 sdk 8:160 active ready running |- 20:0:11:2 sdh 8:112 active ready running |- 21:0:9:2 sdu 65:64 active ready running `- 21:0:11:2 sdx 65:112 active ready running sapcc-hana-tst-02:~ #
主机文件系统配置
创建文件系统
sapcc-hana-tst-02:~ # ls -al /dev/mapper
total 0
drwxr-xr-x 2 root root 200 Feb 9 10:12 .
drwxr-xr-x 21 root root 5360 Feb 9 08:53 ..
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-data-mnt00001 -> ../dm-2
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-log-mnt00001 -> ../dm-5
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-shared -> ../dm-3
crw------- 1 root root 10, 236 Feb 9 08:53 control
lrwxrwxrwx 1 root root 7 Feb 9 08:53 system-root -> ../dm-0
lrwxrwxrwx 1 root root 7 Feb 9 08:53 system-swap -> ../dm-1
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-data-mnt00001
meta-data=/dev/mapper/a30-hana-primary-BM1-data-mnt00001 isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-log-mnt00001
meta-data=/dev/mapper/a30-hana-primary-BM1-log-mnt00001 isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-shared
meta-data=/dev/mapper/a30-hana-primary-BM1-shared isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ #
创建挂载点
sapcc-hana-tst-02:~ # mkdir -p /hana/data/BM1/mnt00001 sapcc-hana-tst-02:~ # mkdir -p /hana/log/BM1/mnt00001 sapcc-hana-tst-02:~ # mkdir -p /hana/shared/BM1 sapcc-hana-tst-02:~ # chmod -R /hana/data sapcc-hana-tst-02:~ # chmod 777 -R /hana/data sapcc-hana-tst-02:~ # chmod 777 -R /hana/log sapcc-hana-tst-02:~ # chmod 777 -R /hana/shared sapcc-hana-tst-02:~ #
挂载文件系统
sapcc-hana-tst-02:~ # cat /etc/fstab /dev/system/root / btrfs defaults 0 0 /dev/system/root /var btrfs subvol=/@/var 0 0 /dev/system/root /usr/local btrfs subvol=/@/usr/local 0 0 /dev/system/root /tmp btrfs subvol=/@/tmp 0 0 /dev/system/root /srv btrfs subvol=/@/srv 0 0 /dev/system/root /root btrfs subvol=/@/root 0 0 /dev/system/root /opt btrfs subvol=/@/opt 0 0 /dev/system/root /home btrfs subvol=/@/home 0 0 /dev/system/root /boot/grub2/x86_64-efi btrfs subvol=/@/boot/grub2/x86_64-efi 0 0 /dev/system/root /boot/grub2/i386-pc btrfs subvol=/@/boot/grub2/i386-pc 0 0 /dev/system/swap swap swap defaults 0 0 /dev/system/root /.snapshots btrfs subvol=/@/.snapshots 0 0 UUID=E88D-60DA /boot/efi vfat utf8 0 2 192.168.175.86:/sapcc_share/ /mnt/sapcc-share/ nfs rw,vers=3,hard,timeo=600,rsize=1048576,wsize=1048576,intr,noatime,nolock 0 0 /dev/mapper/a30-hana-primary-BM1-shared /hana/shared xfs defaults 0 0 /dev/mapper/a30-hana-primary-BM1-log-mnt00001 /hana/log/BM1/mnt00001 xfs relatime,inode64 0 0 /dev/mapper/a30-hana-primary-BM1-data-mnt00001 /hana/data/BM1/mnt00001 xfs relatime,inode64 0 0 sapcc-hana-tst-02:~ # sapcc-hana-tst-02:~ # df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 4.0M 0 4.0M 0% /dev tmpfs 190G 8.0K 190G 1% /dev/shm tmpfs 51G 11M 51G 1% /run tmpfs 4.0M 0 4.0M 0% /sys/fs/cgroup /dev/mapper/system-root 60G 15G 45G 25% / /dev/mapper/system-root 60G 15G 45G 25% /.snapshots /dev/mapper/system-root 60G 15G 45G 25% /boot/grub2/i386-pc /dev/mapper/system-root 60G 15G 45G 25% /boot/grub2/x86_64-efi /dev/mapper/system-root 60G 15G 45G 25% /home /dev/mapper/system-root 60G 15G 45G 25% /opt /dev/mapper/system-root 60G 15G 45G 25% /root /dev/mapper/system-root 60G 15G 45G 25% /srv /dev/mapper/system-root 60G 15G 45G 25% /tmp /dev/mapper/system-root 60G 15G 45G 25% /usr/local /dev/mapper/system-root 60G 15G 45G 25% /var /dev/nvme0n1p1 253M 5.1M 247M 3% /boot/efi 192.168.175.86:/sapcc_share/ 1.4T 859G 567G 61% /mnt/sapcc-share tmpfs 26G 44K 26G 1% /run/user/463 tmpfs 26G 24K 26G 1% /run/user/0 /dev/mapper/a30-hana-primary-BM1-shared 250G 288M 250G 1% /hana/shared /dev/mapper/a30-hana-primary-BM1-log-mnt00001 250G 288M 250G 1% /hana/log/BM1/mnt00001 /dev/mapper/a30-hana-primary-BM1-data-mnt00001 250G 288M 250G 1% /hana/data/BM1/mnt00001 sapcc-hana-tst-02:~ #
HANA安装
现在可以执行HANA安装。
|
使用所述配置，/usr/sap/BM1 目录将存储在操作系统磁盘上。如果 /usr/sap/BM1 应存储在单独的磁盘上，则必须在存储系统上配置其他 LUN。 |
