HANA 系統資源配置與安裝
貢獻者
建議變更
PDF
本章詳細介紹用於此解決方案文件的 SAP HANA 系統 BM1 的具體安裝和組態。HANA 系統 QM1 的部署方式相同。
更多通用部署資訊和最佳實務請參閱此處 "採用ASA Fibre Channel Protocol的NetApp解決方案上的SAP HANA"。
儲存組態

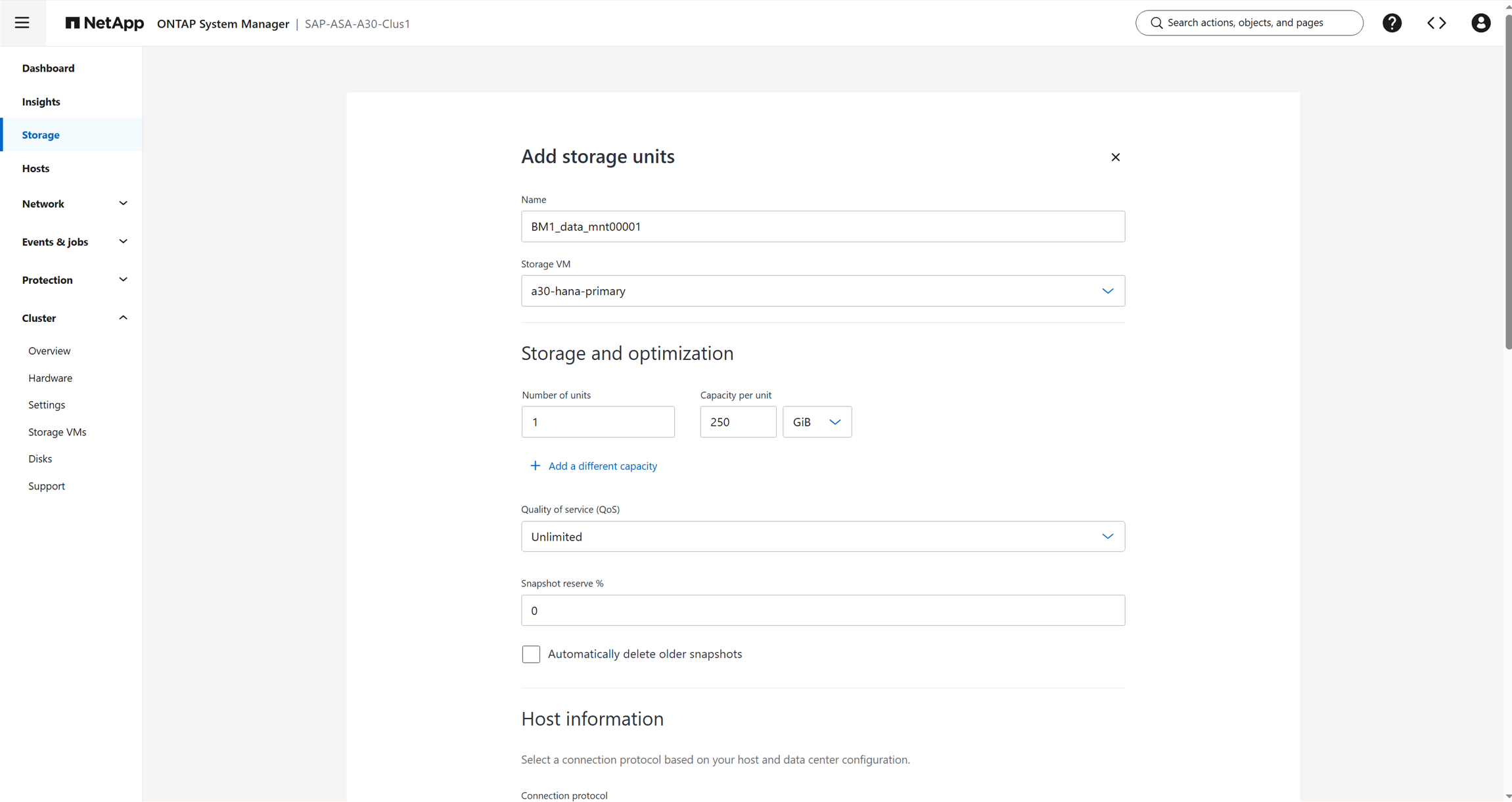

以下快照顯示儲存單元 BM1_data_mnt00001 的建立過程。HANA 日誌和共享的儲存單元已以相同方式建立。
可以使用 sanlun 命令列出 HANA 主機 FCP 介面卡的 WWPN，該命令是 NetApp 主機公用程式的一部分，如第 "HANA 主機組態" 章所述。
sapcc-hana-tst-02:~ # sanlun fcp show adapter host20 WWPN:100070b7e40bbadb host21 WWPN:100070b7e40bbadc

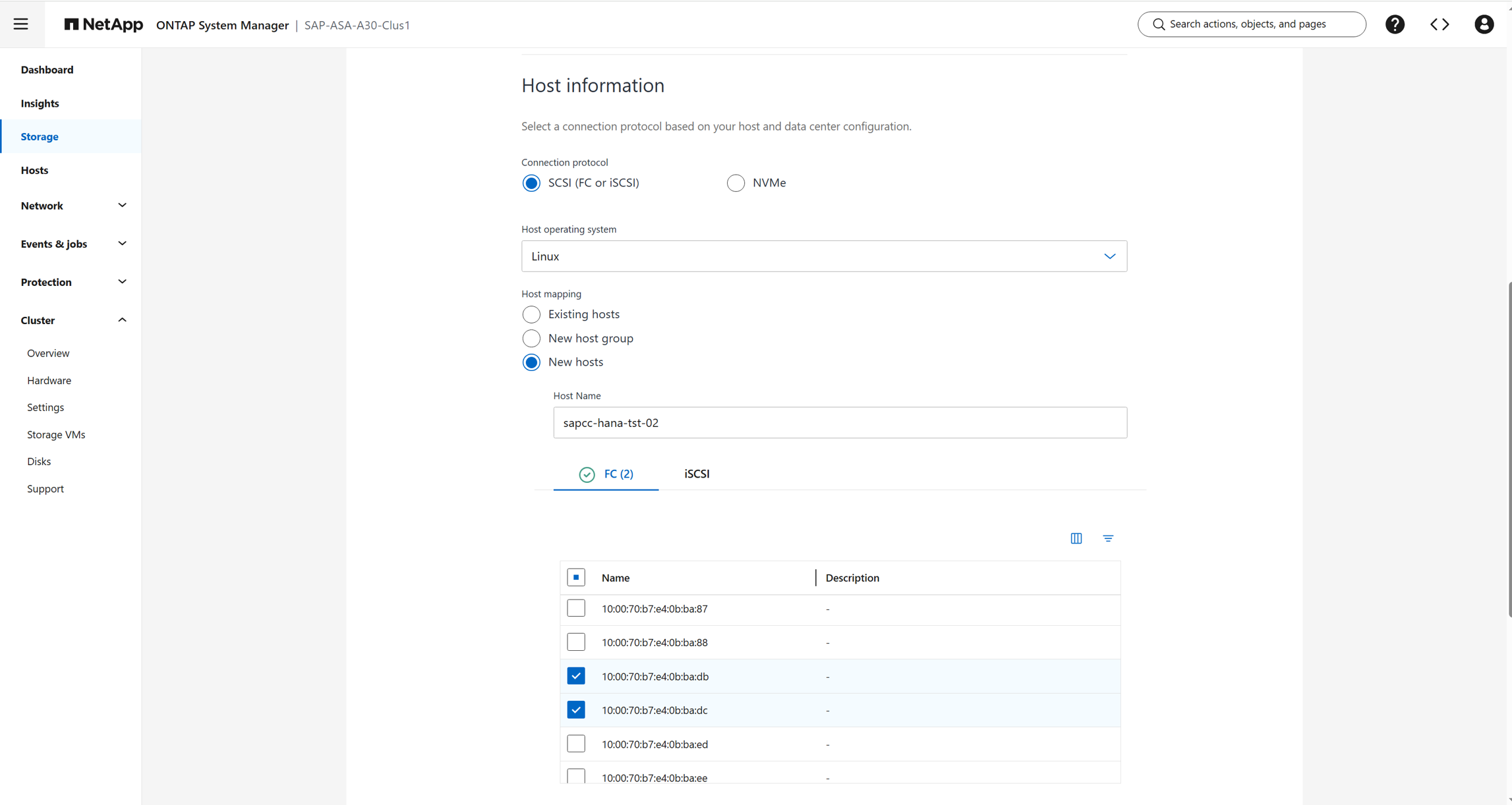

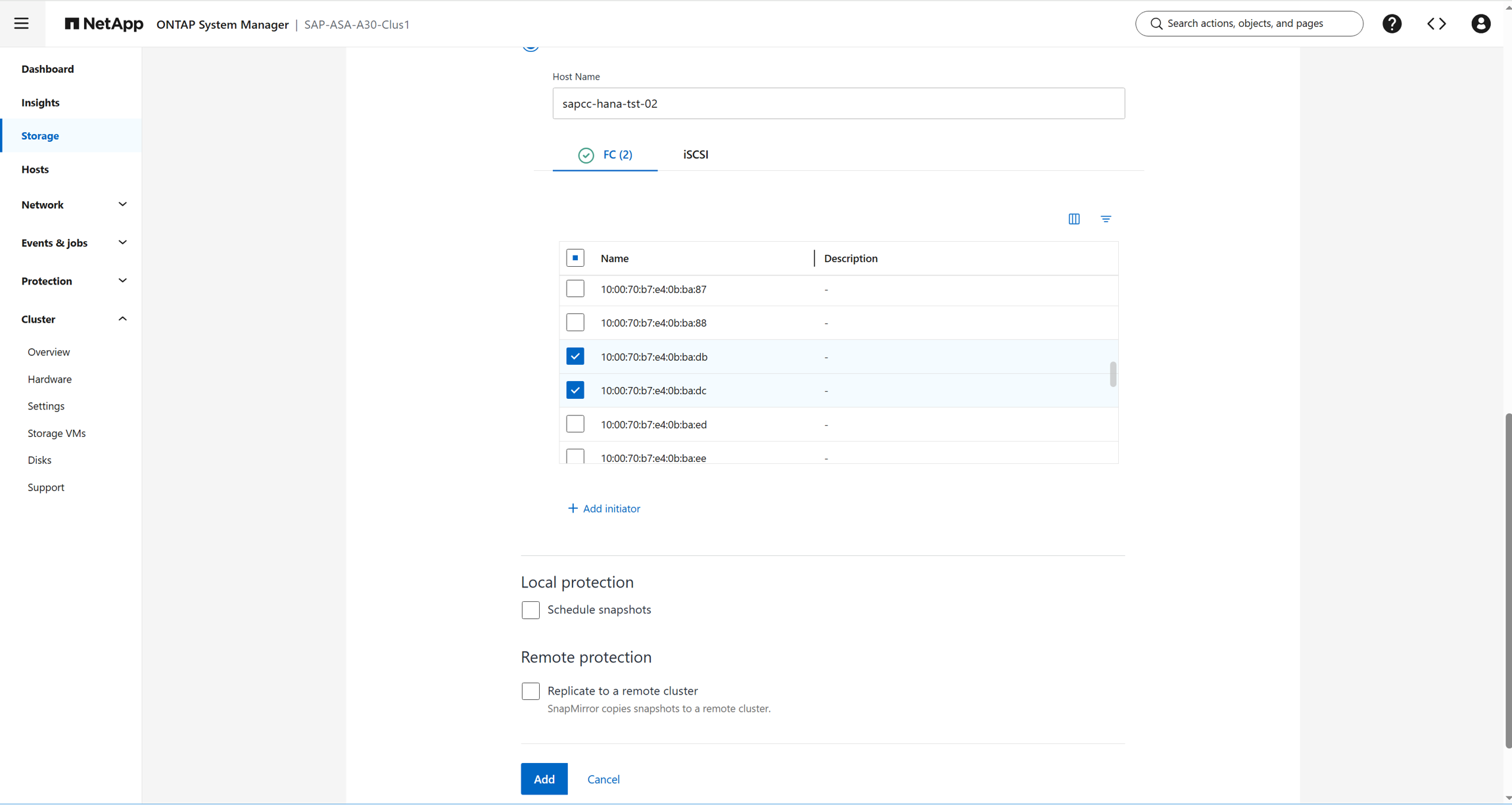

點選「新增」建立儲存設備單元。

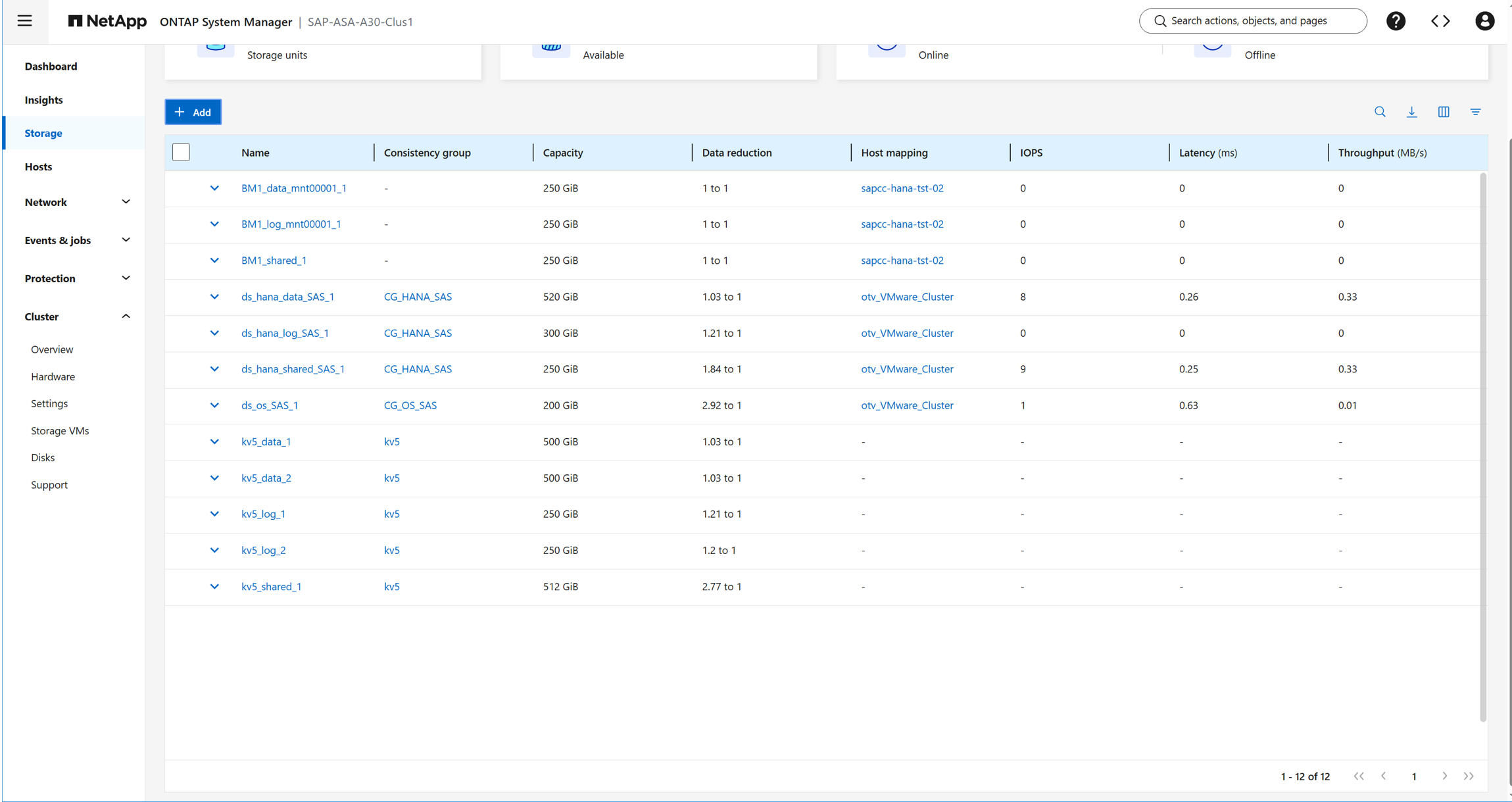

快照顯示為 HANA 系統 BM1 建立的三個儲存設備單元。
HANA 主機組態
在設定主機之前，必須先從 "NetApp支援"站台下載 NetApp SAN 主機公用程式，並將其安裝在 HANA 伺服器上。主機公用程式文件包含有關必須根據所使用的 FCP HBA 安裝之其他軟體的資訊。
NetApp SAN 主機公用程式也可用於取得在儲存系統上設定主機對映所需的主機介面卡的 WWPN。
sapcc-hana-tst-02:~ # sanlun fcp show adapter host20 WWPN:100070b7e40bbadb host21 WWPN:100070b7e40bbadc
多重路徑組態
-
在每台伺服器上執行 Linux rescan-scsi-bus.sh -a 命令以探索新的 LUN。
-
執行 sanlun lun show 命令並驗證所有必要的 LUN 是否可見。輸出結果顯示 LUN 及其對應的裝置檔案有四條從主機到儲存控制器的 FC 路徑。
sapcc-hana-tst-02:~ # sanlun lun show | grep BM1 a30-hana-primary BM1_shared_1 /dev/sdx host21 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdw host21 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdv host21 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdu host21 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdt host21 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sds host21 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdh host20 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdg host20 FCP 250g cDOT a30-hana-primary BM1_shared_1 /dev/sdk host20 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdl host20 FCP 250g cDOT a30-hana-primary BM1_log_mnt00001_1 /dev/sdi host20 FCP 250g cDOT a30-hana-primary BM1_data_mnt00001_1 /dev/sdj host20 FCP 250g cDOT sapcc-hana-tst-02:~ #
-
執行 multipath -r 和 multipath -ll 命令，取得裝置檔案名稱的全球識別碼 (WWID)。
sapcc-hana-tst-02:~ # multipath -r sapcc-hana-tst-02:~ # multipath -ll 3600a0980383235324a245a4749384947 dm-3 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:2 sdk 8:160 active ready running |- 20:0:11:2 sdh 8:112 active ready running |- 21:0:9:2 sdu 65:64 active ready running `- 21:0:11:2 sdx 65:112 active ready running 3600a098038323537342b596e55666737 dm-2 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:0 sdj 8:144 active ready running |- 20:0:11:0 sdl 8:176 active ready running |- 21:0:9:0 sds 65:32 active ready running `- 21:0:11:0 sdv 65:80 active ready running 3600a098038323537342b596e55666738 dm-5 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:1 sdi 8:128 active ready running |- 20:0:11:1 sdg 8:96 active ready running |- 21:0:9:1 sdt 65:48 active ready running `- 21:0:11:1 sdw 65:96 active ready running sapcc-hana-tst-02:~ #
-
編輯 /etc/multipath.conf 檔案，並新增 WWID 和別名。
sapcc-hana-tst-02:~ # cat /etc/multipath.conf
multipaths {
multipath {
wwid 3600a098038323537342b596e55666737
alias a30-hana-primary-BM1-data-mnt00001
}
multipath {
wwid 3600a098038323537342b596e55666738
alias a30-hana-primary-BM1-log-mnt00001
}
multipath {
wwid 3600a0980383235324a245a4749384947
alias a30-hana-primary-BM1-shared
}
}
-
執行 multipath -r 命令以重新載入裝置對應。
-
執行 multipath -ll 命令，列出所有 LUN、別名和儲存設備路徑，以驗證組態。
sapcc-hana-tst-02:~ # multipath -r sapcc-hana-tst-02:~ # multipath -ll a30-hana-primary-BM1-data-mnt00001 (3600a098038323537342b596e55666737) dm-2 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:0 sdj 8:144 active ready running |- 20:0:11:0 sdl 8:176 active ready running |- 21:0:9:0 sds 65:32 active ready running `- 21:0:11:0 sdv 65:80 active ready running a30-hana-primary-BM1-log-mnt00001 (3600a098038323537342b596e55666738) dm-5 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:1 sdi 8:128 active ready running |- 20:0:11:1 sdg 8:96 active ready running |- 21:0:9:1 sdt 65:48 active ready running `- 21:0:11:1 sdw 65:96 active ready running a30-hana-primary-BM1-shared (3600a0980383235324a245a4749384947) dm-3 NETAPP,LUN C-Mode size=250G features='3 queue_if_no_path pg_init_retries 50' hwhandler='1 alua' wp=rw `-+- policy='service-time 0' prio=50 status=active |- 20:0:10:2 sdk 8:160 active ready running |- 20:0:11:2 sdh 8:112 active ready running |- 21:0:9:2 sdu 65:64 active ready running `- 21:0:11:2 sdx 65:112 active ready running sapcc-hana-tst-02:~ #
主機檔案系統組態
建立檔案系統
sapcc-hana-tst-02:~ # ls -al /dev/mapper
total 0
drwxr-xr-x 2 root root 200 Feb 9 10:12 .
drwxr-xr-x 21 root root 5360 Feb 9 08:53 ..
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-data-mnt00001 -> ../dm-2
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-log-mnt00001 -> ../dm-5
lrwxrwxrwx 1 root root 7 Feb 9 10:12 a30-hana-primary-BM1-shared -> ../dm-3
crw------- 1 root root 10, 236 Feb 9 08:53 control
lrwxrwxrwx 1 root root 7 Feb 9 08:53 system-root -> ../dm-0
lrwxrwxrwx 1 root root 7 Feb 9 08:53 system-swap -> ../dm-1
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-data-mnt00001
meta-data=/dev/mapper/a30-hana-primary-BM1-data-mnt00001 isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ #
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-log-mnt00001
meta-data=/dev/mapper/a30-hana-primary-BM1-log-mnt00001 isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ # mkfs.xfs /dev/mapper/a30-hana-primary-BM1-shared
meta-data=/dev/mapper/a30-hana-primary-BM1-shared isize=512 agcount=4, agsize=16384000 blks
= sectsz=4096 attr=2, projid32bit=1
= crc=1 finobt=1, sparse=1, rmapbt=0
= reflink=0 bigtime=0 inobtcount=0
data = bsize=4096 blocks=65536000, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0, ftype=1
log =internal log bsize=4096 blocks=32000, version=2
= sectsz=4096 sunit=1 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
Discarding blocks...Done.
sapcc-hana-tst-02:~ #
建立掛載點
sapcc-hana-tst-02:~ # mkdir -p /hana/data/BM1/mnt00001 sapcc-hana-tst-02:~ # mkdir -p /hana/log/BM1/mnt00001 sapcc-hana-tst-02:~ # mkdir -p /hana/shared/BM1 sapcc-hana-tst-02:~ # chmod -R /hana/data sapcc-hana-tst-02:~ # chmod 777 -R /hana/data sapcc-hana-tst-02:~ # chmod 777 -R /hana/log sapcc-hana-tst-02:~ # chmod 777 -R /hana/shared sapcc-hana-tst-02:~ #
掛載檔案系統
sapcc-hana-tst-02:~ # cat /etc/fstab /dev/system/root / btrfs defaults 0 0 /dev/system/root /var btrfs subvol=/@/var 0 0 /dev/system/root /usr/local btrfs subvol=/@/usr/local 0 0 /dev/system/root /tmp btrfs subvol=/@/tmp 0 0 /dev/system/root /srv btrfs subvol=/@/srv 0 0 /dev/system/root /root btrfs subvol=/@/root 0 0 /dev/system/root /opt btrfs subvol=/@/opt 0 0 /dev/system/root /home btrfs subvol=/@/home 0 0 /dev/system/root /boot/grub2/x86_64-efi btrfs subvol=/@/boot/grub2/x86_64-efi 0 0 /dev/system/root /boot/grub2/i386-pc btrfs subvol=/@/boot/grub2/i386-pc 0 0 /dev/system/swap swap swap defaults 0 0 /dev/system/root /.snapshots btrfs subvol=/@/.snapshots 0 0 UUID=E88D-60DA /boot/efi vfat utf8 0 2 192.168.175.86:/sapcc_share/ /mnt/sapcc-share/ nfs rw,vers=3,hard,timeo=600,rsize=1048576,wsize=1048576,intr,noatime,nolock 0 0 /dev/mapper/a30-hana-primary-BM1-shared /hana/shared xfs defaults 0 0 /dev/mapper/a30-hana-primary-BM1-log-mnt00001 /hana/log/BM1/mnt00001 xfs relatime,inode64 0 0 /dev/mapper/a30-hana-primary-BM1-data-mnt00001 /hana/data/BM1/mnt00001 xfs relatime,inode64 0 0 sapcc-hana-tst-02:~ # sapcc-hana-tst-02:~ # df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 4.0M 0 4.0M 0% /dev tmpfs 190G 8.0K 190G 1% /dev/shm tmpfs 51G 11M 51G 1% /run tmpfs 4.0M 0 4.0M 0% /sys/fs/cgroup /dev/mapper/system-root 60G 15G 45G 25% / /dev/mapper/system-root 60G 15G 45G 25% /.snapshots /dev/mapper/system-root 60G 15G 45G 25% /boot/grub2/i386-pc /dev/mapper/system-root 60G 15G 45G 25% /boot/grub2/x86_64-efi /dev/mapper/system-root 60G 15G 45G 25% /home /dev/mapper/system-root 60G 15G 45G 25% /opt /dev/mapper/system-root 60G 15G 45G 25% /root /dev/mapper/system-root 60G 15G 45G 25% /srv /dev/mapper/system-root 60G 15G 45G 25% /tmp /dev/mapper/system-root 60G 15G 45G 25% /usr/local /dev/mapper/system-root 60G 15G 45G 25% /var /dev/nvme0n1p1 253M 5.1M 247M 3% /boot/efi 192.168.175.86:/sapcc_share/ 1.4T 859G 567G 61% /mnt/sapcc-share tmpfs 26G 44K 26G 1% /run/user/463 tmpfs 26G 24K 26G 1% /run/user/0 /dev/mapper/a30-hana-primary-BM1-shared 250G 288M 250G 1% /hana/shared /dev/mapper/a30-hana-primary-BM1-log-mnt00001 250G 288M 250G 1% /hana/log/BM1/mnt00001 /dev/mapper/a30-hana-primary-BM1-data-mnt00001 250G 288M 250G 1% /hana/data/BM1/mnt00001 sapcc-hana-tst-02:~ #
HANA 安裝
HANA 安裝現在可以執行。
|
依照所述組態，/usr/sap/BM1 目錄將儲存在作業系統磁碟上。如果 /usr/sap/BM1 需要儲存在獨立的磁碟上，則必須在儲存系統上設定額外的 LUN。 |
