Configure a stretch cluster for a VCF management domain using MetroCluster

Contributors sureshthoppay kevin-hoke
PDFs

In this use case we outline the procedure to configure a stretch cluster for the VMware Cloud Foundation (VCF) management domain using ONTAP MetroCluster with FC or iSCSI or NVMe-oF or NFSv3 or NFSv4.1 as the primary datastore. VCF provides flexibility on deployment options based on your needs. VCF Installer tool is used to either deploy a new VCF management domain or convert an existing vSphere environment to a VCF management domain. In this document, we will focus on MetroCluster portion and point to other documentation based on the deployment steps.

VCF Management Domain with vMSC

Introduction

In this solution we will demonstrate how to implement Stretched VCF Management Domain with ONTAP MetroCluster as Principal Datastore. MetroCluster allows to deploy high availability solution for all workloads running on the ONTAP cluster. If need to deploy high availability solution specific to workloads, consider using SnapMirror active sync (SAN and NAS). SnapMirror active sync (SAN) works at consistency group level while SnapMirror active sync (NAS) works at SVM level. For more information, refer to Configure a stretch cluster for a VCF management domain using SnapMirror Active Sync (SAN and NAS).

Prerequisites

This scenario requires the following components and configurations:

  • Supported ONTAP MetroCluster configuration

  • Storage virtual machine (SVM) configured with preferred storage protocol.

  • Logical interface (LIF) has been created to carry storage traffic and is associated with the SVM.

High-Level Overview

MetroCluster provides a high availability solution for workloads handled at aggregate level. SVM will be active on one of the fault domains in MetroCluster.

Here is the sample screenshot from System Manager showing MetroCluster configuration.
4 Node MetroCluster IP

and here is the SVM Network interfaces from both fault domains.
SVM Network Interfaces from Fault Domain 1

SVM Network Interfaces from Fault Domain 2

[NOTE] SVM will be active on one of the fault domains in MetroCluster.

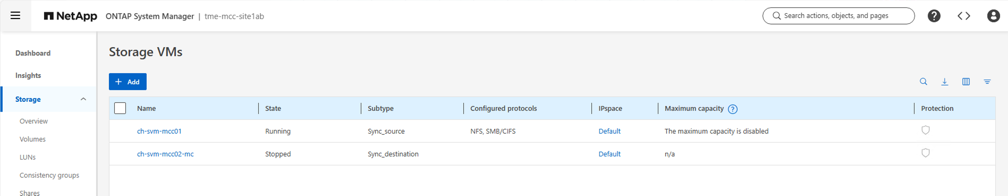

SVM on Fault Domain 1

SVM on Fault Domain 2

Refer vMSC with MetroCluster.

For an overview of the convergence process, refer to the VMware documentation: Converging Existing Virtual Infrastructure to a VCF.

For information on configuring ONTAP storage systems refer to the ONTAP 9 Documentation center.

For information on configuring VCF, refer to the VMware Cloud Foundation 9.1 documentation.

Deployment Steps for Greenfield VCF Management Domain with MetroCluster

For Greenfield deployment (new deployment without any existing VCF components), VCF Installer tool is used to deploy the management domain. VMFS on FC and NFSv3 are supported in this scenario.

In case of VMFS on FC, refer VCF management domain with FC-based VMFS datastore on ONTAP as principal storage for more information. For NFSv3, refer VCF management domain with NFSv3 datastore on ONTAP as principal storage for more information.

Deployment Steps for Brownfield VCF Management Domain with MetroCluster

A brownfield deployment is a scenario where you have an existing vSphere environment and you want to converge it as a VCF management domain.

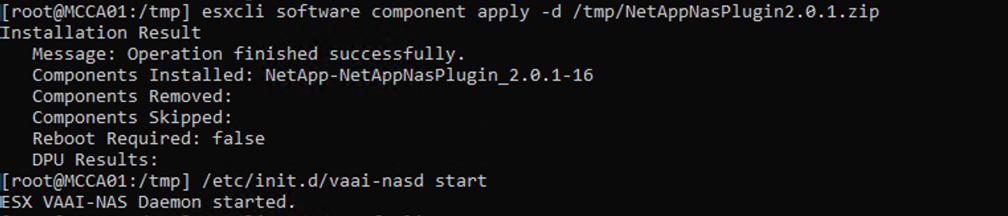

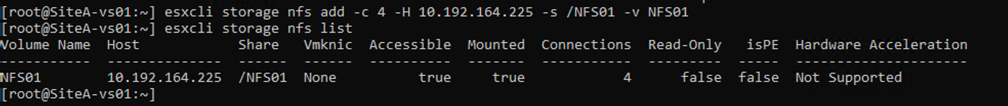

For iSCSI, NVMe-oF, and NFSv4.1, it needs to be setup with vCenter (preferably with ONTAP tools) and later use VCF installer tool to converge in to the management domain. For more info, refer Convergence of vCenter with VMFS datastore and Convergence of vCenter with NFS datastore.

Supplemental Datastore Deployment Steps for VCF Management Domain with MetroCluster

When using ONTAP tools, register both the ONTAP clusters. Refer MetroCluster configurations supported by ONTAP Tools for VMware vSphere for more information.
