Collect or estimate:

Use high-water values rather than daily averages. Build pipelines, analytics jobs, migrations, and temporary scratch workflows often create their largest namespace for a short period and then clean it up, but the inode and directory files can retain high-water marks after cleanup.

Maintain two separate forecasts:

Do not derive one value from the other. A sharded namespace (files split across many directories) can exhaust maxfiles without creating a large directory. A single flat directory can reach the maxdir-size limit while the volume has millions of free inodes.

Do not size maxfiles from visible file count alone on NTFS or heavily ACL'd namespaces. Include directories, ACL inodes, named streams, and other public objects in your projections. Where ACLs have a heavy presence, use up to twice the projected file and directory count as a conservative starting estimate for files, then validate with representative data because ACL sharing can reduce actual use.

See ONTAP inode types and Maxdir-size and large ONTAP directories.

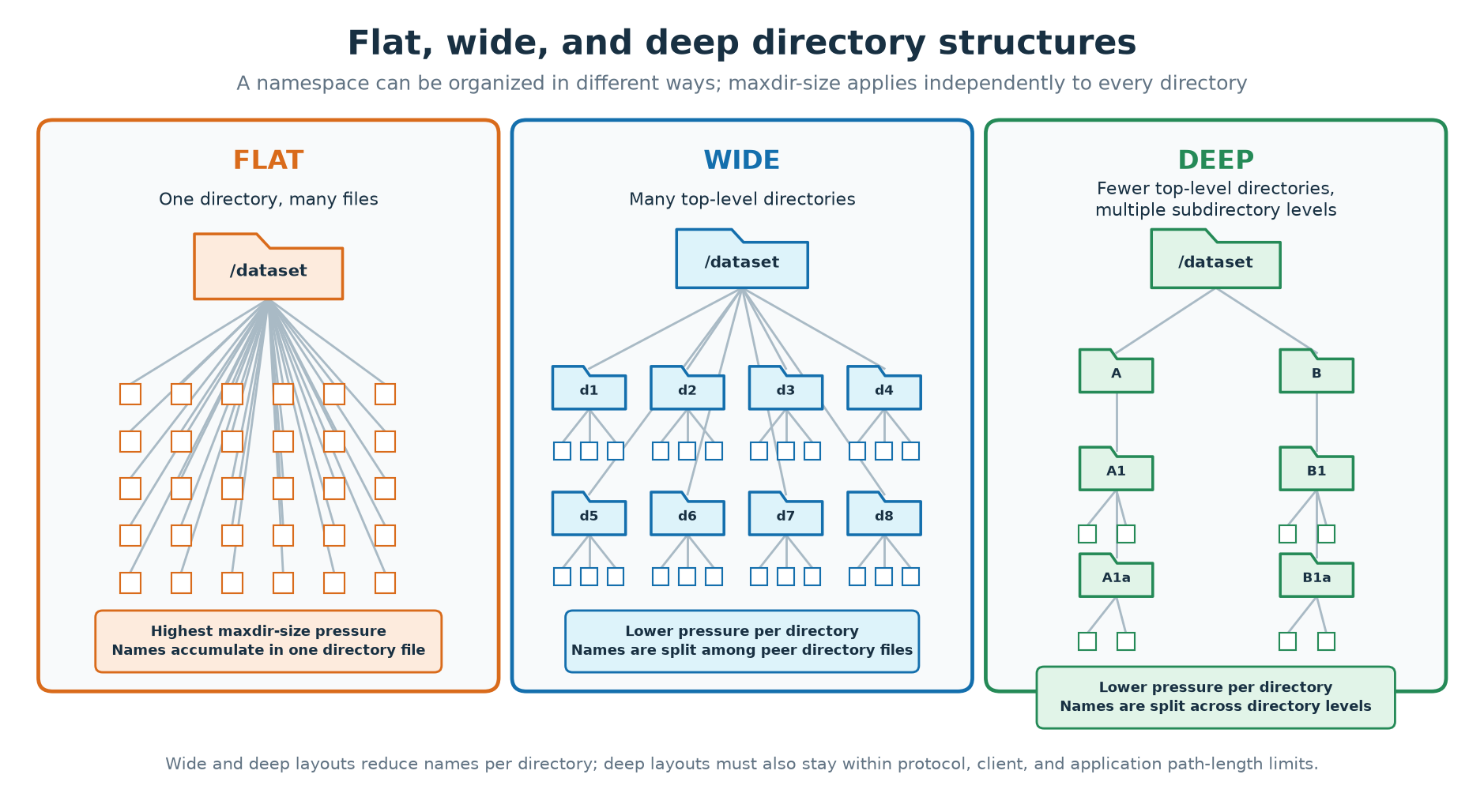

There are three common namespace layouts.

When possible, avoid placing millions of names at one flat directory level if the application can use a wide or deep hierarchy. Flat layouts concentrate memory and CPU work and can increase latency during mass GETATTR, READDIR, lookup, and delete operations. In a FlexGroup volume, a large flat directory can also produce more remote entries, causing its directory file to approach maxdir-size sooner than the same visible name count in a FlexVol.

FlexGroup volumes generally work best with many smaller directories rather than one large flat directory. Directories below about 2 MiB stay on the simple scan path. Beginning with ONTAP 9.2, larger directories are indexed automatically, which helps targeted lookups. Indexing does not make a very large directory equivalent to a sharded hierarchy: enumeration, wildcard scans, and single-directory create serialization still apply. ONTAP can place FlexGroup child directories remotely while favoring file locality to the parent directory, which reduces remote latency for those files.

Distributing files across a hierarchy means using more directories with fewer files in each directory.

Common sharding keys include:

Choose enough shards to keep directory operations manageable, but do not create so many nearly empty directories that directory count itself becomes excessive. A deterministic scheme makes placement predictable and allows clients to locate files without scanning every shard.

Wide and deep layouts can both work. Keep complete path lengths within the limits of the NAS protocol, client operating system, and application. If a flat layout is unavoidable, monitor the largest directory file's current size and maxdir-size headroom as described in View maxdir-size and current directory size, and validate whether a controlled increase is appropriate.

Do not plan steady-state operation at 100% of used inodes or of the largest directory file. Keep margin for unexpected growth, temporary objects, Snapshot-retained metadata, ACLs and streams, migration overlap, backup work, FlexGroup placement imbalance, and software changes that alter filenames.

Setting files to the current maximum is a ceiling, not permission to run until the last inode is gone. Alert on files-used well before that ceiling. For maxdir-size, the approximately 2% increase guidance in What happens when maxdir-size is exceeded? is how to raise the cap, not a universal operating margin.

Budget inode-file, directory-file, index, Snapshot, and aggregate metadata separately. Use 288 bytes per allocated public inode as the base inode-file estimate; see Capacity impact. Raising files does not allocate that space immediately. Treat peak allocated inode-file capacity as persistent.

Use volume show-space to inspect inode and metadata capacity rather than converting every CLI counter as though it were a byte value.

Test at least:

Path length and basename length are not interchangeable. A long path spread across several directories affects protocol limits and inode count, while each directory stores only its immediate component.

Sequential bandwidth tests do not predict high-file-count behavior. Include:

Measure latency distributions, CPU, cache behavior, network load, and completion time. Repeat tests during Snapshot, replication, analytics, backup, and security scanning if those operations coexist in production.

Test more than initial ingest:

Directory indexes might need to be built or transferred at the destination. Enable public index transfer only when avoiding rebuilds materially improves recovery; it does not improve local lookup. See When to enable public directory index transfers.

Track files-used against files and inodefile-public-capacity as described in Monitor maxfiles, EMS events, and ONTAP enhancements. Alert before files-used reaches files. For FlexGroup volumes, investigate constituent-level events even when the overall total appears to have room.

Measure directory-file size and resolve EMS file IDs as described in View maxdir-size and current directory size. Inventory known flat or churn-heavy directories before they generate warnings.

For inode warnings:

For directory-size warnings:

Do not wait for callhome.no.inodes or wafl.dir.size.max; at that point client creates are already failing.

Deleting files frees public inodes for reuse but does not shrink the public inode file. Similarly, deleting names from a directory makes directory slots reusable but does not normally reduce the directory-file high-water size.

Large deletes can be metadata-intensive and can temporarily increase private zombie inodes. Rate-limit client-side recursive deletes (rm -rf) when they compete with production traffic.

Beginning with ONTAP 9.8, volume file async-delete removes a directory from the cluster instead of over NFS or SMB, which avoids client and network contention. It applies to FlexVol and FlexGroup volumes. ONTAP scans the path, deletes subdirectory contents first, and runs parallel delete tasks (default 5,000 concurrent tasks; configurable from 50 to 100,000). In TR-4571 testing, that was about 10× faster than a single-threaded rm -rf on a 24,000-entry tree.

Constraints: the volume must be online and mounted, the path must be a directory (not a single file), and only one async-delete job can run at a time.

If a large sparse directory remains a problem, copy remaining entries into a new directory. Lowering maxdir-size does not compact it. See Sparse directories and hole punching.

High-file-count operations consume CPU, memory, cache, and storage I/O even when data throughput is low. Maintain headroom for:

Balance workloads using observed metadata demand, not only capacity or throughput. A node can become metadata-bound while network and disk bandwidth appear available.

High-file-count NAS is often metadata-bound. An NFS or SMB mount typically uses one TCP connection to one data LIF, and that LIF lives on one node. If many clients, scanners, or backup jobs mount the same address, that node spends CPU on protocol processing even when the rest of the cluster is idle. A FlexGroup can redirect file operations over the cluster network, but that does not remove the load on the node that owns the client connection.

A single client that supports NFS nconnect or SMB multichannel can open additional connections on one mount. That helps that client; it does not replace spreading many clients across LIFs and nodes.

Later ONTAP releases include directory indexing, inode-management improvements, sparse-directory optimizations, directory-index transfer, and other high-file-count enhancements. Upgrade decisions must still consider platform support, data protection compatibility, and application qualification.

Do not enable a feature solely because it is related to high file count:

Beginning with ONTAP 9.17.1, File System Analytics can be enabled by default on new volumes in a newly created NAS SVM. Check -analytics-state rather than assuming it is disabled, and account for its namespace scan when qualifying a high-file-count workload.

Record:

Revisit the model when application versions, filename formats, retention, protocols, or data protection workflows change.
