TR-5007：通过Google Cloud NetApp Volumes上的服务器内增量合并优化 Oracle VLDB 备份和恢复

贡献者 netapp-revathid kevin-hoke
PDF

Allen Cao、Niyaz Mohamed， NetApp

该解决方案提供了部署到 Google Compute Engine VM 的 Oracle VLDB 的概述和详细信息，该 VM 通过在Google Cloud NetApp Volumes存储池上挂载 NFS 来快速恢复，以暂存通过 RMAN 不断增量合并的备用数据库副本。

目的

使用 Oracle 恢复管理器 (RMAN) 备份工具恢复 Oracle 中的超大型数据库 (VLDB) 可能是一项极具挑战性的任务。发生故障时从备份媒体恢复数据库的过程可能非常耗时，从而延迟数据库恢复并可能严重影响您的服务水平协议 (SLA)。由于成本考虑，RMAN 备份通常流式传输到对象存储，因此对于部署在云中的 Oracle VLDB 来说，情况变得更加糟糕。因此，如果 SLA 必不可少，则恢复和恢复 VLDB 是不可行的。从 10g 版本开始，Oracle 引入了 RMAN 功能，允许用户在数据库服务器主机上的附加磁盘存储上创建 Oracle 数据库数据文件的分阶段映像副本。这些图像副本可以使用 RMAN 按照用户定义的间隔进行增量更新。如果发生故障，数据库管理员 (DBA) 可以迅速将 Oracle 数据库从故障媒体切换到映像副本，从而无需进行完整的数据库媒体还原。尽管所需的数据库存储量增加了一倍，但其结果是 SLA 得到了极大改善。

如果您热衷于 VLDB 的 SLA 并考虑将 Oracle 数据库迁移到 Google Cloud Platform (GCP) 等公共云，则可以使用Google Cloud NetApp Volumes (GCNV) 等资源设置类似的数据库保护结构来暂存备用数据库映像副本。 GCNV 是 Google 提供的完全托管的高性能文件存储服务，它使在 Google Cloud 中迁移和运行要求苛刻的企业应用程序（例如 Oracle 数据库）变得更容易、更安全、更经济高效。其多样化的服务级别允许灵活地控制存储成本，同时实现接近零的 RPO 和可管理的 RTO。在本文档中，我们演示了如何从 GCNV 存储池配置和导出 NFS 文件系统，并将其挂载到 Oracle 数据库服务器上，以便在主存储发生故障时暂存备用数据库副本以便快速恢复。

此解决方案适用于以下用例：

  • Oracle 数据库数据文件映像通过 RMAN 复制备份到Google Cloud NetApp Volumes存储池上的服务器内 NFS 文件系统。

  • 当同一台或备用 Google Compute Engine VM 发生故障时，可以快速恢复 Oracle VLDB。

  • 在几分钟内从暂存数据库映像副本克隆主机上的 Oracle 数据库副本以供其他用例使用。

受众

此解决方案适用于以下人群：

  • 在 Google Cloud Platform 中设置和管理 Oracle VLDB 的 DBA。

  • 在 Google Cloud Platform 中测试 Oracle 工作负载的数据库解决方案架构师。

  • 管理部署到 GCNV 存储池的 Oracle 数据库的存储管理员。

  • 希望在 Google Cloud Platform 中建立 Oracle 数据库的应用程序所有者。

解决方案测试和验证环境

该解决方案的测试和验证是在Google Cloud NetApp Volumes存储池和 Google Compute Engine VM 中执行的，这些存储池和虚拟机可能与最终部署环境不匹配。有关更多信息，请参阅部署考虑的关键因素 。

架构

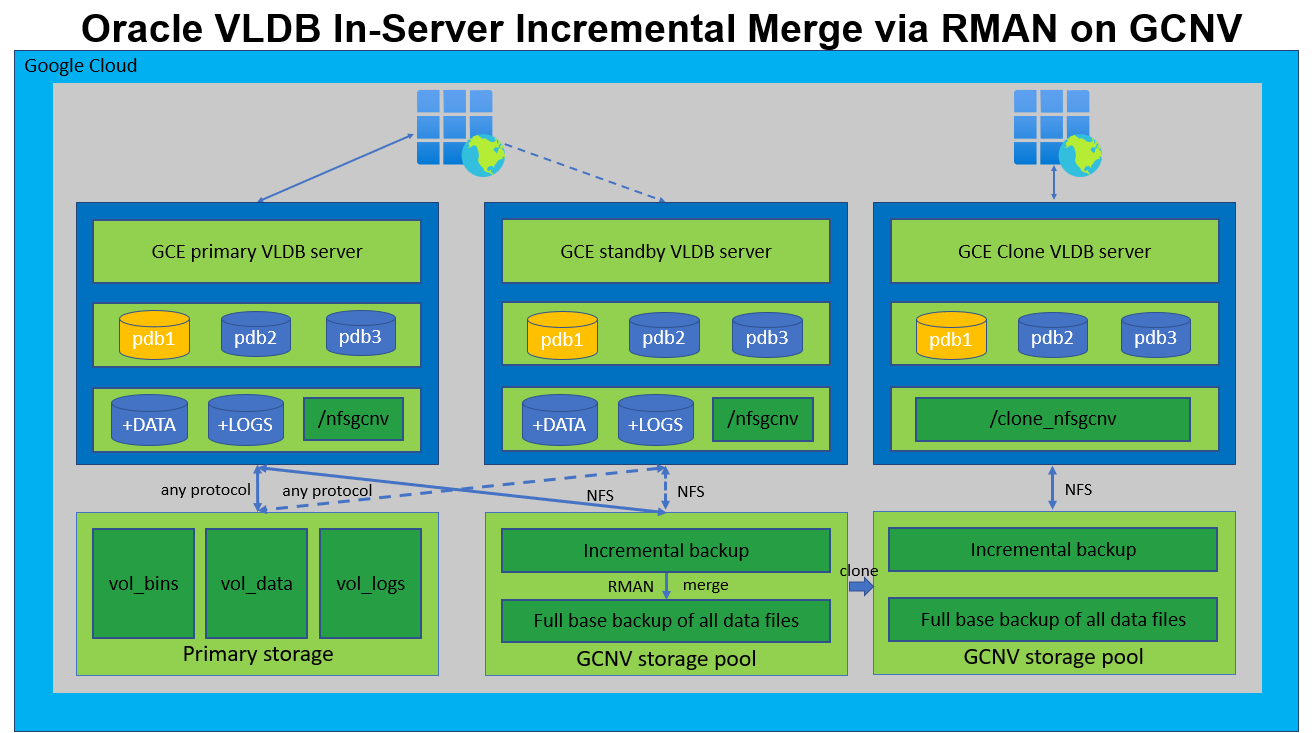

此图提供了使用 GCNV 在 Google 云中实现 Oracle VLDB 增量合并的详细图片。

硬件和软件组件

硬件

Google Cloud NetApp Volumes存储池

Google 当前提供的服务

高级服务 2 TiB 存储池，标准服务 2 TiB 存储池

用于数据库服务器的 Google Compute Engine VM

N1（4 个 vCPU，15 GiB 内存）

2 个虚拟机，一个作为主数据库服务器，另一个作为备用或克隆数据库服务器

软件

红帽Linux

Red Hat Enterprise Linux 8.10（Ootpa）- x86/64

RHEL 市场图像，PAYG

Oracle 网格基础设施

19.18 版

已应用RU补丁p34762026_190000_Linux-x86-64.zip

Oracle 数据库

19.18 版

已应用RU补丁p34765931_190000_Linux-x86-64.zip

dNFS一次性补丁

p32931941_190000_Linux-x86-64.zip

适用于网格和数据库

Oracle OPatch

版本 12.2.0.1.36

最新补丁 p6880880_190000_Linux-x86-64.zip

NFS

3.0 版

已启用 Oracle dNFS

Ansible

版本核心 2.16.2

python版本-3.10.13

部署考虑的关键因素

  • GCNV 存储池服务级别。 GCNV存储池提供四种服务级别：Standard、Premium、Extreme和Flex。默认情况下，自动 QoS 适用于存储池内创建的卷，它会根据卷的大小和服务级别限制卷的吞吐量。唯一的例外是，从 Flex 存储池分配的卷共享存储池可用的吞吐量。

  • *RMAN 增量合并的 Oracle VLDB 服务器内备份存储限制。*在我们的测试和验证中，用于 Oracle 增量备份和合并的 NFS 卷是从具有标准服务级别的单个 GCNV 存储池中分配的，该存储池的容量限制为 200 TiB。对于超过该阈值的部署，可以并行实现多个 GCNV 存储池和多个 NFS 挂载点，以提供更高的容量。

  • 使用 RMAN 增量合并实现 Oracle 可恢复性。 RMAN 服务器内增量备份和合并通常根据您的 RTO 和 RPO 目标以用户定义的频率执行。如果主数据库文件存储和/或归档日志完全丢失，则可能会发生数据丢失。 Oracle 数据库可以从服务器内的数据库备份映像副本恢复到最新的可用增量备份。为了最大限度地减少数据丢失，需要在 GCNV NFS 备份挂载点上设置 Oracle 闪回恢复区，并将存档日志与数据库映像副本一起备份到同一个 NFS 挂载点，以便在发生故障时将数据库前滚到最后的存档日志。因此，可以实现接近零的 RPO。

  • *在 GCNV 存储池上从 NFS 映像备份运行 Oracle VLDB。*目前，不支持将数据库卷服务级别从标准重新分配为高级或极端。但是，支持将服务级别从高级重新分配到极致。为了在发生故障后长时间在映像副本上运行数据库，建议从高级存储池中分配卷以用于数据库映像副本备份。

  • *Google Compute Engine 虚拟机。*在测试验证中，我们使用N1类型的GCE VM实例作为Oracle数据库服务器。其他类型的 GCE VM 可能更加优化，更适合数据库工作负载。根据实际工作负载要求，适当调整虚拟机的 vCPU 数量和 RAM 容量。

  • dNFS 配置。 dNFS 内置于 Oracle 内核中，并且已知当 Oracle 部署到 NFS 存储时可显著提高 Oracle 数据库性能。dNFS 打包到 Oracle 二进制文件中，但默认情况下未打开。对于 NFS 上的任何 Oracle 数据库部署，都应该启用它。对于 VLDB 的多个 GCNV 存储池部署，应正确配置到不同 GCNV 存储池的 dNFS 多路径。

解决方案部署

该解决方案假定 Oracle VLDB 已部署在 VPC 内的 Google Cloud 环境中。 Oracle VLDB 可以在 GCNV 存储或 Google Cloud 生态系统内的任何其他存储选项上运行。以下部分提供了设置 Oracle VLDB 映像备份并通过 RMAN 增量合并到从 GCNV 存储池挂载的 NFS 文件系统的分步部署过程。 Oracle VLDB 的主存储也托管在不同的 GCNV 存储池中。

部署先决条件

Details

部署需要以下先决条件。

  1. 已设置 GCP 帐户，并在 Google Cloud 帐户中的项目内创建了必要的 VPC 和网络配置。

  2. 在 Google Cloud 门户控制台中，按照文档操作"创建存储池"创建一个具有标准服务的GCNV存储池，如下所示。

    此图展示了 Google 云门户控制台的 GCNV 存储池屏幕

  3. 在 Google Cloud 门户控制台中，按照文档操作"创建卷"为服务器内 Oracle VLDB 映像备份创建卷。在此解决方案演示中，Oracle VLDB 主存储也托管在 GCNV 上，如下所示。

    此图展示了 Google 云门户控制台的 GCNV 存储卷屏幕

将 NFS 卷从 GCNV 挂载到主 Oracle VLDB 服务器

Details

为了获得更好的性能，为 Oracle VLDB 服务器内备份配置的 GCNV 卷理想情况下应位于与主数据库服务器和主存储相同的 Google Cloud 区域。

  1. 从 Google Cloud 控制台检索 GCNV 卷 NFS 导出路径。

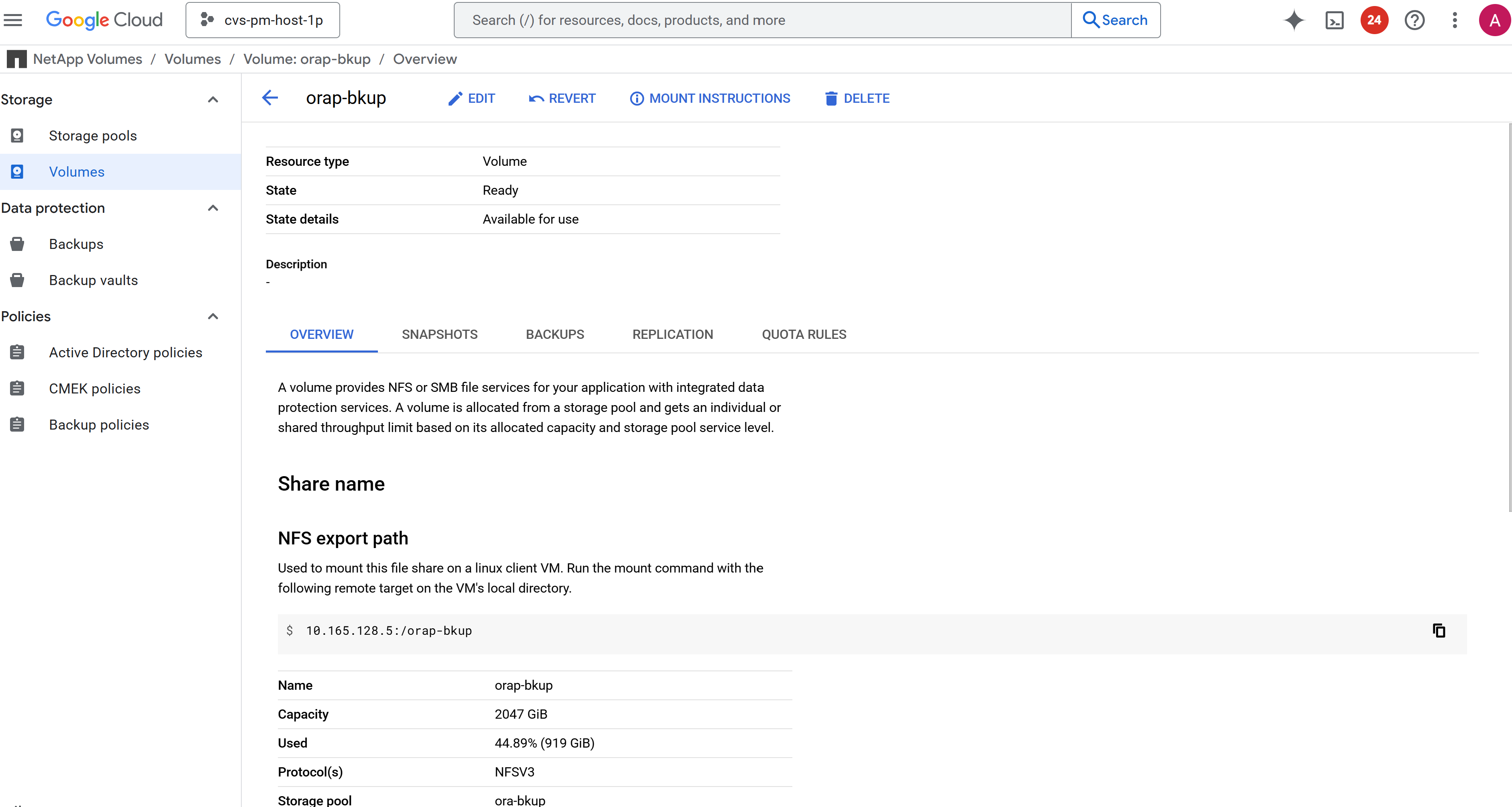

    此图展示了 Google 云门户控制台的 GCNV 存储卷屏幕

  2. 登录到主 Oracle VLDB 服务器。以 root 身份挂载从 GCNV 存储导出的 NFS 卷。根据需要更改为您的 NFS 服务器 IP 地址和文件路径。

    sudo mkdir /nfsgcnv
    mount 10.165.128.5:/orap-bkup /nfsgcnv -o rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144

  3. 将挂载点所有权更改为 oracle:oisntall，或根据需要更改为您的 oracle 用户名和主要组。

    sudo chown oracle:oinstall /nfsgcnv

  4. 将 NFS 挂载添加到 /etc/fstab。

    sudo vi /etc/fstab

设置 Oracle RMAN 增量合并到 GCNV 上的映像副本，以进行服务器内 VLDB 备份

Details

RMAN 增量合并在每个增量备份/合并间隔持续更新暂存数据库数据文件映像副本。数据库备份的映像副本将与您执行增量备份/合并的频率一样最新。因此，在决定 RMAN 增量备份和合并的频率时，请考虑数据库性能、RTO 和 RPO 目标。

  1. 以 oracle 用户身份登录到主 Oracle VLDB 服务器。

  2. 为了验证此解决方案，主数据库设置为具有网格基础架构重新启动配置的独立服务器，如下所示。主存储托管在提供优质服务的 GCNV 存储池上。再次强调，这不是必需的，主存储可以是 Google 云中的任何其他存储选项。

    [oracle@orap ~]$ df -h
Filesystem               Size  Used Avail Use% Mounted on
devtmpfs                 7.2G     0  7.2G   0% /dev
tmpfs                    7.3G  1.1G  6.2G  16% /dev/shm
tmpfs                    7.3G  8.5M  7.2G   1% /run
tmpfs                    7.3G     0  7.3G   0% /sys/fs/cgroup
/dev/sda2                 50G   22G   29G  43% /
/dev/sda1                200M  5.9M  194M   3% /boot/efi
10.165.128.5:/orap-u02   250G  203G   48G  81% /u02
10.165.128.5:/orap-u07   250G  203G   48G  82% /u07
10.165.128.5:/orap-u06   250G  203G   48G  81% /u06
10.165.128.5:/orap-u04   250G  203G   48G  81% /u04
10.165.128.5:/orap-u05   250G  203G   48G  82% /u05
10.165.128.5:/orap-bkup  2.0T  918G  1.2T  45% /nfsgcnv
10.165.128.5:/orap-u03   250G  202G   49G  81% /u03
10.165.128.4:/orap-u01   200G   21G  180G  11% /u01
10.165.128.5:/orap-u08   300G  201G  100G  67% /u08
tmpfs                    1.5G     0  1.5G   0% /run/user/54321

[oracle@orap ~]$ crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.DATA.dg
               ONLINE  ONLINE       orap                     STABLE
ora.LISTENER.lsnr
               ONLINE  ONLINE       orap                     STABLE
ora.LOGS.dg
               ONLINE  ONLINE       orap                     STABLE
ora.asm
               ONLINE  ONLINE       orap                     Started,STABLE
ora.ons
               OFFLINE OFFLINE      orap                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.cssd
      1        ONLINE  ONLINE       orap                     STABLE
ora.diskmon
      1        OFFLINE OFFLINE                               STABLE
ora.evmd
      1        ONLINE  ONLINE       orap                     STABLE
ora.ntap.db
      1        ONLINE  ONLINE       orap                     Open,HOME=/u01/app/o
                                                             racle/product/19.0.0
                                                             /NTAP,STABLE
--------------------------------------------------------------------------------


[oracle@orap ~]$ asmcmd
ASMCMD> lsdg
State    Type    Rebal  Sector  Logical_Sector  Block       AU  Total_MB  Free_MB  Req_mir_free_MB  Usable_file_MB  Offline_disks  Voting_files  Name
MOUNTED  EXTERN  N         512             512   4096  4194304   1228800  1150288                0         1150288              0             N  DATA/
MOUNTED  EXTERN  N         512             512   4096  4194304    204800   204636                0          204636              0             N  LOGS/
ASMCMD> lsdsk
Path
/u02/oradata/asm/orap_data_disk_01
/u02/oradata/asm/orap_data_disk_02
/u02/oradata/asm/orap_data_disk_03
/u02/oradata/asm/orap_data_disk_04
/u03/oradata/asm/orap_data_disk_05
/u03/oradata/asm/orap_data_disk_06
/u03/oradata/asm/orap_data_disk_07
/u03/oradata/asm/orap_data_disk_08
/u04/oradata/asm/orap_data_disk_09
/u04/oradata/asm/orap_data_disk_10
/u04/oradata/asm/orap_data_disk_11
/u04/oradata/asm/orap_data_disk_12
/u05/oradata/asm/orap_data_disk_13
/u05/oradata/asm/orap_data_disk_14
/u05/oradata/asm/orap_data_disk_15
/u05/oradata/asm/orap_data_disk_16
/u06/oradata/asm/orap_data_disk_17
/u06/oradata/asm/orap_data_disk_18
/u06/oradata/asm/orap_data_disk_19
/u06/oradata/asm/orap_data_disk_20
/u07/oradata/asm/orap_data_disk_21
/u07/oradata/asm/orap_data_disk_22
/u07/oradata/asm/orap_data_disk_23
/u07/oradata/asm/orap_data_disk_24
/u08/oralogs/asm/orap_logs_disk_01
/u08/oralogs/asm/orap_logs_disk_02
/u08/oralogs/asm/orap_logs_disk_03
/u08/oralogs/asm/orap_logs_disk_04

  3. 在挂载点 /nfsgcnv 下创建一个 oracopy 目录来存储 oracle 数据文件映像副本，以及一个 archlog 目录用于 Oracle 闪回恢复区。

    mkdir /nfsgcnv/oracopy
    mkdir /nfsgcnv/archlog

  4. 通过 sqlplus 登录到 Oracle 数据库，启用块更改跟踪以加快增量备份速度，并且如果 Oracle 闪存恢复区当前位于主存储上，则将其更改为 GCNV NFS 挂载。这允许将 RMAN 默认控制文件/spfile 自动备份和存档日志备份到 GCNV NFS 挂载，以便将数据库恢复到最后一个可用的存档日志。

    sqlplus / as sysdba

    在 sqlplus 提示符下，执行以下命令。

    alter database enable block change tracking using file '/nfsgcnv/oracopy/bct_ntap.ctf'
    alter system set db_recovery_file_dest='/nfsgcnv/archlog/' scope=both;

    预期输出：

    [oracle@orap ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Wed Mar 20 16:44:21 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2022, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.18.0.0.0

SQL> alter database enable block change tracking using file '/nfsgcnv/oracopy/bct_ntap.ctf';

Database altered.

SQL> alter system set db_recovery_file_dest='/nfsgcnv/archlog/' scope=both;

System altered.

SQL> alter system set db_recovery_file_dest_size = 400G scope=both;

System altered.

SQL> show parameter recover

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
db_recovery_file_dest                string      /nfsgcnv/archlog/
db_recovery_file_dest_size           big integer 400G
db_unrecoverable_scn_tracking        boolean     TRUE
recovery_parallelism                 integer     0
remote_recovery_file_dest            string
SQL>

  5. 创建 RMAN 备份和增量合并脚本。该脚本为并行 RMAN 备份和合并分配多个通道。第一次执行将生成初始的完整基线图像副本。在完整运行过程中，它首先清除保留窗口之外的过时备份，以保持暂存区清洁。然后它在合并和备份之前切换当前日志文件。增量备份在合并之后进行，因此数据库映像副本落后于当前数据库状态一个备份/合并周期。可以根据用户的喜好逆转合并和备份的顺序，以便更快地恢复。 RMAN 脚本可以集成到一个简单的 shell 脚本中，从主 DB 服务器上的 crontab 执行。确保 RMAN 设置中的控制文件自动备份处于打开状态。

    vi /home/oracle/rman_bkup_merge.cmd

Add following lines:

RUN
{
  allocate channel c1 device type disk format '/nfsgcnv/oracopy/%U';
  allocate channel c2 device type disk format '/nfsgcnv/oracopy/%U';
  allocate channel c3 device type disk format '/nfsgcnv/oracopy/%U';
  allocate channel c4 device type disk format '/nfsgcnv/oracopy/%U';
  delete obsolete;
  sql 'alter system archive log current';
  recover copy of database with tag 'OraCopyBKUPonGCNV_level_0';
  backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonGCNV_level_0' database;
}

  6. 在主 Oracle VLDB 服务器上，以 oracle 用户身份本地登录到 RMAN，可以使用或不使用 RMAN 目录。在此演示中，我们没有连接到 RMAN 目录。

    rman target / nocatalog;

output:

[oracle@orap ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Wed Mar 20 16:54:24 2024
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: NTAP (DBID=1379265854)
using target database control file instead of recovery catalog

  7. 从 RMAN 提示符执行脚本。第一次执行会创建基线数据库映像副本，后续执行则会逐步合并和更新基线映像副本。以下是如何执行脚本以及典型的输出。设置通道数以匹配主机上的 CPU 核心。

    RMAN> @/home/oracle/rman_bkup_merge.cmd

RMAN> RUN
2> {
3>   allocate channel c1 device type disk format '/nfsgcnv/oracopy/%U';
4>   allocate channel c2 device type disk format '/nfsgcnv/oracopy/%U';
5>   allocate channel c3 device type disk format '/nfsgcnv/oracopy/%U';
6>   allocate channel c4 device type disk format '/nfsgcnv/oracopy/%U';
7>   delete obsolete;
8>   sql 'alter system archive log current';
9>   recover copy of database with tag 'OraCopyBKUPonGCNV_level_0';
10>   backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonGCNV_level_0' database;
11> }
allocated channel: c1
channel c1: SID=23 device type=DISK

allocated channel: c2
channel c2: SID=151 device type=DISK

allocated channel: c3
channel c3: SID=20 device type=DISK

allocated channel: c4
channel c4: SID=150 device type=DISK

RMAN retention policy will be applied to the command
RMAN retention policy is set to redundancy 1
Deleting the following obsolete backups and copies:
Type                 Key    Completion Time    Filename/Handle
-------------------- ------ ------------------ --------------------
Backup Set           1      22-MAY-25
  Backup Piece       1      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201793914.260.1201793917
Backup Set           2      22-MAY-25
  Backup Piece       2      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201795422.261.1201795425
Backup Set           3      22-MAY-25
  Backup Piece       3      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201797230.262.1201797231
Backup Set           4      22-MAY-25
  Backup Piece       4      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201799039.264.1201799041
Backup Set           5      22-MAY-25
  Backup Piece       5      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201802655.265.1201802659
Backup Set           6      22-MAY-25
  Backup Piece       6      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201803558.266.1201803561
Backup Set           7      22-MAY-25
  Backup Piece       7      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201805066.267.1201805069
Backup Set           8      22-MAY-25
  Backup Piece       8      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201806272.268.1201806275
Backup Set           9      22-MAY-25
  Backup Piece       9      22-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201807778.269.1201807781
Backup Set           10     23-MAY-25
  Backup Piece       10     23-MAY-25          +LOGS/NTAP/AUTOBACKUP/2025_05_23/s_1201874668.271.1201874669
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201793914.260.1201793917 RECID=1 STAMP=1201793917
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201799039.264.1201799041 RECID=4 STAMP=1201799040
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201795422.261.1201795425 RECID=2 STAMP=1201795424
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201803558.266.1201803561 RECID=6 STAMP=1201803561
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201797230.262.1201797231 RECID=3 STAMP=1201797231
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201802655.265.1201802659 RECID=5 STAMP=1201802658
deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201805066.267.1201805069 RECID=7 STAMP=1201805069
Deleted 2 objects

deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201806272.268.1201806275 RECID=8 STAMP=1201806275
Deleted 3 objects

deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_22/s_1201807778.269.1201807781 RECID=9 STAMP=1201807780
Deleted 2 objects

deleted backup piece
backup piece handle=+LOGS/NTAP/AUTOBACKUP/2025_05_23/s_1201874668.271.1201874669 RECID=10 STAMP=1201874669
Deleted 3 objects


sql statement: alter system archive log current

Starting recover at 23-MAY-25
no copy of datafile 1 found to recover
no copy of datafile 3 found to recover
no copy of datafile 4 found to recover
no copy of datafile 5 found to recover
no copy of datafile 6 found to recover
no copy of datafile 7 found to recover
no copy of datafile 8 found to recover
no copy of datafile 9 found to recover
no copy of datafile 10 found to recover
no copy of datafile 11 found to recover
no copy of datafile 12 found to recover
no copy of datafile 13 found to recover
no copy of datafile 14 found to recover
no copy of datafile 15 found to recover
no copy of datafile 16 found to recover
no copy of datafile 17 found to recover
no copy of datafile 18 found to recover
no copy of datafile 19 found to recover
no copy of datafile 20 found to recover
no copy of datafile 21 found to recover
no copy of datafile 22 found to recover
no copy of datafile 23 found to recover
no copy of datafile 24 found to recover
no copy of datafile 25 found to recover
no copy of datafile 26 found to recover
no copy of datafile 27 found to recover
no copy of datafile 28 found to recover
no copy of datafile 29 found to recover
no copy of datafile 30 found to recover
no copy of datafile 31 found to recover
no copy of datafile 32 found to recover
no copy of datafile 33 found to recover
no copy of datafile 34 found to recover
no copy of datafile 35 found to recover
no copy of datafile 36 found to recover
no copy of datafile 37 found to recover
no copy of datafile 38 found to recover
no copy of datafile 39 found to recover
no copy of datafile 40 found to recover
no copy of datafile 41 found to recover
no copy of datafile 42 found to recover
no copy of datafile 43 found to recover
no copy of datafile 44 found to recover
no copy of datafile 45 found to recover
no copy of datafile 46 found to recover
no copy of datafile 47 found to recover
no copy of datafile 48 found to recover
no copy of datafile 49 found to recover
no copy of datafile 50 found to recover
Finished recover at 23-MAY-25

Starting backup at 23-MAY-25
no parent backup or copy of datafile 1 found
no parent backup or copy of datafile 3 found
no parent backup or copy of datafile 4 found
no parent backup or copy of datafile 7 found
no parent backup or copy of datafile 6 found
no parent backup or copy of datafile 5 found
no parent backup or copy of datafile 8 found
no parent backup or copy of datafile 21 found
no parent backup or copy of datafile 22 found
no parent backup or copy of datafile 25 found
no parent backup or copy of datafile 28 found
no parent backup or copy of datafile 32 found
no parent backup or copy of datafile 33 found
no parent backup or copy of datafile 36 found
no parent backup or copy of datafile 41 found
no parent backup or copy of datafile 44 found
no parent backup or copy of datafile 46 found
no parent backup or copy of datafile 10 found
no parent backup or copy of datafile 9 found
no parent backup or copy of datafile 11 found
no parent backup or copy of datafile 12 found
no parent backup or copy of datafile 23 found
no parent backup or copy of datafile 26 found
no parent backup or copy of datafile 29 found
no parent backup or copy of datafile 30 found
no parent backup or copy of datafile 34 found
no parent backup or copy of datafile 37 found
no parent backup or copy of datafile 39 found
no parent backup or copy of datafile 42 found
no parent backup or copy of datafile 47 found
no parent backup or copy of datafile 48 found
no parent backup or copy of datafile 14 found
no parent backup or copy of datafile 13 found
no parent backup or copy of datafile 15 found
no parent backup or copy of datafile 16 found
no parent backup or copy of datafile 24 found
no parent backup or copy of datafile 27 found
no parent backup or copy of datafile 31 found
no parent backup or copy of datafile 35 found
no parent backup or copy of datafile 38 found
no parent backup or copy of datafile 40 found
no parent backup or copy of datafile 43 found
no parent backup or copy of datafile 45 found
no parent backup or copy of datafile 49 found
no parent backup or copy of datafile 50 found
no parent backup or copy of datafile 18 found
no parent backup or copy of datafile 17 found
no parent backup or copy of datafile 19 found
no parent backup or copy of datafile 20 found
channel c1: starting datafile copy
input datafile file number=00021 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019
channel c2: starting datafile copy
input datafile file number=00022 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419
channel c3: starting datafile copy
input datafile file number=00025 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401
channel c4: starting datafile copy
input datafile file number=00028 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=4 STAMP=1201886858
channel c4: datafile copy complete, elapsed time: 01:19:26
channel c4: starting datafile copy
input datafile file number=00032 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=5 STAMP=1201886918
channel c3: datafile copy complete, elapsed time: 01:20:21
channel c3: starting datafile copy
input datafile file number=00033 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=6 STAMP=1201886943
channel c1: datafile copy complete, elapsed time: 01:20:50
channel c1: starting datafile copy
input datafile file number=00036 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=7 STAMP=1201887138
channel c2: datafile copy complete, elapsed time: 01:24:05
channel c2: starting datafile copy
input datafile file number=00041 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=8 STAMP=1201891753
channel c4: datafile copy complete, elapsed time: 01:21:26
channel c4: starting datafile copy
input datafile file number=00044 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=9 STAMP=1201891755
channel c1: datafile copy complete, elapsed time: 01:20:03
channel c1: starting datafile copy
input datafile file number=00046 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=10 STAMP=1201891766
channel c3: datafile copy complete, elapsed time: 01:20:44
channel c3: starting datafile copy
input datafile file number=00023 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=11 STAMP=1201892161
channel c2: datafile copy complete, elapsed time: 01:23:37
channel c2: starting datafile copy
input datafile file number=00026 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=12 STAMP=1201896617
channel c3: datafile copy complete, elapsed time: 01:20:53
channel c3: starting datafile copy
input datafile file number=00029 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=13 STAMP=1201896650
channel c1: datafile copy complete, elapsed time: 01:21:35
channel c1: starting datafile copy
input datafile file number=00030 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=14 STAMP=1201896694
channel c4: datafile copy complete, elapsed time: 01:22:20
channel c4: starting datafile copy
input datafile file number=00034 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=15 STAMP=1201897015
channel c2: datafile copy complete, elapsed time: 01:20:53
channel c2: starting datafile copy
input datafile file number=00037 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=16 STAMP=1201901480
channel c1: datafile copy complete, elapsed time: 01:20:37
channel c1: starting datafile copy
input datafile file number=00039 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=17 STAMP=1201901527
channel c3: datafile copy complete, elapsed time: 01:21:48
channel c3: starting datafile copy
input datafile file number=00042 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=18 STAMP=1201901805
channel c4: datafile copy complete, elapsed time: 01:25:14
channel c4: starting datafile copy
input datafile file number=00047 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=19 STAMP=1201901963
channel c2: datafile copy complete, elapsed time: 01:22:23
channel c2: starting datafile copy
input datafile file number=00048 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=20 STAMP=1201906343
channel c1: datafile copy complete, elapsed time: 01:20:55
channel c1: starting datafile copy
input datafile file number=00024 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=21 STAMP=1201906415
channel c3: datafile copy complete, elapsed time: 01:21:24
channel c3: starting datafile copy
input datafile file number=00027 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=22 STAMP=1201906737
channel c4: datafile copy complete, elapsed time: 01:22:15
channel c4: starting datafile copy
input datafile file number=00031 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=23 STAMP=1201906865
channel c2: datafile copy complete, elapsed time: 01:21:45
channel c2: starting datafile copy
input datafile file number=00035 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=24 STAMP=1201911205
channel c1: datafile copy complete, elapsed time: 01:21:03
channel c1: starting datafile copy
input datafile file number=00038 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=25 STAMP=1201911367
channel c3: datafile copy complete, elapsed time: 01:22:33
channel c3: starting datafile copy
input datafile file number=00040 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=26 STAMP=1201911632
channel c4: datafile copy complete, elapsed time: 01:21:33
channel c4: starting datafile copy
input datafile file number=00043 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=27 STAMP=1201911835
channel c2: datafile copy complete, elapsed time: 01:22:57
channel c2: starting datafile copy
input datafile file number=00045 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=28 STAMP=1201916184
channel c1: datafile copy complete, elapsed time: 01:23:06
channel c1: starting datafile copy
input datafile file number=00049 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=29 STAMP=1201916197
channel c3: datafile copy complete, elapsed time: 01:20:24
channel c3: starting datafile copy
input datafile file number=00050 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=30 STAMP=1201916471
channel c4: datafile copy complete, elapsed time: 01:20:40
channel c4: starting datafile copy
input datafile file number=00001 name=+DATA/NTAP/DATAFILE/system.257.1201727295
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=31 STAMP=1201916673
channel c4: datafile copy complete, elapsed time: 00:03:15
channel c4: starting datafile copy
input datafile file number=00003 name=+DATA/NTAP/DATAFILE/sysaux.258.1201727339
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=32 STAMP=1201916703
channel c2: datafile copy complete, elapsed time: 01:21:05
channel c2: starting datafile copy
input datafile file number=00004 name=+DATA/NTAP/DATAFILE/undotbs1.259.1201727365
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=33 STAMP=1201916821
channel c2: datafile copy complete, elapsed time: 00:01:55
channel c2: starting datafile copy
input datafile file number=00010 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=34 STAMP=1201916851
channel c4: datafile copy complete, elapsed time: 00:02:58
channel c4: starting datafile copy
input datafile file number=00014 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=35 STAMP=1201916936
channel c2: datafile copy complete, elapsed time: 00:01:52
channel c2: starting datafile copy
input datafile file number=00018 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=36 STAMP=1201916940
channel c4: datafile copy complete, elapsed time: 00:01:25
channel c4: starting datafile copy
input datafile file number=00006 name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=37 STAMP=1201917017
channel c4: datafile copy complete, elapsed time: 00:01:25
channel c4: starting datafile copy
input datafile file number=00009 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=38 STAMP=1201917035
channel c2: datafile copy complete, elapsed time: 00:01:34
channel c2: starting datafile copy
input datafile file number=00013 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=39 STAMP=1201917090
channel c4: datafile copy complete, elapsed time: 00:01:03
channel c4: starting datafile copy
input datafile file number=00017 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=40 STAMP=1201917097
channel c2: datafile copy complete, elapsed time: 00:01:00
channel c2: starting datafile copy
input datafile file number=00005 name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=42 STAMP=1201917174
channel c2: datafile copy complete, elapsed time: 00:01:25
channel c2: starting datafile copy
input datafile file number=00011 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=41 STAMP=1201917174
channel c4: datafile copy complete, elapsed time: 00:01:31
channel c4: starting datafile copy
input datafile file number=00008 name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=44 STAMP=1201917237
channel c2: datafile copy complete, elapsed time: 00:00:56
channel c2: starting datafile copy
input datafile file number=00015 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=43 STAMP=1201917232
channel c4: datafile copy complete, elapsed time: 00:00:55
channel c4: starting datafile copy
input datafile file number=00019 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=45 STAMP=1201917288
channel c2: datafile copy complete, elapsed time: 00:00:55
channel c2: starting datafile copy
input datafile file number=00007 name=+DATA/NTAP/DATAFILE/users.260.1201727365
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=46 STAMP=1201917295
channel c4: datafile copy complete, elapsed time: 00:00:55
channel c4: starting datafile copy
input datafile file number=00012 name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=47 STAMP=1201917297
channel c2: datafile copy complete, elapsed time: 00:00:02
channel c2: starting datafile copy
input datafile file number=00016 name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=48 STAMP=1201917297
channel c4: datafile copy complete, elapsed time: 00:00:01
channel c4: starting datafile copy
input datafile file number=00020 name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=49 STAMP=1201917298
channel c2: datafile copy complete, elapsed time: 00:00:01
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=50 STAMP=1201917298
channel c4: datafile copy complete, elapsed time: 00:00:01
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=51 STAMP=1201919158
channel c3: datafile copy complete, elapsed time: 00:49:26
output file name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=52 STAMP=1201919167
channel c1: datafile copy complete, elapsed time: 00:49:36
Finished backup at 24-MAY-25

Starting Control File and SPFILE Autobackup at 24-MAY-25
piece handle=/nfsgcnv/archlog/NTAP/autobackup/2025_05_24/o1_mf_s_1201919173_n32cl775_.bkp comment=NONE
Finished Control File and SPFILE Autobackup at 24-MAY-25
released channel: c1
released channel: c2
released channel: c3
released channel: c4

RMAN> **end-of-file**

RMAN>

  8. 列出备份后的数据库映像副本，观察到在 GCNV NFS 挂载点中已创建数据库映像副本。

    RMAN> list copy of database tag 'OraCopyBKUPonGCNV_level_0';

List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
31      1    A 24-MAY-25       2812886    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

34      3    A 24-MAY-25       2813001    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

33      4    A 24-MAY-25       2813043    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

42      5    A 24-MAY-25       2377077    21-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

37      6    A 24-MAY-25       2377077    21-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

47      7    A 24-MAY-25       2813504    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

43      8    A 24-MAY-25       2377077    21-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

39      9    A 24-MAY-25       2813238    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

35      10   A 24-MAY-25       2813112    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

44      11   A 24-MAY-25       2813425    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

48      12   A 24-MAY-25       2813508    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

40      13   A 24-MAY-25       2813243    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

36      14   A 24-MAY-25       2813124    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

45      15   A 24-MAY-25       2813463    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

49      16   A 24-MAY-25       2813512    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

41      17   A 24-MAY-25       2813364    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

38      18   A 24-MAY-25       2813185    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

46      19   A 24-MAY-25       2813467    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

50      20   A 24-MAY-25       2813516    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

6       21   A 23-MAY-25       2768847    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

7       22   A 23-MAY-25       2768851    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

12      23   A 23-MAY-25       2777335    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

24      24   A 24-MAY-25       2803186    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

5       25   A 23-MAY-25       2768856    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

15      26   A 23-MAY-25       2777644    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

25      27   A 24-MAY-25       2803231    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

4       28   A 23-MAY-25       2768859    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

17      29   A 23-MAY-25       2781833    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

16      30   A 23-MAY-25       2781842    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

26      31   A 24-MAY-25       2803450    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

8       32   A 23-MAY-25       2773143    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

10      33   A 23-MAY-25       2773183    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

18      34   A 23-MAY-25       2781890    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

27      35   A 24-MAY-25       2803827    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

9       36   A 23-MAY-25       2773193    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

19      37   A 23-MAY-25       2782104    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

28      38   A 24-MAY-25       2808047    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

20      39   A 23-MAY-25       2786009    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

29      40   A 24-MAY-25       2808169    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

11      41   A 23-MAY-25       2773323    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

21      42   A 23-MAY-25       2786042    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

30      43   A 24-MAY-25       2808367    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

14      44   A 23-MAY-25       2777322    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

32      45   A 24-MAY-25       2808624    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

13      46   A 23-MAY-25       2777326    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

22      47   A 23-MAY-25       2786345    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

23      48   A 23-MAY-25       2786456    23-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

52      49   A 24-MAY-25       2812634    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

51      50   A 24-MAY-25       2812638    24-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3


RMAN>

  9. 从 Oracle RMAN 命令提示符报告模式以观察当前 VLDB 数据文件是否位于主存储上。

    RMAN> report schema;

Report of database schema for database with db_unique_name NTAP

List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    1070     SYSTEM               YES     +DATA/NTAP/DATAFILE/system.257.1201727295
3    970      SYSAUX               NO      +DATA/NTAP/DATAFILE/sysaux.258.1201727339
4    680      UNDOTBS1             YES     +DATA/NTAP/DATAFILE/undotbs1.259.1201727365
5    400      PDB$SEED:SYSTEM      NO      +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307
6    460      PDB$SEED:SYSAUX      NO      +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307
7    5        USERS                NO      +DATA/NTAP/DATAFILE/users.260.1201727365
8    235      PDB$SEED:UNDOTBS1    NO      +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307
9    410      NTAP_PDB1:SYSTEM     YES     +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255
10   510      NTAP_PDB1:SYSAUX     NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255
11   240      NTAP_PDB1:UNDOTBS1   YES     +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255
12   5        NTAP_PDB1:USERS      NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277
13   410      NTAP_PDB2:SYSTEM     YES     +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279
14   510      NTAP_PDB2:SYSAUX     NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279
15   235      NTAP_PDB2:UNDOTBS1   YES     +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279
16   5        NTAP_PDB2:USERS      NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301
17   410      NTAP_PDB3:SYSTEM     YES     +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301
18   510      NTAP_PDB3:SYSAUX     NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301
19   235      NTAP_PDB3:UNDOTBS1   YES     +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301
20   5        NTAP_PDB3:USERS      NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323
21   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019
22   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419
23   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535
24   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665
25   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401
26   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153
27   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207
28   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271
29   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261
30   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317
31   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343
32   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351
33   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805
34   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829
35   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821
36   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969
37   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025
38   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375
39   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375
40   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381
41   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399
42   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601
43   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629
44   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651
45   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031
46   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095
47   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051
48   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549
49   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563
50   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
1    123      TEMP                 32767       +DATA/NTAP/TEMPFILE/temp.265.1201727469
2    123      PDB$SEED:TEMP        32767       +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335
3    16384    NTAP_PDB1:TEMP       32767       +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271
4    30720    NTAP_PDB2:TEMP       32767       +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295
5    30720    NTAP_PDB3:TEMP       32767       +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319

RMAN>

  10. 验证来自 OS NFS 挂载点的数据库映像副本。

    [oracle@orap ~]$ ls -l /nfsgcnv/oracopy/
total 954924748
-rw-r----- 1 oracle asm    11600384 May 27 16:25 bct_ntap.ctf
-rw-r----- 1 oracle asm 32212262912 May 23 17:29 data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm
-rw-r----- 1 oracle asm 32212262912 May 23 17:32 data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm
-rw-r----- 1 oracle asm 32212262912 May 23 17:28 data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn
-rw-r----- 1 oracle asm 32212262912 May 23 17:27 data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn
-rw-r----- 1 oracle asm 32212262912 May 23 18:49 data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl
-rw-r----- 1 oracle asm 32212262912 May 23 18:49 data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf
-rw-r----- 1 oracle asm 32212262912 May 23 18:49 data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9
-rw-r----- 1 oracle asm 32212262912 May 23 18:56 data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd
-rw-r----- 1 oracle asm 32212262912 May 23 20:11 data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc
-rw-r----- 1 oracle asm 32212262912 May 23 20:10 data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc
-rw-r----- 1 oracle asm 32212262912 May 23 20:10 data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr
-rw-r----- 1 oracle asm 32212262912 May 23 20:16 data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7
-rw-r----- 1 oracle asm 32212262912 May 23 21:32 data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h
-rw-r----- 1 oracle asm 32212262912 May 23 21:31 data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b
-rw-r----- 1 oracle asm 32212262912 May 23 21:36 data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o
-rw-r----- 1 oracle asm 32212262912 May 23 21:39 data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu
-rw-r----- 1 oracle asm 32212262912 May 23 22:52 data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th
-rw-r----- 1 oracle asm 32212262912 May 23 22:53 data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv
-rw-r----- 1 oracle asm 32212262912 May 23 22:58 data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i
-rw-r----- 1 oracle asm 32212262912 May 23 23:01 data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd
-rw-r----- 1 oracle asm 32212262912 May 24 00:13 data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8
-rw-r----- 1 oracle asm 32212262912 May 24 00:16 data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk
-rw-r----- 1 oracle asm 32212262912 May 24 00:20 data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p
-rw-r----- 1 oracle asm 32212262912 May 24 00:23 data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m
-rw-r----- 1 oracle asm 32212262912 May 24 01:36 data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7
-rw-r----- 1 oracle asm 32212262912 May 24 01:36 data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did
-rw-r----- 1 oracle asm 32212262912 May 24 01:41 data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp
-rw-r----- 1 oracle asm 32212262912 May 24 01:45 data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17
-rw-r----- 1 oracle asm 32212262912 May 24 02:26 data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95
-rw-r----- 1 oracle asm 32212262912 May 24 02:25 data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95
-rw-r----- 1 oracle asm   534781952 May 24 01:48 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu
-rw-r----- 1 oracle asm   534781952 May 24 01:49 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp
-rw-r----- 1 oracle asm   534781952 May 24 01:50 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e
-rw-r----- 1 oracle asm   985669632 May 24 01:47 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5
-rw-r----- 1 oracle asm   482353152 May 24 01:50 data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e
-rw-r----- 1 oracle asm  1121984512 May 24 01:44 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2
-rw-r----- 1 oracle asm   429924352 May 24 01:51 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d
-rw-r----- 1 oracle asm   429924352 May 24 01:52 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56
-rw-r----- 1 oracle asm   419438592 May 24 01:52 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a
-rw-r----- 1 oracle asm   429924352 May 24 01:51 data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35
-rw-r----- 1 oracle asm   251666432 May 24 01:53 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80
-rw-r----- 1 oracle asm   246423552 May 24 01:54 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p
-rw-r----- 1 oracle asm   246423552 May 24 01:54 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p
-rw-r----- 1 oracle asm   713039872 May 24 01:47 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa
-rw-r----- 1 oracle asm   246423552 May 24 01:53 data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82
-rw-r----- 1 oracle asm     5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh
-rw-r----- 1 oracle asm     5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi
-rw-r----- 1 oracle asm     5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi
-rw-r----- 1 oracle asm     5251072 May 24 01:54 data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg

  11. 按照所需的时间间隔，从 crontab 中的简单 UNIX shell 脚本运行 RMAN 备份脚本。

    [oracle@orap ~]$ cat rman_bkup_merge.sh
#/usr/bin/sh

log=/home/oracle/logs/ora_bkup_merge_`date +"%Y-%m%d-%H%M%S"`.log

echo "Begin Oracle DB incremental backup/merge to copy at `date +"%Y-%m%d-%H%M%S"`" >> $log

export ORACLE_HOME=/u01/app/oracle/product/19.0.0/NTAP
export ORACLE_SID=NTAP
export PATH=$ORACLE_HOME/bin:$PATH

rman target / nocatalog <<EOF>> $log
@/home/oracle/rman_bkup_merge.cmd
EOF

echo "End Oracle DB incremental backup/merge to copy at `date +"%Y-%m%d-%H%M%S"`" >> $log

这完成了从 GCNV 存储在服务器内 NFS 挂载上对 Oracle VLDB 备用映像副本备份和合并的设置。

使用备份映像副本快速恢复 Oracle VLDB

完全恢复丢失或损坏的 Oracle 数据文件

Details

如果由于主存储问题（例如数据丢失或损坏）而发生故障，数据库可以快速切换到 GCNV NFS 挂载上的映像副本，并恢复到当前状态，而无需数据库还原。消除媒体恢复可大大加快 VLDB 的数据库恢复速度。此用例假设 Oracle VLDB DB 服务器完好无损，并且数据库控制文件、存档日志和当前日志均可供恢复。

  1. 以 oracle 用户身份登录主 VLDB 服务器主机并在切换之前创建测试表。

    [oracle@orap ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Tue May 27 17:31:23 2025
Version 19.18.0.0.0

Copyright (c) 1982, 2022, Oracle.  All rights reserved.


Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.18.0.0.0

SQL> alter session set container=ntap_pdb1;

Session altered.

SQL> create table test(id integer, dt timestamp, event varchar(100));

Table created.

  2. 在测试表中插入一行。该行是在最近的增量备份和合并之后插入的，并且其数据不在备份集中。后续演示将显示数据库完全恢复后，测试行也被恢复。

    SQL> insert into test values (1, sysdate, 'validate a full recovery after a switch to DB backup copy on GCNV');

1 row created.

SQL> commit;

Commit complete.

  3. 通过关闭数据库来模拟故障。

    SQL> alter session set container=cdb$root;

Session altered.

SQL> shutdown immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.

  4. 以 oracle 用户身份，通过 RMAN 连接到 Oracle 数据库以切换要复制的数据库。

    [oracle@orap ~]$ rman target / nocatalog;

Recovery Manager: Release 19.0.0.0.0 - Production on Tue May 27 17:40:59 2025
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database (not started)

RMAN> startup mount;

Oracle instance started
database mounted

Total System Global Area    5620363744 bytes

Fixed Size                     9175520 bytes
Variable Size               1023410176 bytes
Database Buffers            4580179968 bytes
Redo Buffers                   7598080 bytes

RMAN> switch database to copy;

datafile 1 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2"
datafile 3 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5"
datafile 4 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa"
datafile 5 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a"
datafile 6 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e"
datafile 7 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg"
datafile 8 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82"
datafile 9 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35"
datafile 10 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu"
datafile 11 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80"
datafile 12 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh"
datafile 13 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d"
datafile 14 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp"
datafile 15 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p"
datafile 16 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi"
datafile 17 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56"
datafile 18 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e"
datafile 19 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p"
datafile 20 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi"
datafile 21 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm"
datafile 22 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm"
datafile 23 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr"
datafile 24 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8"
datafile 25 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn"
datafile 26 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7"
datafile 27 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk"
datafile 28 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn"
datafile 29 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h"
datafile 30 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b"
datafile 31 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p"
datafile 32 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl"
datafile 33 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf"
datafile 34 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o"
datafile 35 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m"
datafile 36 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9"
datafile 37 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu"
datafile 38 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7"
datafile 39 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th"
datafile 40 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did"
datafile 41 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd"
datafile 42 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv"
datafile 43 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp"
datafile 44 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc"
datafile 45 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17"
datafile 46 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc"
datafile 47 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i"
datafile 48 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd"
datafile 49 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95"
datafile 50 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95"

  5. 恢复并打开数据库，使其从上次增量备份更新到当前状态。

    RMAN> recover database;

Starting recover at 27-MAY-25
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=139 device type=DISK
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00012: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh
destination for restore of datafile 00028: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn
destination for restore of datafile 00041: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd
destination for restore of datafile 00044: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/213qh3m5_65_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/213qh3m5_65_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00011: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80
destination for restore of datafile 00025: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn
destination for restore of datafile 00036: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9
destination for restore of datafile 00046: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/1u3qh3m5_62_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/1u3qh3m5_62_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00015: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p
destination for restore of datafile 00029: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h
destination for restore of datafile 00039: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th
destination for restore of datafile 00048: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/1v3qh3m5_63_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/1v3qh3m5_63_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00019: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p
destination for restore of datafile 00031: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p
destination for restore of datafile 00043: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp
destination for restore of datafile 00050: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/203qh3m5_64_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/203qh3m5_64_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00010: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu
destination for restore of datafile 00021: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm
destination for restore of datafile 00032: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/243qh3m7_68_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/243qh3m7_68_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00016: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi
destination for restore of datafile 00030: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b
destination for restore of datafile 00042: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv
destination for restore of datafile 00047: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/223qh3m6_66_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/223qh3m6_66_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00020: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi
destination for restore of datafile 00035: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m
destination for restore of datafile 00045: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17
destination for restore of datafile 00049: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/233qh3m7_67_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/233qh3m7_67_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00009: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35
destination for restore of datafile 00022: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm
destination for restore of datafile 00033: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/273qh3m7_71_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/273qh3m7_71_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00013: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d
destination for restore of datafile 00026: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7
destination for restore of datafile 00037: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/283qh3m7_72_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/283qh3m7_72_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00014: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp
destination for restore of datafile 00023: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr
destination for restore of datafile 00034: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/253qh3m7_69_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/253qh3m7_69_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00018: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e
destination for restore of datafile 00024: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8
destination for restore of datafile 00038: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/263qh3m7_70_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/263qh3m7_70_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:02
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00001: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2a3qh3m9_74_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2a3qh3m9_74_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00017: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56
destination for restore of datafile 00027: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk
destination for restore of datafile 00040: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/293qh3m9_73_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/293qh3m9_73_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00007: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2g3qh3ma_80_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2g3qh3ma_80_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00004: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2c3qh3m9_76_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2c3qh3m9_76_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:03
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00003: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/2b3qh3m9_75_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/2b3qh3m9_75_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:07

starting media recovery
media recovery complete, elapsed time: 00:00:04

Finished recover at 27-MAY-25

RMAN> alter database open;

Statement processed

RMAN>

  6. 恢复后从 sqlplus 检查数据库结构，观察到除控制、临时和当前日志文件之外的所有 VLDB 数据文件现在都已切换到 GCNV NFS 文件系统上的副本。

    [oracle@orap ~]$ sqlplus / as sysdba;

SQL*Plus: Release 19.0.0.0.0 - Production on Tue May 27 17:45:04 2025
Version 19.18.0.0.0

Copyright (c) 1982, 2022, Oracle.  All rights reserved.


Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.18.0.0.0

SQL> show pdbs;

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 NTAP_PDB1                      READ WRITE NO
         4 NTAP_PDB2                      READ WRITE NO
         5 NTAP_PDB3                      READ WRITE NO
SQL> select name from v$datafile
  2  union
  3  select name from v$tempfile
  4  union
  5  select name from v$controlfile
  6  union
  7  select member from v$logfile;

NAME
--------------------------------------------------------------------------------
+DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335
+DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271
+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295
+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319
+DATA/NTAP/CONTROLFILE/current.261.1201727423
+DATA/NTAP/ONLINELOG/group_1.262.1201727425
+DATA/NTAP/ONLINELOG/group_2.263.1201727425
+DATA/NTAP/ONLINELOG/group_3.264.1201727425
+DATA/NTAP/TEMPFILE/temp.265.1201727469
+LOGS/NTAP/CONTROLFILE/current.256.1201727423
+LOGS/NTAP/ONLINELOG/group_1.258.1201727433

NAME
--------------------------------------------------------------------------------
+LOGS/NTAP/ONLINELOG/group_2.257.1201727431
+LOGS/NTAP/ONLINELOG/group_3.259.1201727433
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg

62 rows selected.

  7. 从 SQL plus 中，验证上次增量备份之后和切换到映像备份副本之前我们已惰性化的测试行是否已恢复。

    SQL> alter session set container=ntap_pdb1;

Session altered.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
27-MAY-25 05.35.44.000000 PM
validate a full recovery after a switch to DB backup copy on GCNV


SQL>

将 Oracle VLDB 从备份副本恢复到主存储

Details

主存储的存储故障修复后，数据库可以轻松地恢复到主存储，并且停机时间最短。以下是分步操作步骤。

  1. 从 RMAN 检查 DB 模式当前位于 GCNV 备份存储上。

    RMAN> report schema;

Report of database schema for database with db_unique_name NTAP

List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    1070     SYSTEM               YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2
3    970      SYSAUX               NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5
4    680      UNDOTBS1             YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa
5    400      PDB$SEED:SYSTEM      NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a
6    460      PDB$SEED:SYSAUX      NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e
7    5        USERS                NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg
8    235      PDB$SEED:UNDOTBS1    NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82
9    410      NTAP_PDB1:SYSTEM     YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35
10   510      NTAP_PDB1:SYSAUX     NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu
11   240      NTAP_PDB1:UNDOTBS1   YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80
12   5        NTAP_PDB1:USERS      NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh
13   410      NTAP_PDB2:SYSTEM     YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d
14   510      NTAP_PDB2:SYSAUX     NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp
15   235      NTAP_PDB2:UNDOTBS1   YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p
16   5        NTAP_PDB2:USERS      NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi
17   410      NTAP_PDB3:SYSTEM     YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56
18   510      NTAP_PDB3:SYSAUX     NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e
19   235      NTAP_PDB3:UNDOTBS1   YES     /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p
20   5        NTAP_PDB3:USERS      NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi
21   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm
22   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm
23   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr
24   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8
25   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn
26   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7
27   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk
28   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn
29   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h
30   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b
31   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p
32   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl
33   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf
34   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o
35   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m
36   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9
37   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu
38   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7
39   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th
40   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did
41   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd
42   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv
43   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp
44   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc
45   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17
46   30720    NTAP_PDB1:SOE1       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc
47   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i
48   30720    NTAP_PDB2:SOE2       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd
49   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95
50   30720    NTAP_PDB3:SOE3       NO      /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
1    123      TEMP                 32767       +DATA/NTAP/TEMPFILE/temp.265.1201727469
2    123      PDB$SEED:TEMP        32767       +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335
3    16384    NTAP_PDB1:TEMP       32767       +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271
4    30720    NTAP_PDB2:TEMP       32767       +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295
5    30720    NTAP_PDB3:TEMP       32767       +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319

  2. 一旦主数据库切换到映像副本，主数据库现在就是 RMAN 记录中的副本。

    RMAN> list copy of database;

List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
53      1    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/system.257.1201727295

54      3    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/sysaux.258.1201727339

55      4    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/undotbs1.259.1201727365

56      5    A 27-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307
        Container ID: 2, PDB Name: PDB$SEED

57      6    A 27-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307
        Container ID: 2, PDB Name: PDB$SEED

58      7    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/users.260.1201727365

59      8    A 27-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307
        Container ID: 2, PDB Name: PDB$SEED

60      9    A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255
        Container ID: 3, PDB Name: NTAP_PDB1

61      10   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255
        Container ID: 3, PDB Name: NTAP_PDB1

62      11   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255
        Container ID: 3, PDB Name: NTAP_PDB1

63      12   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277
        Container ID: 3, PDB Name: NTAP_PDB1

64      13   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279
        Container ID: 4, PDB Name: NTAP_PDB2

65      14   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279
        Container ID: 4, PDB Name: NTAP_PDB2

66      15   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279
        Container ID: 4, PDB Name: NTAP_PDB2

67      16   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301
        Container ID: 4, PDB Name: NTAP_PDB2

68      17   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301
        Container ID: 5, PDB Name: NTAP_PDB3

69      18   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301
        Container ID: 5, PDB Name: NTAP_PDB3

70      19   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301
        Container ID: 5, PDB Name: NTAP_PDB3

71      20   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323
        Container ID: 5, PDB Name: NTAP_PDB3

72      21   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019
        Container ID: 3, PDB Name: NTAP_PDB1

73      22   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419
        Container ID: 3, PDB Name: NTAP_PDB1

74      23   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535
        Container ID: 4, PDB Name: NTAP_PDB2

75      24   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665
        Container ID: 5, PDB Name: NTAP_PDB3

76      25   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401
        Container ID: 3, PDB Name: NTAP_PDB1

77      26   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153
        Container ID: 4, PDB Name: NTAP_PDB2

78      27   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207
        Container ID: 5, PDB Name: NTAP_PDB3

79      28   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271
        Container ID: 3, PDB Name: NTAP_PDB1

80      29   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261
        Container ID: 4, PDB Name: NTAP_PDB2

81      30   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317
        Container ID: 4, PDB Name: NTAP_PDB2

82      31   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343
        Container ID: 5, PDB Name: NTAP_PDB3

83      32   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351
        Container ID: 3, PDB Name: NTAP_PDB1

84      33   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805
        Container ID: 3, PDB Name: NTAP_PDB1

85      34   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829
        Container ID: 4, PDB Name: NTAP_PDB2

86      35   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821
        Container ID: 5, PDB Name: NTAP_PDB3

87      36   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969
        Container ID: 3, PDB Name: NTAP_PDB1

88      37   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025
        Container ID: 4, PDB Name: NTAP_PDB2

89      38   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375
        Container ID: 5, PDB Name: NTAP_PDB3

90      39   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375
        Container ID: 4, PDB Name: NTAP_PDB2

91      40   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381
        Container ID: 5, PDB Name: NTAP_PDB3

92      41   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399
        Container ID: 3, PDB Name: NTAP_PDB1

93      42   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601
        Container ID: 4, PDB Name: NTAP_PDB2

94      43   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629
        Container ID: 5, PDB Name: NTAP_PDB3

95      44   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651
        Container ID: 3, PDB Name: NTAP_PDB1

96      45   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031
        Container ID: 5, PDB Name: NTAP_PDB3

97      46   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095
        Container ID: 3, PDB Name: NTAP_PDB1

98      47   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051
        Container ID: 4, PDB Name: NTAP_PDB2

99      48   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549
        Container ID: 4, PDB Name: NTAP_PDB2

100     49   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563
        Container ID: 5, PDB Name: NTAP_PDB3

101     50   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477
        Container ID: 5, PDB Name: NTAP_PDB3

  3. 如果存在，请清除主存储上现已过时的数据文件，以释放空间和/或清除记录。

    RMAN> delete copy of database;

allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=137 device type=DISK
List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
53      1    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/system.257.1201727295

54      3    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/sysaux.258.1201727339

55      4    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/undotbs1.259.1201727365

56      5    A 27-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307
        Container ID: 2, PDB Name: PDB$SEED

57      6    A 27-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307
        Container ID: 2, PDB Name: PDB$SEED

58      7    A 27-MAY-25       2901679    27-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/users.260.1201727365

59      8    A 27-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307
        Container ID: 2, PDB Name: PDB$SEED

60      9    A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255
        Container ID: 3, PDB Name: NTAP_PDB1

61      10   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255
        Container ID: 3, PDB Name: NTAP_PDB1

62      11   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255
        Container ID: 3, PDB Name: NTAP_PDB1

63      12   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277
        Container ID: 3, PDB Name: NTAP_PDB1

64      13   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279
        Container ID: 4, PDB Name: NTAP_PDB2

65      14   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279
        Container ID: 4, PDB Name: NTAP_PDB2

66      15   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279
        Container ID: 4, PDB Name: NTAP_PDB2

67      16   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301
        Container ID: 4, PDB Name: NTAP_PDB2

68      17   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301
        Container ID: 5, PDB Name: NTAP_PDB3

69      18   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301
        Container ID: 5, PDB Name: NTAP_PDB3

70      19   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301
        Container ID: 5, PDB Name: NTAP_PDB3

71      20   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323
        Container ID: 5, PDB Name: NTAP_PDB3

72      21   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019
        Container ID: 3, PDB Name: NTAP_PDB1

73      22   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419
        Container ID: 3, PDB Name: NTAP_PDB1

74      23   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535
        Container ID: 4, PDB Name: NTAP_PDB2

75      24   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665
        Container ID: 5, PDB Name: NTAP_PDB3

76      25   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401
        Container ID: 3, PDB Name: NTAP_PDB1

77      26   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153
        Container ID: 4, PDB Name: NTAP_PDB2

78      27   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207
        Container ID: 5, PDB Name: NTAP_PDB3

79      28   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271
        Container ID: 3, PDB Name: NTAP_PDB1

80      29   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261
        Container ID: 4, PDB Name: NTAP_PDB2

81      30   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317
        Container ID: 4, PDB Name: NTAP_PDB2

82      31   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343
        Container ID: 5, PDB Name: NTAP_PDB3

83      32   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351
        Container ID: 3, PDB Name: NTAP_PDB1

84      33   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805
        Container ID: 3, PDB Name: NTAP_PDB1

85      34   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829
        Container ID: 4, PDB Name: NTAP_PDB2

86      35   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821
        Container ID: 5, PDB Name: NTAP_PDB3

87      36   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969
        Container ID: 3, PDB Name: NTAP_PDB1

88      37   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025
        Container ID: 4, PDB Name: NTAP_PDB2

89      38   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375
        Container ID: 5, PDB Name: NTAP_PDB3

90      39   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375
        Container ID: 4, PDB Name: NTAP_PDB2

91      40   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381
        Container ID: 5, PDB Name: NTAP_PDB3

92      41   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399
        Container ID: 3, PDB Name: NTAP_PDB1

93      42   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601
        Container ID: 4, PDB Name: NTAP_PDB2

94      43   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629
        Container ID: 5, PDB Name: NTAP_PDB3

95      44   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651
        Container ID: 3, PDB Name: NTAP_PDB1

96      45   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031
        Container ID: 5, PDB Name: NTAP_PDB3

97      46   A 27-MAY-25       2901354    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095
        Container ID: 3, PDB Name: NTAP_PDB1

98      47   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051
        Container ID: 4, PDB Name: NTAP_PDB2

99      48   A 27-MAY-25       2901510    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549
        Container ID: 4, PDB Name: NTAP_PDB2

100     49   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563
        Container ID: 5, PDB Name: NTAP_PDB3

101     50   A 27-MAY-25       2901509    27-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477
        Container ID: 5, PDB Name: NTAP_PDB3


Do you really want to delete the above objects (enter YES or NO)? YES
deleted datafile copy
datafile copy file name=+DATA/NTAP/DATAFILE/system.257.1201727295 RECID=53 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/DATAFILE/sysaux.258.1201727339 RECID=54 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/DATAFILE/undotbs1.259.1201727365 RECID=55 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/system.266.1201728307 RECID=56 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/sysaux.267.1201728307 RECID=57 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/DATAFILE/users.260.1201727365 RECID=58 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/86B637B62FE07A65E053F706E80A27CA/DATAFILE/undotbs1.268.1201728307 RECID=59 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.272.1201729255 RECID=60 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.273.1201729255 RECID=61 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.271.1201729255 RECID=62 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.275.1201729277 RECID=63 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.277.1201729279 RECID=64 STAMP=1202233336
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.278.1201729279 RECID=65 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.276.1201729279 RECID=66 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.280.1201729301 RECID=67 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.282.1201729301 RECID=68 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.283.1201729301 RECID=69 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.281.1201729301 RECID=70 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.285.1201729323 RECID=71 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.286.1201793019 RECID=72 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.287.1201793419 RECID=73 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.288.1201793535 RECID=74 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1201793665 RECID=75 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.290.1201794401 RECID=76 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.291.1201795153 RECID=77 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1201795207 RECID=78 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.293.1201795271 RECID=79 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.294.1201796261 RECID=80 STAMP=1202233337
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.295.1201797317 RECID=81 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.296.1201797343 RECID=82 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.297.1201797351 RECID=83 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.298.1201800805 RECID=84 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1201800829 RECID=85 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.299.1201800821 RECID=86 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.301.1201801969 RECID=87 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1201802025 RECID=88 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.303.1201802375 RECID=89 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1201803375 RECID=90 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.305.1201803381 RECID=91 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1201803399 RECID=92 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.307.1201804601 RECID=93 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.308.1201804629 RECID=94 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1201804651 RECID=95 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.310.1201806031 RECID=96 STAMP=1202233338
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1201806095 RECID=97 STAMP=1202233339
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.311.1201806051 RECID=98 STAMP=1202233339
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.313.1201873549 RECID=99 STAMP=1202233339
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.314.1201873563 RECID=100 STAMP=1202233339
deleted datafile copy
datafile copy file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.315.1201875477 RECID=101 STAMP=1202233339
Deleted 49 objects


RMAN> list copy of database;

specification does not match any datafile copy in the repository

  4. 修改 rman 备份和合并脚本以指向主存储，在我们的测试用例中 - RMAN 通道定义中的 ASM 磁盘组 +DATA。执行修改后的备份脚本以在主存储上创建新的映像副本。

    RMAN> @/home/oracle/rman_bkup_merge.cmd.1

RMAN> RUN
2> {
3>   allocate channel c1 device type disk format '+DATA';
4>   allocate channel c2 device type disk format '+DATA';
5>   allocate channel c3 device type disk format '+DATA';
6>   allocate channel c4 device type disk format '+DATA';
7>   delete obsolete;
8>   sql 'alter system archive log current';
9>   recover copy of database with tag 'OraCopyBKUPonGCNV_level_0';
10>   backup incremental level 1 copies=1 for recover of copy with tag 'OraCopyBKUPonGCNV_level_0' database;
11> }
released channel: ORA_DISK_1
allocated channel: c1
channel c1: SID=137 device type=DISK

allocated channel: c2
channel c2: SID=397 device type=DISK

allocated channel: c3
channel c3: SID=390 device type=DISK

allocated channel: c4
channel c4: SID=274 device type=DISK

RMAN retention policy will be applied to the command
RMAN retention policy is set to redundancy 1
Deleting the following obsolete backups and copies:
Type                 Key    Completion Time    Filename/Handle
-------------------- ------ ------------------ --------------------
Backup Set           12     24-MAY-25
  Backup Piece       12     24-MAY-25          /nfsgcnv/archlog/NTAP/autobackup/2025_05_24/o1_mf_s_1201919173_n32cl775_.bkp
deleted backup piece
backup piece handle=/nfsgcnv/archlog/NTAP/autobackup/2025_05_24/o1_mf_s_1201919173_n32cl775_.bkp RECID=12 STAMP=1201919175
Deleted 1 objects


sql statement: alter system archive log current

Starting recover at 27-MAY-25
no copy of datafile 1 found to recover
no copy of datafile 3 found to recover
no copy of datafile 4 found to recover
no copy of datafile 5 found to recover
no copy of datafile 6 found to recover
no copy of datafile 7 found to recover
no copy of datafile 8 found to recover
no copy of datafile 9 found to recover
no copy of datafile 10 found to recover
no copy of datafile 11 found to recover
no copy of datafile 12 found to recover
no copy of datafile 13 found to recover
no copy of datafile 14 found to recover
no copy of datafile 15 found to recover
no copy of datafile 16 found to recover
no copy of datafile 17 found to recover
no copy of datafile 18 found to recover
no copy of datafile 19 found to recover
no copy of datafile 20 found to recover
no copy of datafile 21 found to recover
no copy of datafile 22 found to recover
no copy of datafile 23 found to recover
no copy of datafile 24 found to recover
no copy of datafile 25 found to recover
no copy of datafile 26 found to recover
no copy of datafile 27 found to recover
no copy of datafile 28 found to recover
no copy of datafile 29 found to recover
no copy of datafile 30 found to recover
no copy of datafile 31 found to recover
no copy of datafile 32 found to recover
no copy of datafile 33 found to recover
no copy of datafile 34 found to recover
no copy of datafile 35 found to recover
no copy of datafile 36 found to recover
no copy of datafile 37 found to recover
no copy of datafile 38 found to recover
no copy of datafile 39 found to recover
no copy of datafile 40 found to recover
no copy of datafile 41 found to recover
no copy of datafile 42 found to recover
no copy of datafile 43 found to recover
no copy of datafile 44 found to recover
no copy of datafile 45 found to recover
no copy of datafile 46 found to recover
no copy of datafile 47 found to recover
no copy of datafile 48 found to recover
no copy of datafile 49 found to recover
no copy of datafile 50 found to recover
Finished recover at 27-MAY-25

Starting backup at 27-MAY-25
no parent backup or copy of datafile 1 found
no parent backup or copy of datafile 3 found
no parent backup or copy of datafile 4 found
no parent backup or copy of datafile 7 found
no parent backup or copy of datafile 6 found
no parent backup or copy of datafile 5 found
no parent backup or copy of datafile 8 found
no parent backup or copy of datafile 21 found
no parent backup or copy of datafile 22 found
no parent backup or copy of datafile 25 found
no parent backup or copy of datafile 28 found
no parent backup or copy of datafile 32 found
no parent backup or copy of datafile 33 found
no parent backup or copy of datafile 36 found
no parent backup or copy of datafile 41 found
no parent backup or copy of datafile 44 found
no parent backup or copy of datafile 46 found
no parent backup or copy of datafile 10 found
no parent backup or copy of datafile 9 found
no parent backup or copy of datafile 11 found
no parent backup or copy of datafile 12 found
no parent backup or copy of datafile 23 found
no parent backup or copy of datafile 26 found
no parent backup or copy of datafile 29 found
no parent backup or copy of datafile 30 found
no parent backup or copy of datafile 34 found
no parent backup or copy of datafile 37 found
no parent backup or copy of datafile 39 found
no parent backup or copy of datafile 42 found
no parent backup or copy of datafile 47 found
no parent backup or copy of datafile 48 found
no parent backup or copy of datafile 14 found
no parent backup or copy of datafile 13 found
no parent backup or copy of datafile 15 found
no parent backup or copy of datafile 16 found
no parent backup or copy of datafile 24 found
no parent backup or copy of datafile 27 found
no parent backup or copy of datafile 31 found
no parent backup or copy of datafile 35 found
no parent backup or copy of datafile 38 found
no parent backup or copy of datafile 40 found
no parent backup or copy of datafile 43 found
no parent backup or copy of datafile 45 found
no parent backup or copy of datafile 49 found
no parent backup or copy of datafile 50 found
no parent backup or copy of datafile 18 found
no parent backup or copy of datafile 17 found
no parent backup or copy of datafile 19 found
no parent backup or copy of datafile 20 found
channel c1: starting datafile copy
input datafile file number=00021 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_0c3q6gvm
channel c2: starting datafile copy
input datafile file number=00022 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_0d3q6gvm
channel c3: starting datafile copy
input datafile file number=00025 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_0e3q6gvn
channel c4: starting datafile copy
input datafile file number=00028 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_0f3q6gvn
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=148 STAMP=1202243608
channel c2: datafile copy complete, elapsed time: 01:03:56
channel c2: starting datafile copy
input datafile file number=00032 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_0g3q6lkl
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=149 STAMP=1202243617
channel c3: datafile copy complete, elapsed time: 01:03:60
channel c3: starting datafile copy
input datafile file number=00033 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_0h3q6lmf
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=150 STAMP=1202243621
channel c1: datafile copy complete, elapsed time: 01:04:03
channel c1: starting datafile copy
input datafile file number=00036 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_0i3q6ln9
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=151 STAMP=1202243625
channel c4: datafile copy complete, elapsed time: 01:04:11
channel c4: starting datafile copy
input datafile file number=00041 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_0j3q6ltd
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=153 STAMP=1202247449
channel c2: datafile copy complete, elapsed time: 01:03:60
channel c2: starting datafile copy
input datafile file number=00044 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_0k3q6qdc
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=152 STAMP=1202247446
channel c3: datafile copy complete, elapsed time: 01:03:57
channel c3: starting datafile copy
input datafile file number=00046 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_0l3q6qdc
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=154 STAMP=1202247463
channel c4: datafile copy complete, elapsed time: 01:04:02
channel c4: starting datafile copy
input datafile file number=00023 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_0m3q6qdr
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=155 STAMP=1202247473
channel c1: datafile copy complete, elapsed time: 01:04:12
channel c1: starting datafile copy
input datafile file number=00026 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_0n3q6qq7
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=156 STAMP=1202251305
channel c2: datafile copy complete, elapsed time: 01:04:15
channel c2: starting datafile copy
input datafile file number=00029 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_0o3q6v5h
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=157 STAMP=1202251305
channel c3: datafile copy complete, elapsed time: 01:04:15
channel c3: starting datafile copy
input datafile file number=00030 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_0p3q6v6b
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=158 STAMP=1202251311
channel c4: datafile copy complete, elapsed time: 01:04:01
channel c4: starting datafile copy
input datafile file number=00034 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_0q3q6v7o
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=159 STAMP=1202251313
channel c1: datafile copy complete, elapsed time: 01:03:59
channel c1: starting datafile copy
input datafile file number=00037 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_0r3q6vhu
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=160 STAMP=1202255139
channel c3: datafile copy complete, elapsed time: 01:03:48
channel c3: starting datafile copy
input datafile file number=00039 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_0s3q73th
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=161 STAMP=1202255150
channel c2: datafile copy complete, elapsed time: 01:04:04
channel c2: starting datafile copy
input datafile file number=00042 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_0t3q73uv
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=162 STAMP=1202255155
channel c4: datafile copy complete, elapsed time: 01:04:03
channel c4: starting datafile copy
input datafile file number=00047 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_0u3q747i
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=163 STAMP=1202255166
channel c1: datafile copy complete, elapsed time: 01:04:17
channel c1: starting datafile copy
input datafile file number=00048 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_0v3q74cd
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=164 STAMP=1202258984
channel c2: datafile copy complete, elapsed time: 01:03:51
channel c2: starting datafile copy
input datafile file number=00024 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_103q78l8
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=165 STAMP=1202258992
channel c4: datafile copy complete, elapsed time: 01:03:59
channel c4: starting datafile copy
input datafile file number=00027 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_113q78nk
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=166 STAMP=1202259002
channel c1: datafile copy complete, elapsed time: 01:03:59
channel c1: starting datafile copy
input datafile file number=00031 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_123q791p
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=167 STAMP=1202259003
channel c3: datafile copy complete, elapsed time: 01:04:30
channel c3: starting datafile copy
input datafile file number=00035 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_133q795m
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=168 STAMP=1202262811
channel c2: datafile copy complete, elapsed time: 01:03:49
channel c2: starting datafile copy
input datafile file number=00038 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_143q7dd7
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=169 STAMP=1202262817
channel c4: datafile copy complete, elapsed time: 01:03:43
channel c4: starting datafile copy
input datafile file number=00040 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_153q7did
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=170 STAMP=1202262857
channel c3: datafile copy complete, elapsed time: 01:04:13
channel c3: starting datafile copy
input datafile file number=00043 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_163q7dqp
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=171 STAMP=1202262866
channel c1: datafile copy complete, elapsed time: 01:04:16
channel c1: starting datafile copy
input datafile file number=00045 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_173q7e17
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=172 STAMP=1202266648
channel c2: datafile copy complete, elapsed time: 01:03:56
channel c2: starting datafile copy
input datafile file number=00049 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_183q7i95
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=173 STAMP=1202266665
channel c4: datafile copy complete, elapsed time: 01:04:10
channel c4: starting datafile copy
input datafile file number=00050 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_193q7i95
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=174 STAMP=1202266695
channel c1: datafile copy complete, elapsed time: 01:03:56
channel c1: starting datafile copy
input datafile file number=00001 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_1a3q7ii2
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=175 STAMP=1202266710
channel c3: datafile copy complete, elapsed time: 01:04:08
channel c3: starting datafile copy
input datafile file number=00003 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_1b3q7io5
output file name=+DATA/NTAP/DATAFILE/sysaux.281.1202266713 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=176 STAMP=1202266836
channel c3: datafile copy complete, elapsed time: 00:02:06
channel c3: starting datafile copy
input datafile file number=00004 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_1c3q7ipa
output file name=+DATA/NTAP/DATAFILE/system.285.1202266707 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=177 STAMP=1202266837
channel c1: datafile copy complete, elapsed time: 00:02:14
channel c1: starting datafile copy
input datafile file number=00010 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_1d3q7isu
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=178 STAMP=1202266904
channel c1: datafile copy complete, elapsed time: 00:01:15
channel c1: starting datafile copy
input datafile file number=00014 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_1e3q7itp
output file name=+DATA/NTAP/DATAFILE/undotbs1.283.1202266839 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=179 STAMP=1202266919
channel c3: datafile copy complete, elapsed time: 00:01:24
channel c3: starting datafile copy
input datafile file number=00018 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_1f3q7j0e
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=180 STAMP=1202266976
channel c1: datafile copy complete, elapsed time: 00:01:03
channel c1: starting datafile copy
input datafile file number=00006 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_1g3q7j0e
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=181 STAMP=1202266987
channel c3: datafile copy complete, elapsed time: 00:01:10
channel c3: starting datafile copy
input datafile file number=00009 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_1h3q7j35
output file name=+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=182 STAMP=1202267033
channel c1: datafile copy complete, elapsed time: 00:01:00
channel c1: starting datafile copy
input datafile file number=00013 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_1i3q7j3d
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=183 STAMP=1202267043
channel c3: datafile copy complete, elapsed time: 00:00:53
channel c3: starting datafile copy
input datafile file number=00017 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_1j3q7j56
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=184 STAMP=1202267089
channel c1: datafile copy complete, elapsed time: 00:00:53
channel c1: starting datafile copy
input datafile file number=00005 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_1k3q7j5a
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=185 STAMP=1202267099
channel c3: datafile copy complete, elapsed time: 00:01:00
channel c3: starting datafile copy
input datafile file number=00011 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_1l3q7j80
output file name=+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=186 STAMP=1202267137
channel c1: datafile copy complete, elapsed time: 00:00:51
channel c1: starting datafile copy
input datafile file number=00008 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_1m3q7j82
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=187 STAMP=1202267138
channel c3: datafile copy complete, elapsed time: 00:00:35
channel c3: starting datafile copy
input datafile file number=00015 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_1n3q7j9p
output file name=+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=188 STAMP=1202267172
channel c1: datafile copy complete, elapsed time: 00:00:36
channel c1: starting datafile copy
input datafile file number=00019 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_1o3q7j9p
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=189 STAMP=1202267172
channel c3: datafile copy complete, elapsed time: 00:00:35
channel c3: starting datafile copy
input datafile file number=00007 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_1p3q7jbg
output file name=+DATA/NTAP/DATAFILE/users.266.1202267179 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=190 STAMP=1202267179
channel c3: datafile copy complete, elapsed time: 00:00:01
channel c3: starting datafile copy
input datafile file number=00012 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_1q3q7jbh
output file name=+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=191 STAMP=1202267182
channel c3: datafile copy complete, elapsed time: 00:00:03
channel c3: starting datafile copy
input datafile file number=00016 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_1r3q7jbi
output file name=+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=192 STAMP=1202267185
channel c3: datafile copy complete, elapsed time: 00:00:03
channel c3: starting datafile copy
input datafile file number=00020 name=/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_1s3q7jbi
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=193 STAMP=1202267190
channel c3: datafile copy complete, elapsed time: 00:00:03
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=194 STAMP=1202267199
channel c1: datafile copy complete, elapsed time: 00:00:24
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=195 STAMP=1202268827
channel c2: datafile copy complete, elapsed time: 00:36:19
output file name=+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669 tag=ORACOPYBKUPONGCNV_LEVEL_0 RECID=196 STAMP=1202268833
channel c4: datafile copy complete, elapsed time: 00:36:14
Finished backup at 28-MAY-25

Starting Control File and SPFILE Autobackup at 28-MAY-25
piece handle=/nfsgcnv/archlog/NTAP/autobackup/2025_05_28/o1_mf_s_1202268842_n3f11d04_.bkp comment=NONE
Finished Control File and SPFILE Autobackup at 28-MAY-25
released channel: c1
released channel: c2
released channel: c3
released channel: c4

RMAN> **end-of-file**

RMAN>

  5. 验证现在在主存储上是否创建了新的 VLDB 映像副本。

    RMAN> list copy of database;

List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
177     1    A 28-MAY-25       2951405    28-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/system.285.1202266707
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

176     3    A 28-MAY-25       2951427    28-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/sysaux.281.1202266713
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

179     4    A 28-MAY-25       2951801    28-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/undotbs1.283.1202266839
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

186     5    A 28-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

182     6    A 28-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

190     7    A 28-MAY-25       2952103    28-MAY-25       NO
        Name: +DATA/NTAP/DATAFILE/users.266.1202267179
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

188     8    A 28-MAY-25       2377077    21-MAY-25       NO
        Name: +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

183     9    A 28-MAY-25       2951919    28-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

178     10   A 28-MAY-25       2951806    28-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

187     11   A 28-MAY-25       2952000    28-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

191     12   A 28-MAY-25       2952108    28-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

184     13   A 28-MAY-25       2951954    28-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

180     14   A 28-MAY-25       2951863    28-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

189     15   A 28-MAY-25       2952084    28-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

192     16   A 28-MAY-25       2952113    28-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

185     17   A 28-MAY-25       2951961    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

181     18   A 28-MAY-25       2951870    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

194     19   A 28-MAY-25       2952099    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

193     20   A 28-MAY-25       2952119    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

150     21   A 27-MAY-25       2912326    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

148     22   A 27-MAY-25       2912334    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

158     23   A 27-MAY-25       2919519    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

168     24   A 28-MAY-25       2943784    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

149     25   A 27-MAY-25       2912330    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

159     26   A 27-MAY-25       2919524    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

169     27   A 28-MAY-25       2943790    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

151     28   A 27-MAY-25       2912331    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

161     29   A 27-MAY-25       2936579    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

160     30   A 27-MAY-25       2936583    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

171     31   A 28-MAY-25       2943799    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

153     32   A 27-MAY-25       2915938    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

152     33   A 27-MAY-25       2915943    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

162     34   A 27-MAY-25       2936588    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

170     35   A 28-MAY-25       2943803    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

155     36   A 27-MAY-25       2915949    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

163     37   A 27-MAY-25       2936592    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

172     38   A 28-MAY-25       2947486    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

167     39   A 28-MAY-25       2940255    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

173     40   A 28-MAY-25       2947490    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

154     41   A 27-MAY-25       2915970    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

164     42   A 28-MAY-25       2940264    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

175     43   A 28-MAY-25       2947509    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

156     44   A 27-MAY-25       2919491    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

174     45   A 28-MAY-25       2947515    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

157     46   A 27-MAY-25       2919495    27-MAY-25       NO
        Name: +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

165     47   A 28-MAY-25       2940268    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

166     48   A 28-MAY-25       2940277    27-MAY-25       NO
        Name: +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

195     49   A 28-MAY-25       2951380    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

196     50   A 28-MAY-25       2951389    28-MAY-25       NO
        Name: +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

  6. 在测试表中插入一个新的测试行，并验证恢复到主存储上的图像副本是否可以恢复所有事务。

    [oracle@orap ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Wed May 28 20:04:53 2025
Version 19.18.0.0.0

Copyright (c) 1982, 2022, Oracle.  All rights reserved.


Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.18.0.0.0

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 NTAP_PDB1                      READ WRITE NO
         4 NTAP_PDB2                      READ WRITE NO
         5 NTAP_PDB3                      READ WRITE NO
SQL> alter session set container=ntap_pdb1;

Session altered.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
27-MAY-25 05.35.44.000000 PM
validate a full recovery after a switch to DB backup copy


SQL> insert into test values(2, sysdate, 'Swing database back to primary storage from nfs backup mount on GCNV');

1 row created.

SQL> commit;

Commit complete.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
27-MAY-25 05.35.44.000000 PM
validate a full recovery after a switch to DB backup copy on GCNV

         2
28-MAY-25 08.09.34.000000 PM
Swing database back to primary storage from nfs backup mount on GCNV

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------


SQL>

  7. 从 RMAN 关闭数据库以切换回主存储上的备份映像副本。

    [oracle@orap ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Wed May 28 20:01:55 2025
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database: NTAP (DBID=1379265854)
using target database control file instead of recovery catalog

RMAN> shutdown abort;

Oracle instance shut down

RMAN> startup mount;

connected to target database (not started)
Oracle instance started
database mounted

Total System Global Area    5620363744 bytes

Fixed Size                     9175520 bytes
Variable Size               1023410176 bytes
Database Buffers            4580179968 bytes
Redo Buffers                   7598080 bytes

RMAN> switch database to copy;

datafile 1 switched to datafile copy "+DATA/NTAP/DATAFILE/system.285.1202266707"
datafile 3 switched to datafile copy "+DATA/NTAP/DATAFILE/sysaux.281.1202266713"
datafile 4 switched to datafile copy "+DATA/NTAP/DATAFILE/undotbs1.283.1202266839"
datafile 5 switched to datafile copy "+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093"
datafile 6 switched to datafile copy "+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977"
datafile 7 switched to datafile copy "+DATA/NTAP/DATAFILE/users.266.1202267179"
datafile 8 switched to datafile copy "+DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143"
datafile 9 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995"
datafile 10 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839"
datafile 11 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109"
datafile 12 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181"
datafile 13 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039"
datafile 14 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915"
datafile 15 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143"
datafile 16 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185"
datafile 17 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047"
datafile 18 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923"
datafile 19 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179"
datafile 20 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189"
datafile 21 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779"
datafile 22 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779"
datafile 23 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473"
datafile 24 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989"
datafile 25 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779"
datafile 26 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477"
datafile 27 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997"
datafile 28 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779"
datafile 29 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311"
datafile 30 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311"
datafile 31 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011"
datafile 32 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617"
datafile 33 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619"
datafile 34 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313"
datafile 35 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011"
datafile 36 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625"
datafile 37 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315"
datafile 38 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817"
datafile 39 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141"
datafile 40 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819"
datafile 41 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631"
datafile 42 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157"
datafile 43 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865"
datafile 44 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457"
datafile 45 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869"
datafile 46 switched to datafile copy "+DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457"
datafile 47 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157"
datafile 48 switched to datafile copy "+DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171"
datafile 49 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655"
datafile 50 switched to datafile copy "+DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669"

RMAN> recover database;

Starting recover at 28-MAY-25
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=139 device type=DISK

starting media recovery
media recovery complete, elapsed time: 00:00:07

Finished recover at 28-MAY-25

RMAN> alter database open;

Statement processed

RMAN>

  8. 验证数据库现在是否已返回主存储。

    RMAN> report schema;

Report of database schema for database with db_unique_name NTAP

List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    1070     SYSTEM               YES     +DATA/NTAP/DATAFILE/system.285.1202266707
3    1020     SYSAUX               NO      +DATA/NTAP/DATAFILE/sysaux.281.1202266713
4    680      UNDOTBS1             YES     +DATA/NTAP/DATAFILE/undotbs1.283.1202266839
5    400      PDB$SEED:SYSTEM      NO      +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/system.273.1202267093
6    460      PDB$SEED:SYSAUX      NO      +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/sysaux.278.1202266977
7    5        USERS                NO      +DATA/NTAP/DATAFILE/users.266.1202267179
8    235      PDB$SEED:UNDOTBS1    NO      +DATA/NTAP/35AD01790801A78FE063060B460ABC41/DATAFILE/undotbs1.268.1202267143
9    410      NTAP_PDB1:SYSTEM     YES     +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/system.277.1202266995
10   510      NTAP_PDB1:SYSAUX     NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/sysaux.282.1202266839
11   240      NTAP_PDB1:UNDOTBS1   YES     +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/undotbs1.272.1202267109
12   5        NTAP_PDB1:USERS      NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/users.259.1202267181
13   410      NTAP_PDB2:SYSTEM     YES     +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/system.275.1202267039
14   510      NTAP_PDB2:SYSAUX     NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/sysaux.280.1202266915
15   235      NTAP_PDB2:UNDOTBS1   YES     +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/undotbs1.260.1202267143
16   5        NTAP_PDB2:USERS      NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/users.258.1202267185
17   410      NTAP_PDB3:SYSTEM     YES     +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/system.271.1202267047
18   510      NTAP_PDB3:SYSAUX     NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/sysaux.276.1202266923
19   235      NTAP_PDB3:UNDOTBS1   YES     +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/undotbs1.267.1202267179
20   5        NTAP_PDB3:USERS      NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/users.257.1202267189
21   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.315.1202239779
22   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.313.1202239779
23   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.305.1202247473
24   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.295.1202258989
25   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.311.1202239779
26   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.304.1202247477
27   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.294.1202258997
28   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.314.1202239779
29   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.303.1202251311
30   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.302.1202251311
31   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.293.1202259011
32   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.312.1202243617
33   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.310.1202243619
34   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.301.1202251313
35   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.292.1202259011
36   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.309.1202243625
37   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.299.1202251315
38   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.291.1202262817
39   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.300.1202255141
40   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.290.1202262819
41   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.308.1202243631
42   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.298.1202255157
43   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.289.1202262865
44   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.307.1202247457
45   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.288.1202262869
46   30720    NTAP_PDB1:SOE1       NO      +DATA/NTAP/35AD38314E81AF11E063060B460AE362/DATAFILE/soe1.306.1202247457
47   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.297.1202255157
48   30720    NTAP_PDB2:SOE2       NO      +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/DATAFILE/soe2.296.1202255171
49   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.287.1202266655
50   30720    NTAP_PDB3:SOE3       NO      +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/DATAFILE/soe3.286.1202266669

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
1    123      TEMP                 32767       +DATA/NTAP/TEMPFILE/temp.265.1201727469
2    123      PDB$SEED:TEMP        32767       +DATA/NTAP/35AD01790801A78FE063060B460ABC41/TEMPFILE/temp.269.1201728335
3    16384    NTAP_PDB1:TEMP       32767       +DATA/NTAP/35AD38314E81AF11E063060B460AE362/TEMPFILE/temp.274.1201729271
4    30720    NTAP_PDB2:TEMP       32767       +DATA/NTAP/35AD39A949B7AF76E063060B460A61D2/TEMPFILE/temp.279.1201729295
5    30720    NTAP_PDB3:TEMP       32767       +DATA/NTAP/35AD3B0BAD41AFCEE063060B460AD1CC/TEMPFILE/temp.284.1201729319

  9. 从 sqlplus 验证测试表中所有事务均已恢复。

    SQL> alter session set container=ntap_pdb1;

Session altered.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
27-MAY-25 05.35.44.000000 PM
validate a full recovery after a switch to DB backup copy on GCNV

         2
28-MAY-25 08.09.34.000000 PM
Swing database back to primary storage from nfs backup mount on GCNV

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------


SQL> select systimestamp from dual;

SYSTIMESTAMP
---------------------------------------------------------------------------
28-MAY-25 08.17.55.895654 PM +00:00

SQL>

  10. 最后，删除 GCNV 备份存储上过时的 DB 映像副本，并在 GCNV 备份存储上创建新的备份映像以完成循环。

丢失所有 Oracle 文件的时间点恢复

Details

如果发生故障，导致主存储和/或主数据库服务器主机丢失，则存档日志文件中没有的所有事务都将丢失。但是，GCNV NFS 文件系统上提供的 Oracle 数据库备份映像副本非常方便。您可以使用备份映像副本将主数据库快速恢复到同一个主数据库服务器或备用数据库服务器（如果有）。在本节中，我们将演示恢复到主数据库服务器的逐步过程。恢复到新的备用数据库服务器的方法几乎相同；但是，必须在安装和配置相同的 Oracle 软件堆栈的备用数据库服务器上安装数据库备份映像副本。

  1. 向我们之前创建的测试表中插入一行，以进行 Oracle VLDB 时间点恢复验证。

    SQL> insert into test values(3, sysdate, 'validate a point-in-time recovery by switching to DB backup copy on GCNV');

1 row created.

SQL> commit;

Commit complete.

SQL> select * from test;

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------
         1
27-MAY-25 05.35.44.000000 PM
validate a full recovery after a switch to DB backup copy on GCNV

         2
28-MAY-25 08.09.34.000000 PM
Swing database back to primary storage from nfs backup mount on GCNV

        ID
----------
DT
---------------------------------------------------------------------------
EVENT
--------------------------------------------------------------------------------

         3
29-MAY-25 03.22.22.000000 PM
validate a point-in-time recovery by switching to DB backup copy on GCNV

  2. 归档当前日志文件，以便将事务推送到归档日志文件。

    SQL> alter session set container=cdb$root;

Session altered.

SQL> alter system archive log current;

System altered.

  3. 关闭主 VLDB 服务器主机以模拟存储和 DB 服务器主机的完全故障。

  4. 如果在备用数据库服务器上执行恢复，请确保它与主数据库服务器主机具有相同的操作系统、相同的版本，并且操作系统内核已修补。此外，已在仅使用软件选项的备用数据库服务器上安装和配置了相同版本和补丁的 Oracle。

  5. 另外，在备用数据库服务器上配置与主数据库服务器类似的 oracle 环境，例如 oratab 和 oracle 用户 .bash_profile 等。将这些文件备份到 GCNV NFS 挂载点是一个好的做法。

  6. 然后将 GCNV NFS 文件系统上的 Oracle 数据库备份映像副本安装在备用 DB 服务器上以进行恢复。以下步骤演示了该过程的细节。

    以管理员用户身份创建挂载点。

    sudo mkdir /nfsgcnv

    以管理员用户身份挂载存储 Oracle VLDB 备份映像副本的 NFS 卷。

    sudo mount 10.165.128.5:/orap-bkup /nfsgcnv -o rw,bg,hard,vers=3,proto=tcp,timeo=600,rsize=262144,wsize=262144

  7. 验证 GCNV NFS 挂载上可用的 Oracle 存档日志以进行恢复，并记下最后一个日志文件日志序列号。在我们的测试案例中，这个数字是 27。我们的恢复点最多到日志序列号 28。

  8. 如果从备用数据库主机恢复，以 oracle 用户身份，将 ORACLE_HOME 变量设置为备用数据库服务器上的当前 Oracle 安装，将 ORACLE_SID 设置为主 Oracle 实例 SID。本次测试中为NTAP。

    [oracle@ora-02 ~]$ export ORACLE_HOME=/u01/app/oracle/product/19.0.0/NTAP
[oracle@ora-02 ~]$ export ORACLE_SID=NTAP
[oracle@ora-02 ~]$ export PATH=$PATH:$ORACLE_HOME/bin

  9. 以 oracle 用户身份，在 $ORACLE_HOME/dbs 目录中创建一个通用 Oracle 初始化文件，并配置适当的管理目录。最重要的是，拥有 Oracle flash recovery area`指向主 Oracle VLDB 服务器中定义的 GCNV NFS 挂载路径。 `flash recovery area`配置在章节中进行了演示 `Setup Oracle RMAN incremental merge to image copy on GCNV for in-server VLDB backup。将 Oracle 控制文件设置为 GCNV NFS 备份文件系统。

    vi /home/oracle/initNTAP.ora

    使用以下示例条目：

    *.audit_file_dest='/u01/app/oracle/admin/NTAP/adump'
*.audit_trail='db'
*.compatible='19.0.0'
*.control_files=('/nfsgcnv/oracopy/NTAP.ctl')
*.db_block_size=8192
*.db_create_file_dest='/nfsgcnv/oracopy/'
*.db_name='NTAP'
*.db_recovery_file_dest_size=85899345920
*.db_recovery_file_dest='/nfsgcnv/archlog/'
*.diagnostic_dest='/u01/app/oracle'
*.enable_pluggable_database=true
*.local_listener='LISTENER'
*.nls_language='AMERICAN'
*.nls_territory='AMERICA'
*.pga_aggregate_target=1024m
*.processes=320
*.remote_login_passwordfile='EXCLUSIVE'
*.sga_target=10240m

    如果出现差异，则应使用从主 Oracle VLDB 服务器恢复的备份初始化文件替换上述初始化文件。

  10. 以 oracle 用户身份启动 RMAN 在主或备用 DB 服务器主机上运行 Oracle 恢复。首先，启动 Oracle 实例 `nomount`状态。

    [oracle@orap ~]$ rman target / nocatalog

Recovery Manager: Release 19.0.0.0.0 - Production on Thu May 29 15:46:15 2025
Version 19.18.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

connected to target database (not started)

RMAN> startup nomount pfile='/home/oracle/initNTAP.ora';

Oracle instance started

Total System Global Area   10737418000 bytes

Fixed Size                     9174800 bytes
Variable Size               1577058304 bytes
Database Buffers            9126805504 bytes
Redo Buffers                  24379392 bytes

  11. 设置数据库ID。可以从 GCNV NFS 挂载点上的映像副本的 Oracle 文件名中检索数据库 ID。

    RMAN> set dbid = 1379265854;

executing command: SET DBID

  12. 从自动备份恢复控制文件。如果启用了 Oracle 控制文件和 spfile 自动备份，则它们会在每个增量备份和合并周期中备份。如果有多个副本可用，将恢复最新的备份。

    RMAN> restore controlfile from autobackup;

Starting restore at 29-MAY-25
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=2 device type=DISK

recovery area destination: /nfsgcnv/archlog/
database name (or database unique name) used for search: NTAP
channel ORA_DISK_1: AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp found in the recovery area
channel ORA_DISK_1: looking for AUTOBACKUP on day: 20250529
channel ORA_DISK_1: restoring control file from AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp
channel ORA_DISK_1: control file restore from AUTOBACKUP complete
output file name=/nfsgcnv/oracopy/NTAP.ctl
Finished restore at 29-MAY-25

  13. 将初始化文件从 spfile 恢复到 $ORACLE_HOME/dbs 文件夹，以便稍后更新参数文件以与主 VLDB 匹配。

    RMAN> restore spfile to pfile '/u01/app/oracle/product/19.0.0/NTAP/dbs/initNTAP.ora' from autobackup;

Starting restore at 29-MAY-25
using channel ORA_DISK_1

recovery area destination: /nfsgcnv/archlog/
database name (or database unique name) used for search: NTAP
channel ORA_DISK_1: AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp found in the recovery area
channel ORA_DISK_1: looking for AUTOBACKUP on day: 20250529
channel ORA_DISK_1: restoring spfile from AUTOBACKUP /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp
channel ORA_DISK_1: SPFILE restore from AUTOBACKUP complete
Finished restore at 29-MAY-25

  14. 挂载控制文件并验证数据库备份映像副本。

    RMAN> alter database mount;

released channel: ORA_DISK_1
Statement processed

RMAN> list copy of database tag 'ORACOPYBKUPONGCNV_LEVEL_0';

List of Datafile Copies
=======================

Key     File S Completion Time Ckp SCN    Ckp Time        Sparse
------- ---- - --------------- ---------- --------------- ------
273     1    A 29-MAY-25       3310055    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

274     3    A 29-MAY-25       3310333    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

275     4    A 29-MAY-25       3310521    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

283     5    A 29-MAY-25       2377077    21-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_6t3qlaa4
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

279     6    A 29-MAY-25       2377077    21-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_6p3ql9vu
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

288     7    A 29-MAY-25       3311276    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif
        Tag: ORACOPYBKUPONGCNV_LEVEL_0

285     8    A 29-MAY-25       2377077    21-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_6v3qlae9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 2, PDB Name: PDB$SEED

280     9    A 29-MAY-25       3310854    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

276     10   A 29-MAY-25       3310587    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

284     11   A 29-MAY-25       3311150    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

289     12   A 29-MAY-25       3311281    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

281     13   A 29-MAY-25       3310906    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

277     14   A 29-MAY-25       3310662    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

286     15   A 29-MAY-25       3311229    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

290     16   A 29-MAY-25       3311286    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

282     17   A 29-MAY-25       3311063    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

278     18   A 29-MAY-25       3310747    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

287     19   A 29-MAY-25       3311242    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

291     20   A 29-MAY-25       3311290    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

251     21   A 28-MAY-25       3261788    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

295     22   A 29-MAY-25       3261776    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

255     23   A 29-MAY-25       3266361    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

266     24   A 29-MAY-25       3280010    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

296     25   A 29-MAY-25       3261780    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

257     26   A 29-MAY-25       3270370    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

268     27   A 29-MAY-25       3280164    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

297     28   A 29-MAY-25       3261784    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

258     29   A 29-MAY-25       3270566    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

259     30   A 29-MAY-25       3270571    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

267     31   A 29-MAY-25       3280168    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

249     32   A 28-MAY-25       3261793    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

250     33   A 28-MAY-25       3261797    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

260     34   A 29-MAY-25       3270587    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

269     35   A 29-MAY-25       3284192    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

252     36   A 28-MAY-25       3261801    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

261     37   A 29-MAY-25       3275627    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

270     38   A 29-MAY-25       3297172    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

262     39   A 29-MAY-25       3275722    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

271     40   A 29-MAY-25       3297259    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

253     41   A 29-MAY-25       3266273    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

264     42   A 29-MAY-25       3275738    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

272     43   A 29-MAY-25       3297314    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

254     44   A 29-MAY-25       3266318    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

292     45   A 29-MAY-25       3309950    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

256     46   A 29-MAY-25       3266357    28-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 3, PDB Name: NTAP_PDB1

263     47   A 29-MAY-25       3275799    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

265     48   A 29-MAY-25       3279927    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 4, PDB Name: NTAP_PDB2

293     49   A 29-MAY-25       3309965    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

294     50   A 29-MAY-25       3310038    29-MAY-25       NO
        Name: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955
        Tag: ORACOPYBKUPONGCNV_LEVEL_0
        Container ID: 5, PDB Name: NTAP_PDB3

  15. 将数据库切换到复制以运行恢复，而无需数据库还原。

    RMAN> switch database to copy;

Starting implicit crosscheck backup at 29-MAY-25
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=12 device type=DISK
Crosschecked 20 objects
Finished implicit crosscheck backup at 29-MAY-25

Starting implicit crosscheck copy at 29-MAY-25
using channel ORA_DISK_1
Crosschecked 49 objects
Finished implicit crosscheck copy at 29-MAY-25

searching for all files in the recovery area
cataloging files...
cataloging done

List of Cataloged Files
=======================
File Name: /nfsgcnv/archlog/NTAP/archivelog/2025_05_29/o1_mf_1_27_n3jzbgh2_.arc
File Name: /nfsgcnv/archlog/NTAP/autobackup/2025_05_29/o1_mf_s_1202395822_n3jx1hnf_.bkp

datafile 1 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a"
datafile 3 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3"
datafile 4 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu"
datafile 5 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_6t3qlaa4"
datafile 6 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_6p3ql9vu"
datafile 7 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif"
datafile 8 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_6v3qlae9"
datafile 9 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21"
datafile 10 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh"
datafile 11 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg"
datafile 12 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij"
datafile 13 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52"
datafile 14 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou"
datafile 15 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft"
datafile 16 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik"
datafile 17 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n"
datafile 18 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9"
datafile 19 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago"
datafile 20 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail"
datafile 21 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8"
datafile 22 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h"
datafile 23 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o"
datafile 24 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv"
datafile 25 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h"
datafile 26 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo"
datafile 27 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9"
datafile 28 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h"
datafile 29 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09"
datafile 30 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g"
datafile 31 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9"
datafile 32 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9"
datafile 33 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9"
datafile 34 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b"
datafile 35 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412"
datafile 36 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda"
datafile 37 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf"
datafile 38 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q"
datafile 39 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn"
datafile 40 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5"
datafile 41 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37"
datafile 42 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq"
datafile 43 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo"
datafile 44 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m"
datafile 45 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c"
datafile 46 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o"
datafile 47 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5"
datafile 48 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4"
datafile 49 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s"
datafile 50 switched to datafile copy "/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955"

  16. 运行 Oracle 恢复直至闪回恢复区中最后一个可用的存档日志。

    RMAN> run {
2> set until sequence=28;
3> recover database;
4> }

executing command: SET until clause

Starting recover at 29-MAY-25
using channel ORA_DISK_1
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00011: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg
destination for restore of datafile 00025: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h
destination for restore of datafile 00036: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda
destination for restore of datafile 00046: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/773qm6l7_231_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/773qm6l7_231_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00012: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij
destination for restore of datafile 00028: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h
destination for restore of datafile 00041: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37
destination for restore of datafile 00044: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7a3qm6l7_234_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7a3qm6l7_234_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:02
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00015: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft
destination for restore of datafile 00029: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09
destination for restore of datafile 00039: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn
destination for restore of datafile 00048: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/783qm6l7_232_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/783qm6l7_232_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00019: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago
destination for restore of datafile 00031: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9
destination for restore of datafile 00043: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo
destination for restore of datafile 00050: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/793qm6l7_233_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/793qm6l7_233_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00010: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh
destination for restore of datafile 00021: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8
destination for restore of datafile 00032: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7d3qm6l9_237_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7d3qm6l9_237_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00014: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou
destination for restore of datafile 00023: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o
destination for restore of datafile 00034: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7e3qm6l9_238_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7e3qm6l9_238_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00016: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik
destination for restore of datafile 00030: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g
destination for restore of datafile 00042: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq
destination for restore of datafile 00047: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7b3qm6l9_235_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7b3qm6l9_235_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00020: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail
destination for restore of datafile 00035: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412
destination for restore of datafile 00045: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c
destination for restore of datafile 00049: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7c3qm6l9_236_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7c3qm6l9_236_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00001: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7j3qm6la_243_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7j3qm6la_243_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00009: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21
destination for restore of datafile 00022: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h
destination for restore of datafile 00033: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7g3qm6l9_240_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7g3qm6l9_240_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00013: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52
destination for restore of datafile 00026: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo
destination for restore of datafile 00037: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7h3qm6la_241_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7h3qm6la_241_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00017: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n
destination for restore of datafile 00027: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9
destination for restore of datafile 00040: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7i3qm6la_242_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7i3qm6la_242_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00018: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9
destination for restore of datafile 00024: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv
destination for restore of datafile 00038: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7f3qm6l9_239_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7f3qm6l9_239_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00004: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7l3qm6la_245_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7l3qm6la_245_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:02
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00007: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7p3qm6lb_249_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7p3qm6lb_249_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00003: /nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3
channel ORA_DISK_1: reading from backup piece /nfsgcnv/oracopy/7k3qm6la_244_1_1
channel ORA_DISK_1: piece handle=/nfsgcnv/oracopy/7k3qm6la_244_1_1 tag=ORACOPYBKUPONGCNV_LEVEL_0
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:00:03

starting media recovery

archived log for thread 1 with sequence 27 is already on disk as file /nfsgcnv/archlog/NTAP/archivelog/2025_05_29/o1_mf_1_27_n3jzbgh2_.arc
archived log file name=/nfsgcnv/archlog/NTAP/archivelog/2025_05_29/o1_mf_1_27_n3jzbgh2_.arc thread=1 sequence=27
media recovery complete, elapsed time: 00:00:01
Finished recover at 29-MAY-25

RMAN>
RMAN> exit


Recovery Manager complete.
    备注 为了更快地恢复，请使用 recovery_parallelism 参数启用并行会话或在数据库恢复的恢复命令中指定并行度： RECOVER DATABASE PARALLEL (DEGREE d INSTANCES DEFAULT); 。一般来说，并行度应该等于主机上的 CPU 核心数。

  17. 退出 RMAN，通过 sqlplus 以 oracle 用户身份登录 Oracle，以在不完全恢复后打开数据库并重置日志。

    SQL> select name, open_mode from v$database;

NAME      OPEN_MODE
--------- --------------------
NTAP      MOUNTED

SQL> select instance_name, host_name from v$instance;

INSTANCE_NAME
----------------
HOST_NAME
----------------------------------------------------------------
NTAP
orap


SQL> select member from v$logfile;

MEMBER
--------------------------------------------------------------------------------
+DATA/NTAP/ONLINELOG/group_3.264.1201727425
+LOGS/NTAP/ONLINELOG/group_3.259.1201727433
+DATA/NTAP/ONLINELOG/group_2.263.1201727425
+LOGS/NTAP/ONLINELOG/group_2.257.1201727431
+DATA/NTAP/ONLINELOG/group_1.262.1201727425
+LOGS/NTAP/ONLINELOG/group_1.258.1201727433

6 rows selected.

SQL> alter database rename file '+LOGS/NTAP/ONLINELOG/group_1.258.1201727433' to '/nfsgcnv/oracopy/group_1.258.1201727433';

Database altered.

SQL> alter database rename file '+DATA/NTAP/ONLINELOG/group_1.262.1201727425' to '/nfsgcnv/oracopy/group_1.262.1201727425';

Database altered.

SQL> alter database rename file '+LOGS/NTAP/ONLINELOG/group_2.257.1201727431' to '/nfsgcnv/oracopy/group_2.257.1201727431';

Database altered.

SQL> alter database rename file '+DATA/NTAP/ONLINELOG/group_2.263.1201727425' to '/nfsgcnv/oracopy/group_2.263.1201727425';

Database altered.

SQL> alter database rename file '+LOGS/NTAP/ONLINELOG/group_3.259.1201727433' to '/nfsgcnv/oracopy/group_3.259.1201727433';

Database altered.

SQL> alter database rename file '+DATA/NTAP/ONLINELOG/group_3.264.1201727425' to '/nfsgcnv/oracopy/group_3.264.1201727425';

Database altered.

SQL> alter database open resetlogs;

Database altered.

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 NTAP_PDB1                      READ WRITE NO
         4 NTAP_PDB2                      READ WRITE NO
         5 NTAP_PDB3                      READ WRITE NO

  18. 验证数据库文件现在位于 GCNV 上的备份文件系统上。

    SQL> select name from v$datafile;

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-1_6j3ql96a
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-3_6k3ql9c3
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-4_6l3ql9hu
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-5_6t3qlaa4
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-6_6p3ql9vu
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-7_723qlaif
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-8_6v3qlae9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-9_6q3qla21
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-10_6m3ql9lh
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-11_6u3qlacg
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-12_733qlaij

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-13_6r3qla52
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-14_6n3ql9ou
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-15_703qlaft
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-16_743qlaik
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSTEM_FNO-17_6s3qla7n
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SYSAUX_FNO-18_6o3ql9s9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-UNDOTBS1_FNO-19_713qlago
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-USERS_FNO-20_753qlail
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-21_5o3qkcd8
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-22_5i3qk79h
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-23_5v3qkh6o

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-24_693qkvfv
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-25_5j3qk79h
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-26_603qklqo
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-27_6a3qkvj9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-28_5k3qk79h
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-29_613qkm09
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-30_623qkm0g
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-31_6b3qkvj9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-32_5p3qkcd9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-33_5q3qkcd9
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-34_633qkm1b

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-35_6c3ql412
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-36_5r3qkcda
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-37_643qkqjf
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-38_6d3ql47q
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-39_653qkqnn
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-40_6e3ql4b5
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-41_5s3qkh37
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-42_663qkqoq
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-43_6f3ql4bo
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-44_5t3qkh4m
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-45_6g3ql91c

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE1_FNO-46_5u3qkh6o
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-47_673qkqr5
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE2_FNO-48_683qkvb4
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-49_6h3ql91s
/nfsgcnv/oracopy/data_D-NTAP_I-1379265854_TS-SOE3_FNO-50_6i3ql955

49 rows selected.

SQL> select member from v$logfile;

MEMBER
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/group_3.264.1201727425
/nfsgcnv/oracopy/group_3.259.1201727433
/nfsgcnv/oracopy/group_2.263.1201727425
/nfsgcnv/oracopy/group_2.257.1201727431
/nfsgcnv/oracopy/group_1.262.1201727425
/nfsgcnv/oracopy/group_1.258.1201727433

6 rows selected.


SQL> select name from v$controlfile;

NAME
--------------------------------------------------------------------------------
/nfsgcnv/oracopy/NTAP.ctl

  19. 其他恢复后任务

    - Add GCNV NFS mount to fstab of the standby DB server if recovering from a standby DB server so that the NFS file system will be mounted when DB server host rebooted.

- Update pfile restored to $ORACLE_HOME/dbs directory and create spfile from pfile.

  20. 要恢复到主存储，请按照第节中详述的完全相同的步骤操作 Reverse VLDB back to primary storage from backup copy。如果在备用数据库服务器上恢复，则需要将主存储导入备用数据库服务器。还需要将 Oracle 控制文件和当前在线日志文件从 GCNV nfs 挂载重新定位回主存储，这可以在几分钟的停机时间内完成。

这样就完成了从 GCNV NFS 文件系统上的备份映像副本到同一主 DB 服务器或备用 DB 服务器的 Oracle VLDB 数据库时间点恢复。

从备份映像副本克隆 Oracle VLDB 以供其他用例使用

Details

从 GCNV 上的备份映像副本克隆新的 Oracle VLDB 类似于将主数据库按时间点恢复到新的 DB 服务器。 NetApp解决方案工程团队提供了自动化工具包，以促进整个流程的快速（几分钟）和轻松实施。

以下自动化工具包包含一个剧本，可用于通过 NFS 挂载从存储在 GCNV 存储上的主数据库备份映像副本创建或刷新 Oracle VLDB 的克隆，以实现完整的克隆生命周期管理。详细内容请参考文档："通过服务器内映像备份实现 Oracle VLDB 克隆生命周期自动化" 。

https://bitbucket.ngage.netapp.com/mvc/projects/NS-BB/repos/na_oracle_bkup_clone/browse
备注 目前，只有具有 bitbucket 访问权限的NetApp内部用户才能访问该工具包。对于感兴趣的外部用户，请向您的客户团队请求访问权限或联系NetApp解决方案工程团队。

在哪里可以找到更多信息

要了解有关本文档中描述的信息的更多信息，请查看以下文档和/或网站：
