View consumption and health of your Keystone MetroCluster subscriptions
Suggest changes
PDFs
When you subscribe to the advanced data protection add-on service, you can view consumption data for your MetroCluster partner sites in either the NetApp Console or Digital Advisor. In the NetApp Console, you can also monitor the replication status and health of your MetroCluster setup.
View MetroCluster subscriptions consumption and health status
Follow the steps below:
-
From the Console left navigation menu, select Storage > Keystone > Subscriptions.
-
Select the MetroCluster subscription in the Subscription number column.
MetroCluster subscriptions are identified by the
icon.
The Current consumption tab opens and displays consumption insights for your subscribed base performance service levels and their corresponding advanced data protection performance service levels. You can view this information in a tabular or graphical format. To learn more, refer to View the current consumption of your Keystone subscriptions.
-
Select the Advanced data protection (ADP) tab.
On this tab, you can view consumption data for your base performance service levels at both primary and mirror sites, monitor the health status of your MetroCluster setup, and track its sync status.
-

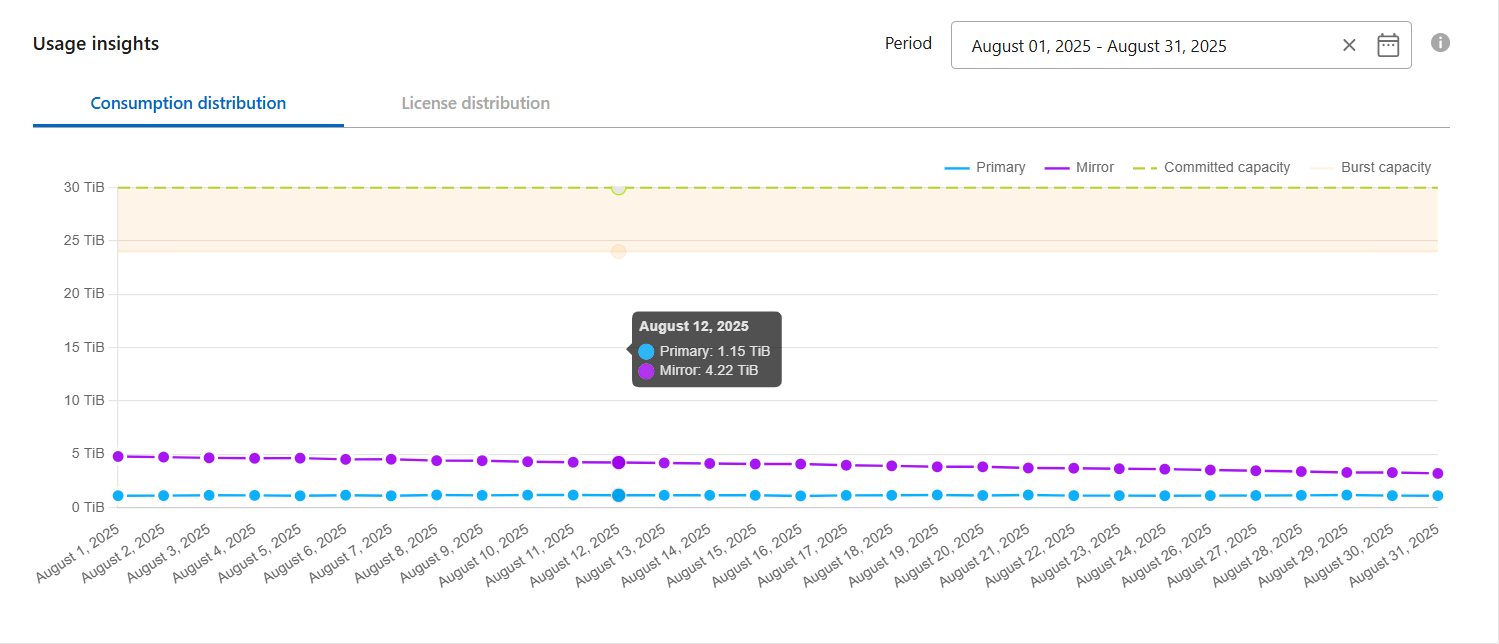

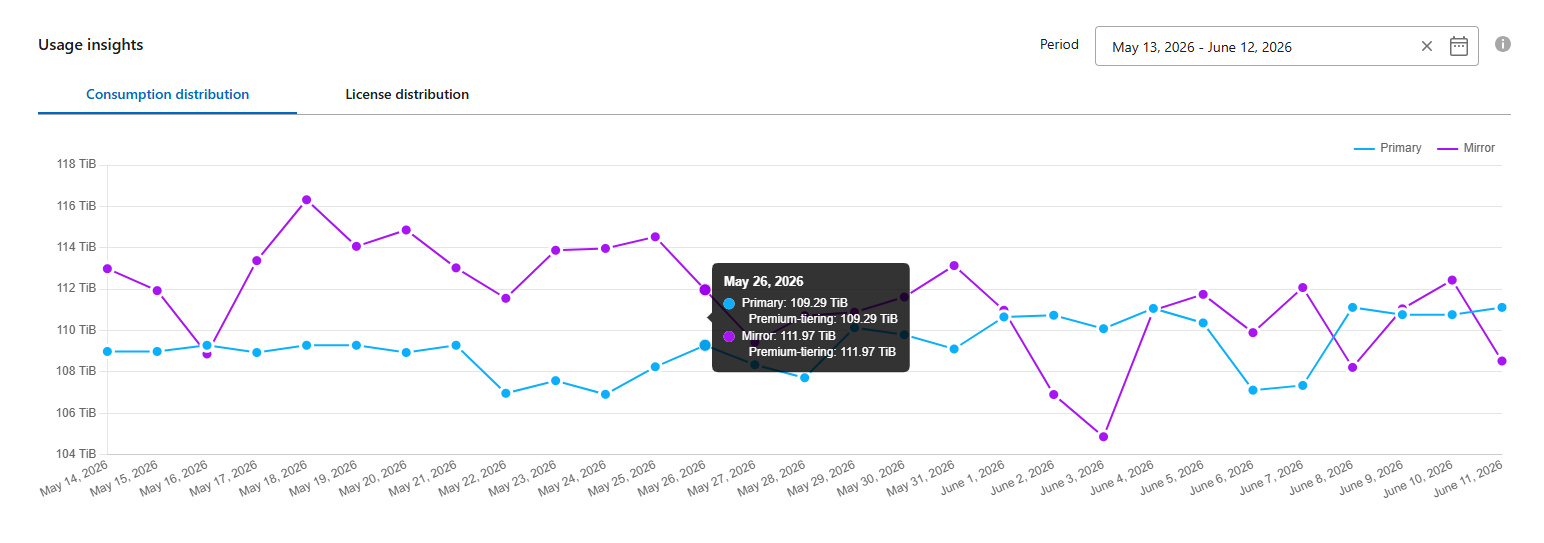

View the consumption distribution chart for your selected time period.
The chart shows consumption for both your primary and mirror sites. Hover over the chart to see the consumption breakdown in tebibytes (TiB) for each site.
For the base performance service levels, each volume is charged as provisioned at both the primary and mirror sites. The chart is therefore split to reflect consumption at each site. Example:
The tooltip displays consumption values such as 1.15 TiB for the primary site and 4.22 TiB for the mirror site.
-

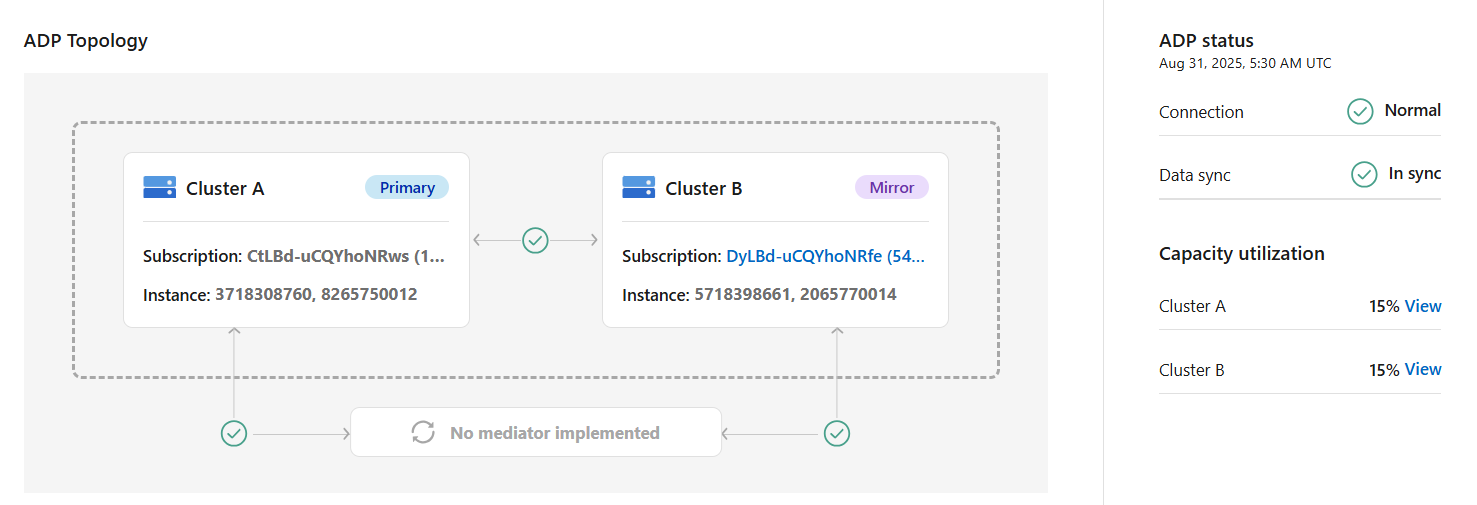

Monitor the health status of your MetroCluster setup in the ADP Topology view.
The topology displays the connection status between the primary and mirror sites (normal, degraded, disconnected, or initializing), the data synchronization status (in sync or out of sync), and the ONTAP Mediator status if configured. To learn more about ONTAP Mediator, refer to Learn about ONTAP Mediator.
You can select the Cluster B subscription (mirror) from the ADP topology to view it as the primary site.
If the sync status shows out of sync or the connection status shows degraded, refer to Get help with Keystone to troubleshoot the issue. -
View historical consumption trends for the primary or mirror site.
Under Capacity utilization, select View next to either Cluster A (primary) or Cluster B (mirror).
The Consumption trend tab opens and displays historical consumption data for the selected cluster over a specified date range. You can analyze capacity usage trends for both base and advanced data protection performance service levels. To learn more, refer to View consumption trends for your Keystone subscriptions.
Example:

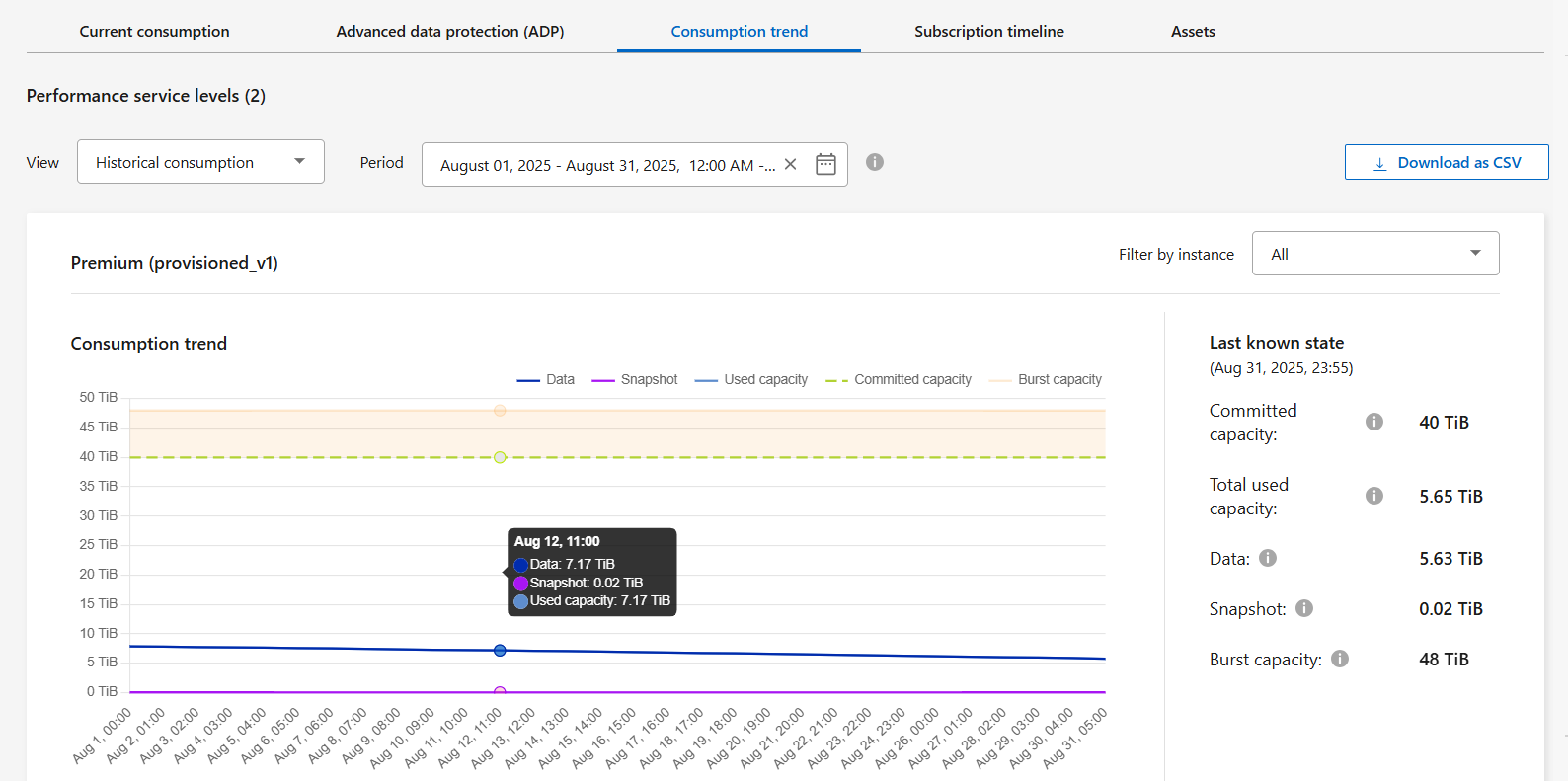

The following chart shows consumption for the Premium performance service level (base) for the primary site (Cluster A):

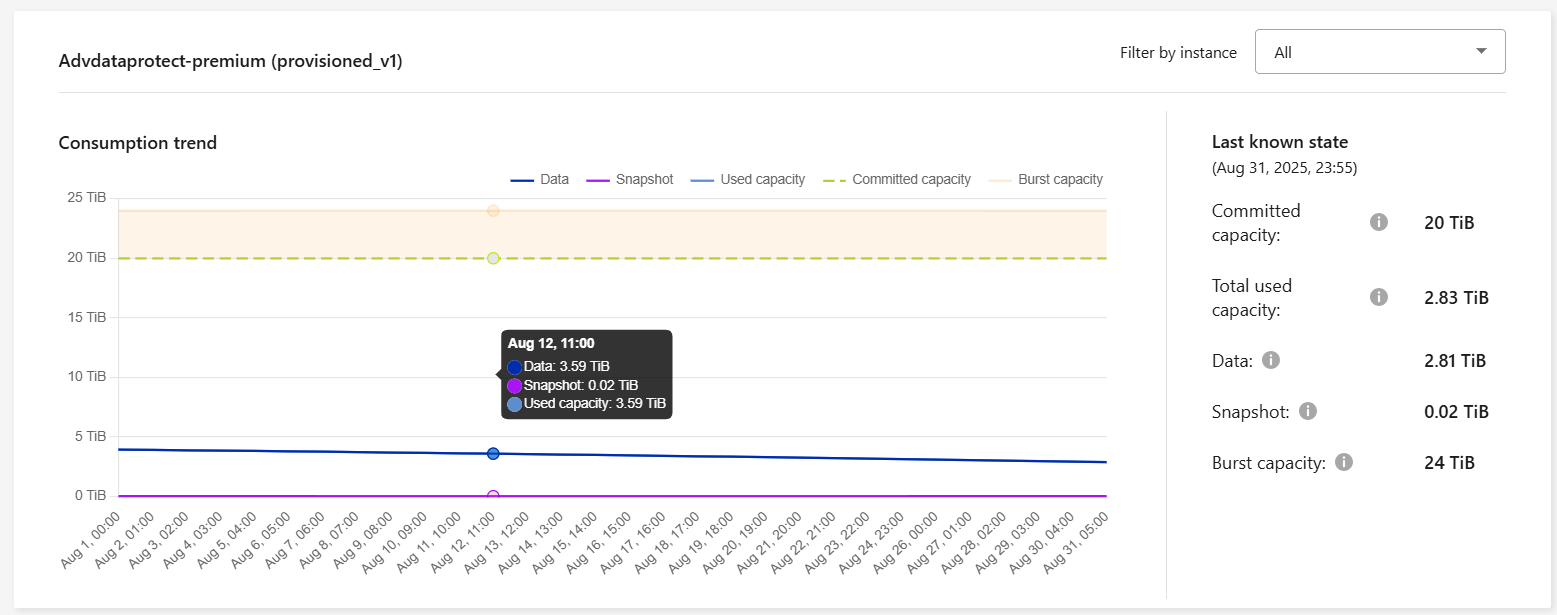

For the Advanced Data-Protect premium performance service level, the chart appears like this for the primary site (Cluster A):
For the Advanced Data-Protect performance service level, the total consumption is split between the primary and mirror sites, and the usage at each site is reflected and billed in a separate subscription; one subscription for the primary site, and another for the mirror site. That is the reason why, when you select the subscription number for the primary site on the Consumption trend tab, the consumption charts for the advanced data protection add-on service display the discrete consumption details of only the primary site. Because each partner site in a MetroCluster configuration acts both as a source and mirror, the total consumption at each site includes the source and the mirror volumes created at that site. For more information, refer to Advanced data protection add-on for Keystone.
-
For information about how MetroCluster protects your data, see Understanding MetroCluster data protection and disaster recovery.
-
Select General > Keystone Subscriptions > Consumption Trend.
-
Select the MetroCluster subscription.
If the clusters in your ONTAP storage environment are configured in a MetroCluster setup, the consumption data of your Keystone subscription is split in the same historical data chart to display the consumption at the primary and mirror sites for the base performance service levels.
The consumption bar charts are split for only the base performance service levels. For advanced data protection add-on service, that is the Advanced Data-Protect performance service level, this demarcation does not appear.
The tooltip next to the tracking ID of your subscription in the Current Consumption tab helps you identify the partner subscription in the MetroCluster setup.
For information about how MetroCluster protects your data, see Understanding MetroCluster data protection and disaster recovery.
