Platform port assignments for a 36-port Cisco 9336C-FX2 switch connecting NS224 storage in a MetroCluster IP configuration
Suggest changes
PDFs
The port usage in a MetroCluster IP configuration depends on the switch model and platform type.
Review the following considerations before using the configuration tables:
-
The tables in this section are for 36-port Cisco 9336C-FX2 switches when at least one MetroCluster configuration or DR group is connecting NS224 shelves to the MetroCluster switch.
If you have a 36-port Cisco 9336C-FX2 switch that isn't connecting NS224 storage, use the tables in Platform port assignments for Cisco 3232C or 36-port Cisco 9336C-FX2 switches.
If you have a 12-port Cisco 9336C-FX2 switch, use the tables in Platform port assignments for 12-port Cisco 9336C-FX2 switches .
The 12-port Cisco 9336C-FX2 switch doesn't support connecting NS224 shelves to the MetroCluster switch. -
When you cable a Cisco 9336C-FX2 switch connecting NS224 storage, you can only have a maximum of two MetroCluster configurations or DR groups. At least one MetroCluster configuration or DR group must be connecting NS224 shelves to the MetroCluster switch. You can only connect platforms that don't connect switch-attached NS224 shelves as a second MetroCluster configuration or as a second DR group.
If your second MetroCluster or DR group doesn't connect NS224 shelves to the MetroCluster switch, follow the cabling tables for controllers not connecting switch-attached NS224 shelves.
-
The RcfFileGenerator only shows eligible platforms when the first platform is selected.
-
Connecting one eight-node or two four-node MetroCluster configurations requires ONTAP 9.14.1 or later.
Choose the correct cabling table for your configuration
Review the correct port assignments table for your configuration. There are two sets of cabling tables in this section:
Controllers connecting switch-attached NS224 shelves
Determine which port assignments table you should follow for controllers connecting switch-attached NS224 shelves.
| Platform | Use this cabling table… |
|---|---|
AFF C30, AFF A30 AFF C60 |
The table you follow depends on whether you are using a 25G (group 1a) or 100G (group 1b) Ethernet card. |
AFF A320 AFF C400, ASA C400 AFF A400, ASA A400 |
Cisco 9336C-FX2 switch connecting NS224 storage platform port assignments (group 2) |
AFF A50 |
Cisco 9336C-FX2 switch connecting NS224 storage platform port assignments (group 3) |
AFF A700 AFF C800, ASA C800, AFF A800 AFF A900, ASA A900 |
Cisco 9336C-FX2 switch connecting NS224 storage platform port assignments (group 4) |
AFF A70 AFF C80 AFF A90 AFF A1K |
Cisco 9336C-FX2 switch connecting NS224 storage platform port assignments (group 5) |
Review the platform port assignments to cable an AFF A30, AFF C30, or AFF C60 system that is connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch using a four-port 25G Ethernet card.
|
|
This configuration requires a four-port 25G Ethernet card in slot 4 to connect the local cluster and HA interfaces. |
Review the platform port assignments to cable an AFF A30, AFF C30, or AFF C60 system that is connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch using a two-port 100G Ethernet card.
|
|
This configuration requires a two-port 100G Ethernet card in slot 4 to connect the local cluster and HA interfaces. |
Review the platform port assignments to cable an AFF A320, AFF C400, ASA C400, AFF A400, or ASA A400 system that is connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Review the platform port assignments to cable an AFF A50 system that is connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Review the platform port assignments to cable an AFF A700, AFF C800, ASA C800, AFF A800, AFF A900, or ASA A900 system that is connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Note 1: Use either ports e4a and e4e or e4a and e8a if you are using an X91440A adapter (40Gbps). Use either ports e4a and e4b or e4a and e8a if you are using an X91153A adapter (100Gbps).

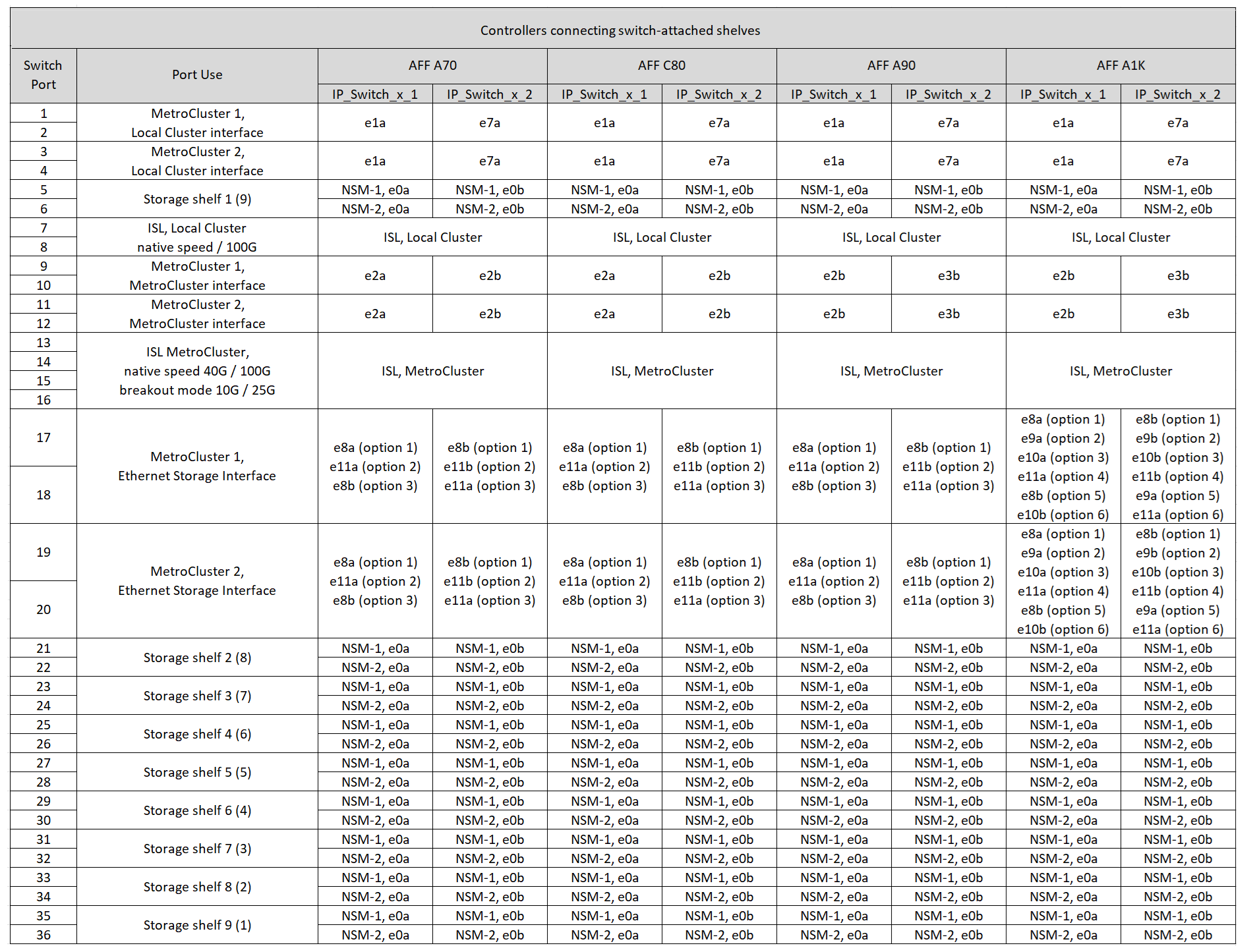

Review the platform port assignments to cable an AFF A70, AFF C80, AFF A90, or AFF A1K system that is connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Controllers not connecting switch-attached NS224 shelves
Determine which port assignments table you should follow for controllers that are not connecting switch-attached NS224 shelves.
Review the platform port assignments to cable an AFF A150, ASA A150, FAS2750, or AFF A220 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Review the platform port assignments to cable an AFF A20 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Review the platform port assignments to cable a FAS500f, AFF C250, ASA C250, AFF A250, or ASA A250 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:

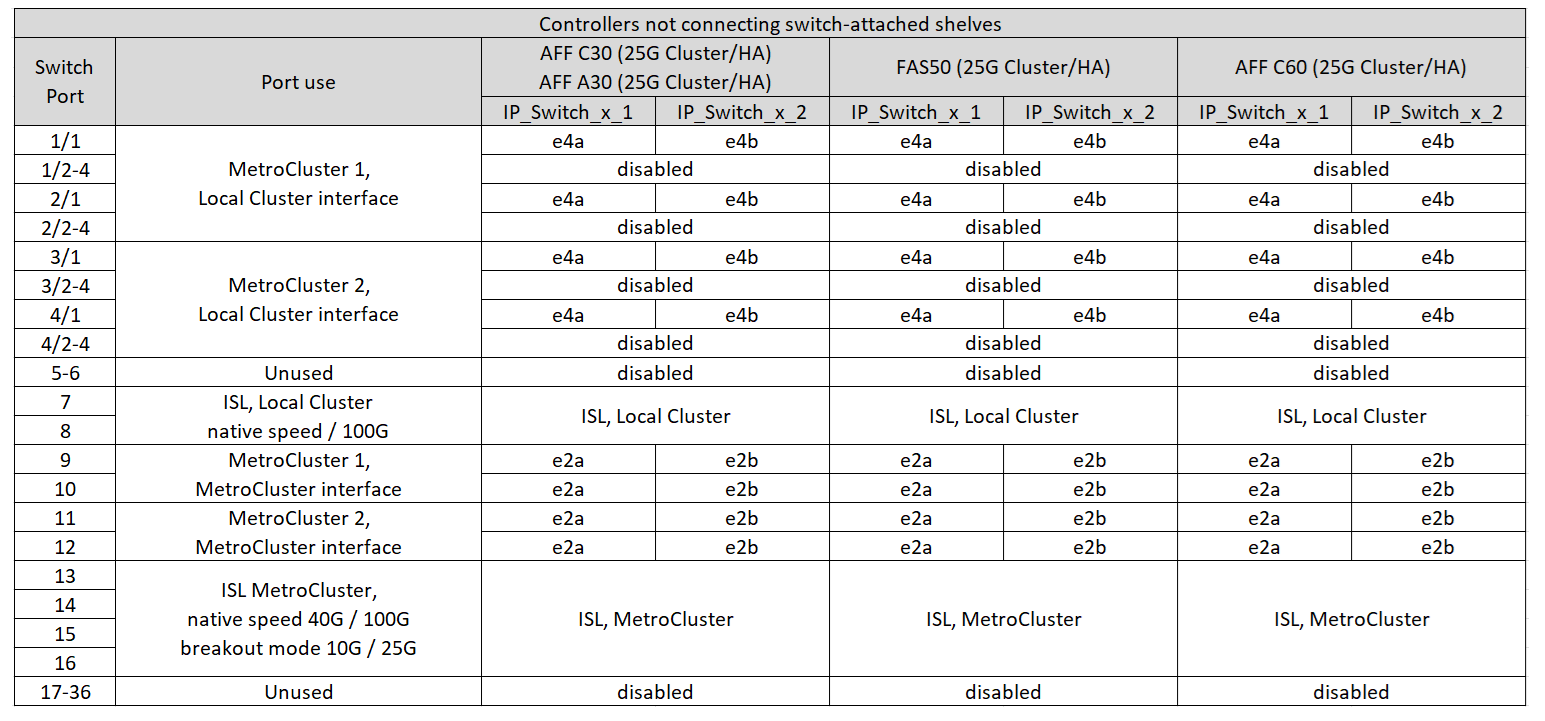

Review the platform port assignments to cable an AFF A30, AFF C30, AFF C60, or FAS50 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch using a four-port 25G Ethernet card:
|
|
This configuration requires a four-port 25G Ethernet card in slot 4 to connect the local cluster and HA interfaces. |

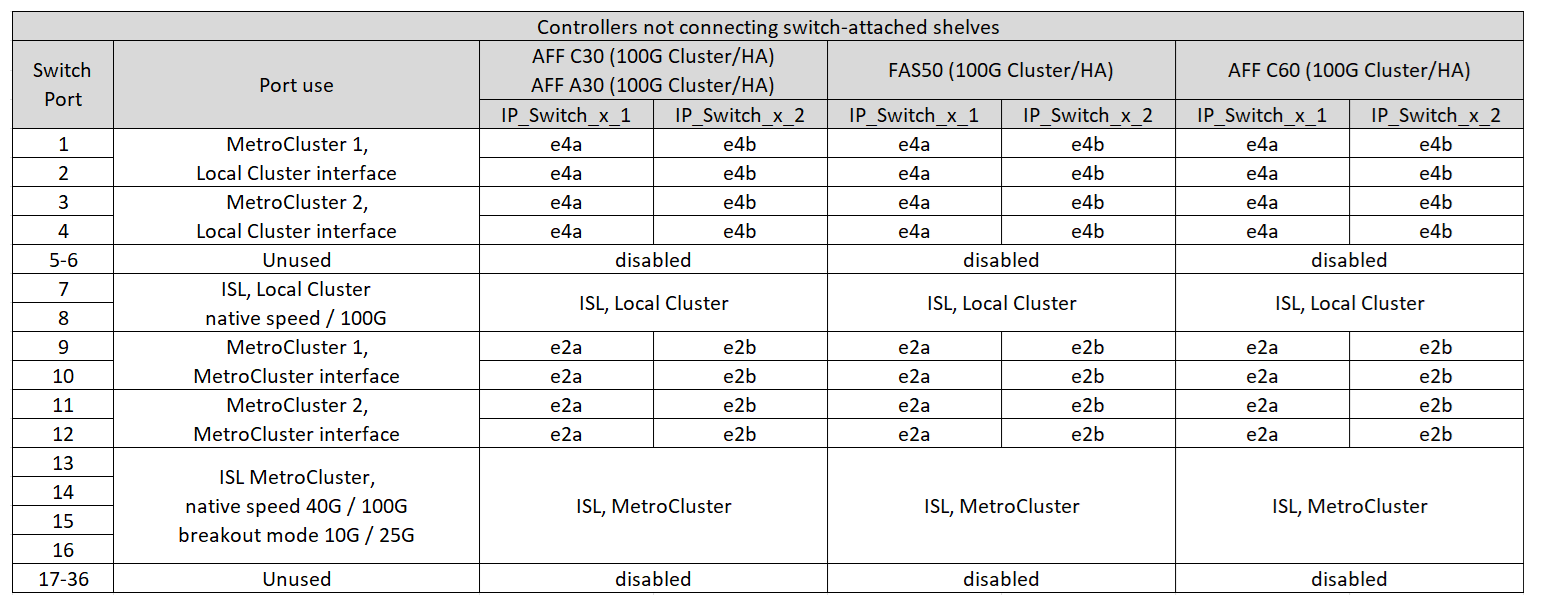

Review the platform port assignments to cable an AFF A30, AFF C30, AFF C60, or FAS50 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch using a two-port 100G Ethernet card:
|
|
This configuration requires a two-port 100G Ethernet card in slot 4 to connect the local cluster and HA interfaces. |
Review the platform port assignments to cable a FAS8200 or AFF A300 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Review the platform port assignments to cable an AFF A320, FAS8300, AFF C400, ASA C400, FAS8700, AFF A400, or ASA A400 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:

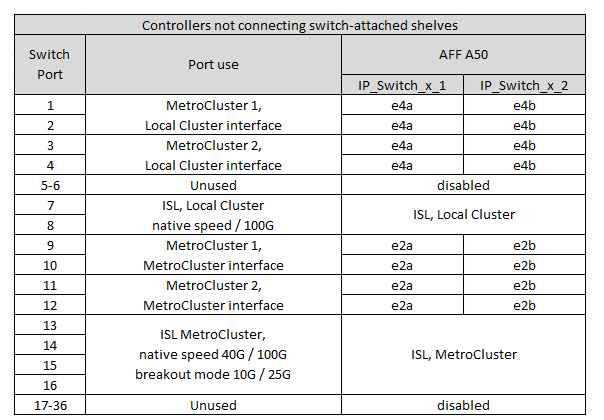

Review the platform port assignments to cable an AFF A50 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Review the platform port assignments to cable a FAS9000, AFF A700, AFF C800, ASA C800, AFF A800, ASA A800, FAS9500, AFF A900, or ASA A900 system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
Note 1: Use either ports e4a and e4e or e4a and e8a if you are using an X91440A adapter (40Gbps). Use either ports e4a and e4b or e4a and e8a if you are using an X91153A adapter (100Gbps).

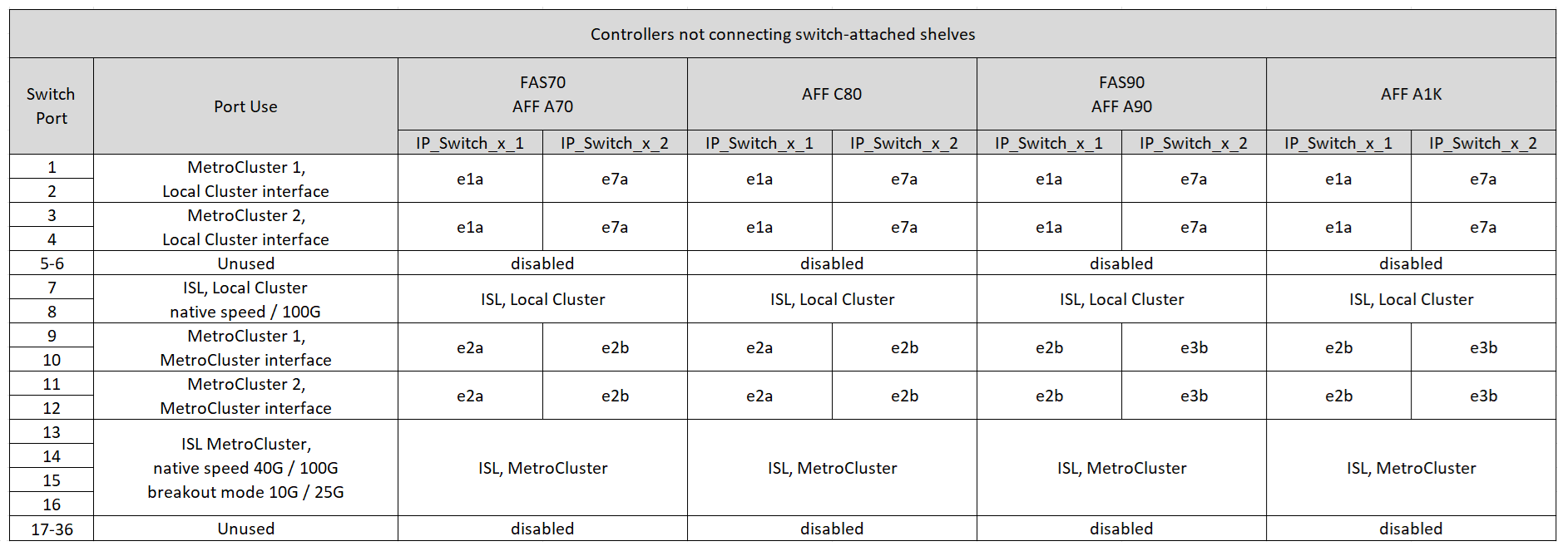

Review the platform port assignments to cable an AFF A70, FAS70, AFF C80, FAS90, AFF A90, or AFF A1K system that isn't connecting switch-attached NSS24 shelves to a Cisco 9336C-FX2 switch:
